      IC695CPE305

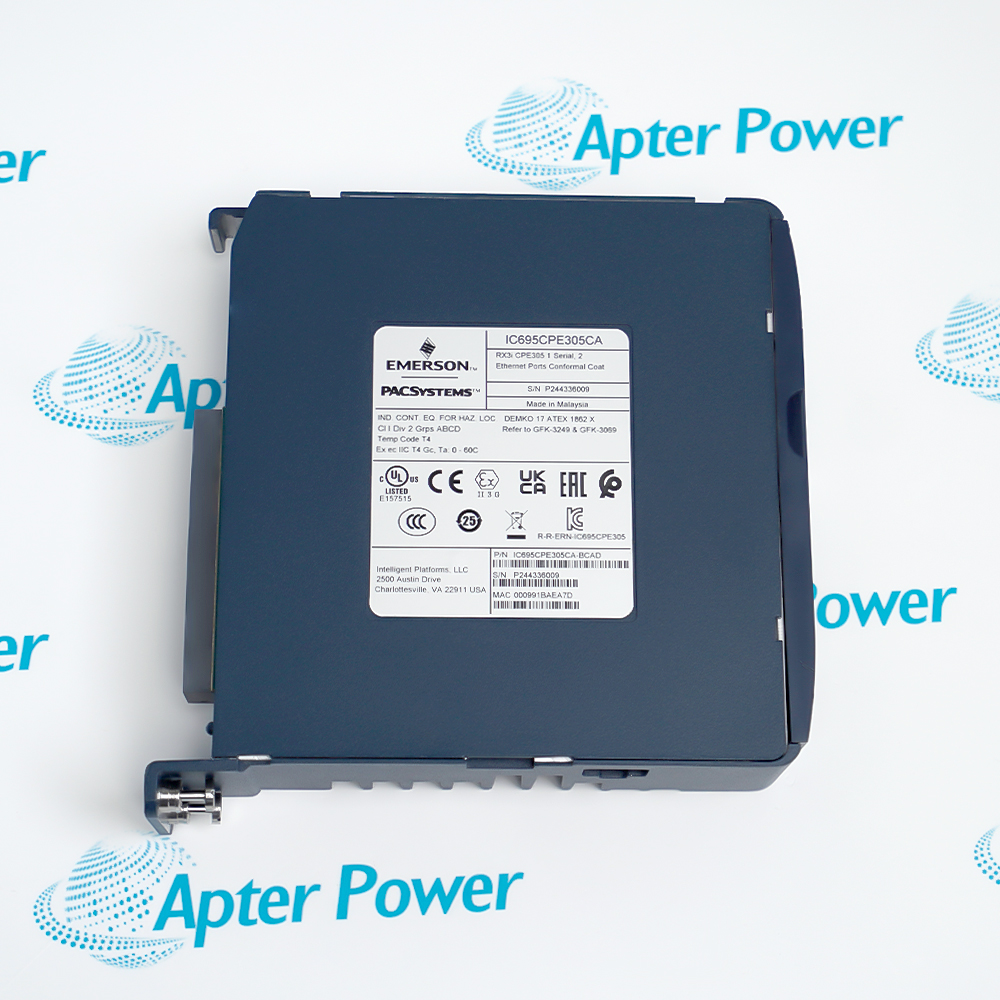

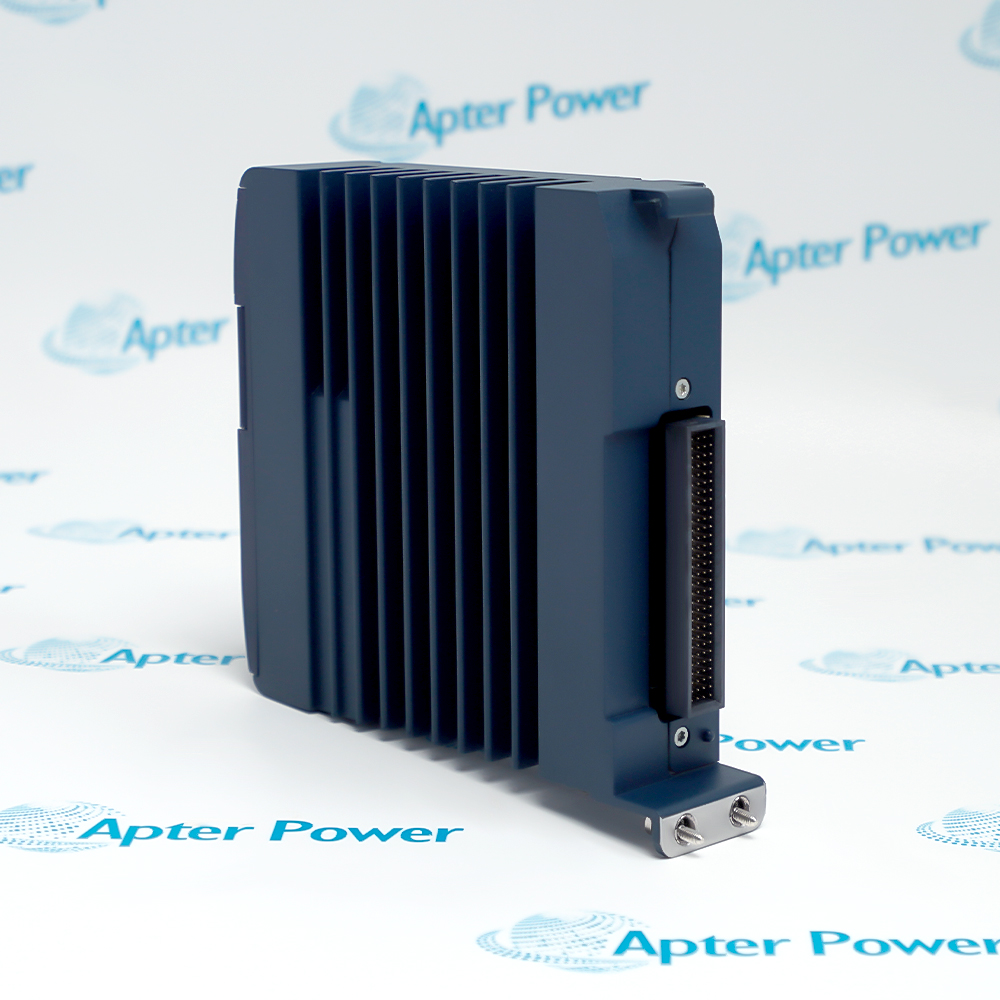

      PACSystems RX3i CPE305 Controller
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      PACSystems RX3i programmable automation controller

      Ask our team:

      Get a quick price for： IC695CPE305
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC695CPE305

      Technical specifications for IC695CPE305

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC695CPE305
      • Estimated shipping dimensions:
        3.4x14.2x14.1cm
      • Weight:
        0.65 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller platform:
        PACSystems RX3i
      • Form factor:
        Backplane
      • User memory:
        6 MB
      • Discrete I/O capacity:
        32k bits
      • Analog I/O capacity:
        32k words
      • Energy pack:
        Included
      • Ethernet interface:
        Two-port 10/100/1000 switch
      • Ethernet protocols:
        SRTP, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3, IEC 61850, IEC 104, HART pass-through
      • Serial protocols:
        ASCII and Modbus RTU
      • Remote I/O capacity:
        255 simplex devices with IC695PNC001
      • USB interface:
        1 x USB-A 2.0
      • Media redundancy:
        MRP with IC695PNC001
      • Operating temperature:
        0 to 60 degC
      • Marine certifications:
        ABS, BV, LR, DNV GL
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC695CPE305 is a PACSystems RX3i programmable automation controller. It executes the machine or process-control program and exchanges controller, I/O and supervisory data over its embedded Ethernet, serial and USB interfaces.
      • Executes deterministic RX3i control logic from a single-slot backplane position
      • Combines controller, Ethernet switching and serial communication interfaces
      • Coordinates local and PROFINET remote I/O through an engineered PACSystems project
      • Retains controller data through the supplied energy-pack power-loss sequence

      IC695CPE305 installs with compatible IC695 RX3i universal backplane, approved RX3i power supply and energy pack, IC695PNC001 when PROFINET I/O or MRP is configured, PAC Machine Edition project and validated industrial Ethernet topology in an engineered PACSystems RX3i Controllers configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this pacsystems rx3i cpe305 controller.

      Important Notice: Confirm the complete IC695CPE305 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power IC695CPE305 Manuals and Guides
      Apter Power IC695CPE305 Product Technical Reference PDFApter Power IC695CPE305 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      RX3i machine-sequence and interlocking controlExecutes deterministic RX3i control logic from a single-slot backplane position
      Process skids with mixed local and PROFINET remote I/OCombines controller, Ethernet switching and serial communication interfaces
      Supervisory integration through SRTP, Modbus TCP/IP or OPC UACoordinates local and PROFINET remote I/O through an engineered PACSystems project
      Protocol-gateway duties using IEC, DNP3 or HART pass-through optionsRetains controller data through the supplied energy-pack power-loss sequence
      Read the applicable GE installation instructions before work. Verify IC695CPE305 and the installed PACSystems RX3i Controllers configuration.
      1Confirm the complete IC695CPE305 hardware suffix, firmware revision and approved backplane revision before installation.
      2Place the controlled process in the approved maintenance state and isolate rack power before changing the controller.
      3Use ESD controls and protect the backplane, Ethernet, serial, USB and energy-pack connectors during handling.
      4Record the PAC Machine Edition hardware configuration, controller memory, IP addressing and protocol settings before replacement.
      5Verify the energy-pack connection and allow the documented data-retention sequence to complete before removing power.
      6Match IC695PNC001 firmware and the engineered MRP or PROFINET topology when remote I/O is configured.
      7Restore fieldbus, OPC UA, EGD and serial channels only after the controller identity and project have been validated.
      8Commission IC695CPE305 with controlled I/O forcing, diagnostics and end-to-end protocol tests before production release.

      Technical notes

      Technical notes

      Install IC695CPE305 in a qualified RX3i universal backplane and match the backplane hardware revision to the controller firmware. Preserve the PAC Machine Edition project, Ethernet identity, energy-pack connection and remote-I/O configuration before replacement or firmware service.

      FAQS

      • Which backplane is required for IC695CPE305?
        IC695CPE305 is a backplane-form PACSystems RX3i controller. Use a qualified IC695 universal backplane revision listed for the installed controller firmware.
      • How much user memory does IC695CPE305 provide?
        The current Emerson product specification lists 6 MB of user memory for IC695CPE305.
      • Which Ethernet services can IC695CPE305 support?
        The official product specification lists SRTP client/server, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3 outstation, IEC 61850 client, IEC 104 server and HART pass-through capabilities.
      • How is PROFINET remote I/O connected to IC695CPE305?
        The official specification identifies IC695PNC001 for PROFINET remote-I/O operation, including up to 255 simplex remote devices in the documented arrangement.
      • What should be backed up before replacing IC695CPE305?
        Back up the PAC Machine Edition project, hardware configuration, retained memory strategy, IP addresses, Ethernet protocol settings, serial-channel setup and remote-I/O topology.
      • Why is the energy pack important on IC695CPE305?
        The controller includes an energy pack that supports the documented power-loss data-retention sequence; its connection and condition must be checked before commissioning.
      • How should engineers commission IC695CPE305 after installation?
        Verify rack recognition, controller status, the downloaded project and retained data, then test local I/O, remote I/O, Ethernet services and serial channels under controlled conditions.
      • Can an IC695CPE305 firmware revision be selected without checking the hardware suffix?
        No. Controller compatibility notes and feature support vary by hardware and firmware revision, so the complete catalog suffix and installed backplane revision must be recorded before an update.
