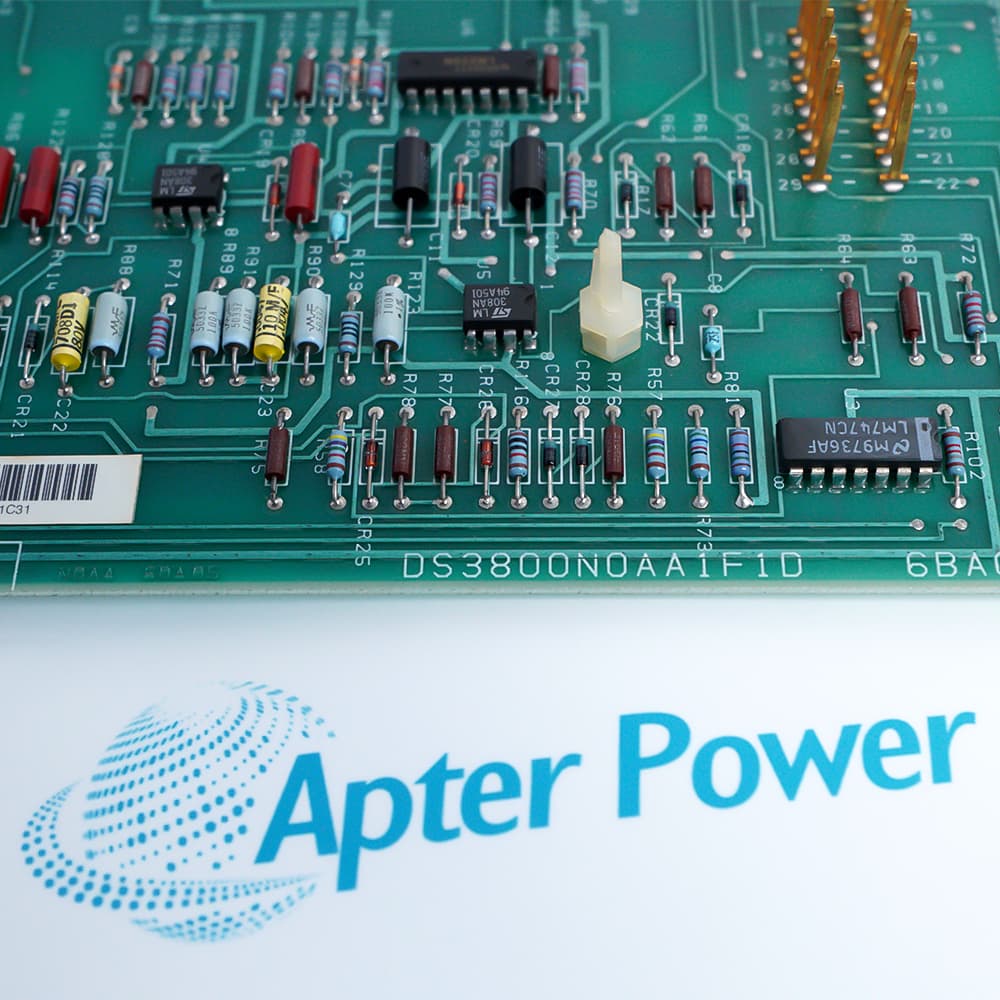

DS3800NOAA1F1D

Operational Amplifier Circuit Board
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

GE DS3800NOAA1F1D is offered as an operational amplifier circuit board for the appropriate installed GE control system. Confirm the complete marking and system configuration before replacement.
  • Manufacturer part number
    DS3800NOAA1F1D
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    19.2cm × 1.7cm × 23.4cm
  • Country of Origin
    USA
Get a quick price for DS3800NOAA1F1D
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Identify the installed assembly

    Provide the full DS3800NOAA1F1D marking, installed rack position, board revision and the relevant system drawing. These details identify the circuit and help assess the proposed replacement.

  • 1

    Review the offered board

    Request current front, rear, connector and identification-label photographs of the offered DS3800NOAA1F1D. Compare the complete marking and revision with the installed assembly before approving the quotation.

  • 2

    Confirm quotation and dispatch

    Confirm whether the quotation covers only DS3800NOAA1F1D or also agreed accessories and documents. Confirm available quantity, condition, shipping method and dispatch date in the written offer.

  • Match the complete marking

    Include DS3800NOAA1F1D and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.

  • Check the offered item before ordering

    Request available label and connector photos. Have your maintenance team compare the offered DS3800NOAA1F1D with the installed equipment and applicable GE documentation.

Technical specifications for DS3800NOAA1F1D

  • Manufacturer:
    General Electric
  • Product Category:
    General Automation
  • Spare Part Number:
    DS3800NOAA1F1D
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Board family:
    DS3800
  • Board function:
    Operational amplifier circuit
  • Control platform:
    SPEEDTRONIC Mark IV
  • Offered execution:
    NOAA1F1D
  • Interface boundary:
    Installed rack and associated signal circuit

Information

Overview Downloads Applications / Compatibility Product Precautions
  • DS3800NOAA1F1D serves the operational amplifier circuit board role in a configured General Electric system; selection starts with the installed host and full marking.
Diagnostic path: Separate upstream signal, board output and downstream load
Service record: Preserve trim settings and as-found signal readings
Acceptance: Verify the affected control loop
DS3800NOAA1F1D is an operational-amplifier board in the GE DS3800 legacy control-board family. Its function belongs to the analog signal path within the installed Mark IV configuration; the complete board marking identifies the required execution.

An operational-amplifier board can condition or amplify a control signal only in the circuit for which it was engineered. The signal polarity, gain network, connector assignment and companion boards must be established from the installed drawings and the removed board, rather than inferred from the family name.

Replacement planning should preserve the original slot, edge connector, board revision and any fitted calibration components. Record baseline input and output indications before removal and compare the affected control response after the approved maintenance procedure.
Controller platform reference: General Electric GE control platform. Match the installed configuration and interfaces.
Technical downloads for General Electric DS3800NOAA1F1D: an Apter Power technical reference and an installation and commissioning guide.
These Apter Power documents support product identification and service planning. Apply the approved system and site procedures during installation.
Application context: Within a configured SPEEDTRONIC Mark IV cabinet, DS3800NOAA1F1D supports the analog signal-conditioning path assigned to its rack position.

Compatibility scope: Compatibility depends on the NOAA1F1D execution, mating rack connector, analog signal polarity and approved circuit drawing; a DS3800 family match alone is insufficient.
Installation and commissioning checks for General Electric DS3800NOAA1F1D.
Identify the rack position

Record the exact slot and connector assignment before removal.

Protect analog inputs

Isolate the equipment and use the approved ESD handling method.

Preserve calibration

Document any adjustable components and their as-found positions.

Check connector seating

Inspect contacts and mechanical retainers before energization.

Reconcile the drawing

Match board revision and circuit designation to the installed project drawing.

Verify control response

Compare baseline and restored loop indications under the site procedure.

Alternative Names

GE DS3800NOAA1F1D

Technical notes

Technical basis: GE SPEEDTRONIC Mark IV system literature; exact DS3800NOAA1F1D electrical ratings require the installed board drawing.

Applicability: DS3800 and Mark IV identify the documented family context. No exact-model gain, voltage or temperature rating is assigned without a corresponding GE board drawing.

FAQ View All FAQ

  • How should the analog path be traced when replacing DS3800NOAA1F1D?
    Use the installed wiring diagram to identify the board input, output and companion circuit; record as-found signals before removal.
  • What could make the output of DS3800NOAA1F1D appear saturated?
    Check upstream signal limits, supply rails, connector seating, downstream loading and any fitted gain network before concluding the board is faulty.
  • How can the revision of DS3800NOAA1F1D affect a replacement?
    A board revision can change fitted components or circuit behavior; compare complete markings and the approved engineering change record.
  • Should trim settings be copied blindly to DS3800NOAA1F1D?
    No. Record the original setting and apply the project calibration procedure under a known test condition.
  • Why is the host slot relevant to DS3800NOAA1F1D?
    The rack position establishes the mating connector and signal path; a physically similar slot does not prove electrical interchangeability.
  • How should an intermittent signal involving DS3800NOAA1F1D be investigated?
    Inspect edge contacts, retainers, wiring continuity and vibration-sensitive connections while following the permitted test procedure.
  • What records help confirm DS3800NOAA1F1D was restored correctly?
    Keep as-found and as-left signal readings, slot identification, board revision and the affected control-loop test result.
  • Can an unverified DS3800 suffix replace DS3800NOAA1F1D?
    Not by family resemblance alone. Compare circuit drawing, revision and installed application before approving a substitute.
