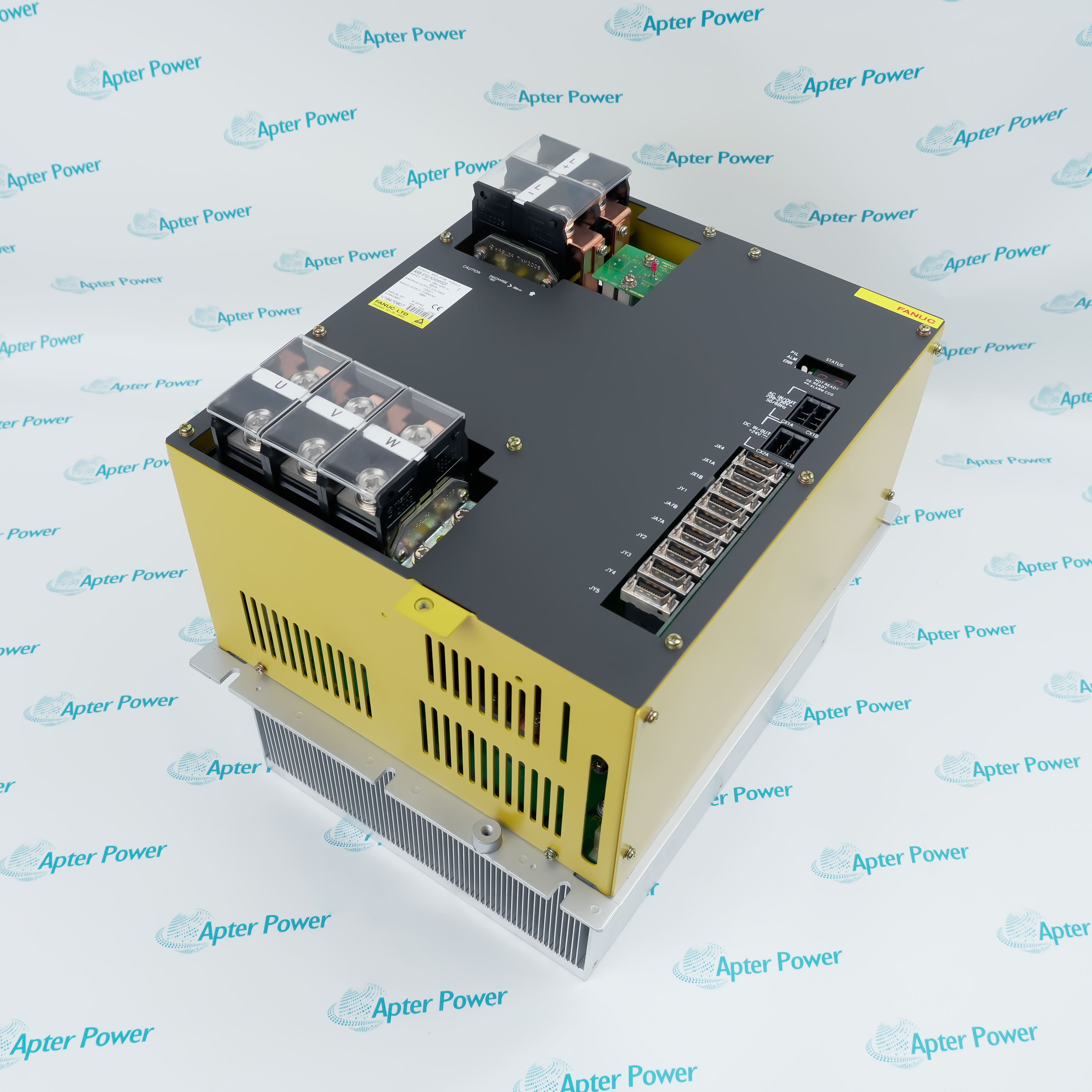

The A06B-6102-H245 #H520 is an Alpha series high-performance spindle amplifier module (SPM-45) utilized in CNC machine tool automatic control systems. Serving as a core power control unit for machining centers and CNC lathes, this module receives speed and torque commands from the CNC system to provide precise speed regulation and dynamic control for heavy-duty spindle motors.
7-segment LED status display
230 V maximum output voltage
198 A rated output current

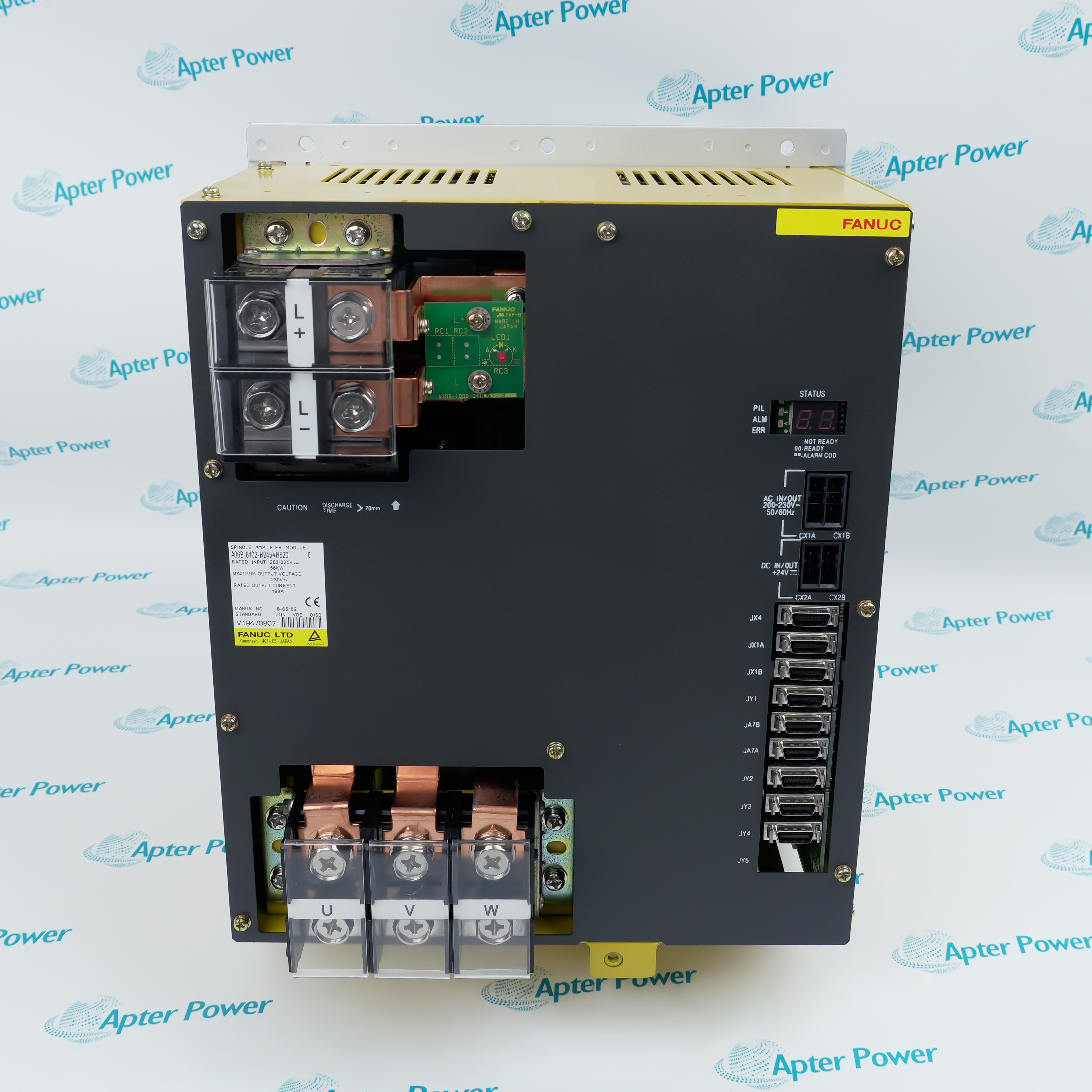

The module features a rugged modular construction. The front casing has a 7-segment LED display to show operational status, ready signals, and fault codes. The front panel of the A06B-6102-H245 #H520 has a 7-segment LED display to show operational status, ready signals, and fault codes.
The screen displays the operating status, ready indicators, and fault diagnostics information. For installation environments, this module requires a vertical mount inside an electrical cabinet, withstanding a maximum of 90% non-condensing relative humidity and a 0.5G vibration limit.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric A06B-6102-H245 #H520 Fanuc Alpha Spindle Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Controls high-speed cutting and rigid tapping on CNC machine spindles along automotive powertrain production lines.
Aerospace Manufacturing
Drives large 5-axis machining center spindles for heavy-duty cutting of titanium and aluminum aircraft structural components.
Mold & Die Manufacturing
Regulates high-precision gantry machining center spindles for rough and finish machining of large automotive stamping dies.
Rail Transportation Equipment
Operates heavy-duty turning spindles on dedicated railway wheelset lathes for high-hardness wheels.
Wind Power Generation
Controls extra-large CNC vertical lathe and boring machine spindles for precision roughing of wind turbine gearboxes and hubs.
Heavy Power Generation Equipment
Drives ultra-heavy spindles on special CNC machines for processing gas turbine and large generator rotors.
When using the A06B-6102-H245 #H520 module, connect it to a three-phase 283–325 VAC input and keep the operating current below 198 A. Maintain the electrical cabinet temperature between 0 and 55°C, with relative humidity under 90% without condensation, and keep vibration below 0.5G. Monitor status via the 7-segment LED display during operation, and do not plug or unplug any connectors while the power is on.
The A06B-6102-H245 #H520 module features a 7-segment LED for status and alarm display, utilizes forced-air cooling, and controls speed and torque for large spindle motors in CNC machine tools.
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
What is A06B-6102-H245 #H520?
This FANUC Alpha spindle amplifier module (SPM-45) controls spindle motors in CNC machine tools.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
What is the power rating of A06B-6102-H245 #H520?
The rated output power of this module is 56 kilowatts.
What is the rated output current of A06B-6102-H245 #H520?
Its rated output current is 198 Amperes.
