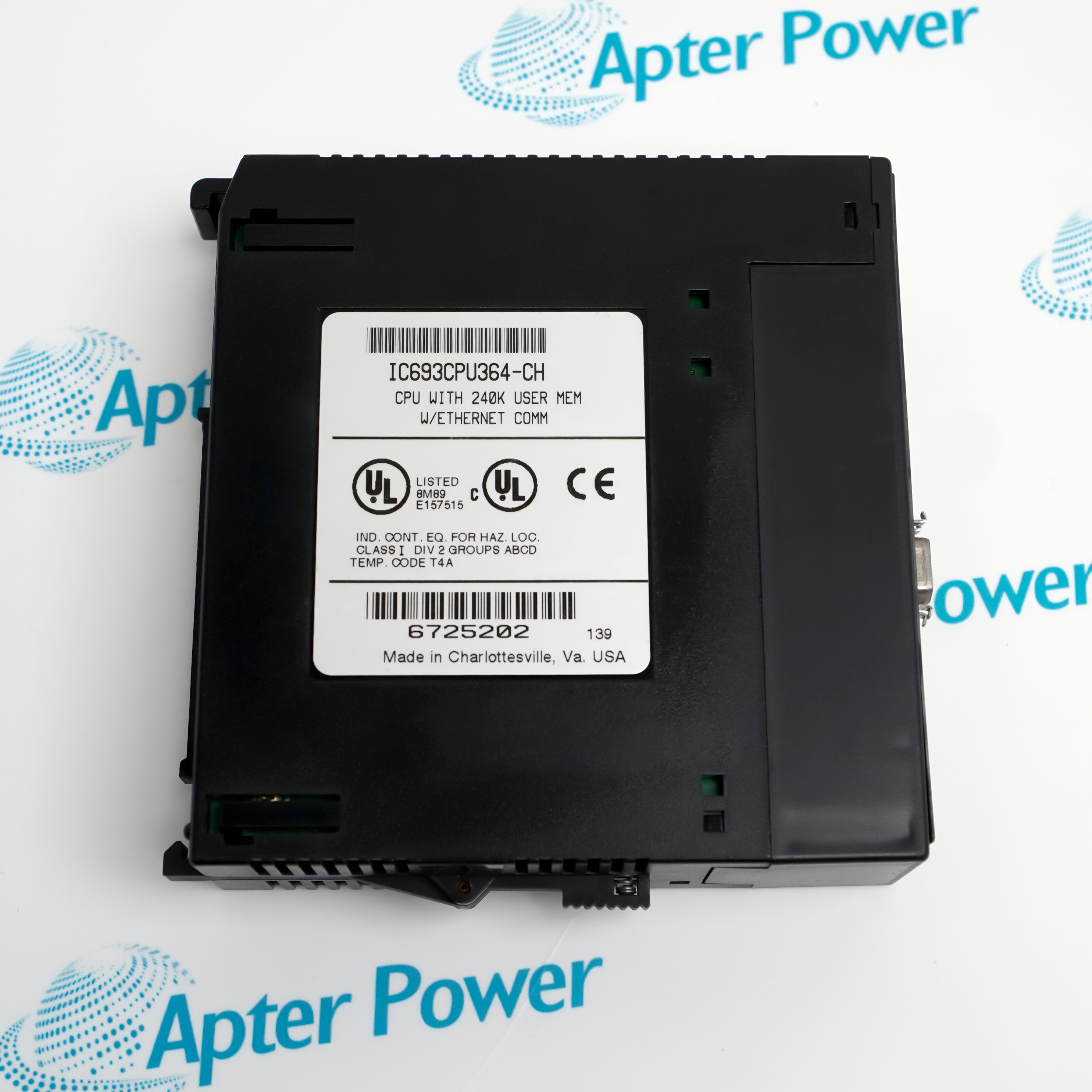

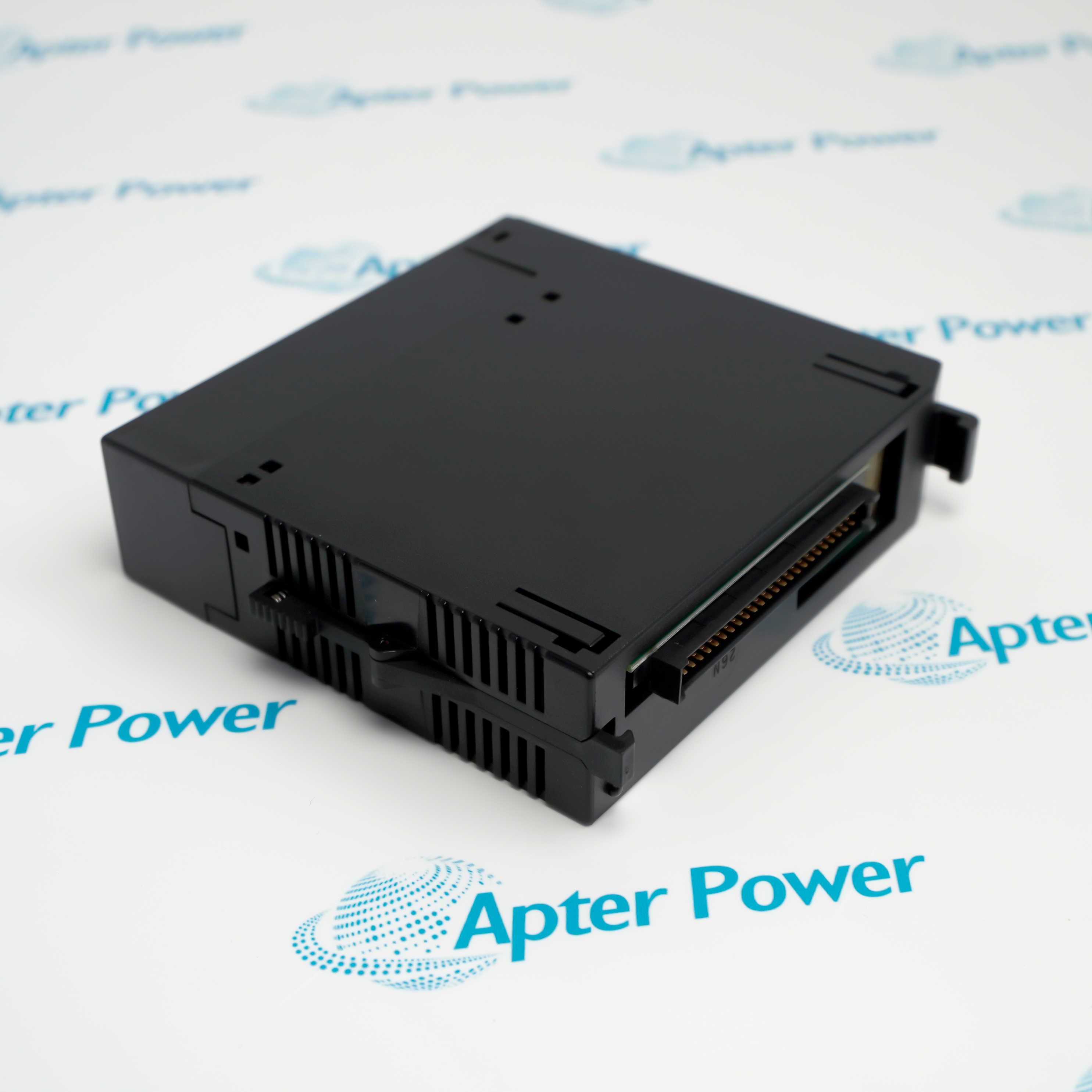

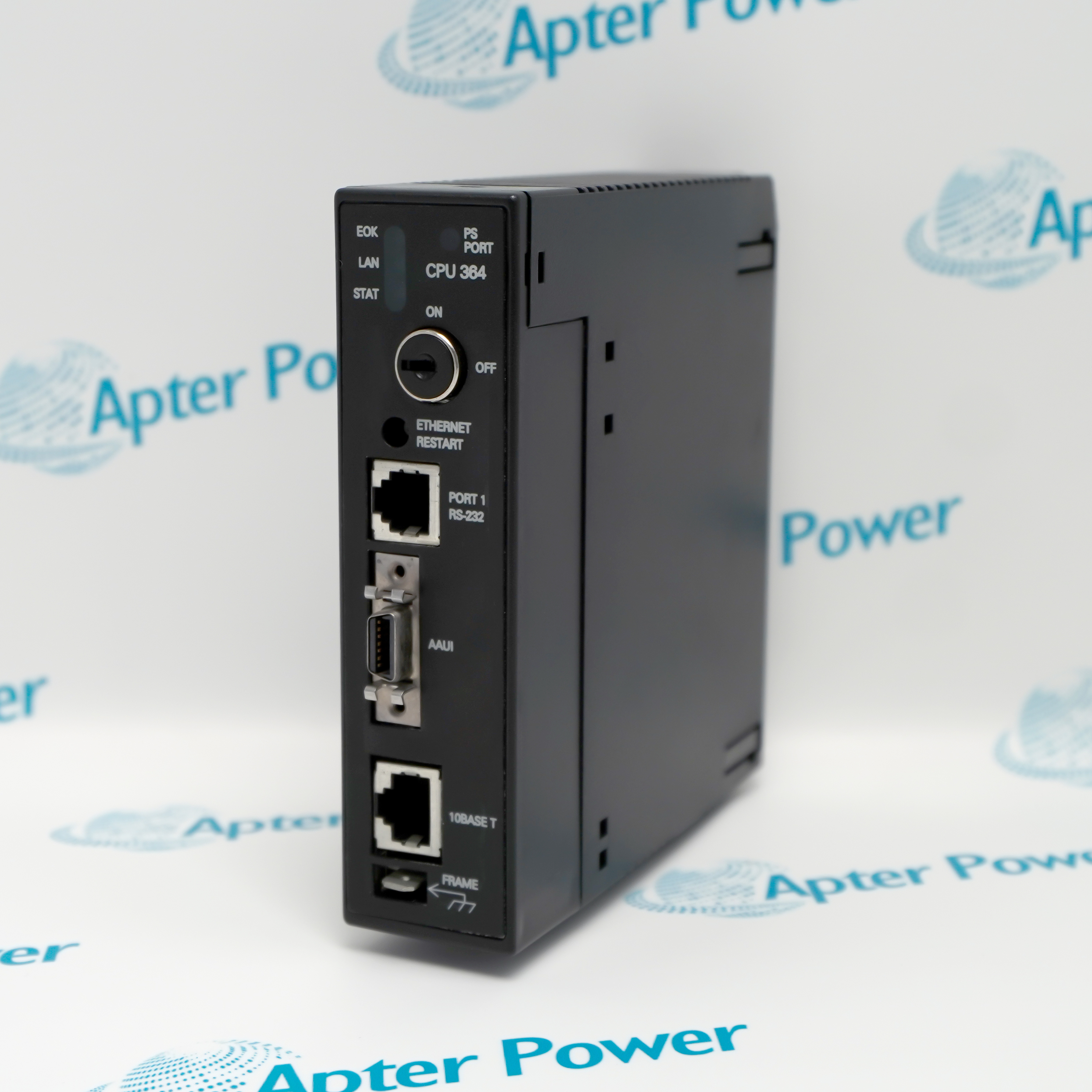

Technical specifications for IC693CPU364
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IC693CPU364
-
Estimated shipping dimensions:3.2x12.7x13.3cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Module width:Single slot
-
Processor:80386EX at 25 MHz
-
Maximum baseplates:8 total
-
User memory:240 Kbytes maximum
-
Typical Boolean scan:0.22 ms per 1 K logic
-
Discrete inputs:2048
-
Discrete outputs:2048
-
Global discrete memory:1280 bits
-
Current from 5 V DC supply:1.1 A
-
Operating temperature:0 to 60 deg C
-
Ethernet fuse:125 V, 1 A, slow acting
Information
Overview
Manuals
Common Applications
Product Precautions
IC693CPU364 combines Series 90-30 application execution with an onboard Ethernet interface in one CPU slot.
- Executes the Series 90-30 PLC application
- Integrates an embedded Ethernet communication interface
- Supports a CPU baseplate plus expansion or remote baseplates
- Maintains a defined user-memory and I/O reference architecture
The CPU serves an installation of up to eight Series 90-30 baseplates and exchanges I/O through the configured rack structure. Commissioning requires a validated program, memory map, Ethernet identity, expansion topology and controlled output proof test.
Important Notice: Confirm IC693CPU364, the Series 90-30 CPU baseplate, processor hardware and firmware, user-memory allocation, Ethernet address and cabling, expansion-rack topology, application version, retained data, passwords and staged I/O test results before commissioning; do not install this CPU in an RX3i rack.
Apter Power IC693CPU364 Manuals and Guides
- Apter Power IC693CPU364 Technical Data and System Reference PDF
- Apter Power IC693CPU364 Installation, Wiring and Acceptance Workbook PDF
The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.
Legacy machine-controller replacement
Restores an installed Series 90-30 CPU and embedded Ethernet node from a validated backup.
Distributed Series 90-30 I/O
Coordinates configured expansion or remote baseplates through the approved rack topology.
Ethernet-connected PLC supervision
Exchanges controller data with the documented host or supervisory network.
Controlled migration assessment
Provides the installed CPU identity and memory architecture required before planning a platform migration.
Read the applicable GE installation instructions before work. Verify IC693CPU364, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
1
Confirm IC693CPU364, hardware revision and CPU baseplate position.
2
Back up the program, reference tables and Ethernet parameters before removal.
3
Isolate rack and field energy using the approved shutdown sequence.
4
Record every expansion or remote baseplate and communication connection.
5
Inspect the CPU and baseplate connectors under ESD-safe conditions.
6
Restore only the validated application and matching memory allocation.
7
Verify Ethernet identity without creating a duplicate address on the network.
8
Prove PLC run state, rack diagnostics, communications and controlled outputs before release.
Revisions
Revision Part #
Also known as
Technical notes
Install IC693CPU364 in the CPU position of a Series 90-30 baseplate and preserve the application, memory allocation, Ethernet settings and expansion-rack configuration. After download or replacement, verify PLC run state, Ethernet communications, I/O diagnostics and retained data before enabling outputs.
FAQ View All FAQ
-
What is the exact system role of IC693CPU364?It is a Series 90-30 single-slot CPU that executes the PLC application and provides embedded Ethernet communication.
-
Which host, rack or carrier is required for IC693CPU364?Install it in the CPU position of a Series 90-30 baseplate; it is not specified for an RX3i rack.
-
What wiring or connector checks apply to IC693CPU364?Preserve the baseplate and expansion topology, Ethernet cable, grounding and all field-I/O connections during CPU work.
-
How is IC693CPU364 configured for service?Restore the validated application, memory allocation and Ethernet parameters that match the installed hardware.
-
Which diagnostics should be reviewed for IC693CPU364?Review PLC run state, rack faults, Ethernet status, expansion communications and every affected I/O diagnostic.
-
What must be preserved when replacing IC693CPU364?Preserve the CPU revision, application build, reference data, Ethernet identity, rack map and security settings.
-
How should IC693CPU364 be commissioned after installation?Start with outputs inhibited, verify communication and I/O health, then execute the approved functional test.
-
What model-specific limitation must be checked for IC693CPU364?Available user memory depends on configured register and analog reference allocation, so a nominal memory value alone is not a complete migration check.
