What is the A06B-6096-H106?

The A06B-6096-H106 is an Alpha series SVM1-130 single-axis servo amplifier module (drive) manufactured by FANUC, primarily used in CNC machine tools and automation production lines.

What are the main core specifications of the A06B-6096-H106?

It has a rated DC input of 283–325V (power rating of 9.1 kW), a maximum AC output voltage of 230V, and a rated output current (L-axis) of 52.2A.

How to use products like the A06B-6096-H106 in a CNC system?

It must be installed inside an electrical control cabinet, connected to the FANUC CNC controller via FSSB (Fanuc Serial Servo Bus) optical fibers, supplied with DC power, and connected to the servo motor at its output.

What communication interface does the A06B-6096-H106 use?

It utilizes the FSSB (Fanuc Serial Servo Bus) optical fiber interface (COP10A and COP10B connectors) to achieve high-speed, low-noise, and high-precision control.

What motors does the A06B-6096-H106 typically control?

This module is typically used to control larger single-axis FANUC AC servo motors, such as the Model α40/2000 or αM22.

A06B-6096-H106

Name: A06B-6096-H106
Brand: General Electric
SKU: A06B-6096-H106

Alpha Series AC Servo Amplifier Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Alpha Series AC Servo Amplifier Module
130A rated current single-axis module
high-speed noise-resistant CNC drive
high-performance AC servo drive

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for A06B-6096-H106

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for A06B-6096-H106

Manufacturer:

General Electric
Product Category:

Servo Drives
Spare Part Number:

A06B-6096-H106
Estimated shipping dimensions:

14.8x28.5x38cm
Weight:

8.3 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Number of Axes:

Single Axis
Interface Type:

FSSB
Rated Power:

9.1 kW
Rated DC Input Voltage:

283 to 325 VDC
Max AC Output Voltage:

3-Phase 230 VAC max
Rated Output Current (L-axis):

52.2 A

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The A06B-6096-H106 is a single-axis FANUC servo amplifier module with a 9.1 kW rated power capacity and a 230V output voltage specification.

HRV3 (High Response Vector) Closed-Loop Control
Integrated 52.2A high current output capability
Industrial-Grade Hardware Protection

This drive module relies on FANUC's proprietary FSSB (Fanuc Serial Servo Bus) optical fiber communication technology. It connects via optical fiber with FANUC 16i, 18i, or 21i series CNC controllers to perform digital data transmission. The optical fiber medium blocks electromagnetic interference (EMI) and radio frequency interference (RFI), maintaining the response frequency of the servo system and the operating state of the low-voltage system.

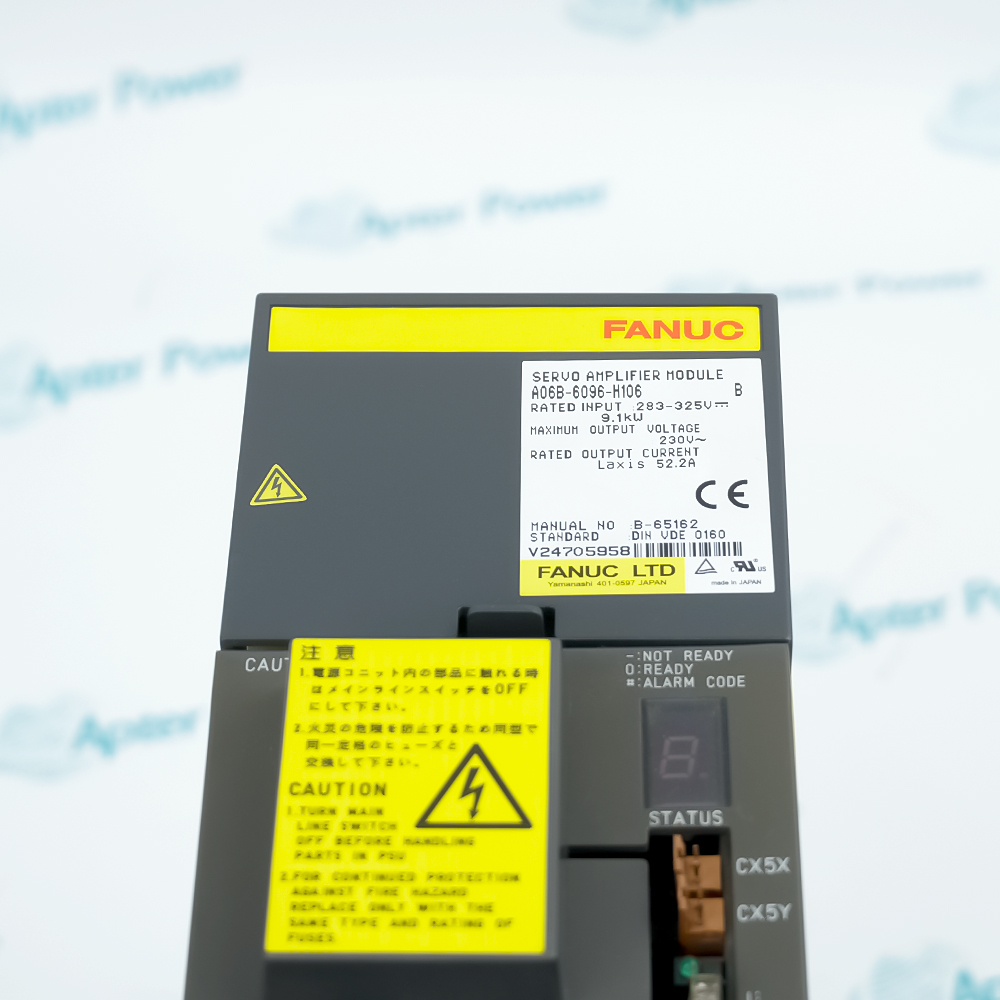

The front panel of the drive is equipped with a seven-segment digital LED display to show the system operation and readiness status. In the event of mechanical jamming, motor overheating, or external voltage abnormalities, the LED screen locks and displays the corresponding servo alarm fault code (a non-"0" state), allowing for fault isolation against the FANUC B-65162 manual to reduce downtime for maintenance.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

General Electric A06B-6096-H106 Alpha Series AC Servo Amplifier Module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Automotive Manufacturing Industry

Used for servo press drive control in automotive body stamping production lines.

Aerospace Manufacturing

Used in large 5-axis machining centers to drive the spindle or feed axis for cutting titanium alloy and composite airframe components.

Mold and Die Manufacturing

Used in high-speed milling machines for hardened mold steel to ensure micron-level precision finishing of mold surfaces.

Industrial Robotics Industry

Used for precise positioning drive of heavy-duty industrial robots' high-power base axis (Axis 1), such as automotive spot-welding robots.

Plastics and Rubber Machinery

Used for the injection axis or mold clamping axis of all-electric injection molding machines, replacing traditional hydraulic systems for better precision and energy savings.

Packaging Machinery Industry

Used in high-speed bag-making machines, palletizers, or high-power flying shears to achieve precise cutting and conveying of packaging materials.

Maintain cabinet cooling and ventilation to prevent thermal overload. Set the motor ID and axis parameters via the FSSB interface. During power-off maintenance, wait until the red charge LED turns off completely to allow internal capacitors to discharge before handling.

Alternative Names

A068-6096-H106 A0686096H106 A06B-6096-H1O6 A06B-6096-HI06 A06B-6O96-H106 A06B6096H106 A06B6096H1O6 A06B6096HI06 A06B6O96H106 AO68-6O96-HIO6 AO686O96HIO6 AO6B-6096-H106 AO6B-6O96-H1O6 AO6B6096H106 AO6B6O96H1O6

Technical notes

A06B-6096-H106 features an FSSB interface, which is a high-speed, noise-resistant fiber optic communication system used to connect the CNC control system directly to the servo drive.

FAQ View All FAQ

What is the A06B-6096-H106?

The A06B-6096-H106 is an Alpha series SVM1-130 single-axis servo amplifier module (drive) manufactured by FANUC, primarily used in CNC machine tools and automation production lines.
What are the main core specifications of the A06B-6096-H106?

It has a rated DC input of 283–325V (power rating of 9.1 kW), a maximum AC output voltage of 230V, and a rated output current (L-axis) of 52.2A.
How to use products like the A06B-6096-H106 in a CNC system?

It must be installed inside an electrical control cabinet, connected to the FANUC CNC controller via FSSB (Fanuc Serial Servo Bus) optical fibers, supplied with DC power, and connected to the servo motor at its output.

What communication interface does the A06B-6096-H106 use?

It utilizes the FSSB (Fanuc Serial Servo Bus) optical fiber interface (COP10A and COP10B connectors) to achieve high-speed, low-noise, and high-precision control.
What motors does the A06B-6096-H106 typically control?

This module is typically used to control larger single-axis FANUC AC servo motors, such as the Model α40/2000 or αM22.
