- Mark VIe
- 12 plug-in magnetic relays, configurable for different applications
- RELAY OUTPUT BOARD

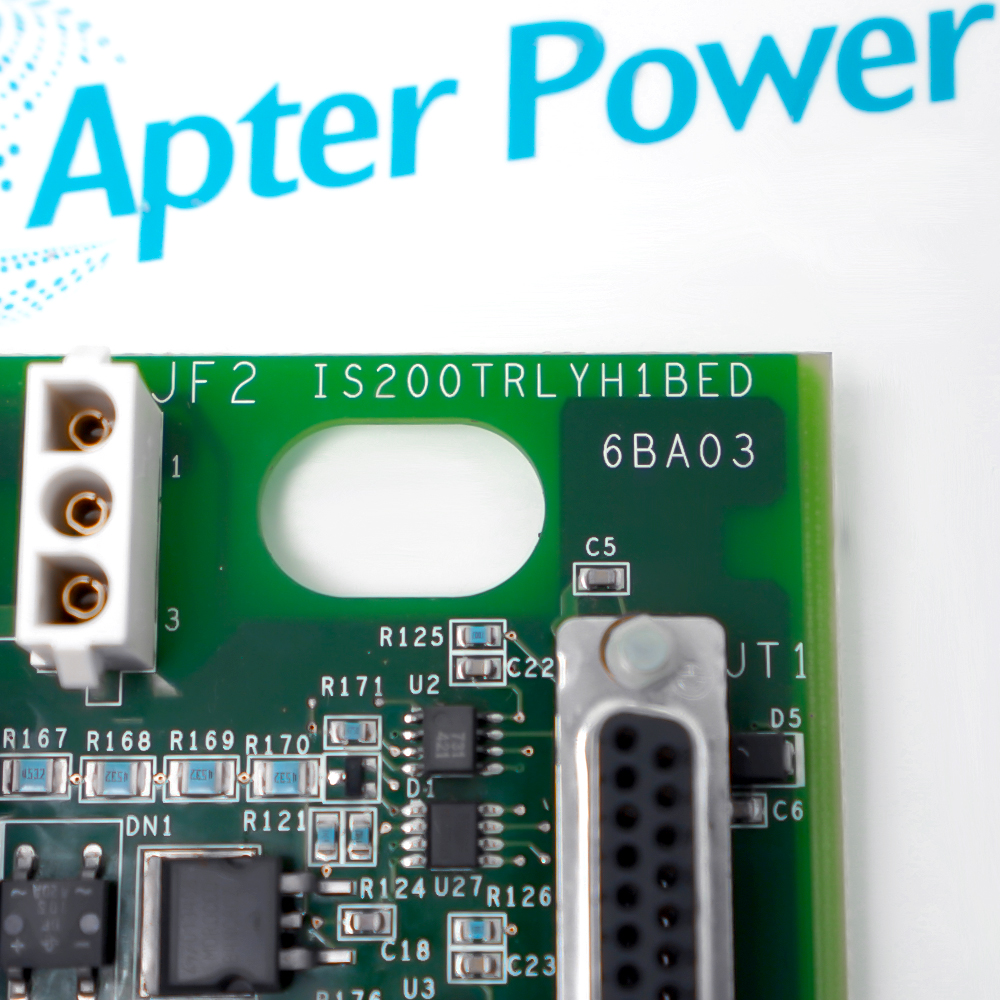

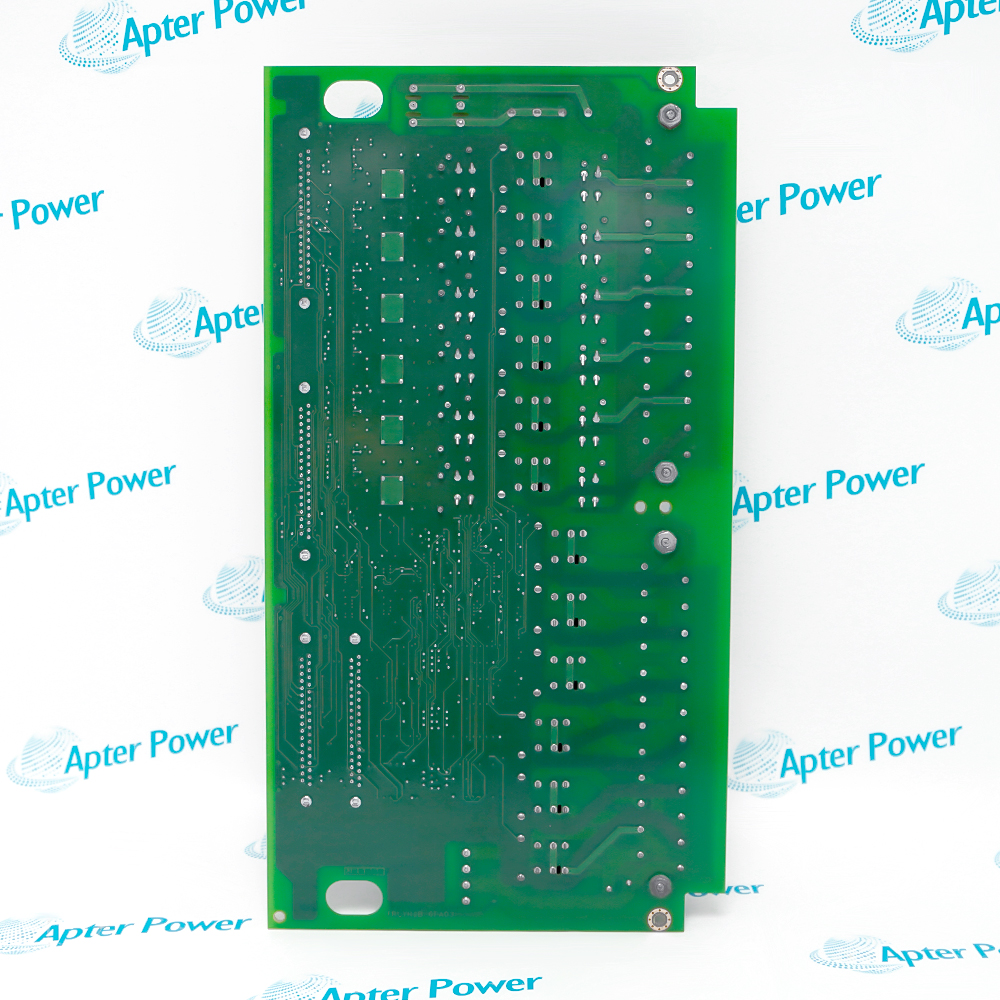

The IS200TRLYH1BGF is a relay output board developed by GE. It is a part of Mark VI control system. In Mark VI systems, TRLY is under the control of either the VCCC, VCRC, or VGEN board, catering to both simplex and TMR configurations.
Cables featuring molded plugs establish the connection between the terminal board and the VME rack, where the I/O boards reside. For simplex setups, Connector JA1 is utilized, while TMR systems employ connectors JR1, JS1, and JT1.
The core distribution system and branch circuit elements are two distinct types in the PDM. They are responsible for a cabinet's or a set of cabinets' primary power management. The branch circuit elements take the core output and distribute it to specific circuits in the cabinets for consumption. Branch circuits have their own feedback methods that are not included in the PPDA I/O pack's feedback.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IS200TRLYH1BGF RELAY OUTPUT BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
This board has advanced self diagnostic function and can monitor:
The excitation current of the relay coil is lost.
The coil current is inconsistent with the control command.
Cable unplugging or communication interruption (this will automatically trigger a fail safe state, resetting the relay).
In complex industrial assembly lines, this board is used to coordinate the actions of large electromechanical equipment:
Oil and gas: used for emergency shutdown (ESD) systems in deep-sea drilling control, gas compressor stations, and refineries.
Metals and Mining: Plays a role in the automation control of steel mill rolling lines, mine hoists, and crushing equipment.
