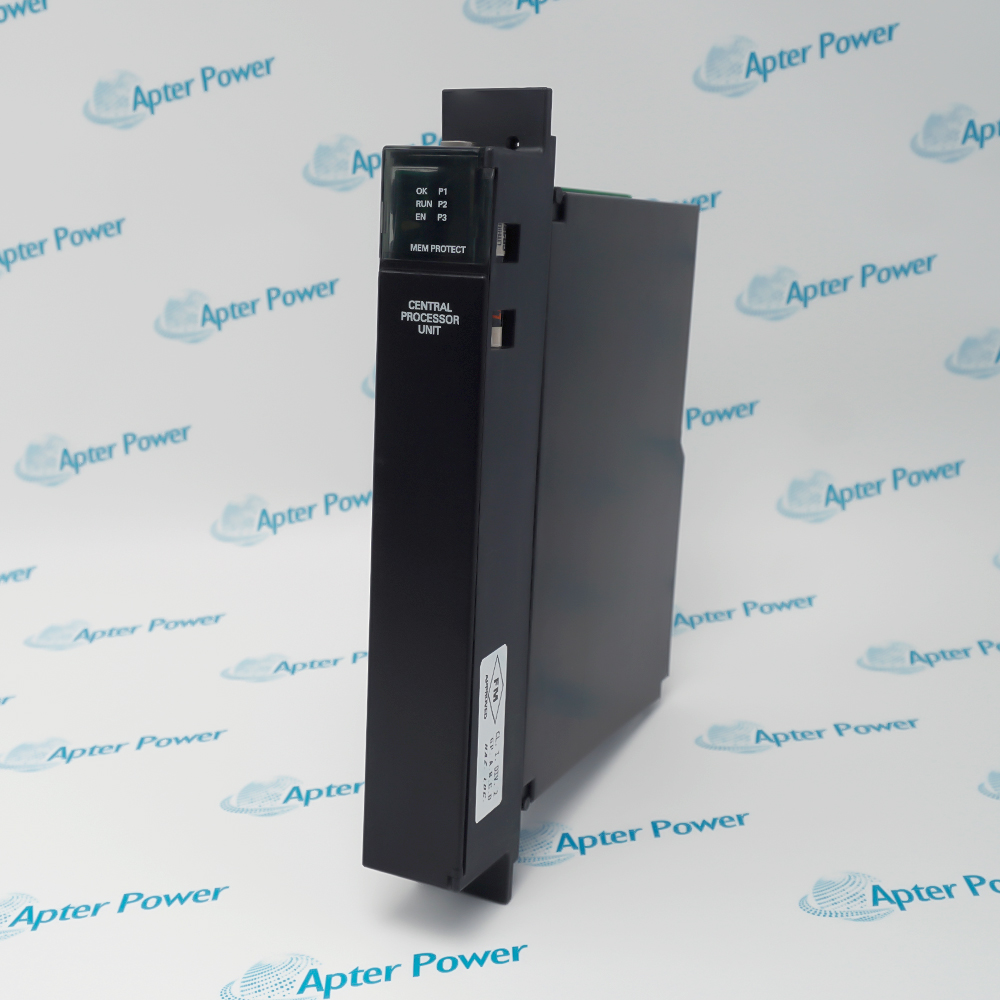

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for IC697CPX772
For more information on how your data is processed and stored by Apterpower please read our privacy policy
-
Match the complete marking
Include the complete IC697CPX772 marking and all series or revision details shown on the item. Match the offered hardware with the installed configuration before accepting the quotation.
-
Check the offered item before ordering
Request available label and connector photos. Have your maintenance team compare the offered IC697CPX772 with the installed equipment and applicable GE documentation.
Technical specifications for IC697CPX772
-
Manufacturer:General Electric
-
Product Category:PLC Systems
-
Spare Part Number:IC697CPX772
-
Weight:0.82 kg
-
Tariff Code:8537101190
-
Microprocessor:80486DX4, 96 MHz
-
Boolean execution:0.4 µs per function
-
User RAM:512 Kbyte, battery-backed
-
User flash memory:256 Kbyte, nonvolatile
-
Discrete I/O capacity:2K total, any input/output mix
-
Analog I/O capacity:Up to 8K
-
Port 1:RS-232, 6-pin RJ11
-
Port 2:RS-485 compatible, isolated
-
Port 3:RS-485 compatible, nonisolated
-
5 V bus current:3.1 A nominal
-
Operating temperature:0 to 60 °C
-
Battery retention:6 months nominal without power
Information
Overview
Downloads
Applications / Compatibility
Product Precautions
- GE IC697CPX772 combines floating-point execution with configurable program and data storage, while separate operating-mode and memory-protection controls support managed changes to an installed PLC application.
Processor: 96 MHz 80486DX4; 0.4 µs per Boolean function
User storage: 512 Kbyte RAM and 256 Kbyte nonvolatile flash
Serial ports: One RS-232 and two RS-485-compatible interfaces
User storage: 512 Kbyte RAM and 256 Kbyte nonvolatile flash
Serial ports: One RS-232 and two RS-485-compatible interfaces
The CPU occupies slot 1 of rack 0 and exchanges data with IC697 I/O and option modules through the VME C.1 backplane arrangement. It supports 2K discrete inputs and outputs in any mix and up to 8K analog I/O. Network programming requires a separate compatible Ethernet interface rather than a built-in Ethernet socket.
Battery-backed CMOS RAM holds the active program, configuration and register data. Optional user flash storage is separate from operating-system firmware flash, so firmware update and user-program retention are different tasks. The battery also maintains the calendar clock when rack power is removed.

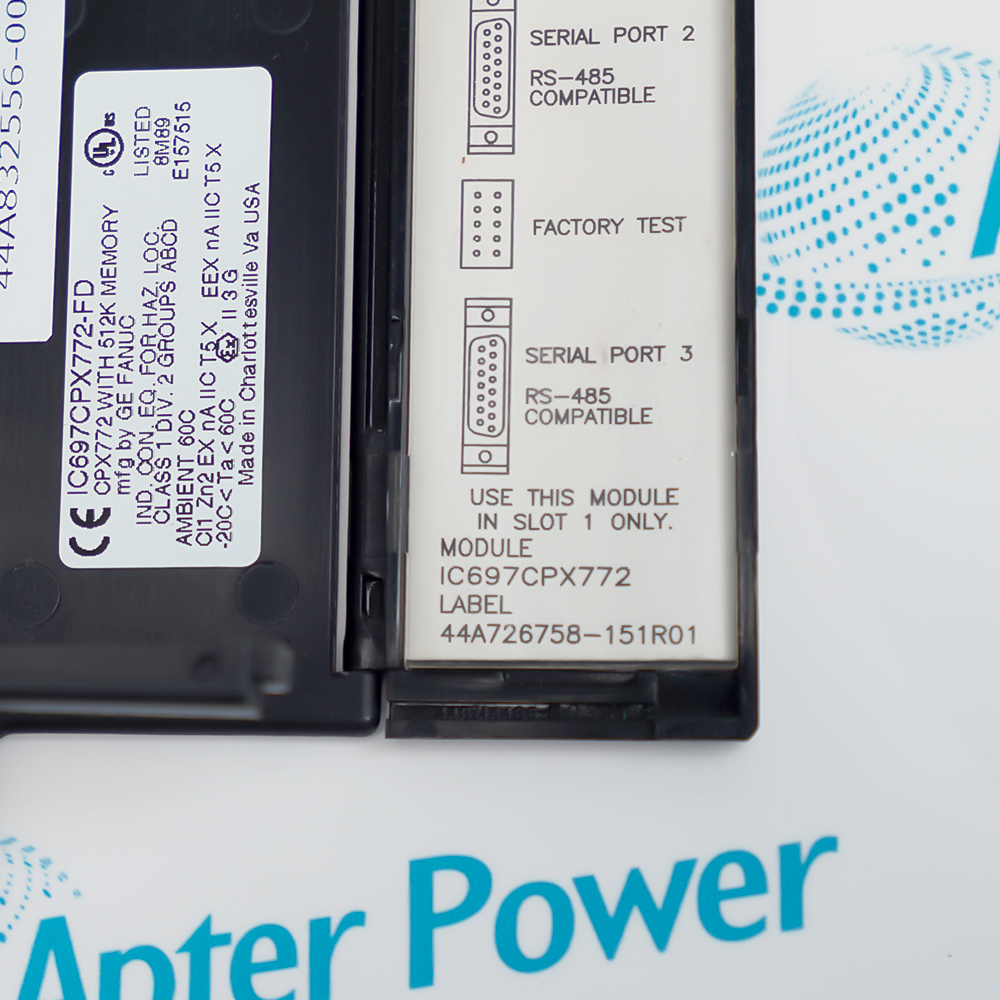

Port 1 is RS-232 compatible, port 2 is optocoupler-isolated RS-485 compatible and port 3 is nonisolated RS-485 compatible. Firmware release affects port capabilities: release 8.00 adds program load/store and datagrams on ports 1 and 2. The RUN/STOP selector and memory-protect keyswitch must be coordinated with the approved programming and output-enable procedure.
Battery-backed CMOS RAM holds the active program, configuration and register data. Optional user flash storage is separate from operating-system firmware flash, so firmware update and user-program retention are different tasks. The battery also maintains the calendar clock when rack power is removed.
Port 1 is RS-232 compatible, port 2 is optocoupler-isolated RS-485 compatible and port 3 is nonisolated RS-485 compatible. Firmware release affects port capabilities: release 8.00 adds program load/store and datagrams on ports 1 and 2. The RUN/STOP selector and memory-protect keyswitch must be coordinated with the approved programming and output-enable procedure.
Controller platform reference: GE Series 90-70 CPU system. Preserve firmware, program, rack configuration and serial-port settings.
GE Fanuc 96 MHz CPU, GFK-1429F, in GFK-0600F provides the manufacturer reference for IC697CPX772 and its applicable system arrangement. The separate installation guide covers program backup, rack placement, battery retention, serial interfaces and controlled output release.
IC697CPX772 Official Technical Reference Excerpt
GE Fanuc 96 MHz CPU, GFK-1429F, in GFK-0600F provides the manufacturer reference for IC697CPX772 and its applicable system arrangement. PDF · 6 pages.IC697CPX772 Installation & Verification Guide
Apter Power guide covering program backup, rack placement, battery retention, serial interfaces and controlled output release. PDF · 5 pages.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: The CPU is the execution and configuration controller in an IC697 rack system. I/O modules, bus controllers, communication modules and programming tools remain separate components.
Application scope: Use the CPU within an engineered Series 90-70 application; memory capacity, scan demand and firmware-dependent services must be assessed for the actual project.
Application scope: Use the CPU within an engineered Series 90-70 application; memory capacity, scan demand and firmware-dependent services must be assessed for the actual project.
Machine sequencing
Execute the configured discrete control program while retaining the intended RUN/STOP and output-enable behavior.Process calculations
Use supported floating-point operations and analog I/O resources for the installed process-control program.Material handling
Coordinate configured IC697 I/O and option modules across the approved rack and bus architecture.Serial device integration
Allocate the three serial interfaces according to electrical isolation, protocol support and installed firmware.
Prepare GE IC697CPX772 for its configured installation using these checks.
Back up the project
Save program, configuration and register data before replacing the CPU.
Use rack 0 slot 1
Remove rack power and set STOP before installing the CPU.
Protect retained memory
Check the battery connection and preserve the approved replacement sequence.
Identify port isolation
Do not treat port 3 as isolated or assume all three ports have identical capabilities.
Check power derating
Budget 3.1 A nominal at 5 V and review supply output at high ambient temperature.
Control output release
Verify configuration and program behavior before selecting RUN with outputs enabled.
Alternative Names
IC697CPX772
GE IC697CPX772
Technical notes
Storage distinction: User RAM, user flash and firmware flash serve different retention and update roles.
Serial release dependency: Port 1 and 2 load/store support depends on the installed firmware release.
Rack configuration: The CPU compares installed hardware with its programmed rack configuration and reports mismatches.
FAQ View All FAQ
-
Does IC697CPX772 have 512 Kbyte of flash memory?No. It has 512 Kbyte of battery-backed user RAM and 256 Kbyte of nonvolatile user flash. Treat these as separate storage resources when planning program retention.
-
Is the 0.4 µs IC697CPX772 rating a complete scan time?No. It is the execution time per Boolean function. The real application scan also depends on the instruction mix, I/O processing, communications and program organization.
-
Which IC697CPX772 serial port provides isolation?Port 2 is optocoupler-isolated and RS-485 compatible. Port 3 is also RS-485 compatible but is not isolated; port 1 uses RS-232.
-
What changed on IC697CPX772 ports 1 and 2 with firmware 8.00?Program load/store operations and datagrams were added, along with Break-Free SNP as the default protocol on those ports. Check the installed firmware before depending on those functions.
-
Where must IC697CPX772 be installed in the rack system?Install the CPU in slot 1 of rack 0 with rack power removed and the operating-mode switch in STOP. Restore the approved program and configuration before enabling outputs.
-
Can IC697CPX772 connect directly to an Ethernet programmer?Ethernet programming requires a separate compatible Ethernet interface, such as the specified IC697CMM741 or IC697CMM742 arrangement, with its network address configured.
-
What does the IC697CPX772 battery retain during a power loss?It maintains program and data RAM and the calendar clock. The nominal memory-retention period is six months without applied power; maintain the battery and a separate verified program backup.
-
Does IC697CPX772 memory protection block every programming path?The protected keyswitch position restricts changes through remote programming paths, but parallel programming through the bus transmitter remains possible. Do not treat the keyswitch as complete access isolation.
