SP3401

Universal Variable Speed AC Drive
In Stock
Ships by Friday, November 20
Fast Shipping Available

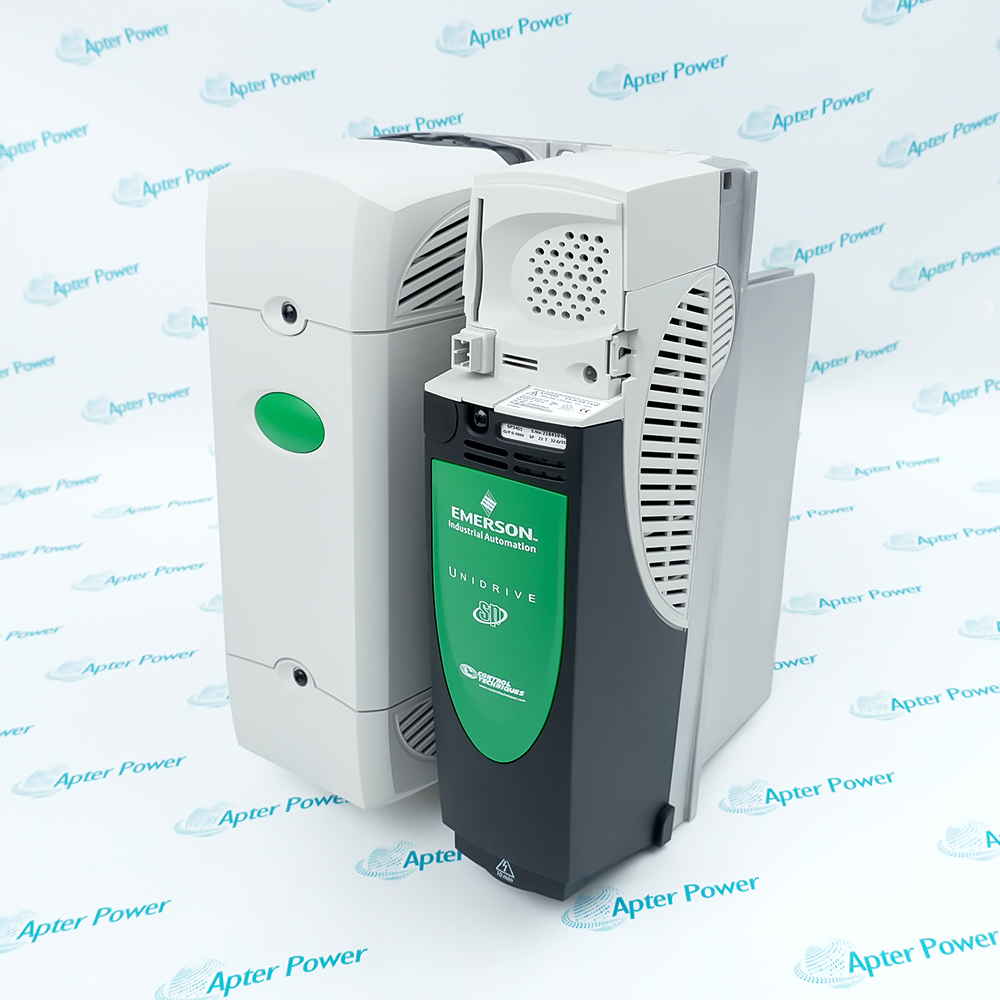

Emerson SP3401

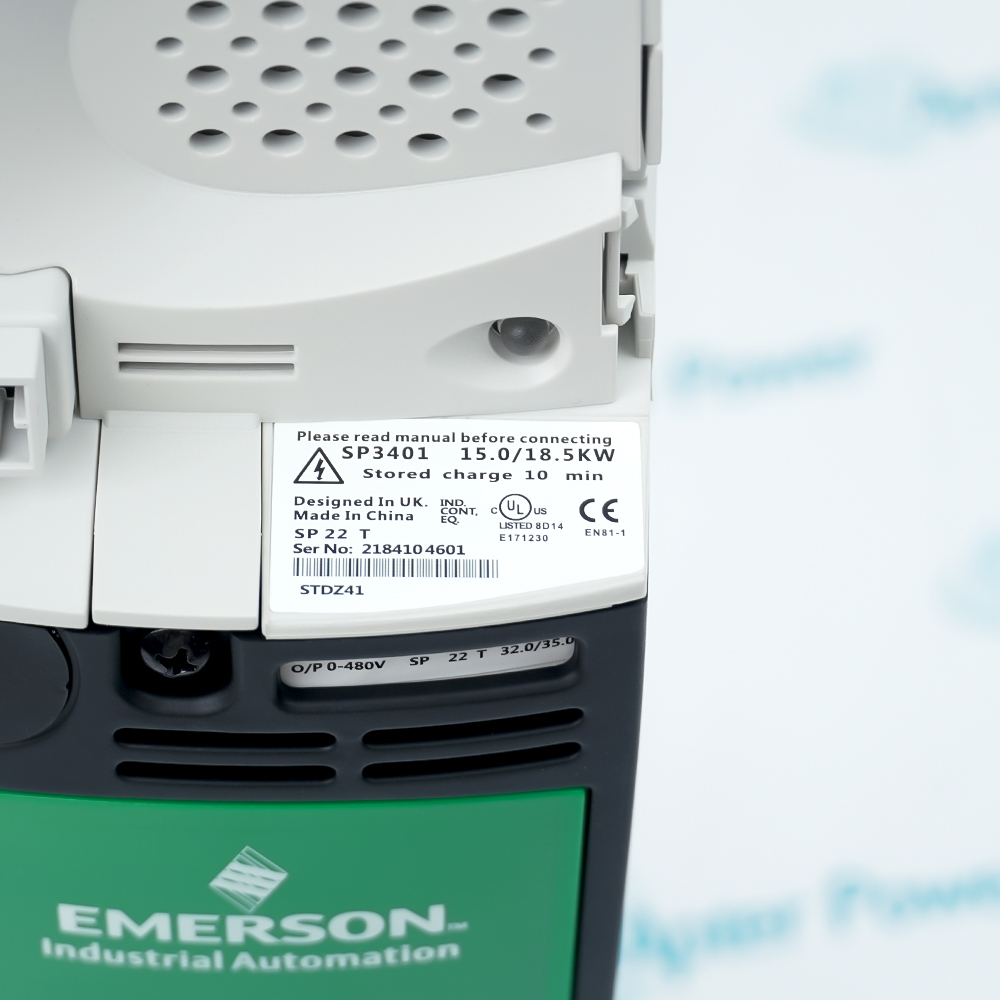

Emerson SP3401
Emerson SP3401
Emerson SP3401
Emerson SP3401
Emerson SP3401
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Unidrive SP3401 Inverted AC Drive
Solutions platform complete
provided without keypad
380-480 Vac 3-phase input/output
Get a quick price for SP3401
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for SP3401

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    SP3401
  • Estimated shipping dimensions:
    25.4x36.2x26.0cm
  • Weight:
    15.7 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Cooling method:
    Forced convection
  • Humidity:
    95% maximum non-condensing at 104 °F
  • Storage Temperature:
    -40 to 122 °F
  • Voltage:
    200 to 240 Vac ±10% 380 to 480 Vac ±10%
  • Frequency:
    48 to 65 Hz
  • Input Power Factor:
    Displacement 0.97
  • Carrier Frequency:
    3, 4, 6, 8, 12,16 kHz - Panel Mount drives
  • Output Speed:
    0 to 40,000 rpm (Closed-loop)

Information

Overview Manuals Common Applications Product Precautions
The SP3401 is an AC inverter drive manufactured by Emerson Control Techniques and belongs to the Unidrive SP series. As a single hardware control unit, this drive contains an integrated solutions platform and is composed of an aluminum heatsink, a built-in EMC filter, a universal encoder port, a standard 2-wire RS485 serial communication port, and three expansion slots for plug-in SM option modules. This hardware unit includes a Smartcard for parameter and PLC program storage from the factory but is provided without an operation keypad.
    • Parameter and program storage
    • Simplify drive maintenance and commissioning
    • Machine upgrades can be stored on a Smartcard and sent to the customer for installation
Based on the coding rules in the official technical specifications, each digit in this full model number represents specific factory hardware configurations. The letters SP represent the Unidrive SP series product line and the digit 3 represents the physical chassis size as Frame 3. The digit 4 represents a rated supply voltage range of 380 to 480 Vac three-phase AC power and the digits 01 represent the specific current rating under this frame which corresponds to a maximum continuous output current of 35A under Normal Duty and 32A under Heavy Duty. The SP3401 drive includes a Smartcard memory device to backup parameter sets and PLC programs for duplication across multiple drives.

During deceleration, dynamic braking resistors dissipate converted electrical energy to prevent DC bus overvoltage trips. The ohmic value and power rating of the required braking resistor depend on the application duty cycle. Due to the Frame 3 specification of the SP3401, a larger external braking resistor is utilized for energy dissipation instead of heatsink-mounted resistor packages restricted to frame sizes 0 to 2.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Emerson SP3401 Universal Variable Speed AC Drive Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgy and Steel
Controlling the speed and torque of withdrawal straighteners or auxiliary roller tables in steel mill continuous casting lines.

Cranes and Material Handling
Driving the main hoist mechanism or trolley travel crane motors of port machinery and overhead cranes.

Paper and Printing
Continuously controlling the rotation speed and tension synchronization of dryer sections or rewinder sections in paper machine multi-drive systems.

Power and Energy
Controlling the variable frequency speed adjustment operation of boiler feedwater pumps, forced draft fans, or high-pressure induced draft fans.

Rubber and Plastics
Driving the main screw shaft of plastic extruders, rubber internal mixers, or pelletizer transmission motors.

Automotive Manufacturing
Controlling the main drive of large mechanical presses and the precise displacement of conveyor lines in automotive stamping shops.
 Before operating the SP3401 drive verify the 380 to 480 Vac 3-phase AC input voltage. Apply parameter derating based on either Normal Duty 35A or Heavy Duty 32A configuration. For dynamic braking this Frame 3 drive requires a large external braking resistor.

The use of heatsink-mounted resistors restricted to frames 0 to 2 is strictly prohibited. When backing up PLC programs via the provided Smartcard verify data compatibility between the control board and the memory card. Field wiring must strictly adhere to grounding and shielding specifications for the built-in RFI filter to suppress electromagnetic interference.
