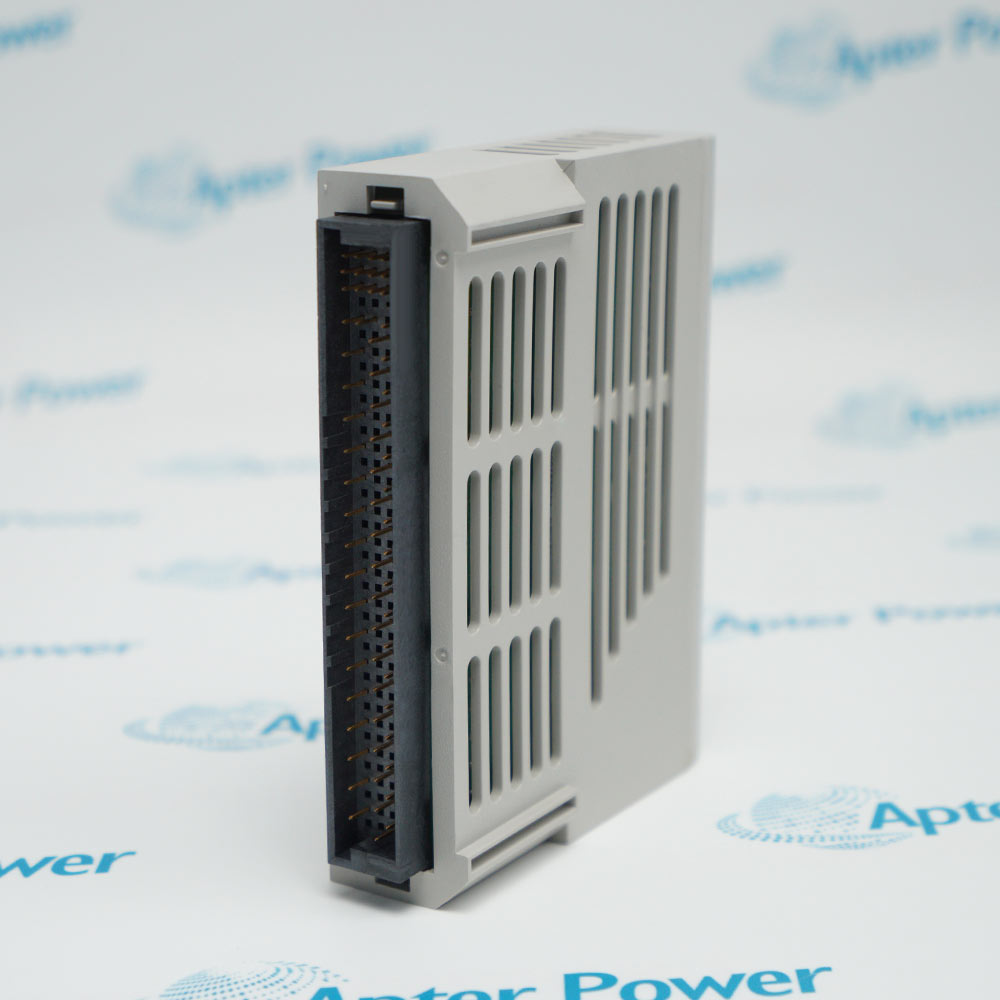

Technical specifications for 5X00109G02
-
Manufacturer:Emerson
-
Product Category:DCS Systems
-
Spare Part Number:5X00109G02
-
Estimated shipping dimensions:12x2.8x9.4cm
-
Weight:0.14 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product class:HART analog-input personality module
-
Channel count:8
-
Analog range:4-20 mA
-
Transmitter arrangements:2-wire loop powered; 4-wire active source
-
Input protection:Eight fused inputs
-
Channel configuration:User-accessible power-selection jumpers
-
G02 function:Active current limiting in two-wire mode
-
Paired electronics:5X00106G01 or 5X00106G02
-
Software applicability:Ovation 3.4.0 or later; Ovation 3.3.1 with patch OVA331063
Information
Overview
Manuals
Common Applications
Product Precautions

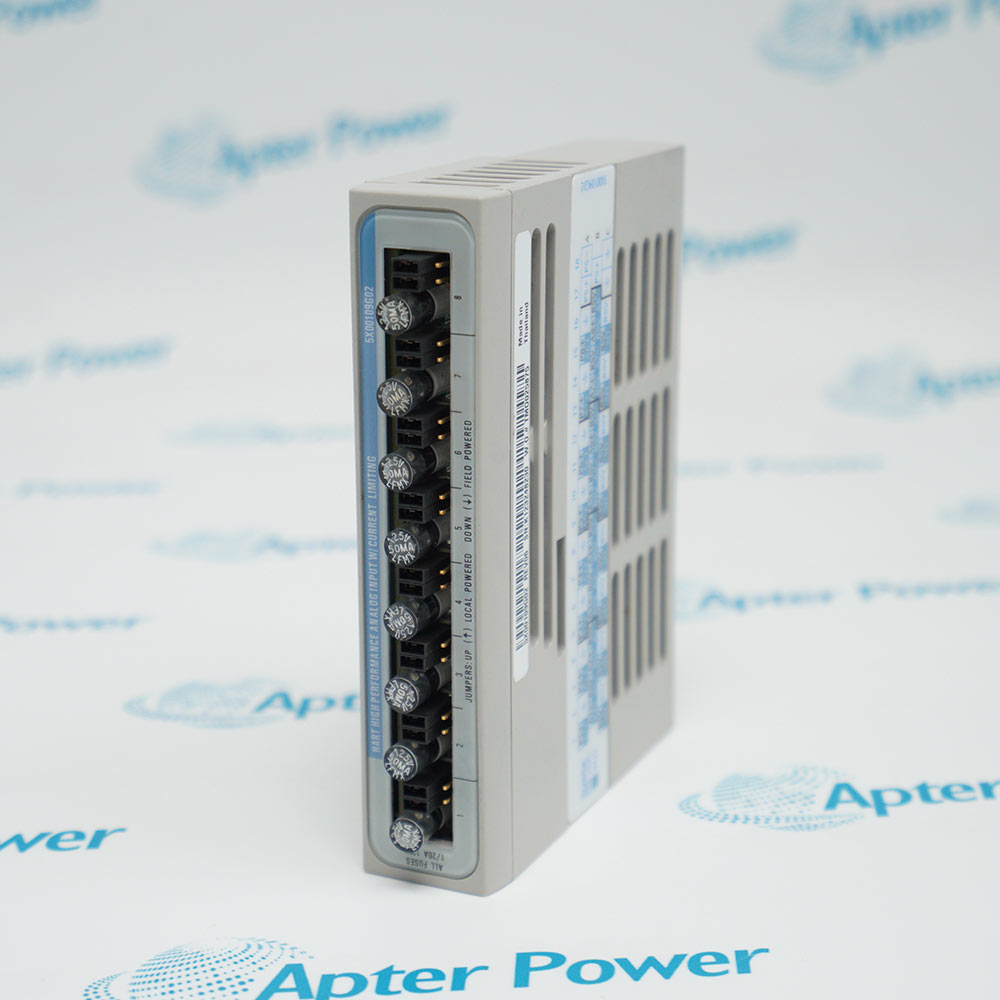

WESTINGHOUSE 5X00109G02 carries eight fused current-loop inputs. Its G02 revision adds active current limiting for two-wire operation and requires an applicable Ovation software release before the subsystem is commissioned.
- Eight fused HART input channels
- Per-channel power-source jumpers
- Active current limiting in two-wire mode
- 4-20 mA high-performance input subsystem
The installed signal path is Two-wire or four-wire transmitter → 5X00109G02 personality module → 5X00106 electronics module → Ovation controller and HART data path. Record the as-left channel assignment and verify the affected path before release.
Important Notice: De-energize auxiliary loop power and verify all eight channels before handling WESTINGHOUSE 5X00109G02.
WESTINGHOUSE 5X00109G02 Manuals & Downloads
WESTINGHOUSE 5X00109G02 Official Technical Reference Excerpt (PDF)WESTINGHOUSE 5X00109G02 Installation & Commissioning Guide (PDF)
The Technical Reference presents the applicable model data and interface details; the Installation & Commissioning Guide organizes field preparation, controlled replacement and acceptance checks for WESTINGHOUSE 5X00109G02.
Smart-transmitter acquisition
Connects eight HART-capable 4-20 mA field transmitters to Ovation.
Mixed powering arrangements
Allows individual channels to follow the installed two-wire or four-wire design.
Current-loop protection
Provides fused inputs and G02 current limiting at the personality-module boundary.
Subsystem service
Supports controlled troubleshooting of loop power, HART communication and analog measurement paths.
Apply these controls to WESTINGHOUSE 5X00109G02 before isolation, removal, reconnection, energization and release.
1
De-energize auxiliary loop power and verify all eight channels before handling WESTINGHOUSE 5X00109G02.
2
Confirm the complete G02 identity and the paired 5X00106 electronics module before exchange.
3
Record every channel jumper before removal; each jumper determines field-powered or local-powered operation.
4
Check the Ovation release level and OVA331063 patch requirement before enabling the G02 subsystem.
5
Replace a channel fuse only with the specified type and only after locating the loop fault that opened it.
6
Keep shielded I/O cabling and auxiliary-power routing consistent with the approved cabinet design.
7
Verify polarity and current-loop continuity before applying auxiliary power to two-wire transmitters.
8
Commission each channel with analog-current and HART communication checks, including current-limiting behavior where applicable.
Technical notes
WESTINGHOUSE 5X00109G02 is an eight-channel personality module for Ovation high-performance 4-20 mA HART analog inputs, with per-channel power-selection jumpers and active current limiting in two-wire mode.
FAQ View All FAQ
-
How many field channels are provided by WESTINGHOUSE 5X00109G02?It provides eight fused analog-input channels.
-
Which signal type does WESTINGHOUSE 5X00109G02 handle?It is used for 4-20 mA high-performance HART analog inputs.
-
How is transmitter power selected on WESTINGHOUSE 5X00109G02?User-accessible jumpers configure each channel for field-powered or local-powered operation.
-
What distinguishes the G02 revision of WESTINGHOUSE 5X00109G02?The G02 revision adds active current limiting for two-wire mode.
-
Which electronics module pairs with WESTINGHOUSE 5X00109G02?The documented subsystem uses 5X00106G01 or 5X00106G02 electronics.
-
Which Ovation releases support WESTINGHOUSE 5X00109G02?The module is documented for Ovation 3.4.0 and later, or Ovation 3.3.1 with patch OVA331063.
-
What should be checked after replacing a WESTINGHOUSE 5X00109G02 fuse?Correct the loop fault, verify the fuse type, then prove analog current and HART communication on the affected channel.
-
What closes commissioning for WESTINGHOUSE 5X00109G02?Confirm jumpers, loop polarity, auxiliary power, fuse integrity, 4-20 mA accuracy and HART communication on every used channel.
