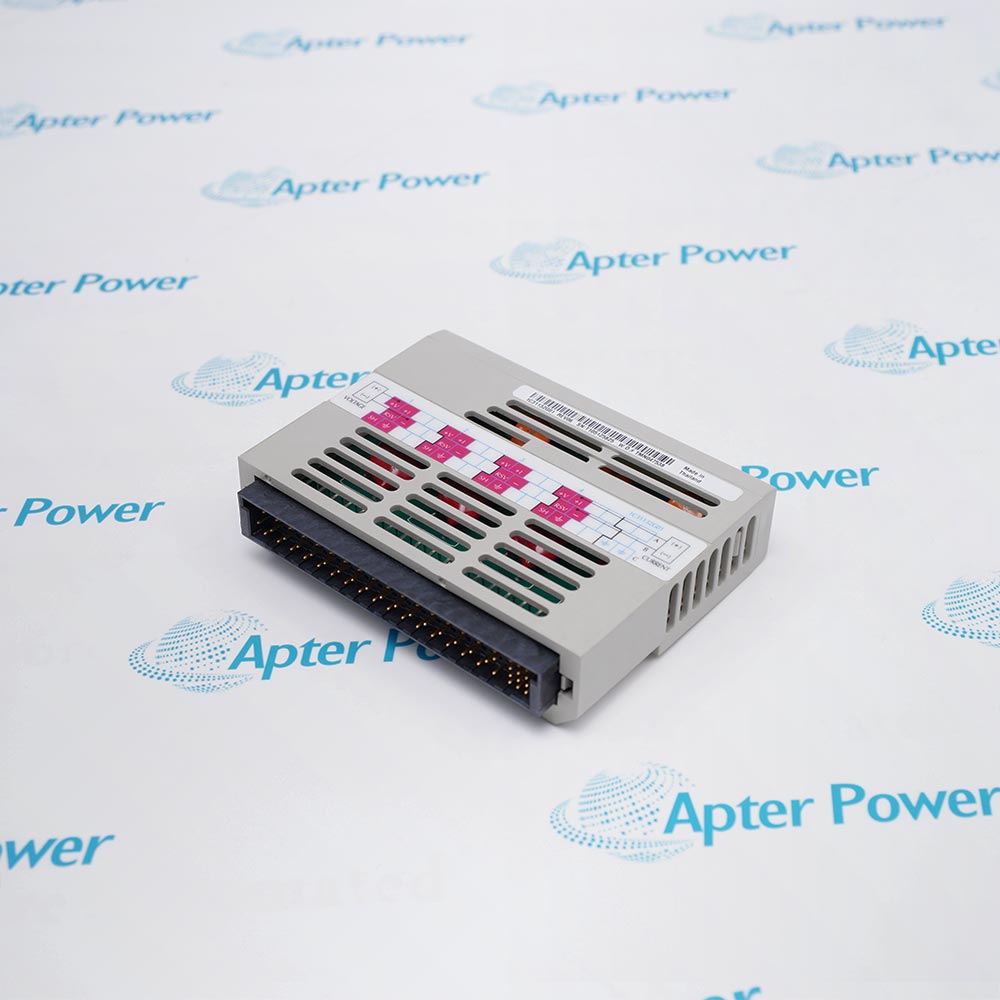

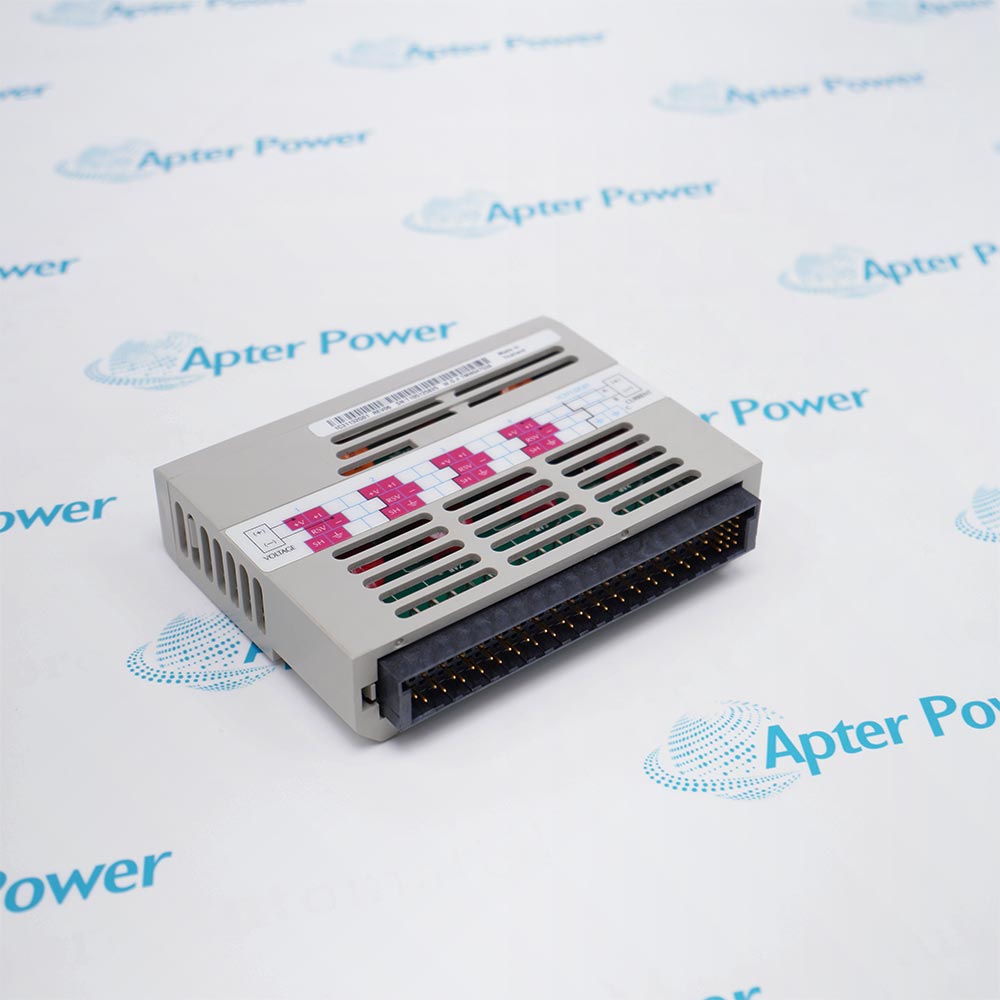

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 1C31132G01
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 1C31132G01
-
Manufacturer:Emerson
-
Product Category:DCS Systems
-
Spare Part Number:1C31132G01
-
Estimated shipping dimensions:12x2.8x9.4cm
-
Weight:0.12 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Channels:4 analog outputs
-
Compatible electronics:1C31129G01, G02, G03 or G04
-
Voltage executions:0-5 V dc or 0-10 V dc, electronics dependent
-
Current executions:0-20 mA or configured 4-20 mA, electronics dependent
-
Field function:Routes field signals to the terminal block
Information
Overview
Manuals
Common Applications
Product Precautions
Westinghouse 1C31132G01 routes four analog output channels between a compatible 1C31129 electronics module and the Ovation field terminal block.
- Provides four output channels for the documented analog output personality module function.
- Handles voltage or current analog output through the specified Ovation I/O subsystem.
- Works with range-matched 1C31129 analog-output electronics module.
- The same personality module supports the documented voltage and current electronics executions.
The analog output personality module belongs in the controlled Ovation I/O subsystem and works with range-matched 1C31129 analog-output electronics module. Its field connection, companion hardware and project configuration must be reviewed together before the channel is returned to service.
Important Notice: Use 1C31132G01 only with range-matched 1C31129 analog-output electronics module; verify the field interface and controlled configuration before energizing the subsystem.
Westinghouse 1C31132G01 Manuals & Downloads
Westinghouse 1C31132G01 Official Technical Reference Excerpt (PDF)Westinghouse 1C31132G01 Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Installed-base maintenance
Restores the documented analog output personality module position without changing the approved system architecture.
Loop or channel service
Supports verification of voltage or current analog output at the assigned control-system channel.
Planned replacement
Provides an exact-identity replacement path when range-matched 1C31129 analog-output electronics module and the field interface have been confirmed.
Commissioning support
Allows the responsible engineer to prove wiring, configuration, status and response for four output channels.
Before installing Westinghouse 1C31132G01, confirm the documented system, interfaces and controlled configuration.
1
Match the complete 1C31132G01 marking to the work order and installed position before removal.
2
Confirm range-matched 1C31129 analog-output electronics module before making or breaking any field connection.
3
Keep the assigned voltage or current analog output within the documented subsystem and range.
4
Record terminal designations, polarity, common and shield treatment before disconnecting conductors.
5
Inspect module seating, connector keying, terminal condition and strain relief before power is restored.
6
Restore the controlled channel configuration, range selection and alarm or timeout behavior after installation.
7
Check local indicators and controller diagnostics for internal, communication or channel faults during commissioning.
8
Prove the intended response across four output channels and record the acceptance result before release.
Technical notes
Use 1C31132G01 only with range-matched 1C31129 analog-output electronics module; verify the field interface and controlled configuration before energizing the subsystem.
FAQ View All FAQ
-
Which electronics executions can use Westinghouse 1C31132G01?The personality module is documented with 1C31129G01, 1C31129G02, 1C31129G03 and 1C31129G04.
-
How many analog outputs are routed by Westinghouse 1C31132G01?It carries four output channels between the selected 1C31129 electronics module and the terminal block.
-
When does Westinghouse 1C31132G01 carry a voltage output?With the applicable electronics execution, the interface supports 0–5 V dc or 0–10 V dc output paths.
-
Which current signals can pass through Westinghouse 1C31132G01?When paired with the corresponding current-output electronics, it routes 0–20 mA or configured 4–20 mA channels.
-
Does Westinghouse 1C31132G01 determine the output range by itself?No. The 1C31129Gxx electronics execution and its configuration determine whether the four channels are voltage or current outputs.
-
What terminal function does Westinghouse 1C31132G01 provide?The module connects the four field-output circuits from the electronics module to the Ovation terminal block.
-
Why must the paired 1C31129Gxx number be recorded before replacing Westinghouse 1C31132G01?That exact electronics code identifies the valid signal type and range, which cannot be inferred from the common personality-module number alone.
-
What proves correct operation after installing Westinghouse 1C31132G01?Confirm every terminal assignment and measure each channel in the voltage or current range specified by its paired 1C31129 electronics module.
