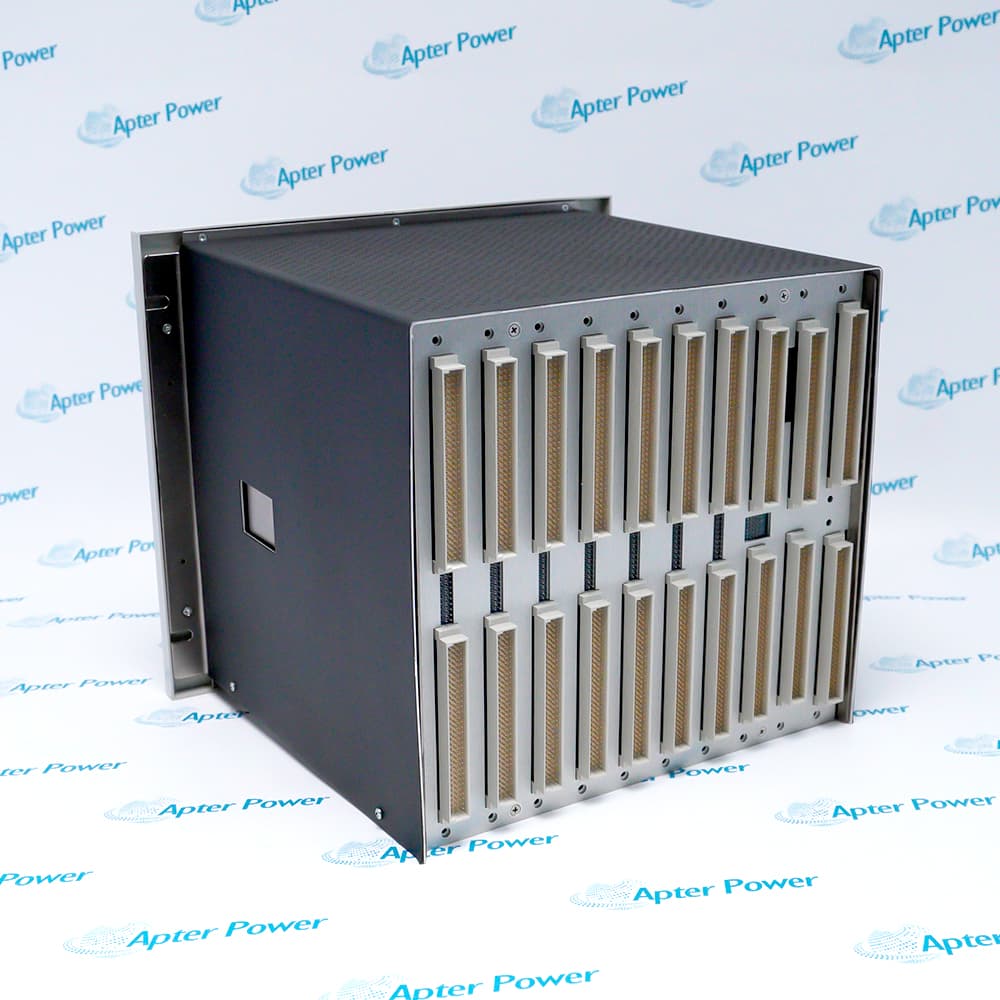

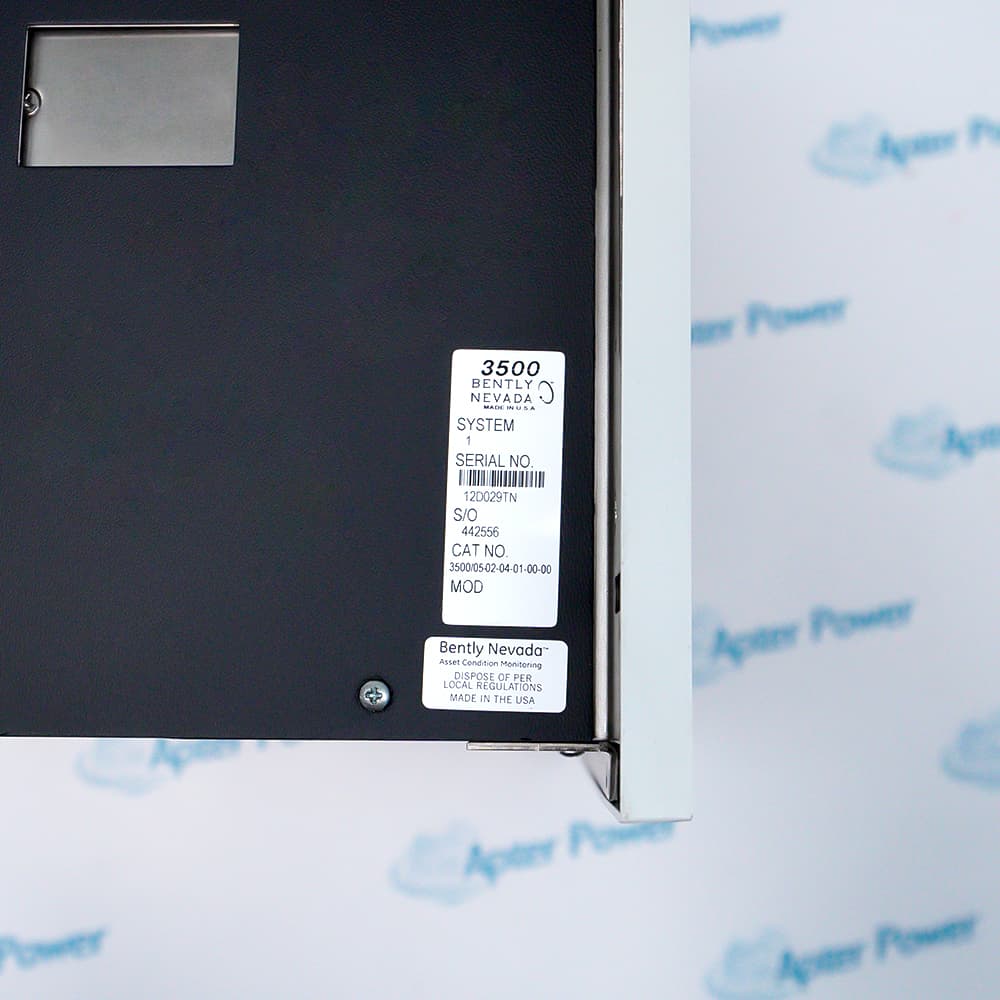

The 3500/05-02-04-01-00-00 is a 12-inch mini system frame in the 3500 series. It is a hard-shell structure for mounting and operating 3500 monitoring modules and power supplies, typically used for condition monitoring and protection of industrial machinery, providing backplane communication and power support.
Compact design
Supports multiple mounting options
Provides 7 rack positions for 3500 Series monitoring modules
The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. 3500 racks are available in two sizes,Full-size rack,Mini-rackThe power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.
