      3500/42M 176449-02

      Proximitor Seismic Monitor
      In Stock

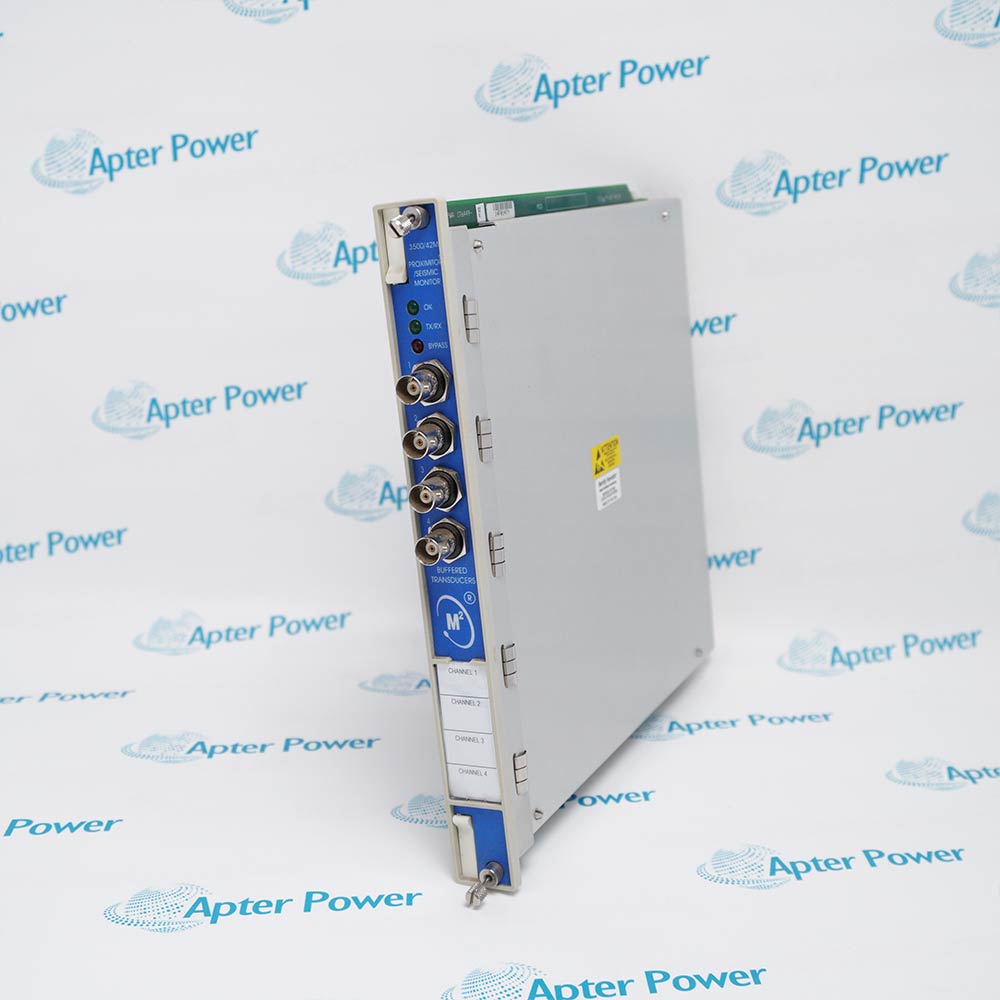

      Bently Nevada 3500/42M 176449-02
      Bently Nevada 3500/42M 176449-02
      Bently Nevada 3500/42M 176449-02
      Bently Nevada 3500/42M 176449-02
      Bently Nevada 3500/42M 176449-02
      Bently Nevada 3500/42M 176449-02
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      3500/42M Proximitor Seismic Monitor
      Main Monitor Module
      Four-channel Monitor
      Real-time Protection Unit
      API 670 Compliant Component

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 3500/42M 176449-02
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 3500/42M 176449-02

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        176449-02
      • Estimated shipping dimensions:
        2.5x25.6x24cm
      • Weight:
        0.8 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Gap filter:
        -3 dB at 0.09 Hz
      • Accuracy:
        Within ±0.33% of full-scale typical
      • Power consumption:
        7.7 watts, typical
      • Output Impedance:
        550 Ω
      • Transducer Power Supply:
        -24 Vdc
      • Shaft Absolute Output Impedance:
        300 Ω
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The 3500/42M 176449-02 is a 3500 series four-channel vibration/position monitoring module manufactured by Bently Nevada. It is an industrial-grade, high-performance module primarily used to monitor the vibration and shaft displacement of rotating machinery, issuing alarms or control actions when the signal exceeds a set threshold.
        • Independent Four-Channel Processing
        • Continuous "OK" Circuit Monitoring
        • Provides coaxial connectors for unconditioned, raw dynamic signal output
      The 3500/42M Proximitor Seismic Monitor is a four-channel monitor that accepts input from proximity and seismic transducers. It conditions the signal to provide vibration and position measurements and compares the conditioned signals with user-programmable alarms.Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Bently Nevada 3500/42M 176449-02 3500/42M Proximitor Seismic Monitorr Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Nuclear Power
      Monitoring casing vibration (seismic monitoring) of main feed pumps and reactor coolant pumps.

      Steel & Metallurgy
      Monitoring high-frequency vibration of blast furnace blowers to identify rolling element bearing faults.

      Chemical Industry
      Monitoring shaft eccentricity of high-speed extruders and agitators.

      Pulp & Paper
      Monitoring casing acceleration of large bearings in paper machine dryer sections.

      Offshore Engineering
      Monitoring shafting stability of generator sets on offshore oil platforms.

      Cement Manufacturing
      Monitoring excessive vibration in large exhaust fans caused by uneven dust accumulation.

       When using the 3500/42M 176449-02 monitor module, ensure it perfectly matches the rear I/O module type and that transducer types and alarm setpoints are accurately configured in the software. As the module is hot-swappable, verify proper rack grounding during replacement to prevent ESD damage. Additionally, periodically calibrate raw signals via the front-panel buffered outputs to ensure monitoring data aligns with actual machinery conditions, preventing false trips or missed alarms.

      FAQ View All FAQ

      • What is 3500/42M 176449-02?
        3500/42M 176449-02 is a PROXIMITOR SEISMIC MONITOR.
      • What is the primary function of 3500/42M 176449-02?
        It conditions input signals to generate vibration and position measurements and compares them with user-programmable alarm setpoints.
      • How to install 3500/42M 176449-02?
        It is inserted into a front slot of the 3500 rack and connects to the I/O module via the backplane.
      • How many channels does 3500/42M 176449-02 support?
        It is a four-channel monitor module, and each channel can be independently configured.
      • What transducer inputs can 3500/42M 176449-02 accept?
        It accepts inputs from proximity probes, velocity transducers, and accelerometers.
