      330708-00-10-90-02-00

      3300 XL 11 mm Proximity Probe
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

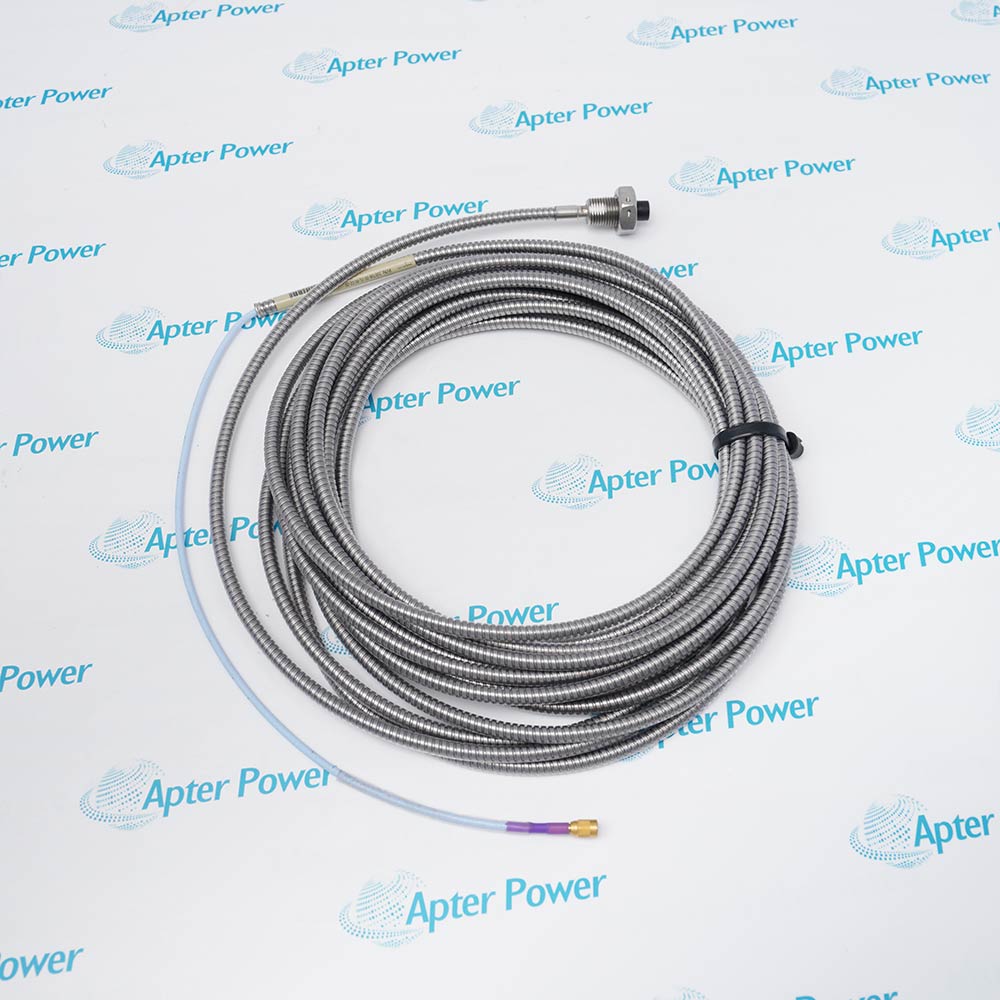

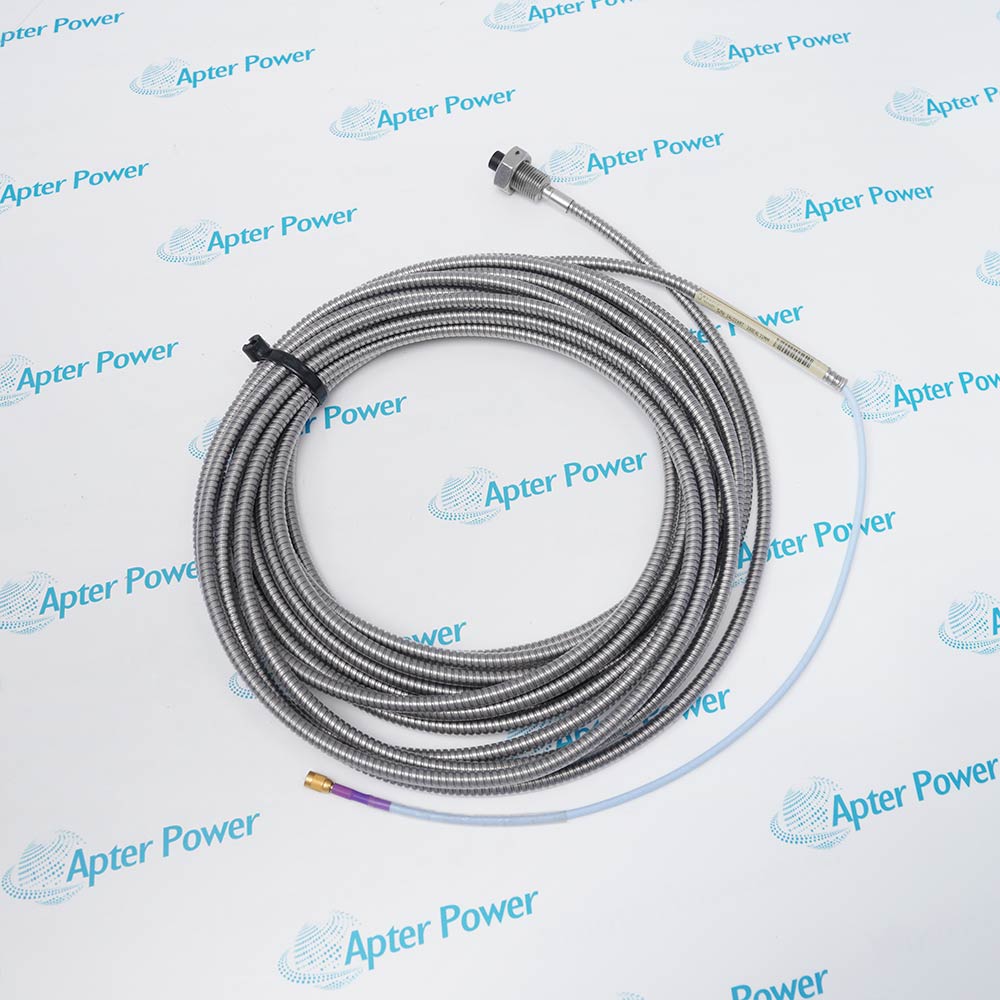

      Bently Nevada 330708-00-10-90-02-00 is an armored 3300 XL 11 mm proximity probe. It measures shaft position or vibration over the extended linear range of a matched transducer system.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330708-00-10-90-02-00
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330708-00-10-90-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330708-00-10-90-02-00
      • Estimated shipping dimensions:
        28x26x4cm
      • Weight:
        1.04 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe body thread:
        5/8-18 UNF
      • Mechanical protection:
        Flexible stainless-steel armor
      • Unthreaded length:
        0.0 in
      • Overall case length:
        1.0 in
      • Integral lead length:
        9.0 m
      • Connector execution:
        ClickLoc without protector
      • Linear range:
        4.0 mm
      • Recommended gap:
        2.5 mm
      • Scale factor:
        3.94 V/mm +/-10%
      • Frequency response:
        0 to 8 kHz, +0/-3 dB
      • Probe DC resistance:
        8.5 +/-1.1 Ohm
      • Maximum field wiring:
        305 m
      • Extension cable capacitance:
        69.9 pF/m typical
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330708-00-10-90-02-00 is an armored 3300 XL 11 mm proximity probe. It measures shaft position or vibration over the extended linear range of a matched transducer system.
      • Provides an extended linear range for large displacement measurements
      • Senses shaft position without mechanical contact
      • Carries the probe signal through a long armored integral lead
      • Operates as the sensing element of a matched 11 mm transducer system

      330708-00-10-90-02-00 installs with 3300 XL 11 mm Proximitor Sensor, matched extension cable, compatible monitor channel, approved steel target in an engineered 3300 XL 11 mm Proximity Transducer System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 11 mm proximity probe.

      Important Notice: Confirm the complete 330708-00-10-90-02-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 330708-00-10-90-02-00 Manuals and Guides
      Apter Power 330708-00-10-90-02-00 Product Technical Reference PDFBently Nevada 330708-00-10-90-02-00 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Reciprocating-compressor rod positionProvides an extended linear range for large displacement measurements
      Large-range axial displacementSenses shaft position without mechanical contact
      Thrust-position monitoringCarries the probe signal through a long armored integral lead
      Shaft-vibration measurementOperates as the sensing element of a matched 11 mm transducer system
      Read the applicable Bently Nevada installation instructions before work. Verify 330708-00-10-90-02-00 and the installed 3300 XL 11 mm Proximity Transducer System configuration.
      1Verify the complete 330708-00-10-90-02-00 code and 1.0-inch case.
      2Place the machine and monitor channel in maintenance state.
      3Protect the 11 mm probe tip and 5/8-18 UNF thread.
      4Support the 9 m armored lead without sharp bends or tensile load.
      5Keep the ClickLoc connection clean and properly seated.
      6Match probe, extension cable, and Proximitor Sensor to the engineered length.
      7Set the 2.5 mm recommended gap on the specified target.
      8Prove polarity, scale factor, and alarm response before release.

      Technical notes

      Install the 5/8-18 UNF probe to the documented reach, protect the 9 m armored lead, match the Proximitor system length, and verify static gap and scale factor before enabling alarms.

      FAQ View All FAQ

      • What commissioning evidence should be retained for 330708-00-10-90-02-00?
        Retain the full 330708-00-10-90-02-00 identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
      • Which installed hardware must be matched before fitting 330708-00-10-90-02-00?
        Match the complete 330708-00-10-90-02-00 marking to 3300 XL 11 mm Proximitor Sensor and matched extension cable, then confirm the assigned 3300 XL 11 mm Proximity Transducer System position and approved system configuration.
      • How should the field connections for 330708-00-10-90-02-00 be recorded before replacement?
        Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting 330708-00-10-90-02-00.
      • What isolation is required before installing 330708-00-10-90-02-00?
        Place reciprocating-compressor rod position in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
      • Which configuration check is essential when commissioning 330708-00-10-90-02-00?
        Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
      • How can an engineer function-test 330708-00-10-90-02-00 after installation?
        Apply a controlled input, reference, or limited output appropriate to 3300 xl 11 mm proximity probe, observe the system indication and diagnostics, and confirm the intended process response.
      • What should be checked if 330708-00-10-90-02-00 reports an unstable or incorrect value?
        Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
      • Can 330708-00-10-90-02-00 be replaced by a visually similar model without review?
        No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
