Technical specifications for 330703-000-060-10-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330703-000-060-10-02-CN
-
Estimated shipping dimensions:2.5x2x124cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Transducer family:3300 XL 11 mm
-
Measurement principle:Non-contact eddy current
-
Mounting thread:M14 x 1.5
-
Case construction:without armor
-
Unthreaded section:0 mm
-
Overall case length:60 mm
-
Integral lead length:1.0 m
-
Termination:ClickLoc connector without protector, standard cable
-
Approval selection:Country-specific CN approval
-
System rule:Probe plus extension cable equals the selected Proximitor electrical length
Information
Overview
Manuals
Common Applications
Product Precautions

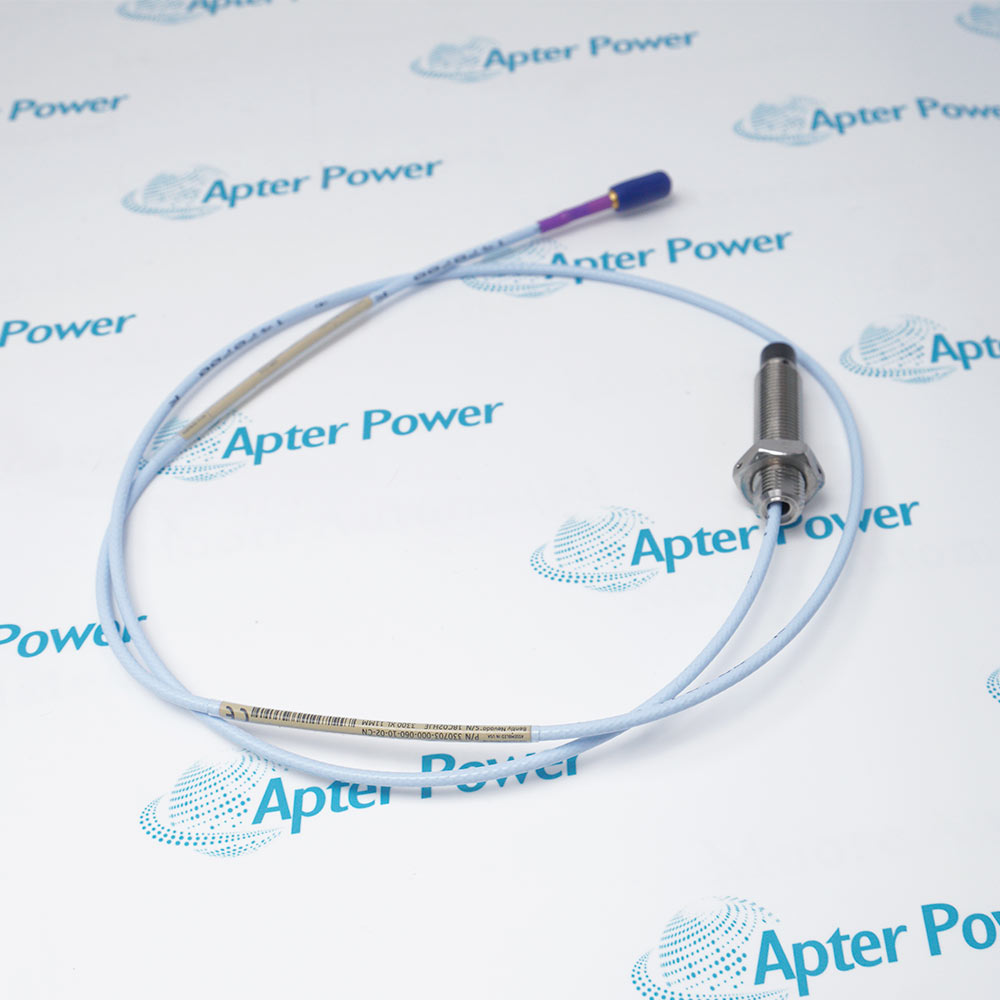

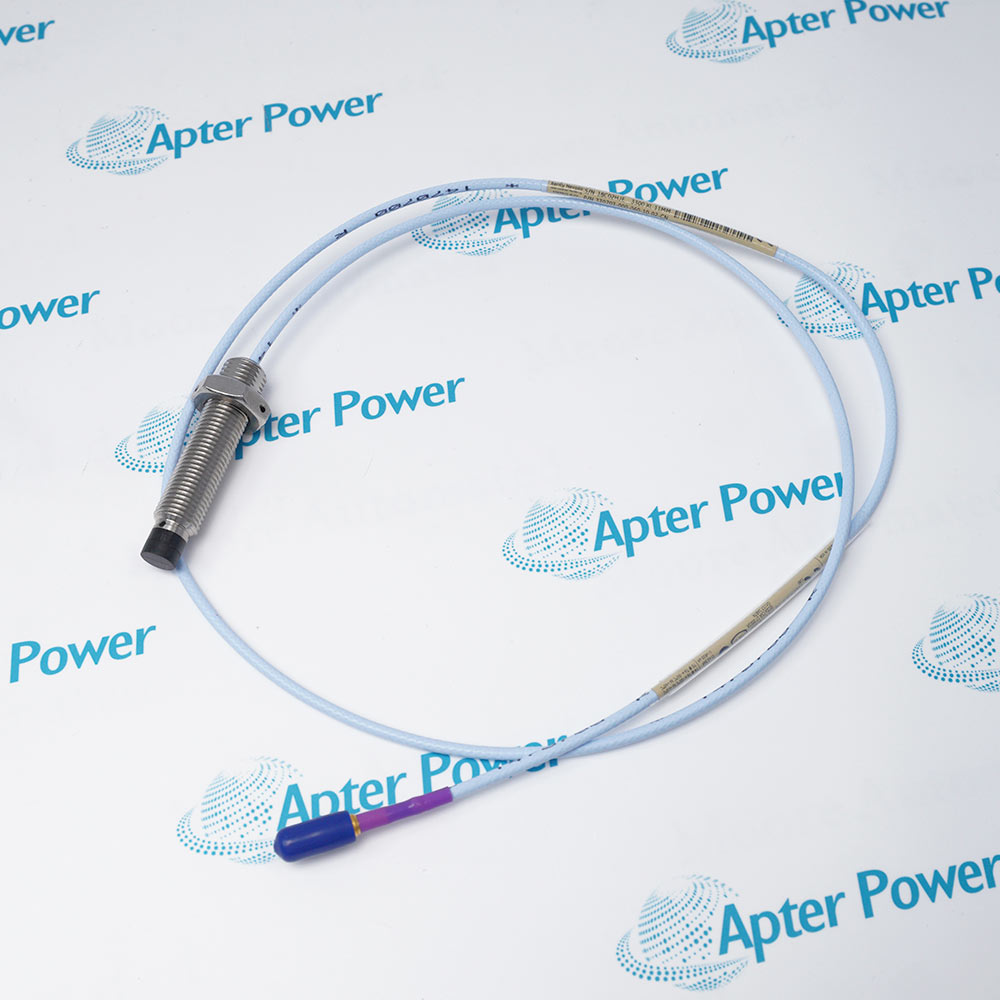

Bently Nevada 330703-000-060-10-02-CN places a 3300 XL 11 mm sensing tip at the machine measurement point through a M14 x 1.5 without armor case.
- Uses the M14 x 1.5 case defined for the 330703 probe family.
- Provides 0 mm of unthreaded case and 60 mm overall case length.
- Carries a 1.0 m integral lead with clickloc connector without protector, standard cable.
- Operates as one component of the matched 3300 XL 11 mm transducer chain.
The probe converts target clearance into the calibrated electrical response of the complete proximity system. The installed probe, extension cable, Proximitor sensor and monitor configuration must remain matched.
Important Notice: Match the complete 330703-000-060-10-02-CN marking and the assigned machine point before removal. Record bias voltage, signal direction and dynamic response during final acceptance.
Bently Nevada 330703-000-060-10-02-CN Manuals & Downloads
Bently Nevada 330703-000-060-10-02-CN Official Technical Reference Excerpt (PDF)Bently Nevada 330703-000-060-10-02-CN Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Shaft-relative vibration
Feeds non-contact shaft motion from the 3300 XL 11 mm sensing point into a matched monitoring channel.
Axial or radial position
Tracks static shaft position where the installed target and channel configuration permit.
Machine protection input
Supplies the conditioned transducer chain used for alarms, trips and condition monitoring.
Commissioning response check
Supports gap, polarity and proportional-response checks after installation.
Before installing Bently Nevada 330703-000-060-10-02-CN, confirm the documented system, interfaces and controlled configuration.
1
Match the complete 330703-000-060-10-02-CN marking and the assigned machine point before removal.
2
Confirm the M14 x 1.5 mounting interface and usable thread engagement before tightening.
3
Keep the probe inside a matched 3300 XL 11 mm probe, extension-cable and Proximitor chain.
4
Protect the sensing tip, lead and ClickLoc contacts from impact, contamination and moisture.
5
Route the integral lead away from hot surfaces, rotating parts and sharp bend points.
6
Use only the connector hardware included by the selected cable option.
7
Set the initial gap against the approved target material before enabling alarms.
8
Record bias voltage, signal direction and dynamic response during final acceptance.
Technical notes
Match the complete 330703-000-060-10-02-CN marking and the assigned machine point before removal. Record bias voltage, signal direction and dynamic response during final acceptance.
FAQ View All FAQ
-
Which non-contact chain uses the 3300 XL 11 mm 60 mm configuration of 330703-000-060-10-02-CN?It belongs to the 3300 XL 11 mm proximity-transducer system.
-
What mechanical interface provides full engagement for the M14 x 1.5, 60 mm case of 330703-000-060-10-02-CN?The probe case uses M14 x 1.5.
-
Which 0 mm section remains unthreaded on the 60 mm body of 330703-000-060-10-02-CN?The selected unthreaded section is 0 mm.
-
How should target access be compared with the 3300 XL 11 mm 60 mm length of 330703-000-060-10-02-CN?The ordering string specifies 60 mm overall case length.
-
Which matched-system calculation includes the 1.0 m cable on the 60 mm probe 330703-000-060-10-02-CN?The probe contributes 1.0 m of integral cable to the matched electrical length.
-
What must be clean at the ClickLoc connector without protector, standard cable end of the 60 mm probe 330703-000-060-10-02-CN?It uses ClickLoc connector without protector, standard cable.
-
Why does changing cable length disturb the 3300 XL 11 mm 60 mm/1.0 m path of 330703-000-060-10-02-CN?Changing probe or extension-cable length changes the calibrated electrical path to the Proximitor sensor.
-
Which target movement verifies gap response for the M14 x 1.5, 60 mm execution 330703-000-060-10-02-CN?A controlled target movement should produce the expected bias change and proportional channel response without diagnostic faults.
