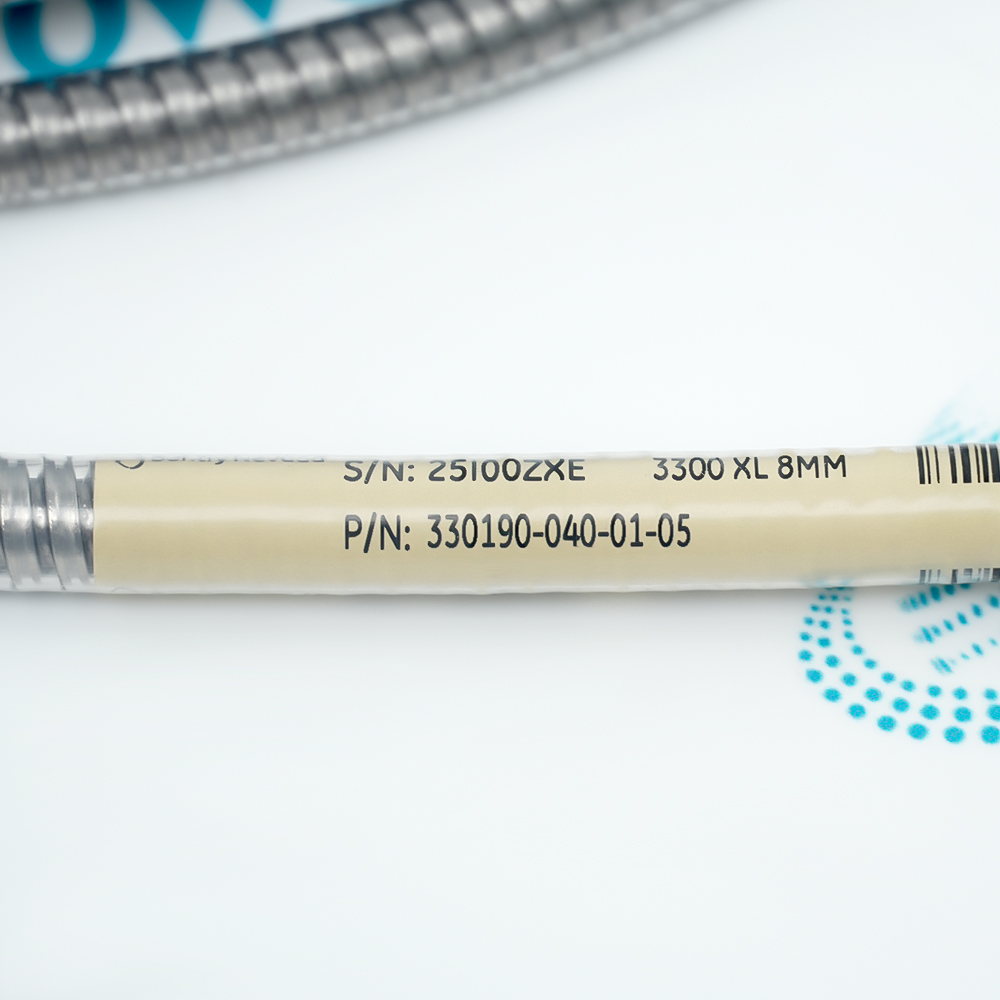

The 330190-040-01-05 is a 3300 XL 8mm Extension Cable with Stainless Steel Armor manufactured by Bently Nevada. This 4.0-meter cable acts as a vital link between the proximity probe and the proximitor, ensuring precise signal transmission within the 3300 XL monitoring system.
3300 NSv probe
3300 NSv extension cable
3300 XL NSv Proximitor Sensor
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil Refining
Connects probes and proximitors on large centrifugal pumps in pump stations to monitor shaft vibration and prevent fires caused by oil leaks.
LNG Processing
Used for condition monitoring of cryogenic compressors, where the armor protects cable integrity in ultra-low temperature environments.
Steel & Metallurgy
Used on large blast furnace blowers, where the armor resists metallic dust abrasion and mechanical crushing.
Natural Gas Pipelines
Connects Keyphasor probes on gas turbines at remote booster stations to provide accurate speed data.
Marine & Shipping
Monitors the vibration of main engine propulsion shafts, with armor protecting against oil and humidity in the engine room.
During use, ensure the connectors are absolutely clean and dry, as oil or moisture ingress into the ClickLoc interfaces must be strictly avoided to prevent signal drift. During installation, avoid excessive bending or crushing of the armored conduit, keeping the bend radius within specified limits to protect the internal coaxial core. Strictly adhere to system length matching rules by pairing this 4.0m cable with a 1.0m probe, and never mix components from different series to maintain the standard 200mV/mil accuracy. Additionally, periodically inspect the armor for physical damage and ensure connectors are sealed with heat-shrink tubing to guarantee long-term operational stability in harsh environments.
It is an extension cable for the 3300 XL 8mm Proximity Transducer System. It acts as a bridge to transmit signals from the probe to the proximitor.
Does the 330190-040-01-05 include physical protective armor?
The code "01" indicates that this cable is equipped with stainless steel armor, which effectively protects it from abrasion, crushing, or cutting in industrial environments.
What probe length should be used with the 330190-040-01-05?
It is typically paired with a 1.0-meter probe to form a complete 5.0-meter transducer system. The total system length must remain constant to ensure measurement accuracy.ent in the Bently Nevada 3300 XL machinery monitoring system. Its core purpose is to provide a high-fidelity, high-reliability signal transmission link for the eddy current displacement sensor system, ensuring the accuracy of mechanical vibration and displacement monitoring data and system stability.
What type of connectors does the 330190-040-01-05 use?
It is equipped with ClickLoc™ gold-plated coaxial connectors, which feature a vibration-resistant self-locking mechanism to ensure reliable connections in high-vibration environments.
Can the 330190-040-01-05 operate in high-temperature or oily environments?
Yes. Its fluoropolymer jacket offers excellent oil and chemical resistance, with a rated operating temperature range typically from -51°C to +177°C.
