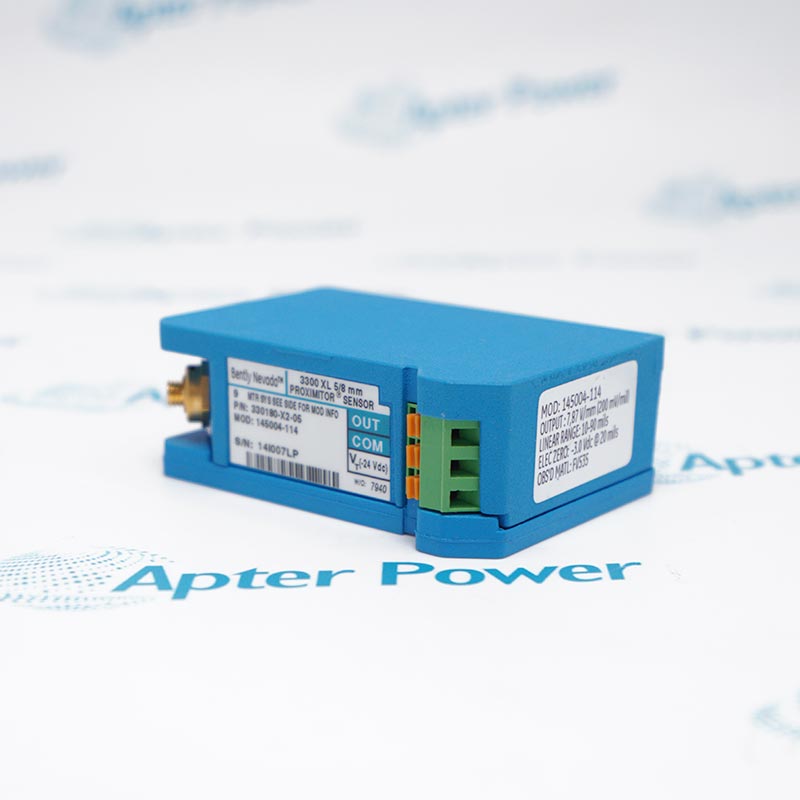

      Bently Nevada 330180-X2-05
      Bently Nevada 330180-X2-05
      Bently Nevada 330180-X2-05
      Bently Nevada 330180-X2-05
      Bently Nevada 330180-X2-05
      Bently Nevada 330180-X2-05
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330180-X2-05

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330180-X2-05 is a 3300 XL Proximitor Sensor for a matched 8 mm proximity-transducer system. It conditions the signal from a compatible probe and extension cable for shaft vibration or position monitoring.

      Ask our team:

      Get a quick price for： 330180-X2-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330180-X2-05

      Technical specifications for 330180-X2-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330180-X2-05
      • Estimated shipping dimensions:
        11x7.3x2.8cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product type:
        3300 XL Proximitor Sensor
      • System family:
        3300 XL 8 mm Proximity Transducer System
      • Sensor input:
        One compatible 3300-series 5 mm or 3300 XL 8 mm probe and extension cable
      • Input supply:
        -17.5 to -26 V DC with specified non-incendive circuit; -23 to -26 V DC with barriers
      • Maximum supply current:
        12 mA
      • Output resistance:
        50 ohms
      • Agency approval code 05:
        CSA, ATEX and IECEx
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330180-X2-05 is a 3300 XL Proximitor Sensor for the 8 mm proximity transducer system.
      • Compatible with an approved 5 mm or 8 mm probe and extension cable
      • -17.5 to -26 V DC under specified non-incendive conditions
      • 50 Ω output resistance in the family datasheet
      • Final 05 code selects CSA, ATEX and IECEx approvals

      The Proximitor conditions the matched probe signal for the receiving machinery-monitoring channel. Confirm supply, barriers, probe selection and the installed channel scale before release.

      Important Notice: The X2 length and mounting selection is unresolved. Do not assign a system length or mount type from the neighboring numeric options.

      Bently Nevada 330180-X2-05 Manuals & Downloads
      330180-X2-05 Technical Reference (PDF)330180-X2-05 Installation & Commissioning Guide (PDF)

      The first PDF records verified technical values and exact article boundaries; the second provides separate installation, commissioning and acceptance checks.

      Radial vibrationMonitor shaft vibration through the documented 3300 XL 8 mm sensor chain.
      Shaft positionUse the matched probe, extension and monitor configuration for supported position measurement.
      Channel diagnosticsCheck sensor supply, bias and monitor fault behavior during controlled commissioning.
      Maintenance replacementVerify the X2 choice and code 05 approval conditions before fitting another Proximitor.
      Read the 3300 XL 8 mm installation instructions before work. Verify the full 330180-X2-05 identity and matched channel.
      1
      Compare 330180-X2-05 with the installed label and purchase record.
      2
      Place the machine and protection channel in the approved maintenance state.
      3
      Record mounting hardware, probe, extension, terminals, shield and monitor settings.
      4
      Resolve X2 from original evidence rather than assigning a numeric system length.
      5
      Check the negative DC supply range and whether safety barriers are fitted.
      6
      Confirm code 05 approval conditions for the installed site and wiring.
      7
      Restore the matched sensing path, output and shielding without changing channel scale.
      8
      Run a controlled response and diagnostic test and retain the as-left result.

      Technical notes

      Technical notes

      Match the complete sensor marking to the installed probe, extension cable, system length and mounting arrangement before replacement. The X2 ordering segment is not resolved by the standard AA option table; verify this exact variant against the nameplate and site documentation.

      FAQS

      • What is 330180-X2-05 used for?
        It is a Proximitor Sensor that conditions signals from a compatible probe-and-extension-cable set for shaft vibration or position monitoring.
      • Is 330180-X2-05 a stand-alone proximity switch?
        No. It is one component of a matched 3300 XL proximity-transducer system.
      • Which probe input can the 330180-X2-05 family accept?
        The 3300 XL 8 mm system specification covers one compatible 3300-series 5 mm or 3300 XL 8 mm probe together with its extension cable.
      • What supply does 330180-X2-05 require?
        The family specification gives -17.5 to -26 V DC in the specified non-incendive circuit or -23 to -26 V DC with barriers; verify the installed circuit before energizing.
      • Does 330180-X2-05 specify the complete system length?
        The X2 segment does not identify a standard AA length/mounting option in the published ordering table. Check the installed marking and engineering record before selecting a replacement.
      • What does the 05 approval suffix on 330180-X2-05 represent?
        For the 330180 family, code 05 denotes the CSA, ATEX and IECEx agency-approval option; verify the exact label before using an approval claim.
      • What should be checked when replacing 330180-X2-05?
        Confirm the full part number, power circuit, probe and extension-cable compatibility, mounting, target setup and final system response.
