OverviewManualsCommon ApplicationsTemperature Range
The 330130-085-01-05 is offers advanced performance within eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute (API) 670 Standard, covering mechanical configuration, linear range, accuracy, and temperature stability.
Complete Interchangeability
Gold-plated ClickLoc
Excellent Corrosive Resistance
All 3300 XL 8 mm proximity transducer systems maintain this level of performance and allow complete interchangeability of probes, extension cables, and Proximitor sensors, removing the requirement to match or bench calibrate individual components.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-085-01-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Used for vibration and position measurement of large rotating machinery in various power plants, monitoring the operating status of turbines, generators, and auxiliary equipment.
Oil & Gas
Provides non-contact displacement monitoring for critical fluid diaphragm bearing machinery in oil and gas extraction and refining processes.
Petrochemical Processing
Widely used in compressors, pumps, and fans in chemical plants, conforming to API 670 industry standards, providing reliable mechanical protection and condition monitoring in harsh high-temperature or high-pressure environments.
Hydroelectric Power
Monitors spindle displacement and speed in hydroelectric generator sets, utilizing its excellent temperature stability and linear range, maintaining accurate signal transmission through ClickLoc connectors in humid environments.
Water & Wastewater
Used in large pump sets and motors in water treatment facilities, monitoring radial vibration and axial position of rotating mechanical components, reducing equipment maintenance costs and preventing sudden mechanical failures.
General Industrial Machinery
Suitable for various industrial rotating equipment, such as blowers, industrial turbines, and as a keyphasor for speed measurement, meeting the stringent requirements of general industrial automation for mechanical protection.
An extended temperature range (ETR) probe and ETR extension cable are available for applications in which either the probe lead or extension cable may exceed the standard 177˚C (350˚F) temperature specification. The ETR probe has an extended temperature rating for up to 218˚C (425˚F). The ETR extension cable rating is up to 260˚C (500˚F). Both the ETR probe and cable are compatible with standard temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.
What are the specific configuration parameters for the 330130-085-01-05 extension cable?

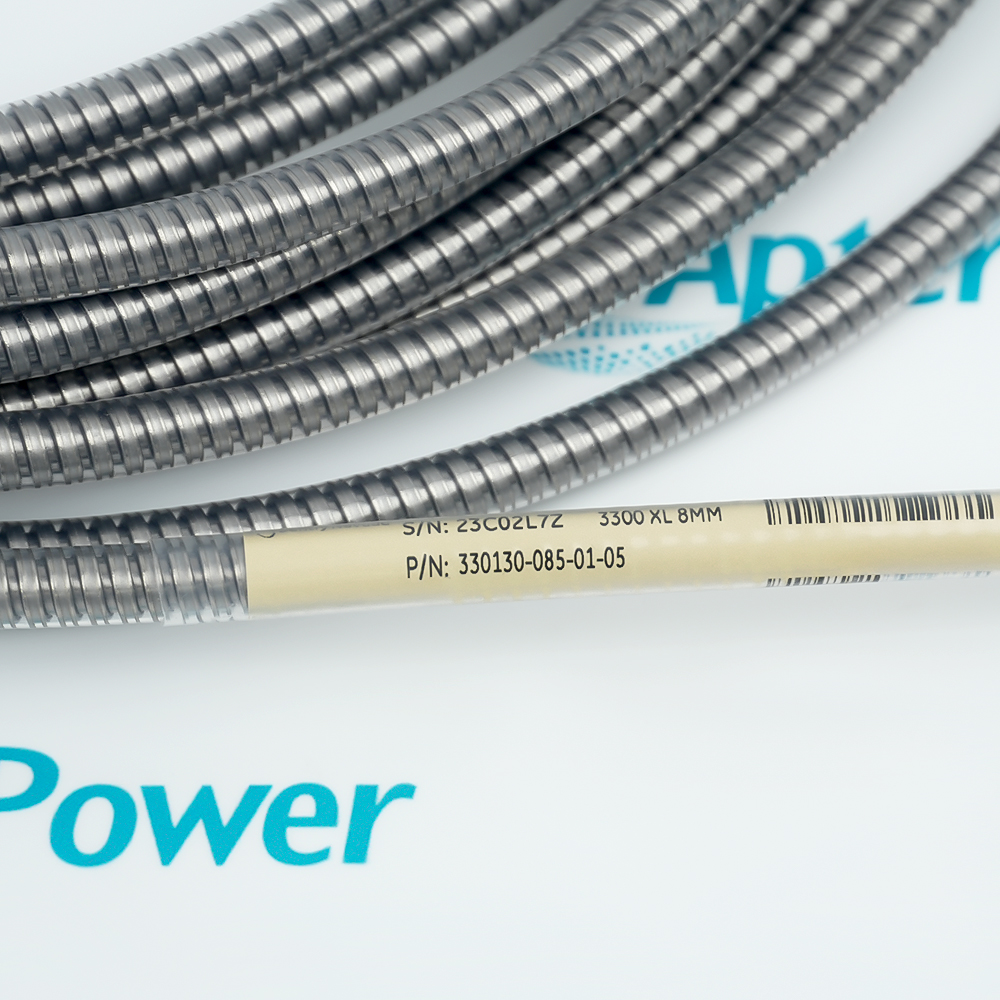

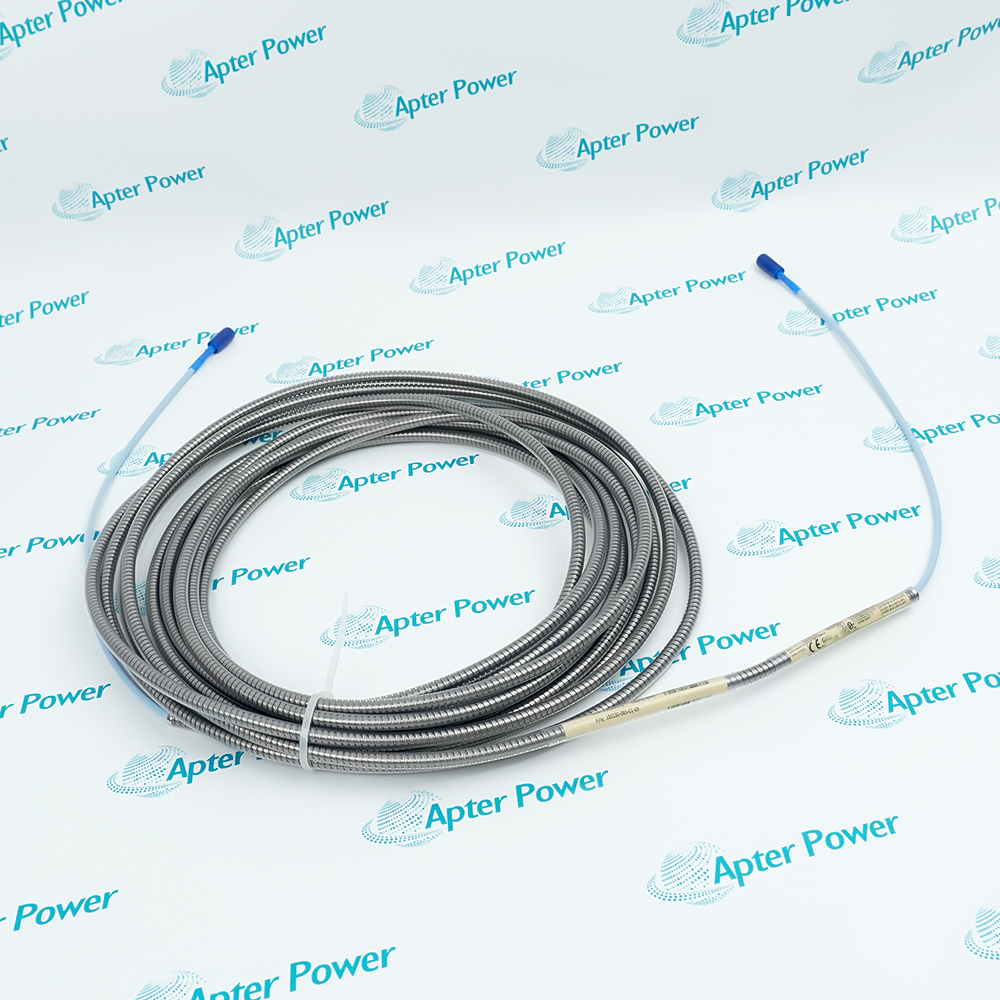

This model is an 8.5-metre (27.9 feet) extension cable with standard cable options and includes Miniature coaxial ClickLoc connectors without armor.
How does the 330130-085-01-05 support the overall system length requirements?
This 8.5-metre cable is designed to be used with a 0.5-metre probe to create a total 9.0-metre system length, ensuring accurate calibration and signal linearity.
What is the benefit of the ClickLoc connectors used on the 330130-085-01-05?
These corrosion-resistant, gold-plated connectors require only finger-tight torque and feature a locking mechanism that prevents the connectors from loosening.
Can the 330130-085-01-05 be interchanged with other 3300 XL series components?
Yes, 3300 XL 8mm components provide complete interchangeability, eliminating the need to match or bench calibrate individual probes, extension cables, or Proximitor sensors.
What is the environmental resistance of the 330130-085-01-05 cable material?
The 3300 XL extension cable is designed to provide excellent resistance to the corrosive fluids found in steam and gas turbines and other industrial machinery.
