Get a quick price for 330130-070-00-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330130-070-00-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-070-00-00
-
Estimated shipping dimensions:20×20×2.1cm
-
Weight:0.24 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Cable Family:3300 XL standard extension cable
-
Selected Electrical Length:070 = 7.0 m
-
Cable Execution:00 = standard cable; without armor
-
Connector Protector:Not included by BB00
-
Agency Approval Option:00 = not required
-
Probe Pairing for This Cable:2 m probe + 7 m extension = 9 m system
-
Nominal Center-Conductor Resistance:1.54 +/- 0.23 ohm; 7 m extension
-
Nominal Outer-Conductor Resistance:0.46 +/- 0.09 ohm; 7 m extension
-
Cable Capacitance:69.9 pF/m typical
-
Minimum Cable Bend Radius:25.4 mm
-
Cable Impedance:75 ohm triaxial
-
Cable Insulation:Fluorinated ethylene propylene (FEP)
-
Connector Material:Gold-plated brass or beryllium copper
-
Two XL ClickLoc Connection:Finger tight
-
Maximum Connector Torque:0.565 N m
-
Extension Operating / Storage Temperature:-52 to +177 deg C; standard extension
-
Matched System Linear Range:2 mm; approximately 0.25 to 2.3 mm
-
Matched System Nominal Scale Factor:7.87 V/mm (200 mV/mil)
-
Matched Radial-Vibration Gap:-9 VDC nominal
-
Matched 9 m System ISF:+/-6.5% at 0 to +45 deg C
-
Matched 9 m System DSL:Less than +/-0.038 mm at 0 to +45 deg C
-
Companion Sensor Operating Temperature:-52 to +100 deg C
-
Companion Sensor Storage Temperature:-52 to +105 deg C
-
Companion Field-Wire Conductor Range:0.2 to 1.5 mm2 (16 to 24 AWG)
-
Companion Field-Wire Recommendation:Three-conductor shielded triad; tinned wire
-
Companion Field-Wire Maximum Length:305 m; apply the documented frequency-response curves
Information
Overview
Manuals
Common Applications
Product Precautions

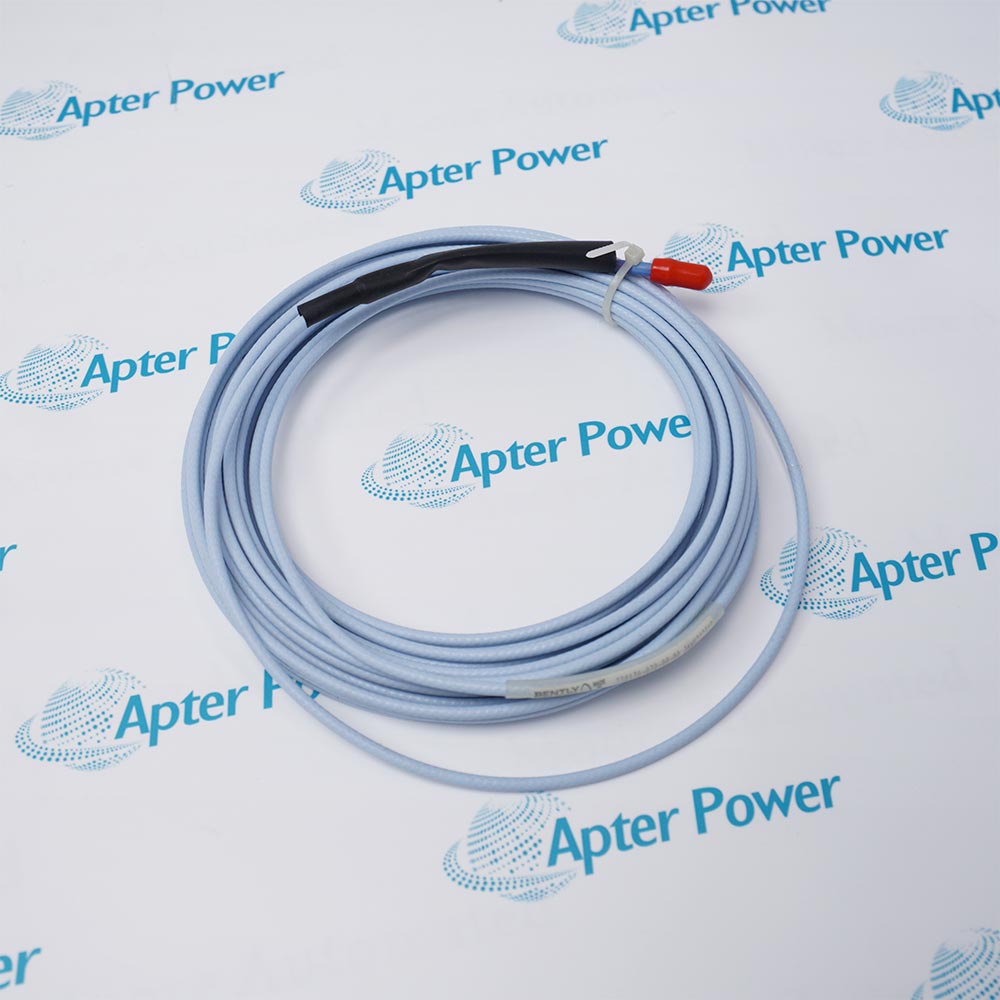

Bently Nevada 330130-070-00-00 is a 7 m standard extension cable without armor or an included connector protector. It joins a 2 m probe to a matched 9 m 3300 XL 8 mm Proximitor channel.
- Completes a 9 m electrical chain when paired with a 2 m probe.
- Uses the standard cable execution without armor or an included protector.
- Provides gold-plated ClickLoc service connections to matched XL components.
- Retains separate center and outer-conductor resistance checks for the 7 m cable.
The extension carries the proximity-probe connection to the Proximitor and completes the selected electrical length. Its standard unarmored cable requires protected routing, suitable service-junction protection and electrical insulation at the connections.
Important Notice: The -00 cable selection is standard cable, not FluidLoc or armor. The final -00 approval selection does not confer hazardous-area certification; apply the installed circuit and independent process-containment requirements.
Bently Nevada 330130-070-00-00 Manuals & Downloads
330130-070-00-00 Technical Reference (PDF)330130-070-00-00 Installation & Commissioning Guide (PDF)
The technical reference covers configuration, signal characteristics and performance conditions. The installation guide organizes system pairing, connection checks and channel commissioning.
Nine-metre proximity channels
Join the selected 2 m probe to a 9 m XL 8 mm conditioner using the documented total-length rule.
Supported coaxial service routes
Carry the sensing-element connection through an accessible and protected unarmored cable path.
Shaft displacement measurements
Complete the electrical chain used by a matched monitor for static shaft position and dynamic vibration.
Channel service verification
Check the disconnected cable conductors separately before reconnecting the complete transducer system.
Bently Nevada 330130-070-00-00 installation checks: inspect the 7 m extension route, pair it with a 2 m probe and verify the matched 9 m channel before release.
1
Pair the 7 m extension with a 2 m probe and a 9 m Proximitor; its length cannot fit a 5 m or 1 m system.
2
Observe the 25.4 mm minimum cable bend radius and support the unarmored routing against crushing or persistent strain.
3
Provide suitable protection for both service junctions; the BB00 selection has no included connector protector.
4
Keep the junctions electrically insulated from ground while maintaining the intended monitor field-circuit reference.
5
Join two XL gold ClickLoc connectors finger tight; the 0.565 N m maximum is not a tightening target.
6
Measure center-conductor and outer-conductor continuity separately with the extension disconnected from the energized system.
7
Do not count the Proximitor-to-monitor field wiring as part of the 9 m probe-and-extension electrical length.
8
Apply standard extension and conditioner temperature limits separately and review the supplied component approvals before release.
Technical notes
AAA070 selects a 7 m cable, BB00 selects standard cable and CC00 means agency approval not required. Match the 2 m probe and 9 m conditioner; keep monitor field wiring separate from this coaxial extension.
FAQ View All FAQ
-
Which probe length completes the selected channel with 330130-070-00-00?A 2 m probe completes a 9 m system with this 7 m extension. Select the corresponding 9 m Proximitor and retain the documented total electrical length.
-
How are the two conductor resistance checks different for 330130-070-00-00?The 7 m center conductor is 1.54 +/-0.23 ohm and the outer conductor is 0.46 +/-0.09 ohm. These are separate end-to-end cable checks, measured with the extension disconnected.
-
Does BB00 supply armor or connector protectors with 330130-070-00-00?BB00 selects standard cable. Armored cable and standard cable with connector protector use separate options; they are not supplied by this code.
-
Why is the 25.4 mm routing radius relevant to 330130-070-00-00?It is the specified minimum extension-cable bend radius. Use a supported route that respects this limit instead of folding or tightly bending the cable to absorb spare length.
-
Can 330130-070-00-00 replace the shielded field wire between a sensor and monitor?The coaxial extension and monitor field circuit serve different paths. The monitor circuit uses the recommended three-conductor shielded triad; its wiring length is separate from the probe-plus-extension length.
-
Does standard cable 330130-070-00-00 stop oil migrating through its interior?The standard cable execution is not FluidLoc. FluidLoc extensions have separate cable-option codes; no FluidLoc sealing claim applies to BB00.
-
Which component temperature governs the conditioner used with 330130-070-00-00?The standard extension operates and stores at -52 to +177 deg C, while the Proximitor operates to +100 deg C and stores to +105 deg C. Evaluate each component at its actual location.
-
What changes when a non-XL cable or probe is mixed with 330130-070-00-00?Mixing XL and non-XL 3300-series 5 mm or 8 mm components limits the assembled channel to the non-XL specifications. A matching connector alone does not preserve the XL-only performance claim.
