Technical specifications for 330130-040-00-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330130-040-00-CN
-
Estimated shipping dimensions:20.5x22.4x3.3cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Transducer family:3300 XL 8 mm
-
Component role:Calibrated extension cable
-
Cable length:4.0 m
-
Cable construction:Standard insulated coaxial cable
-
Signal connection:Miniature coaxial connectors
-
Electrical-length rule:Probe plus extension cable equals Proximitor system length
-
Field modification:Do not shorten, splice or repair the calibrated cable
Information
Overview
Manuals
Common Applications
Product Precautions

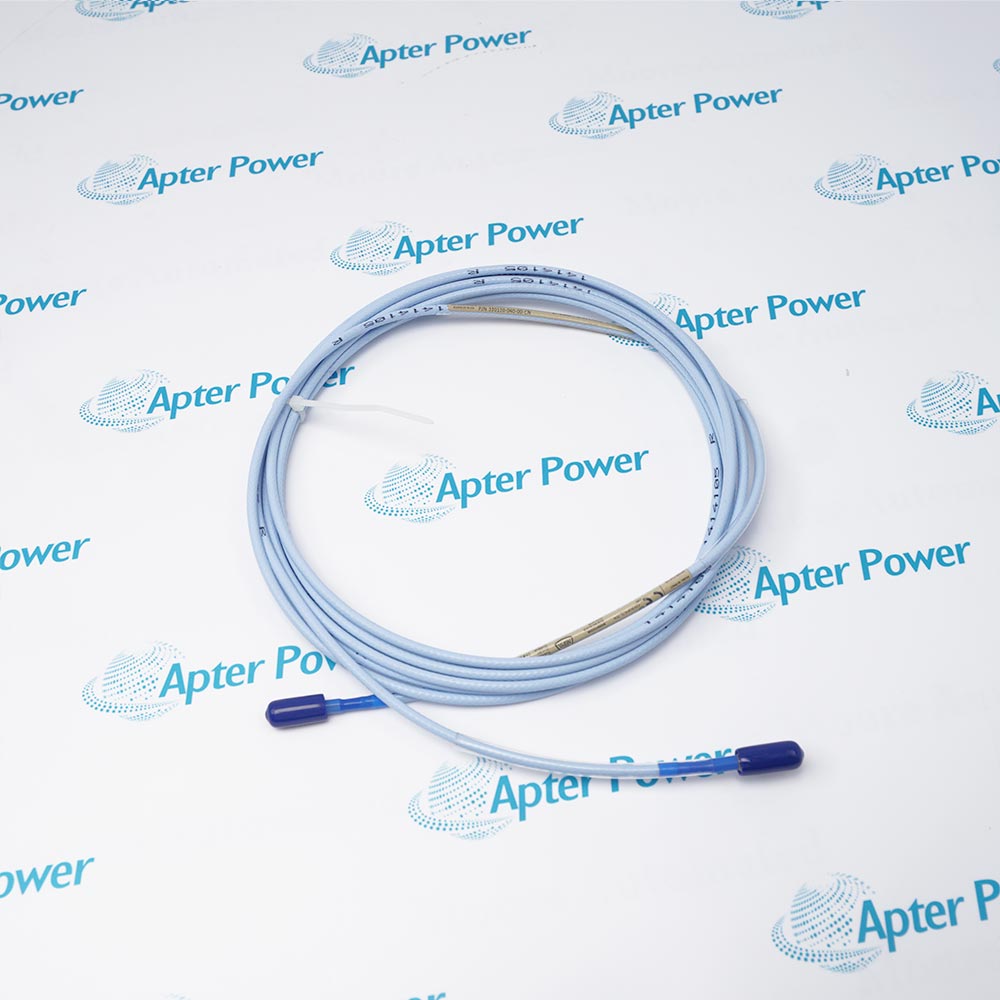

Bently Nevada 330130-040-00-CN completes the calibrated 3300 XL 8 mm signal path with a 4.0 m standard insulated coaxial cable cable section.
- Provides a 4.0 m calibrated extension-cable length.
- Uses standard insulated coaxial cable construction.
- Carries the proximity signal through miniature coaxial connections.
- Maintains the electrical-length relationship between probe and Proximitor sensor.
The extension cable must remain within its intended measurement or monitoring chain. Match its interfaces, wiring and channel configuration before returning protection to service.
Important Notice: Confirm the complete 330130-040-00-CN marking, mating interfaces and controlled channel configuration before installation.
Bently Nevada 330130-040-00-CN Manuals & Downloads
Bently Nevada 330130-040-00-CN Technical Reference (PDF)Bently Nevada 330130-040-00-CN Installation & Commissioning Guide (PDF)
The Technical Reference covers product function, interfaces and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Probe connection
Join a compatible 3300 XL probe to the selected Proximitor sensor.
Radial-vibration loop
Maintain the calibrated signal path for a qualified shaft-vibration channel.
Axial-position loop
Carry the proximity signal for a position-measurement chain.
Maintenance replacement
Restore the exact cable length and construction used by the installed loop.
Before installing Bently Nevada 330130-040-00-CN, confirm the mating interface, wiring arrangement and controlled channel configuration.
1
Confirm the complete 330130-040-00-CN marking before replacement.
2
Add probe and extension-cable lengths and compare the result with the Proximitor system length.
3
Protect both coaxial contacts from dirt, moisture and impact.
4
Do not pull, crush, kink or sharply bend the cable.
5
Do not shorten or splice the calibrated extension cable.
6
Support the run so machine motion does not load either connector.
7
Engage each connector fully and restore the specified environmental protection.
8
Verify static gap, OK status and dynamic signal response after reconnection.
Technical notes
Confirm the complete 330130-040-00-CN marking, mating interfaces and controlled channel configuration before installation.
FAQ View All FAQ
-
What role does Bently Nevada 330130-040-00-CN perform?It is the calibrated extension-cable section in a 3300 XL 8 mm transducer chain.
-
Which cable length is selected for Bently Nevada 330130-040-00-CN?The selected cable length is 4.0 m.
-
Which cable construction applies to Bently Nevada 330130-040-00-CN?It uses standard insulated coaxial cable construction.
-
How is Bently Nevada 330130-040-00-CN matched to a Proximitor sensor?Probe length plus extension-cable length must equal the Proximitor system length.
-
Can Bently Nevada 330130-040-00-CN be shortened in the field?No. Shortening or splicing changes the calibrated electrical path.
-
What should be inspected on the connectors of Bently Nevada 330130-040-00-CN?Check cleanliness, dryness, contact condition and full engagement.
-
How should Bently Nevada 330130-040-00-CN be routed?Maintain the permitted bend radius and keep the cable free from tension, abrasion and side load.
-
What verifies the repaired loop after installing Bently Nevada 330130-040-00-CN?Confirm matched length, stable gap voltage, channel OK state and dynamic response.
