Technical specifications for 330104-03-09-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330104-03-09-10-02-00
-
Estimated shipping dimensions:1.8x1.6x108cm
-
Weight:0.14 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe Family:3300 XL 8 mm
-
Mounting Thread:M10 x 1
-
Armor Execution:With armor
-
Unthreaded Length Option:AA03 = 30 mm
-
Overall Case Length Option:BB09 = 90 mm
-
Total Probe Length:CC10 = 1.0 m
-
Connector and Cable:DD02 = miniature coaxial ClickLoc, standard cable
-
Included Connector Protector:Not selected by DD02
-
Approval Selection:EE00 = not required
-
Nominal Probe DC Resistance:7.59 +/-0.50 ohm; center to outer conductor
-
Standard Probe Cable:75 ohm triaxial; FEP insulated
-
Probe Tip Material:Polyphenylene sulfide (PPS)
-
Probe Case Material:AISI 303 or 304 stainless steel
-
Recommended Case Torque:11.2 N m; standard forward mounting
-
Maximum Case Torque:33.9 N m; standard forward mounting
-
First-Three-Threads Torque:7.5 N m recommended; 22.6 N m maximum
-
Maximum Thread Engagement:15 mm; matching internal fit class
-
Minimum Cable Bend Radius:25.4 mm
-
Maximum Connector Torque:0.565 N m
-
Two XL ClickLoc Connectors:Finger tight
-
Standard Probe Temperature:-52 to +177 deg C; operating and storage
-
Matched System Linear Range:2 mm; approximately 0.25 to 2.3 mm
-
Radial Vibration Gap Setting:-9 VDC; approximately 1.27 mm
-
Nominal System Scale Factor:7.87 V/mm (200 mV/mil)
-
System Frequency Response:0 to 10 kHz; +0 / -3 dB
-
Companion Proximitor Output Resistance:50 ohm
-
Companion Proximitor Maximum Current:12 mA
-
Companion Proximitor Operating Temperature:-52 to +100 deg C
-
Companion Proximitor Storage Temperature:-52 to +105 deg C
Information
Overview
Manuals
Common Applications
Product Precautions

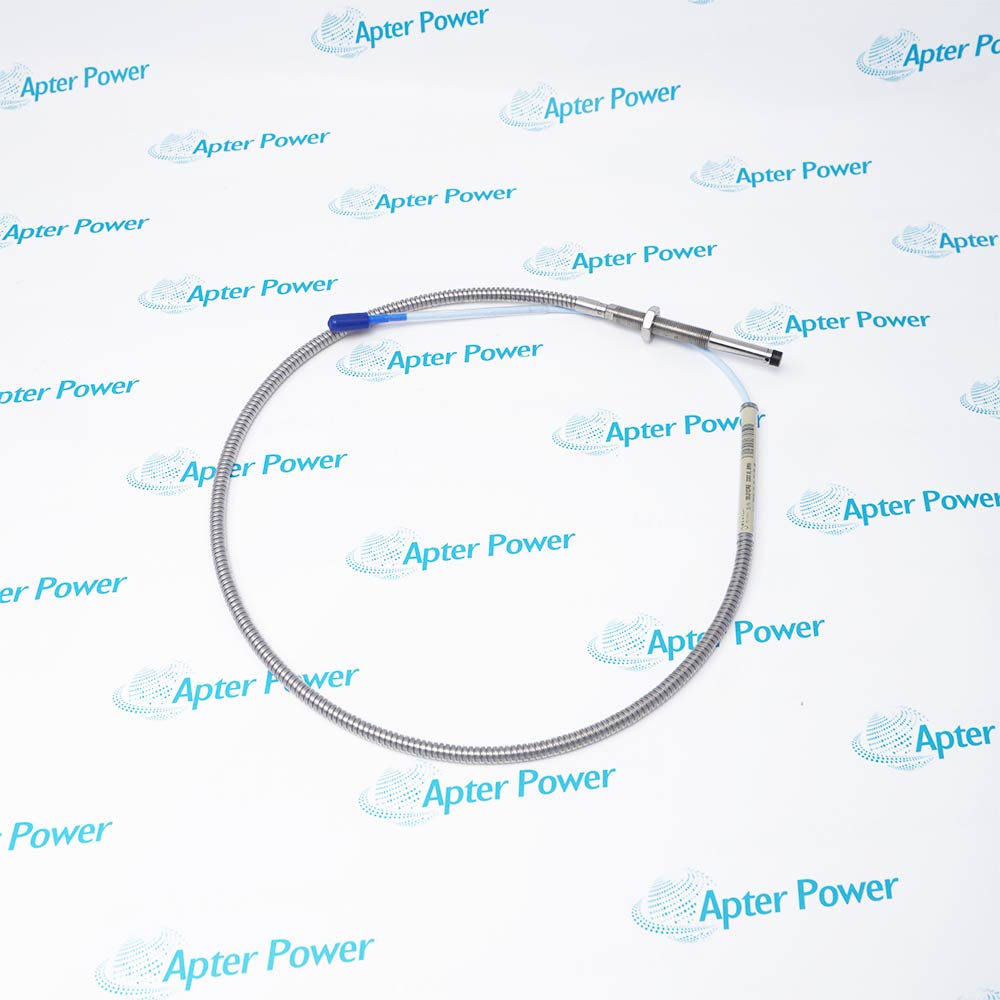

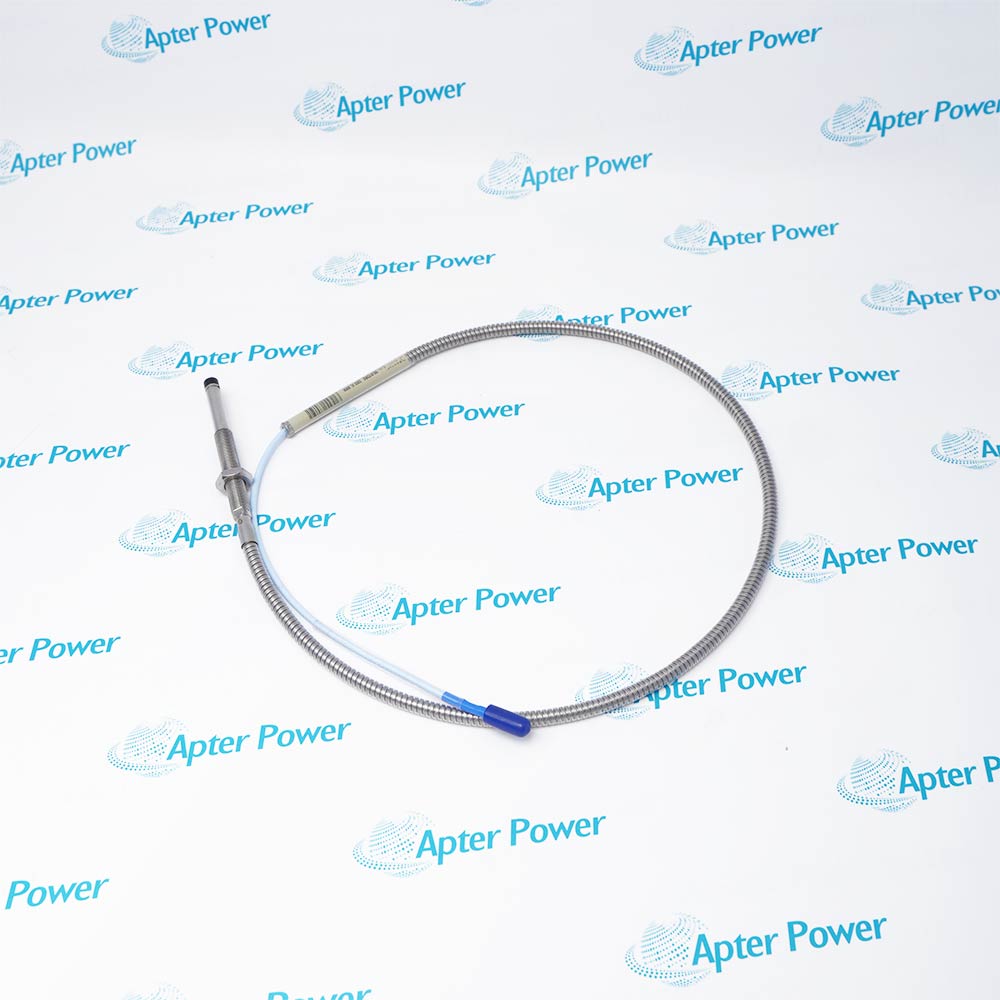

Bently Nevada 330104-03-09-10-02-00 is an armored 3300 XL 8 mm proximity probe with an M10 x 1 mounting thread and a 1 m standard cable. Its ClickLoc connection supports a selected XL system for non-contact shaft vibration and position measurements.
- Metric M10 x 1 mounting with the selected partial-thread case execution.
- The armored 1 m probe lead provides the starting component for three documented XL electrical lengths.
- DD02 retains standard cable and ClickLoc without an included connector protector.
- Complete XL system calibration supports static position and dynamic shaft-vibration signals.
The probe responds to the distance from a conductive target while a separate Proximitor supplies the conditioned measurement output. Armor protects the lead mechanically; the selected extension and conditioner determine the complete electrical length. Mounting fit, cable option and calibration remain independent selection checks.
Important Notice: Retain the complete AA03 / BB09 mechanical execution and the matching XL electrical length. Armor does not select FluidLoc or supply a connector protector. EE00 must not be presented as a hazardous-area approval.
Bently Nevada 330104-03-09-10-02-00 Manuals & Downloads
Bently Nevada 330104-03-09-10-02-00 Technical Reference (PDF)Bently Nevada 330104-03-09-10-02-00 Installation & Commissioning Guide (PDF)
The technical reference explains probe construction, electrical-length choices and system performance. The installation guide covers mounting, connection checks, gap setting and channel acceptance.
Metric armored installations
Use the M10 x 1 armored execution where the machine mounting interface and cable route call for those features.
Radial vibration channels
Measure shaft motion on fluid-film-bearing machinery through a correctly calibrated XL transducer channel.
Static position measurement
Provide a non-contact distance signal to a compatible conditioner and the configured position-monitor function.
Selectable electrical routes
Plan a direct 1 m arrangement or the documented extension combination for a 5 m or 9 m channel.
Bently Nevada 330104-03-09-10-02-00 installation checks distinguish its partial-thread M10 mount, armored lead and standard DD02 connection.
1
Verify the selected M10 x 1 mechanical execution and keep thread engagement within 15 mm; do not force a binding mount.
2
Match the 1 m probe directly to a 1 m Proximitor or use the documented 4 m / 8 m extension for a 5 m / 9 m system.
3
Identify the supporting threads before tightening: normal case torque is 11.2 N m recommended; first-three-threads support uses 7.5 N m.
4
Route the armored lead with a minimum 25.4 mm bend radius and relieve sustained tension at its connection.
5
Join two XL ClickLoc connectors finger tight; keep the connector maximum of 0.565 N m separate from case-torque limits.
6
Provide suitable protection for the DD02 junction. Standard cable and armor do not establish a FluidLoc cable execution.
7
Apply separate probe and Proximitor temperature limits and assess any pressure-seal requirement through the application procedure.
8
Confirm target calibration and gap response after assembly; EE00 does not by itself establish hazardous-area suitability.
Technical notes
The 1 m probe supports the matching 1 m probe-only system, or a 4 m extension for a 5 m system, or an 8 m extension for a 9 m system. DD02 selects standard ClickLoc without an included protector; EE00 means approval not required.
FAQ View All FAQ
-
What distinguishes the mechanical execution of 330104-03-09-10-02-00?330104 selects the armored M10 x 1 XL probe. AA03 specifies a 30 mm unthreaded portion and BB09 a 90 mm case; retain the complete execution when checking the mounting arrangement.
-
Can 330104-03-09-10-02-00 be connected without an extension cable?Yes, with the matching 1 m XL Proximitor. For a 5 m channel use a 4 m extension, and for a 9 m channel use an 8 m extension. Keep the full electrical length consistent with the sensor marking.
-
Does the armor on 330104-03-09-10-02-00 change its nominal probe resistance?The documented 1 m probe check is 7.59 +/-0.50 ohm from center to outer conductor. Use the isolated component check; do not replace it with an extension conductor resistance or connected-channel reading.
-
Which M10 engagement and support checks apply to 330104-03-09-10-02-00?Maximum engagement is 15 mm with a matching internal fit. Normal support uses 11.2 N m recommended case torque, while first-three-threads support uses 7.5 N m; investigate binding before tightening further.
-
Is 330104-03-09-10-02-00 supplied with a connector protector or FluidLoc cable?Neither is selected by DD02. It provides standard cable and a ClickLoc connector without an included protector. The armored execution is a separate mechanical selection.
-
Why can the 9 m channel using 330104-03-09-10-02-00 have a different accuracy limit?At 0 to +45 deg C, the standard 9 m row specifies ISF within +/-6.5% and DSL below +/-0.038 mm. The standard 1 m and 5 m rows use +/-5% and below +/-0.025 mm under the same stated target and circuit conditions.
-
What does the final 00 on 330104-03-09-10-02-00 mean for approvals?EE00 is the agency-approval-not-required selection. It is not evidence that a particular hazardous-area installation is certified; check the actual equipment requirements and supplied marking.
-
How should the two temperature locations for 330104-03-09-10-02-00 be assessed?The standard probe operates and stores at -52 to +177 deg C. Its companion Proximitor operates to +100 deg C and stores to +105 deg C, so each installed location needs its own temperature check.
