      330104-00-15-10-02-00

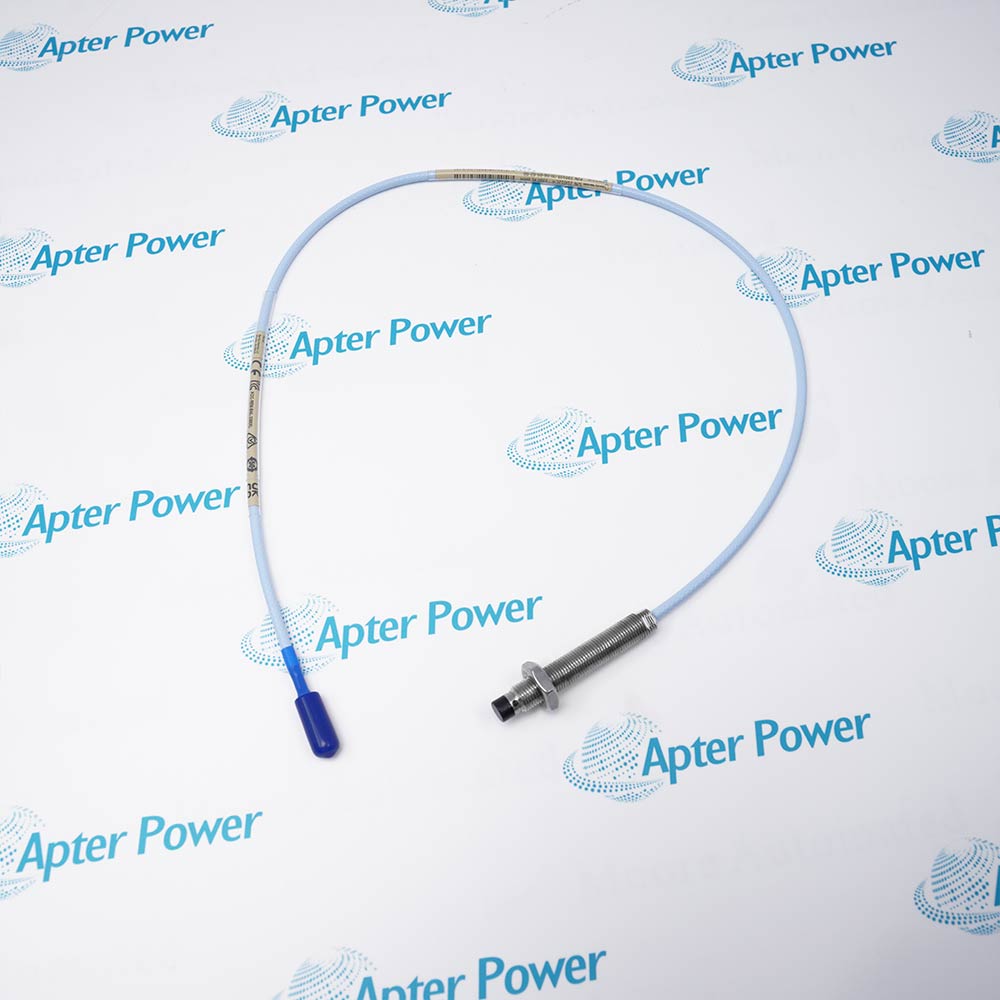

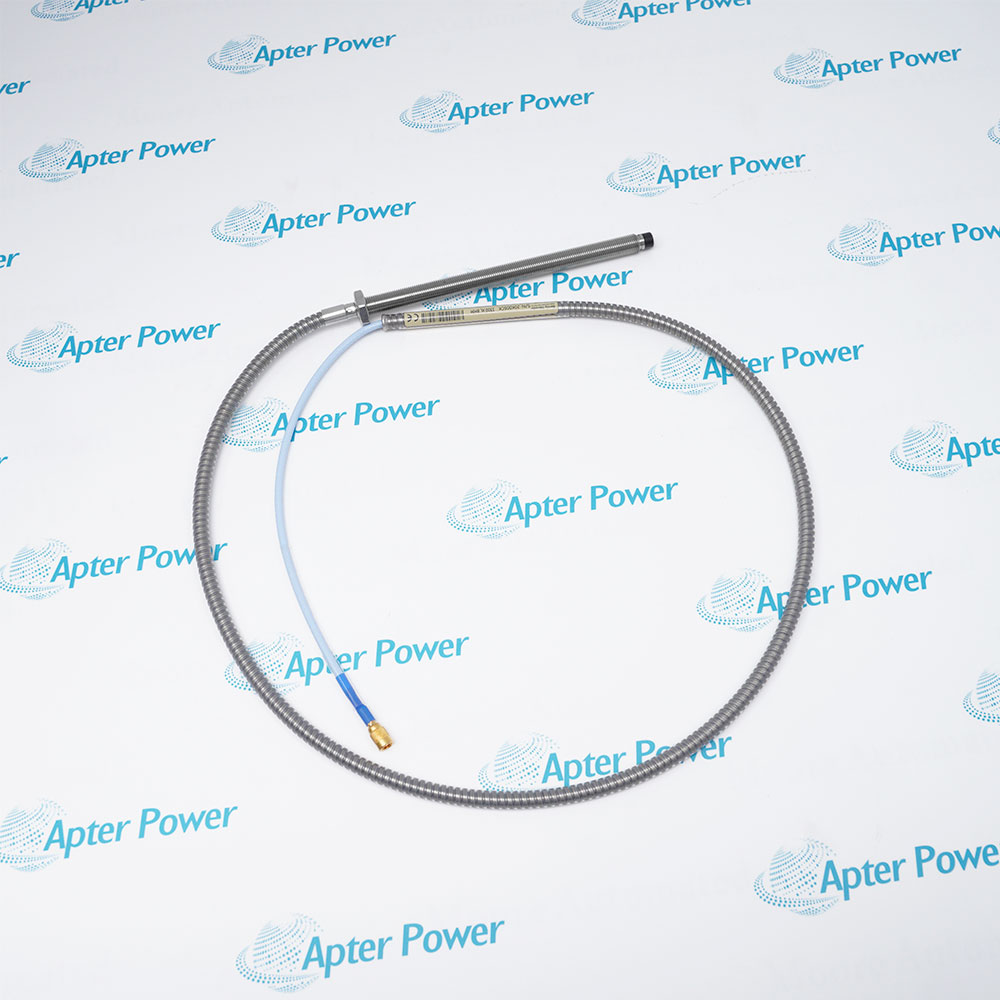

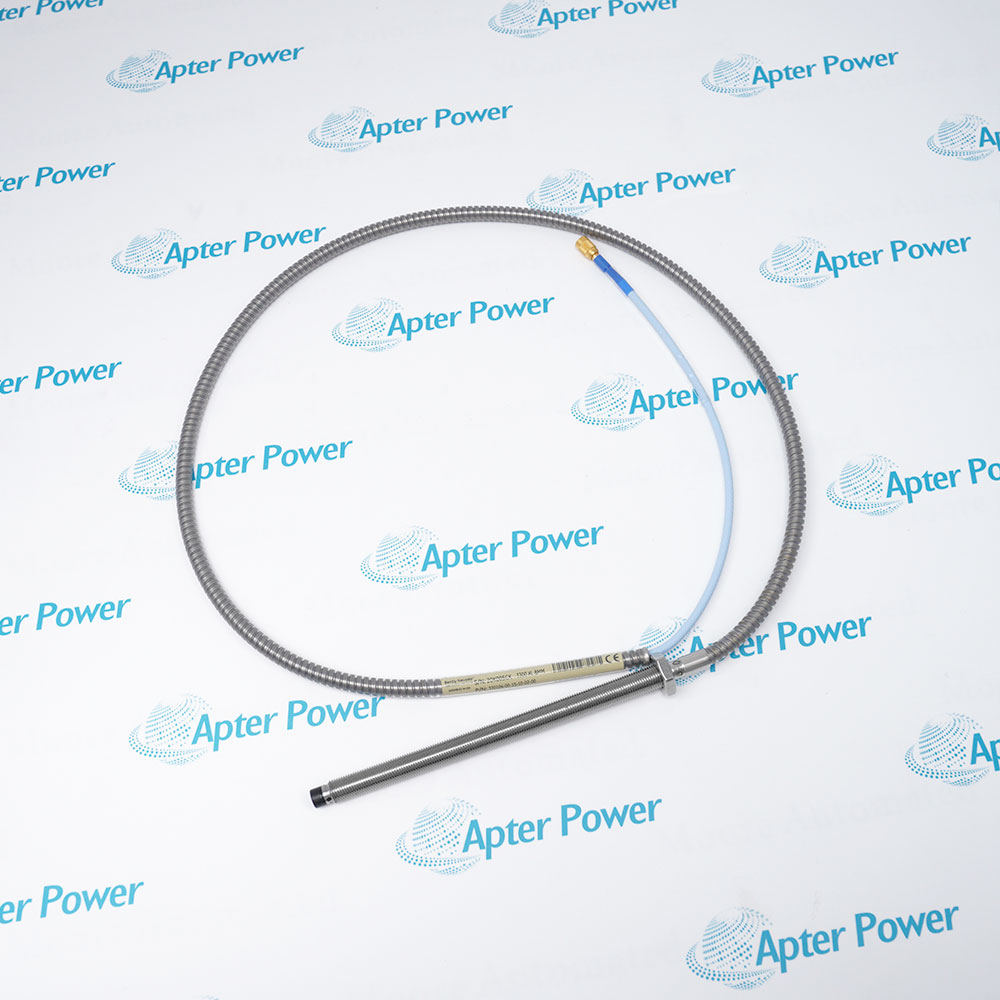

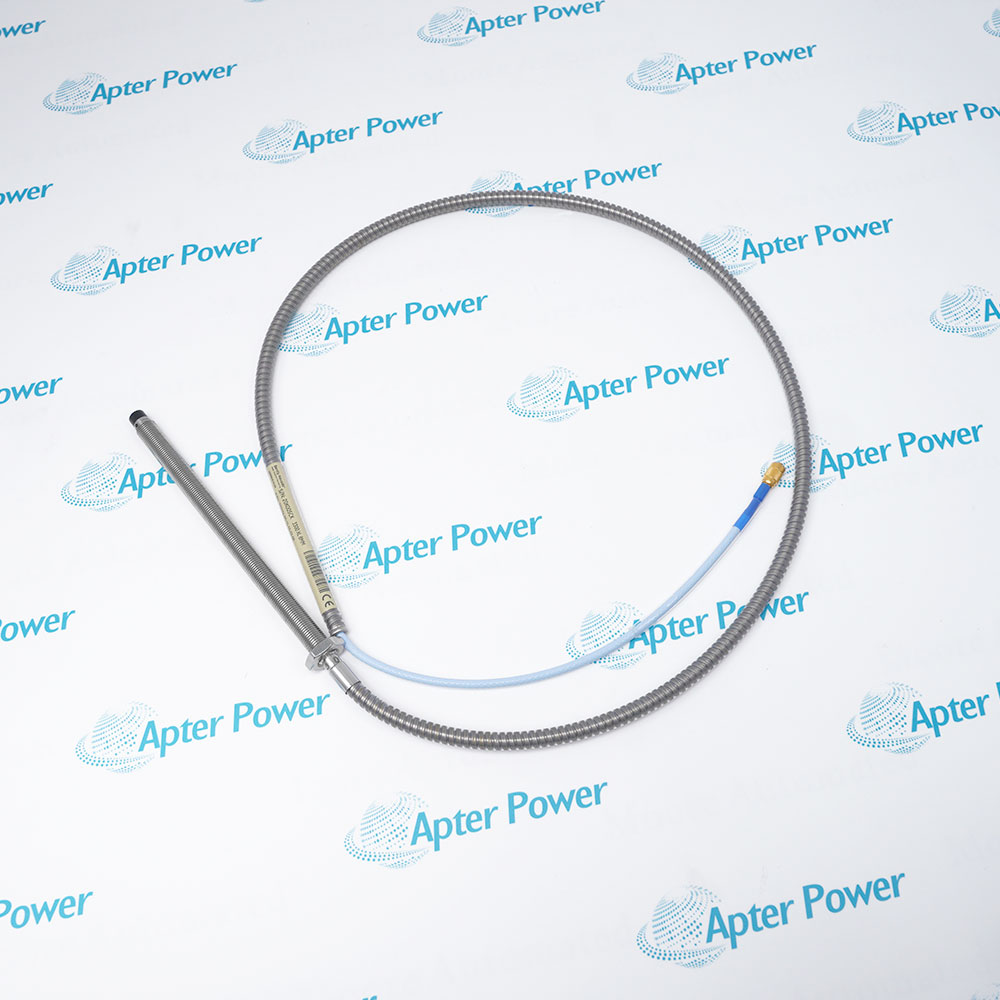

      3300 XL 8 mm Armored Metric Proximity Probe
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330104-00-15-10-02-00 is an armored metric 3300 XL 8 mm proximity probe. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330104-00-15-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-00-15-10-02-00

      Technical specifications for 330104-00-15-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-00-15-10-02-00
      • Estimated shipping dimensions:
        1.8x1.5x116cm
      • Weight:
        0.18 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        With armor
      • Thread:
        M10 x 1
      • Unthreaded length:
        0 mm
      • Case length:
        150 mm
      • Total probe length:
        1.0 m
      • Connector option:
        Miniature coaxial ClickLoc
      • Probe-cable type:
        Standard cable
      • Approval option:
        Not required
      • Probe-tip diameter:
        8.0 mm
      • System linear range:
        2.0 mm (80 mils)
      • Approximate linear-range limits:
        0.25 to 2.3 mm
      • Approximate output span:
        -1 to -17 V DC
      • Recommended gap:
        1.27 mm (50 mils)
      • Nominal output at recommended gap:
        -9 V DC
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat-target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      • Probe-cable impedance:
        75 ohm
      • Standard probe-cable temperature:
        -52 to +177 degC
      • Proximitor Sensor supply:
        -17.5 to -26 V DC
      • Proximitor Sensor current:
        12 mA maximum
      • Proximitor Sensor output resistance:
        50 ohm
      • Field-wiring conductor range:
        0.2 to 1.5 mm2 (16 to 24 AWG)
      • Maximum field-wiring length:
        305 m
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      3300 XL 8 mm Armored Metric Proximity Probe provides the documented interface for its installed Bently Nevada 3300 XL 8 mm Proximity Transducer System system.
      • Detects shaft-to-bearing relative position without mechanical contact
      • Forms the sensing input of a matched eddy-current transducer loop
      • Supports radial-vibration and axial-position monitoring points
      • Protects the probe lead where machinery routing needs armored construction

      330104-00-15-10-02-00 senses shaft-to-bearing relative displacement without mechanical contact and passes the probe signal to a matched Proximitor Sensor for machinery-monitoring measurement. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 330104-00-15-10-02-00.

      Important Notice: Confirm the complete 330104-00-15-10-02-00 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 330104-00-15-10-02-00 Manuals and Guides
      Apter Power 330104-00-15-10-02-00 Product Technical Reference PDFBently Nevada 330104-00-15-10-02-00 Official 3300 XL 8 mm System Manual PDF
      The first document is an Apter Power model-specific technical reference. The second is the directly related Bently Nevada 3300 XL 8 mm system data sheet used for configuration and installation verification.
      Radial shaft-vibration measurementMatched 3300 XL 8 mm Proximitor Sensor supports the engineered 330104-00-15-10-02-00 arrangement.
      Axial position and thrust monitoringCompatible machinery-protection monitor channel supports the engineered 330104-00-15-10-02-00 arrangement.
      Machine shaft centerline observationAISI 4140 steel target or validated equivalent supports the engineered 330104-00-15-10-02-00 arrangement.
      Extended-reach metric probe-loop renewalApproved mounting bracket and cable routing hardware supports the engineered 330104-00-15-10-02-00 arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330104-00-15-10-02-00 and the installed-system configuration.
      1Verify the full 330104-00-15-10-02-00 marking and the 150 mm case length before disturbing the bracket.
      2Place the monitored machine and associated protection channel in the approved maintenance state.
      3Protect the 8 mm PPS probe tip and keep the M10 x 1 thread free from burrs and contamination.
      4Route the 1.0 m standard cable probe lead without sharp bends, crushing or tensile loading.
      5Secure the miniature coaxial clickloc connection and keep exposed coaxial interfaces clean and dry.
      6Confirm the installed Proximitor Sensor and total system length match the probe configuration.
      7Set the static gap within the documented linear region before enabling dynamic measurements.
      8Prove polarity, vibration response and alarm action before returning the protection channel to service.

      Technical notes

      Technical notes

      Install 330104-00-15-10-02-00 at the documented mechanical reach and keep its armored lead free of sharp bends or tensile load. After connection, establish the static gap in the linear region and prove polarity and dynamic response before enabling alarms.

      FAQS

      • What is the system role of 330104-00-15-10-02-00?
        It is the non-contact sensing element in a matched 3300 XL 8 mm eddy-current proximity transducer system.
      • How does the 150 mm case affect installation of 330104-00-15-10-02-00?
        The complete order number specifies a 150 mm overall metric case, so the bracket depth and available clearance must match that reach.
      • Which mounting thread is used by 330104-00-15-10-02-00?
        The official order code identifies an M10 x 1 threaded armored probe body.
      • Which Proximitor Sensor should be paired with 330104-00-15-10-02-00?
        Use a matched Bently Nevada 3300 XL 8 mm Proximitor Sensor configured for the documented total system length.
      • How should the probe lead of 330104-00-15-10-02-00 be routed?
        Support the armored lead, avoid sharp bends, crushing and tensile loading, and keep the coaxial connection clean and dry.
      • How should the static gap be commissioned for 330104-00-15-10-02-00?
        Position the probe within the manufacturer-documented linear region and confirm the resulting voltage and polarity at the connected channel.
      • Which target material is used to verify 330104-00-15-10-02-00?
        The published 3300 XL 8 mm performance data are referenced to AISI 4140 steel; a different target requires approved validation.
      • What must be checked after replacing 330104-00-15-10-02-00?
        Confirm the complete order number, mounting reach, system-length match, connection integrity, static gap, dynamic response and alarm action.
