Get a quick price for 330103-00-18-10-02-00
For more information on how your data is processed and stored by Apterpower please read our privacy policy

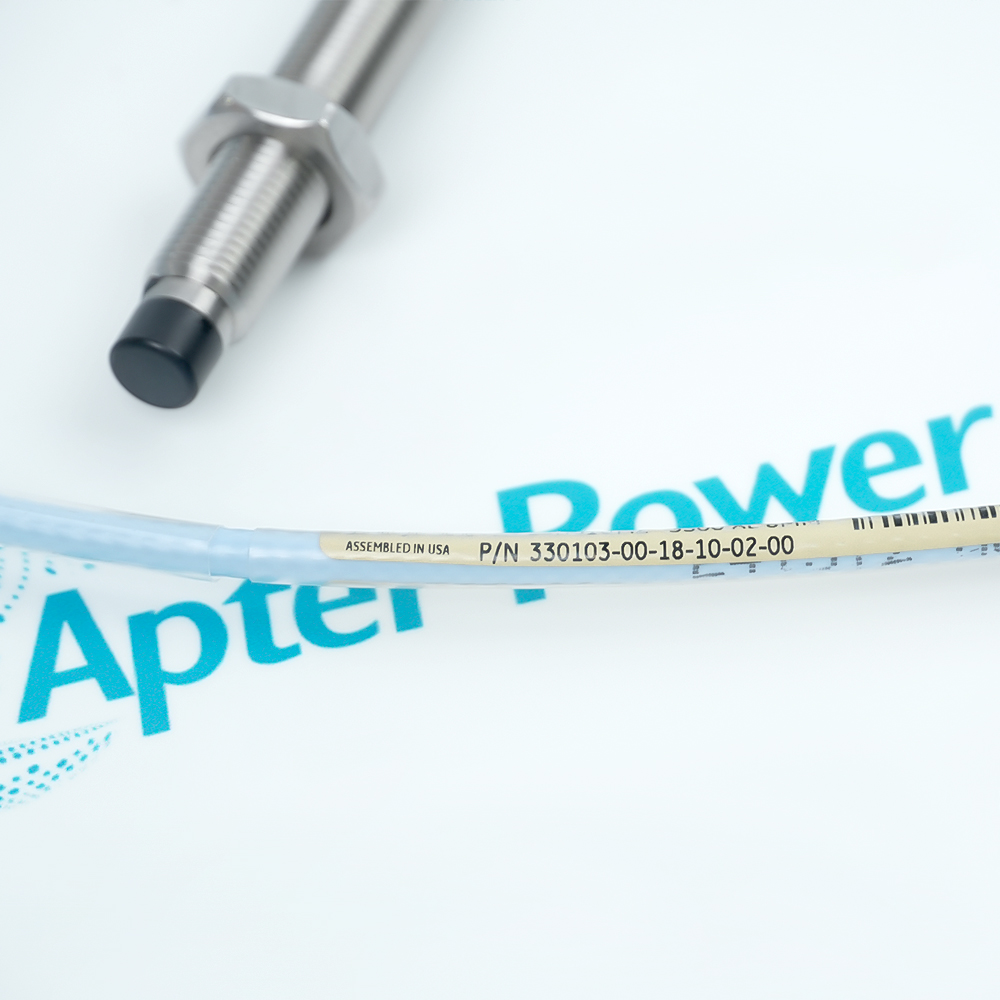

Technical specifications for 330103-00-18-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330103-00-18-10-02-00
-
Estimated shipping dimensions:1.8x1.6x113cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector with connector protector, standard cable
-
Total Length Option:1.0 meter (3.3 feet)
-
Overall Case Length Option:180 mm
-
Unthreaded Length Option:0 mm
-
Stock Quantity:80
-
Category Series:3300 XL 8 mm series
-
Linear Range:2.0 mm (80 mils)
-
Scale Factor:7.87 V/mm (200 mV/mil)
-
Recommended Static Gap:1.27 mm (50 mils)
-
Typical Gap Voltage:Approximately -9 Vdc to -10 Vdc
-
Probe Case Material:AISI 304 stainless steel
Information
Overview
Manuals
Common Applications
Product Precautions

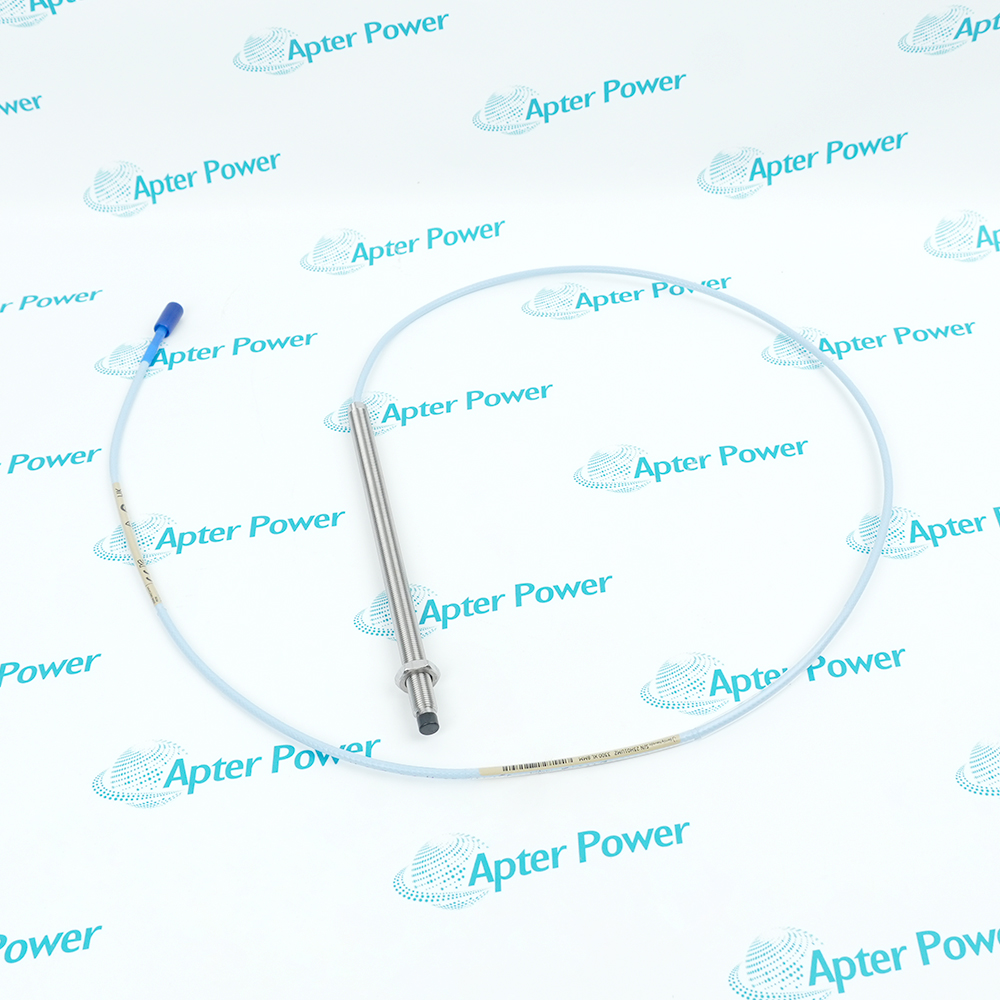

The 330103-00-18-10-02-00 is a 3300 XL 8mm proximity transducer probe tailored for industrial environments. This non-contact sensor is utilized for measuring shaft vibration, axial displacement, and Keyphasor signals on rotating machinery.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-18-10-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Monitoring shaft vibration and axial displacement in catalytic cracking axial compressors and hydrocracking recycle hydrogen compressors to prevent high-speed rotor-to-stator rubbing.
Coal-Fired & Thermal Power Generation
Installed on main bearings of steam turbine generator sets to measure dynamic shaft radial vibration, axial thermal growth displacement, and rotor eccentricity.
Nuclear Power
Monitoring micron-level axial and radial mechanical displacements of nuclear reactor secondary-loop main feedwater pumps and main saturated steam turbine rotors.
Gas Turbine Power Plants
Providing continuous rotor vibration monitoring and speed/Keyphasor phase signal extraction on the high-temperature, high-speed bearing housings of heavy-duty gas turbines.
Petrochemical
Inline monitoring of the fluid-film bearing dynamic load conditions for massive ethylene cracking gas compressor trains, high-pressure propylene, and ethane compressors.
Paper & Pulp
Inline monitoring of roller bearing eccentric runout in large paper machine dryer section drive gearboxes and high-speed rewinder rotors.
When operating the 330103-00-18-10-02-00 probe, it must be integrated with a 3300 XL Proximitor sensor and extension cable to form a standard 5.0-meter total system length to guarantee the accuracy of its 2.0 mm linear range. During installation, the mechanical gap must be strictly controlled using double jam nuts to set the static bias voltage at the linear midpoint (approx. -10 Vdc), while ensuring a minimum 30 mm clear clearance around the probe tip to eliminate side-loading cross-talk (boundary effects). Additionally, avoid over-torquing the thread and ensure the armored cable is never bent below its minimum bend radius of 25.4 mm (1.0 inch).
Alternative Names
330103 00 18 10 02 00
33O1O3-OO-18-1O-O2-OO
330I03-00-I8-I0-02-00
33OIO3-OO-I8-IO-O2-OO
330103-00-18-10-02-05
330103-00-18-10-02-CN
330103-00-18-10-02-BR
330103-00-18-05-02-00
330103-00-18-15-02-00
330103-00-18-20-02-00
330103-00-18-50-02-00
330103-00-18-90-02-00
Technical notes
The 330103-00-18-10-02-00 is an 8 mm proximity probe with an M10x1 threaded case and a 1.0-meter integrated cable. This system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling the measurement of both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
FAQ View All FAQ
-
What is the 330103-00-18-10-02-00?It is a non-contact eddy current proximity probe used to measure dynamic shaft vibration and static shaft position in critical rotating machinery.
-
How should you install and gap the 330103-00-18-10-02-00 probe?Thread the probe into its bracket, monitor the Proximitor voltage using a voltmeter to reach the recommended 1.27 mm (50 mils) static gap (approximately -9 Vdc), and lock the nut.
-
What type of machinery utilizes the 330103-00-18-10-02-00 for monitoring?It is primarily applied on fluid-film bearing machines such as steam turbines, gas turbines, industrial compressors, pumps, and gearboxes.
-
Why is the ClickLoc connector implemented on the 330103-00-18-10-02-00?The gold-plated ClickLoc connector features a mechanical lock mechanism that prevents the coaxial connection from loosening under machine vibration.
-
What are the construction materials of the 330103-00-18-10-02-00?The probe tip is made of Polyphenylene Sulfide (PPS) plastic, and the body case is constructed from AISI 304 Stainless Steel.
