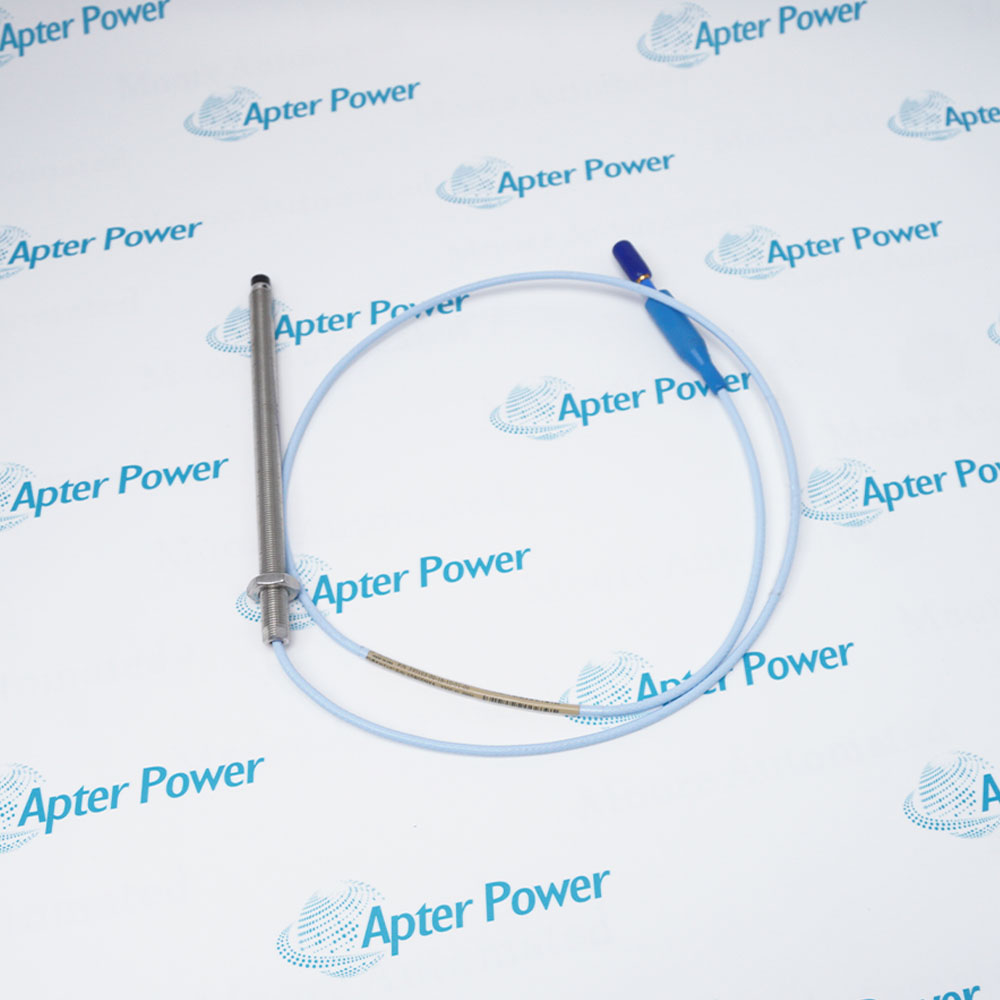

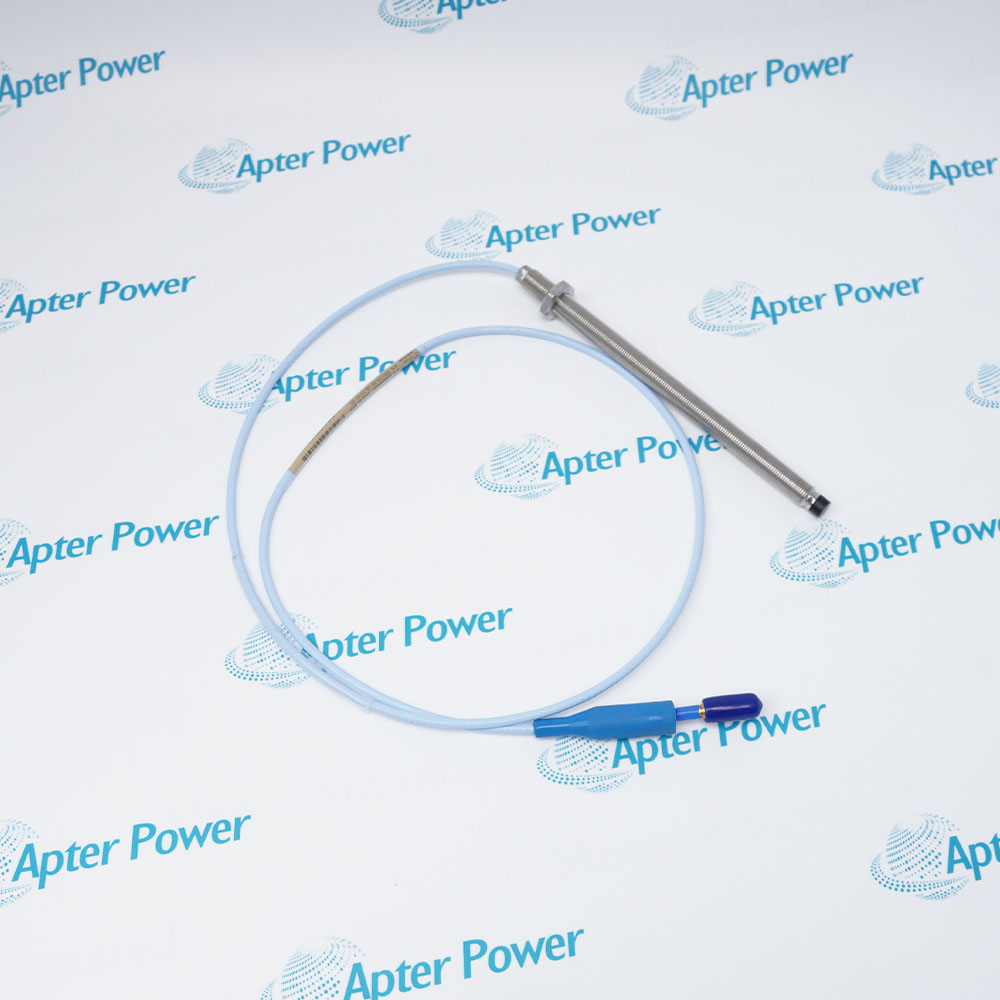

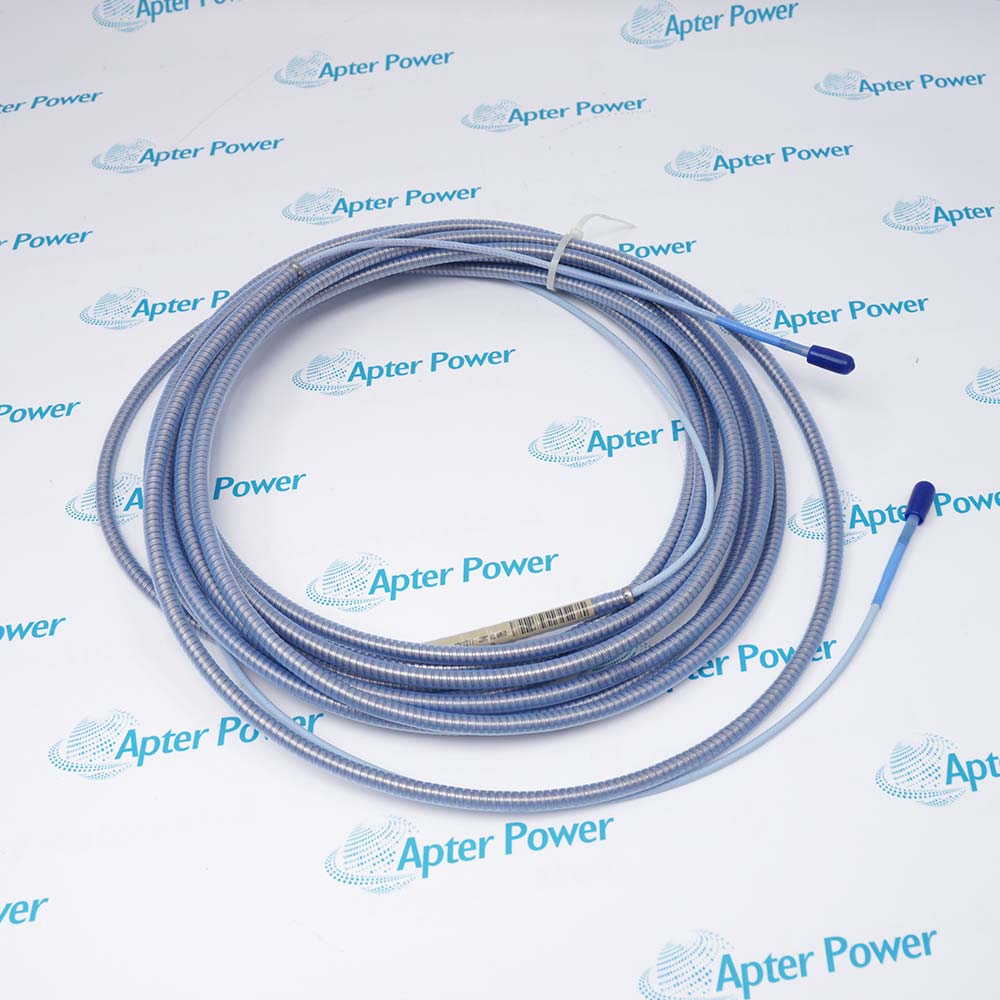

      330103-00-16-10-01-00

      Proximity Probe
      In Stock
      Ships by Saturday, November 7
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      A 1.0 m 3300 XL 8 mm M10 x 1 proximity probe with 0 mm unthreaded length, 160 mm case length, miniature coaxial clickloc with protector and the 00, not required selection.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 330103-00-16-10-01-00
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 330103-00-16-10-01-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        330103-00-16-10-01-00
      • Estimated shipping dimensions:
        1.7x1.5x109cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        330103
      • Probe case thread:
        M10 x 1
      • Unthreaded length:
        0 mm
      • Case length:
        160 mm
      • Total probe length:
        1.0 m
      • Cable construction:
        75 ohm triaxial FEP, unarmored
      • Connector selection:
        Miniature coaxial ClickLoc with protector
      • Approval selection:
        00, not required
      • Linear range:
        2.0 mm (80 mils)
      • Recommended gap:
        About 1.27 mm at -9 Vdc
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Probe tip:
        8.0 mm PPS
      • Minimum bend radius:
        25.4 mm
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-16-10-01-00 is a 3300 XL 8 mm M10 x 1 unarmored probe with 160 mm case length and 1.0 m total probe length.
      • M10 x 1 case thread
      • 0 mm unthreaded length
      • 160 mm case length
      • Miniature coaxial ClickLoc with protector

      This unarmored probe is the sensing end of a matched 3300 XL 8 mm transducer chain. Pair its probe-plus-extension length with the selected Proximitor Sensor, preserve the documented connector arrangement and verify the target material before calibration.

      Important Notice: Verify the complete 330103-00-16-10-01-00 marking, matched electrical length, connector selection and 00, not required record before installation; do not borrow another suffix.

      Bently Nevada 330103-00-16-10-01-00 Manuals & Downloads
      Bently Nevada 330103-00-16-10-01-00 Manufacturer Datasheet Excerpt (PDF)Bently Nevada 330103-00-16-10-01-00 Installation & Commissioning Guide (PDF)

      The manufacturer excerpt preserves selected original datasheet pages and is not the complete publication. The installation guide is an Apter Power field workflow for controlled restoration and commissioning.

      Radial vibration
      Measures shaft motion in a correctly engineered 3300 XL 8 mm channel.
      Axial position
      Supports static position measurement within the documented linear range.
      Phase reference
      Can form the probe end of a compatible phase-reference channel.
      Exact suffix renewal
      Restores the 330103-00-16-10-01-00 execution without borrowing another probe geometry.
      Bently Nevada 330103-00-16-10-01-00 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
      1
      Read the full 330103-00-16-10-01-00 marking before removing the installed probe.
      2
      Record probe gap, target material, runout and monitor configuration before service.
      3
      Confirm M10 x 1, 0 mm unthreaded length and 160 mm case length.
      4
      Keep the cable route within the 25.4 mm minimum bend radius and protect the clickloc connector with protector.
      5
      Join clean mating connectors finger tight; 0.565 N m is a maximum limit, not a tightening target.
      6
      Match probe-plus-extension length to the Proximitor Sensor electrical-length selection.
      7
      Restore the documented gap voltage and verify static and dynamic response before release.
      8
      Confirm the ordered 00, not required marking instead of assigning approval from the family name.

      Technical notes

      For 330103-00-16-10-01-00, retain the exact ordered suffix, installed measurement-chain record and witnessed acceptance result. Return the channel to service only after the model-specific electrical and mechanical checks pass.

      FAQ View All FAQ

      • Which long-case unarmored configuration is represented by Bently Nevada 330103-00-16-10-01-00?
        This exact model is an M10 x 1 unarmored probe with 0 mm unthreaded length and a 160 mm case.
      • Why must the 160 mm body dimension be checked before fitting Bently Nevada 330103-00-16-10-01-00?
        It determines the installed reach and bracket position, so a different 330103 case length is not mechanically equivalent.
      • How is the ClickLoc interface protected on Bently Nevada 330103-00-16-10-01-00?
        Connector option 01 provides a miniature coaxial ClickLoc together with a connector protector.
      • What lead length should be counted for Bently Nevada 330103-00-16-10-01-00?
        Count a 1.0 m total probe length when matching the probe and extension cable to the Proximitor Sensor.
      • Which cable-handling rule applies to Bently Nevada 330103-00-16-10-01-00 even though it is unarmored?
        Route the 75 ohm triaxial FEP lead with at least the documented 25.4 mm minimum bend radius and without connector strain.
      • What approval status is encoded in Bently Nevada 330103-00-16-10-01-00?
        Its 00 suffix is the not-required approval selection and should remain distinct from multiple-approval executions.
      • How can the nominal sensitivity of Bently Nevada 330103-00-16-10-01-00 be confirmed?
        After matching and gapping the full chain, verify the nominal 7.87 V/mm, or 200 mV/mil, scale factor.
      • What linear operating window should contain the setup of Bently Nevada 330103-00-16-10-01-00?
        The matched system provides a documented 2.0 mm linear range, with the usual static setup near 1.27 mm and -9 Vdc.
