Get a quick price for 330101-10-27-05-02-05
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 330101-10-27-05-02-05
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-10-27-05-02-05
-
Estimated shipping dimensions:1.5x1.3x116cm
-
Weight:0.05 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Probe family:330101
-
Probe case thread:3/8-24 UNF
-
Unthreaded length:1.0 in
-
Case length:2.7 in
-
Total probe length:0.5 m
-
Cable construction:75 ohm triaxial FEP, unarmored
-
Connector selection:Miniature coaxial ClickLoc without protector
-
Approval selection:05, multiple approvals
-
Linear range:2.0 mm (80 mils)
-
Recommended gap:About 1.27 mm at -9 Vdc
-
Scale factor:7.87 V/mm (200 mV/mil)
-
Frequency response:0 to 10 kHz
-
Probe tip:8.0 mm PPS
-
Minimum bend radius:25.4 mm
Information
Overview
Manuals
Common Applications
Product Precautions

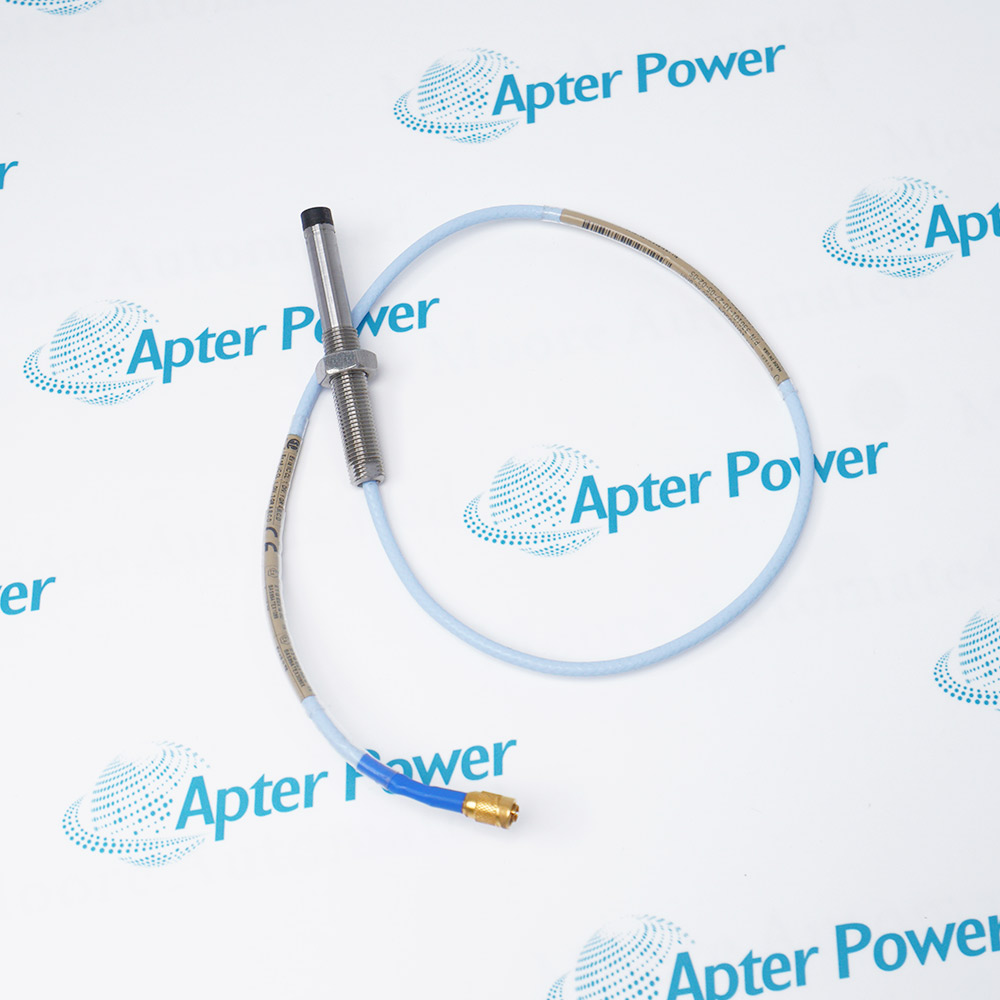

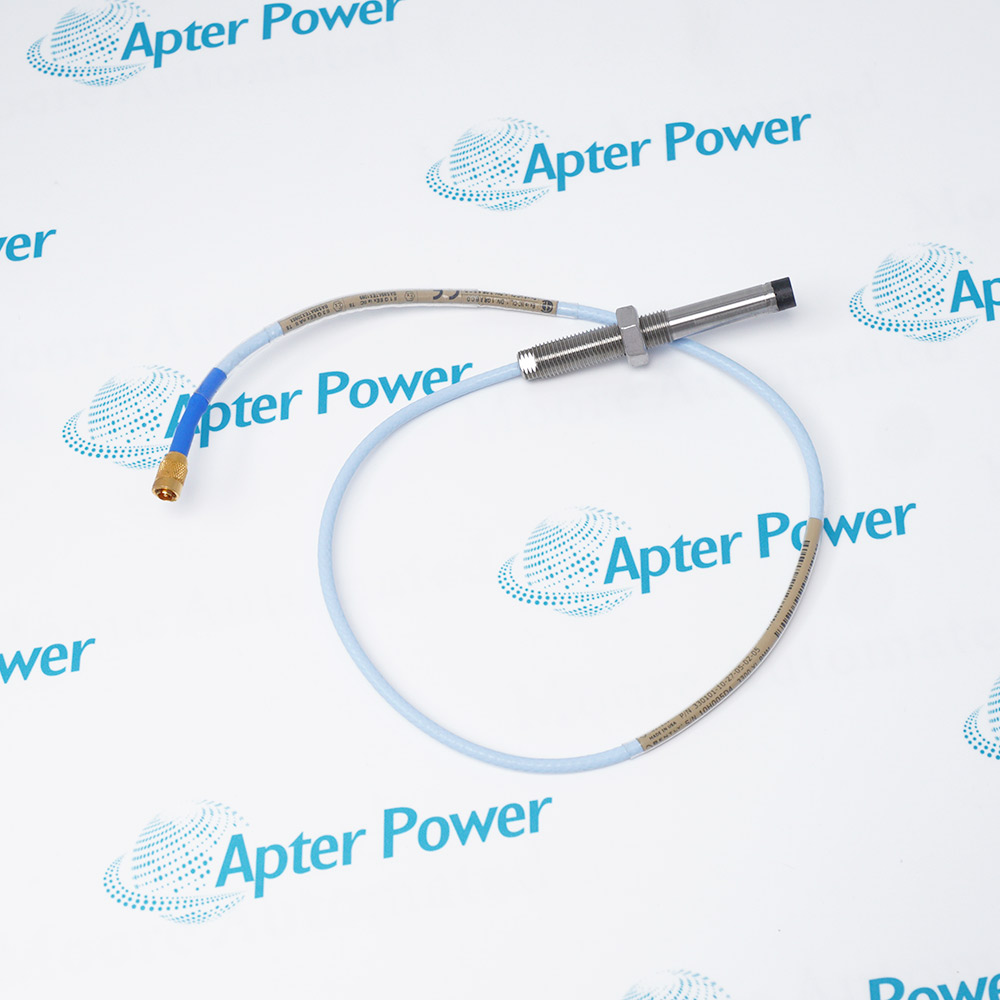

Bently Nevada 330101-10-27-05-02-05 is a 3300 XL 8 mm 3/8-24 UNF unarmored probe with 2.7 in case length and 0.5 m total probe length.
- 3/8-24 UNF case thread
- 1.0 in unthreaded length
- 2.7 in case length
- Miniature coaxial ClickLoc without protector
This unarmored probe is the sensing end of a matched 3300 XL 8 mm transducer chain. Pair its probe-plus-extension length with the selected Proximitor Sensor, preserve the documented connector arrangement and verify the target material before calibration.
Important Notice: Verify the complete 330101-10-27-05-02-05 marking, matched electrical length, connector selection and 05, multiple approvals record before installation; do not borrow another suffix.
Bently Nevada 330101-10-27-05-02-05 Manuals & Downloads
Bently Nevada 330101-10-27-05-02-05 Manufacturer Datasheet Excerpt (PDF)Bently Nevada 330101-10-27-05-02-05 Installation & Commissioning Guide (PDF)
The manufacturer excerpt preserves selected original datasheet pages and is not the complete publication. The installation guide is an Apter Power field workflow for controlled restoration and commissioning.
Radial vibration
Measures shaft motion in a correctly engineered 3300 XL 8 mm channel.
Axial position
Supports static position measurement within the documented linear range.
Phase reference
Can form the probe end of a compatible phase-reference channel.
Exact suffix renewal
Restores the 330101-10-27-05-02-05 execution without borrowing another probe geometry.
Bently Nevada 330101-10-27-05-02-05 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
1
Read the full 330101-10-27-05-02-05 marking before removing the installed probe.
2
Record probe gap, target material, runout and monitor configuration before service.
3
Confirm 3/8-24 UNF, 1.0 in unthreaded length and 2.7 in case length.
4
Keep the cable route within the 25.4 mm minimum bend radius and protect the clickloc connector.
5
Join clean mating connectors finger tight; 0.565 N m is a maximum limit, not a tightening target.
6
Match probe-plus-extension length to the Proximitor Sensor electrical-length selection.
7
Restore the documented gap voltage and verify static and dynamic response before release.
8
Confirm the ordered 05, multiple approvals marking instead of assigning approval from the family name.
Technical notes
For 330101-10-27-05-02-05, retain the exact ordered suffix, installed measurement-chain record and witnessed acceptance result. Return the channel to service only after the model-specific electrical and mechanical checks pass.
FAQ View All FAQ
-
What one-inch reach is encoded in Bently Nevada 330101-10-27-05-02-05?The 10 unthreaded-length code specifies a 1.0 inch unthreaded section ahead of the 3/8-24 UNF case.
-
Which installed case length must match Bently Nevada 330101-10-27-05-02-05?This model uses a 2.7 inch case, so both reach and bracket engagement should be checked against that dimension.
-
How does the 0.5 m lead of Bently Nevada 330101-10-27-05-02-05 affect channel matching?The short 0.5 m probe lead must be included in the probe-plus-extension sum used to match the Proximitor Sensor length.
-
Which cable sheath arrangement is supplied with Bently Nevada 330101-10-27-05-02-05?It uses unarmored 75 ohm triaxial FEP cable, not the stainless-steel-armored 330104 construction.
-
What field protection is needed at the Bently Nevada 330101-10-27-05-02-05 connector?The miniature coaxial ClickLoc is supplied without protector, so protect the installed connection from contamination and cable strain.
-
How should the multiple-approvals suffix on Bently Nevada 330101-10-27-05-02-05 be verified?Confirm the complete model marking ending in 05 and retain the applicable multiple-approvals documentation for the installed unit.
-
Which static voltage point provides a practical setup reference for Bently Nevada 330101-10-27-05-02-05?A probe gap of about 1.27 mm normally corresponds to roughly -9 Vdc in the matched 3300 XL 8 mm system.
-
What acceptance measurement confirms the nominal transfer characteristic of Bently Nevada 330101-10-27-05-02-05?Verify a nominal 7.87 V/mm scale factor and response across the documented 2.0 mm linear range after the complete chain is connected.
