Technical specifications for 16710-08
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:16710-08
-
Estimated shipping dimensions:30x26x3cm
-
Weight:0.2 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Max Voltage Rating:250V AC/DC
-
Temperature Range:-40°C to +150°C
-
Proximitor End:9-pin D-Sub
-
IP Rating:IP67
-
Shielding:Double-shielded
-
Conductors:2 or 3 conductors
-
Impedance:50Ω nominal
-
Capacitance:<100 pF/meter
-
Conductor Count:3-conductor
-
Voltage Rating:Typically 300V / 600V
Information
Overview
Manuals
Common Applications
Product Precautions

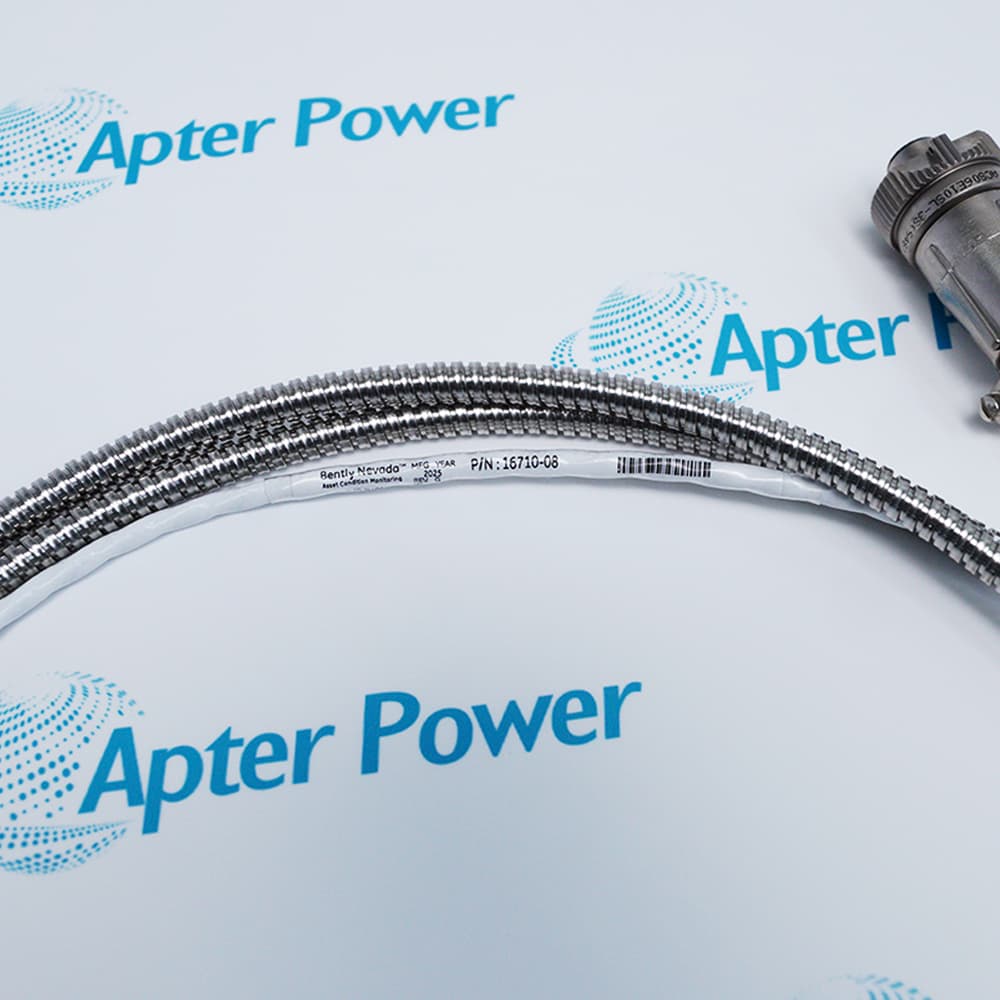

The 16710-08 is a 3-conductor, 22 AWG, shielded, armored interconnect cable designed for proximity probe systems, featuring a 3-socket plug on one end and terminal lugs on the other. It is commonly used for extending probe signals to monitoring systems and is 8 feet long.
- Superior Mechanical Protection & Durability
- Enhanced EMI/RFI Immunity
- High-Reliability Connection Design
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 16710-08 Interconnect Cable, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Connecting accelerometers on reciprocating compressors; the stainless steel armor protects the cable from crude oil corrosion and mechanical crushing.
Thermal Power Generation
Used for vibration monitoring of boiler forced and induced draft fans, protecting signal integrity in high-temperature and dusty environments.
Nuclear Power
Connecting vibration sensors for reactor coolant pumps; the armor layer provides the physical strength required to meet strict safety standards.
Petrochemical
Used for high-frequency vibration monitoring of ethylene extruder units; its shielding effectively filters electromagnetic interference from large variable frequency drives (VFDs).
Cement Manufacturing
Monitoring high-frequency shock signals (gear mesh monitoring) for cement kiln induced draft fans and rotary kiln drives.
Marine & Offshore
Used for condition monitoring of marine main engines and large thrusters; the armor provides superior corrosion protection in salt spray environments.
The key to using the 16710-08 armored cable lies in balancing mechanical protection with signal shielding. During installation, ensure the stainless steel armor is protected by grommets when passing through sharp metal openings to prevent abrasion, and strictly adhere to the minimum bending radius to avoid damaging the internal shield and the three-conductor wires. For electrical connections, wiring must strictly follow the definitions: Red (Power), White (Signal), and Black (Common), ensuring the shield is grounded at a single point (typically the control room end) to eliminate EMI. Furthermore, periodically inspecting the armor for physical deformation or loose connectors is essential to prevent signal distortion in high-frequency vibration monitoring and ensure the reliable operation of API 670-compliant systems.
FAQ View All FAQ
-
What is 16710-08?The 16710-08 is a panel mounting bracket designed specifically for Bently Nevada Proximitors.
-
What is the primary use of 16710-08?First, secure the Proximitor to the 16710-08 bracket using the provided screws, then bolt the bracket to the control cabinet's wall or tray through the mounting holes on the bracket's edges.
-
What material is used for the 16710-08?It is typically made of high-quality aluminum alloy or coated steel, providing excellent mechanical strength and corrosion resistance.
-
Which Proximitor models are compatible with 16710-08?It is widely compatible with standard-sized Proximitors from the Bently Nevada 3300 XL, 3300, and 7200 series.
-
Is the 16710-08 bracket prone to damage?Not easily. As a metal part, it is very rugged. Damage typically occurs only due to physical impact causing deformation or severe environmental corrosion.
