Get a quick price for 133819-01
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 133819-01
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:133819-01
-
Estimated shipping dimensions:2.6x11.2x24.2cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
I/O execution:RTD/TC non-isolated
-
Termination arrangement:Internal
-
Input channels:1 to 6
-
Supported input types:RTD; thermocouple
-
Input impedance:10 MOhm per lead
-
Type E range:-100 to +1000 degC
-
Type J range:-18 to +760 degC
-
Type K range:-18 to +1370 degC
-
Type T range:-160 to +400 degC
-
Platinum RTD alpha 0.00385:-200 to +850 degC
-
Platinum RTD alpha 0.00392:-200 to +700 degC
-
Nickel RTD:120 Ohm; 3-wire or 4-wire
-
Matched monitor power:7 W nominal
-
Operating temperature:-30 to +65 degC
-
Storage temperature:-40 to +85 degC
-
Rear rack space:1 full-height slot
-
Functional safety:SIL 2
Information
Overview
Manuals
Common Applications
Product Precautions

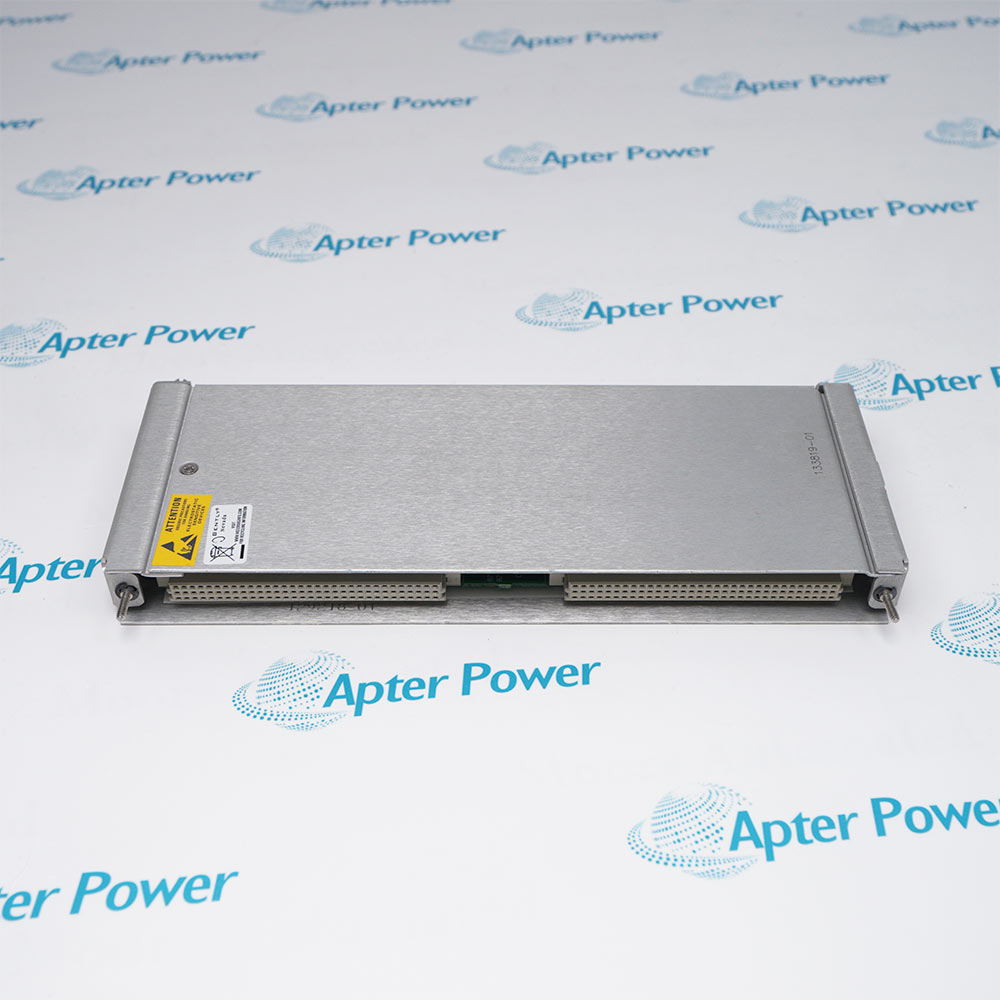

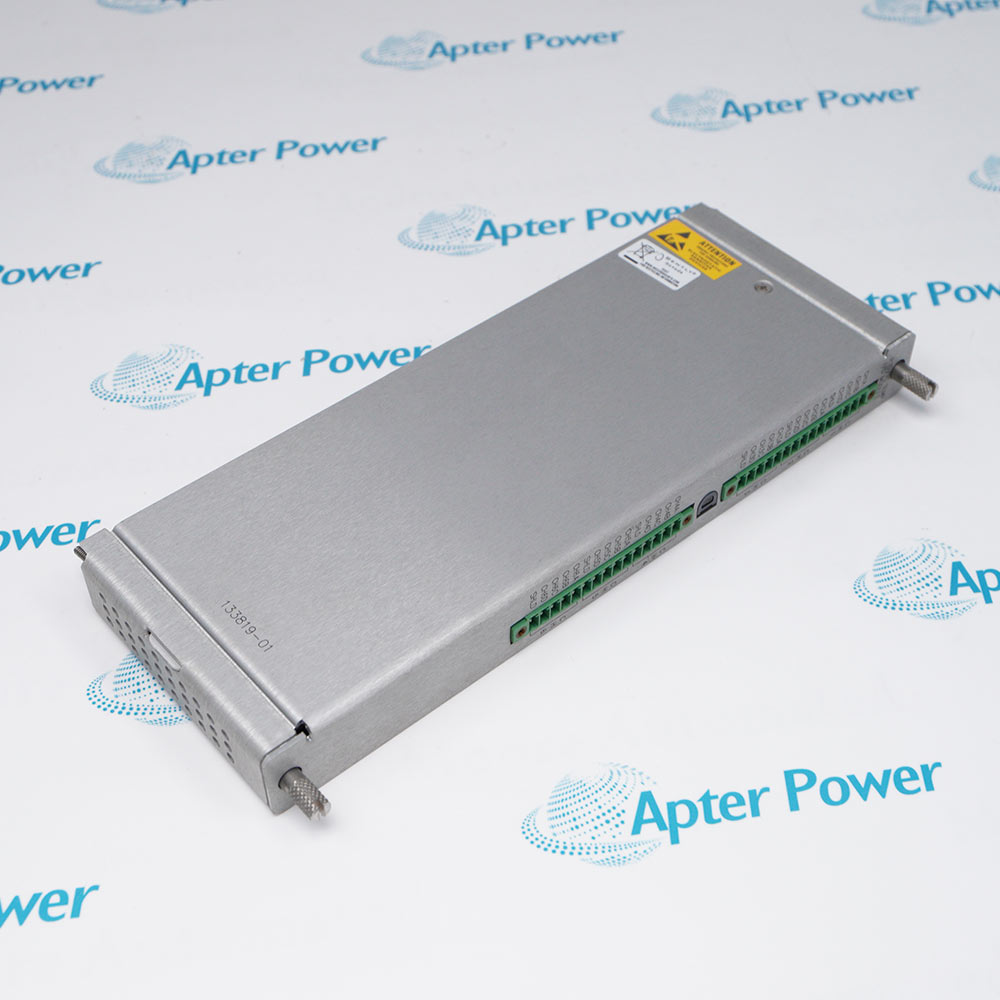

Bently Nevada 133819-01 is the non-isolated RTD/thermocouple I/O module with internal terminations for a 3500/60 monitor. It connects six machine-temperature inputs to the protection rack.
- Terminates six internal RTD or thermocouple measurement circuits
- Allows mixed RTD and thermocouple channels when configured with a 3500/60 monitor
- Feeds conditioned machine-temperature values to configurable alarm comparisons
- Supports adjacent three-monitor TMR temperature arrangements when engineered for voting
133819-01 installs with 3500 rack rear slot, 3500/60 163179-01 temperature monitor, RTD or thermocouple field sensors, 3500 Rack Configuration Software in an engineered 3500/60 Temperature Monitor configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this rtd/tc non-isolated i/o module with internal terminations.
Important Notice: Confirm the complete 133819-01 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power 133819-01 Manuals and Guides
Apter Power 133819-01 Product Technical Reference PDFBently Nevada 133819-01 Official Manual PDF
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Bearing metal temperature monitoringTerminates six internal RTD or thermocouple measurement circuits
Winding-temperature supervisionAllows mixed RTD and thermocouple channels when configured with a 3500/60 monitor
Lube-oil temperature alarmFeeds conditioned machine-temperature values to configurable alarm comparisons
TMR temperature-voting systemSupports adjacent three-monitor TMR temperature arrangements when engineered for voting
Read the applicable Bently Nevada installation instructions before work. Verify 133819-01 and the installed 3500/60 Temperature Monitor configuration.
1Confirm 133819-01 is paired with the intended 3500/60 front monitor.
2Isolate thermocouple and RTD circuits before removing the internal terminal connectors.
3Preserve thermocouple polarity and extension-wire alloy through the cabinet termination.
4Record three-wire or four-wire RTD lead assignments before disconnection.
5Do not treat the non-isolated 133819-01 as the channel-isolated I/O execution.
6Program each channel for the actual RTD or thermocouple type and range.
7For TMR service, verify all three adjacent monitor channels and voting configuration.
8Apply controlled temperature stimuli and prove Alert and Danger operation on every active channel.
Technical notes
Record sensor type, lead arrangement, polarity and configured range for all six channels; after installation compare each channel with a traceable temperature stimulus before restoring alarms.
FAQ View All FAQ
-
Can 133819-01 be exchanged with another 3500 I/O or monitor execution?Only when the complete part number, termination style, transducer or interface type and approved rack configuration match the installed duty; do not transfer settings from an adjacent model.
-
What evidence should be retained after 133819-01 returns to service?Retain the full 133819-01 identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result for winding-temperature supervision.
-
Which rack hardware must be matched before installing 133819-01?Match 133819-01 to the documented 3500 rack rear slot and 3500/60 163179-01 temperature monitor; confirm the front/rear slot pairing and the complete physical marking before connection.
-
What as-found information should an engineer record before removing 133819-01?Record every channel or port assignment, connector identity, configured function, cable tag and diagnostic state associated with 133819-01.
-
How should 133819-01 be isolated before field wiring is disturbed?Place the protected machine in its approved maintenance state, isolate rack and field energy applicable to RTD or thermocouple field sensors, and prove the terminals safe before disconnection.
-
Which configuration should be restored after replacing 133819-01?Restore the approved 3500/60 Temperature Monitor slot, channel or interface configuration and verify that every connected circuit retains its original assignment.
-
How can 133819-01 be commissioned for bearing metal temperature monitoring?Apply a controlled input or command, review the model-specific diagnostics and prove the expected measurement, indication and protection response before releasing the channel.
-
What technical value deserves special attention when checking 133819-01?Verify the published type j range value of -18 to +760 degC against the installed configuration and test record.
