1794-OB16P

FAQS

• What is 1794-OB16P?

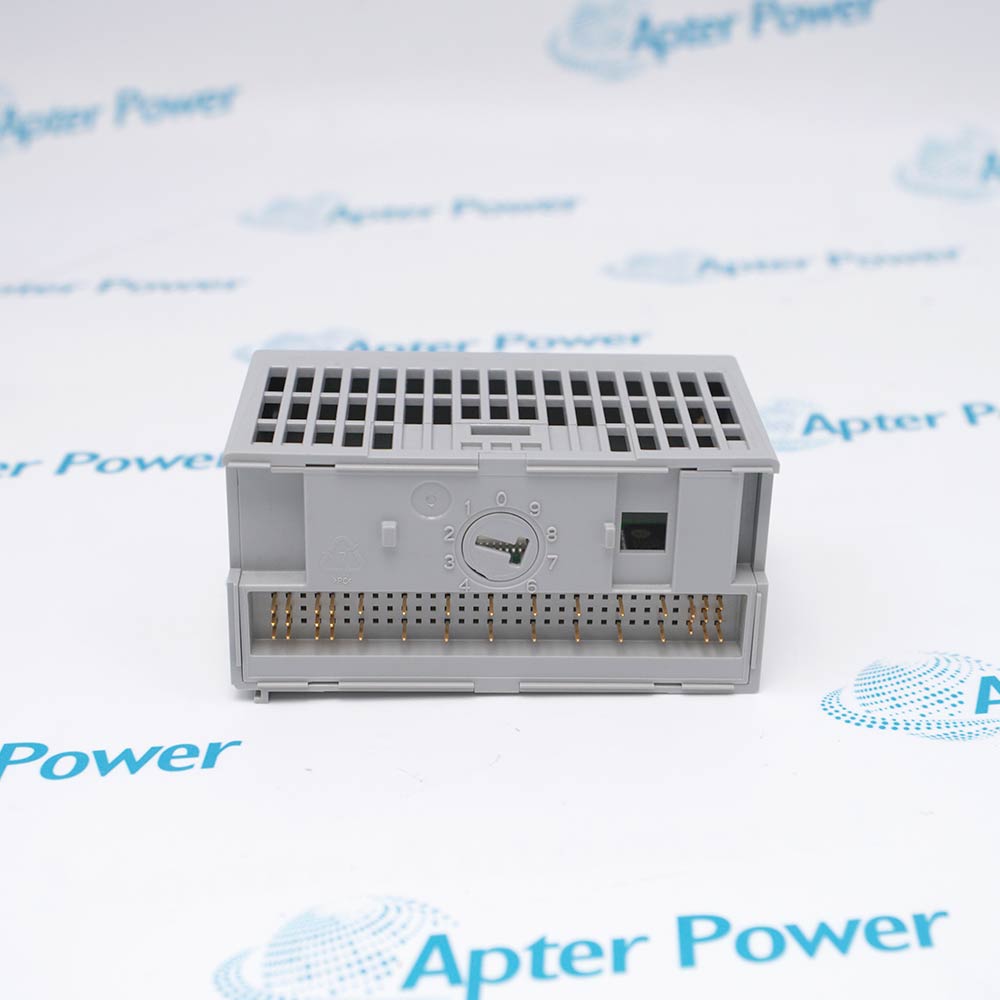

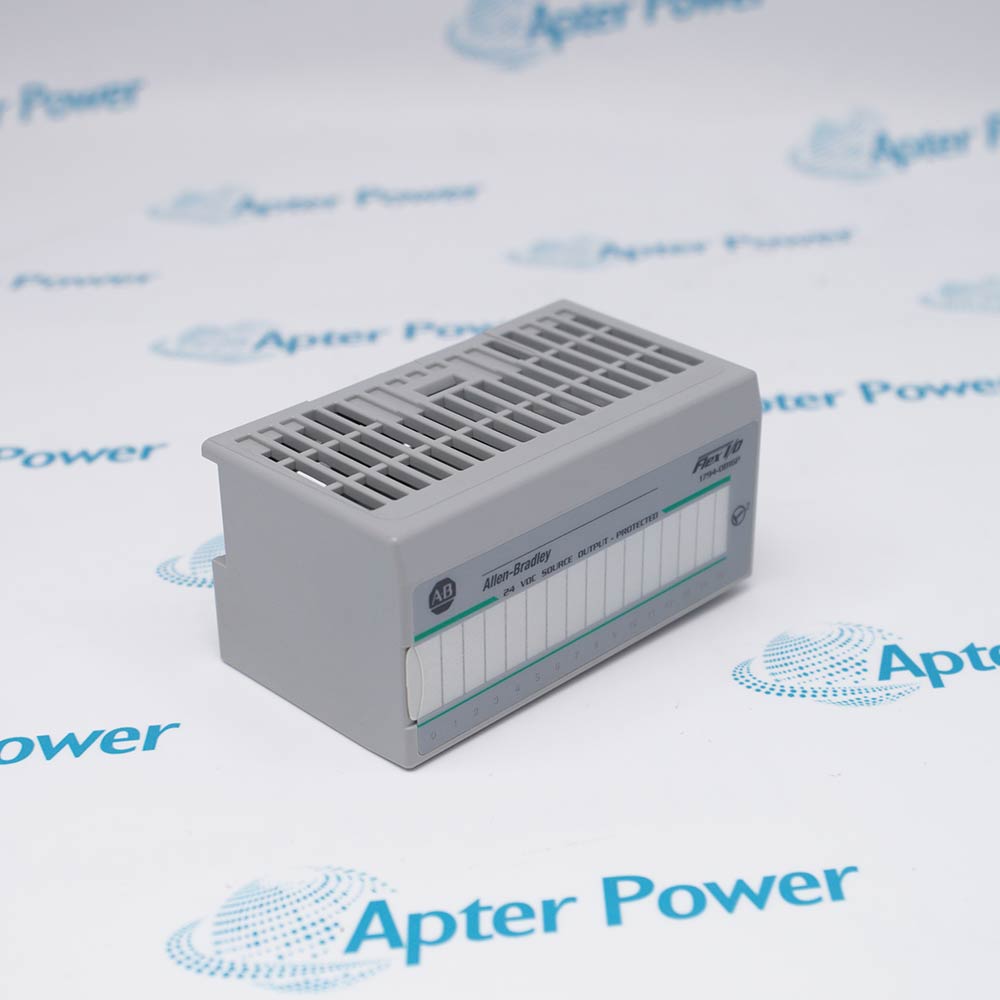

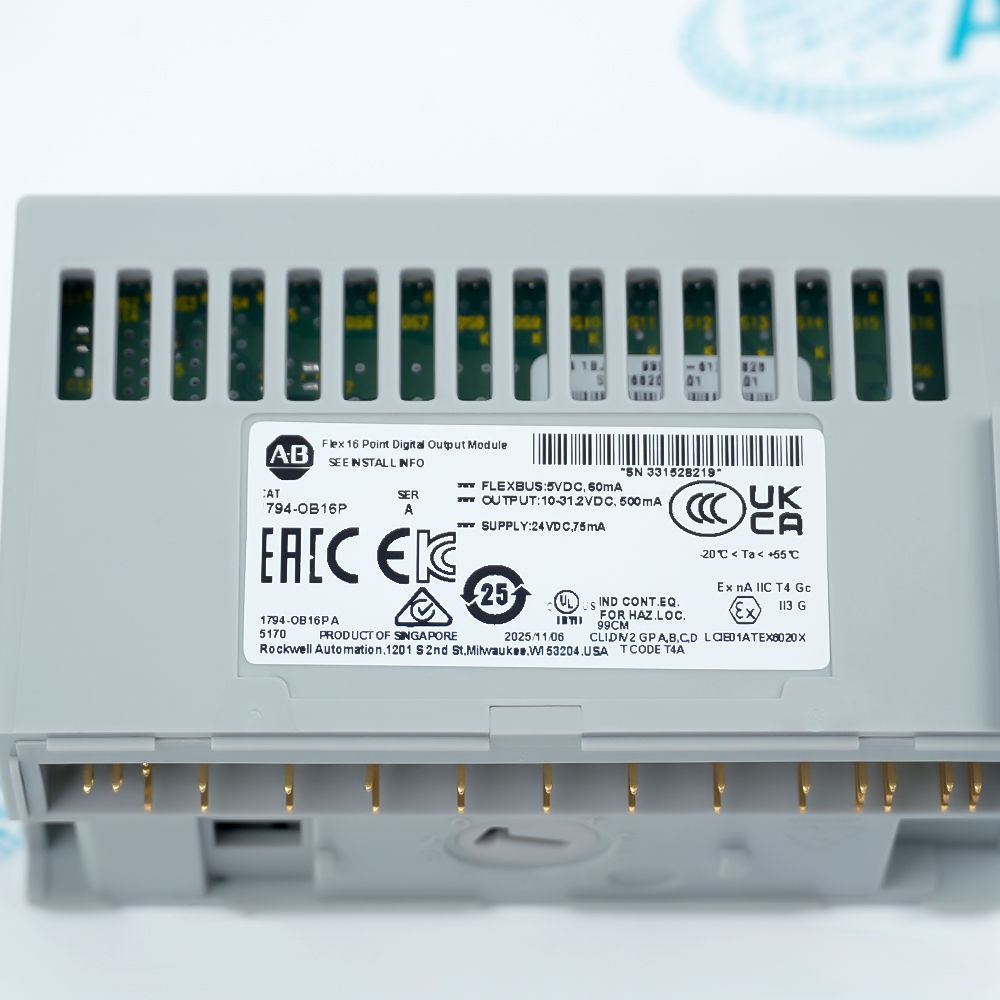

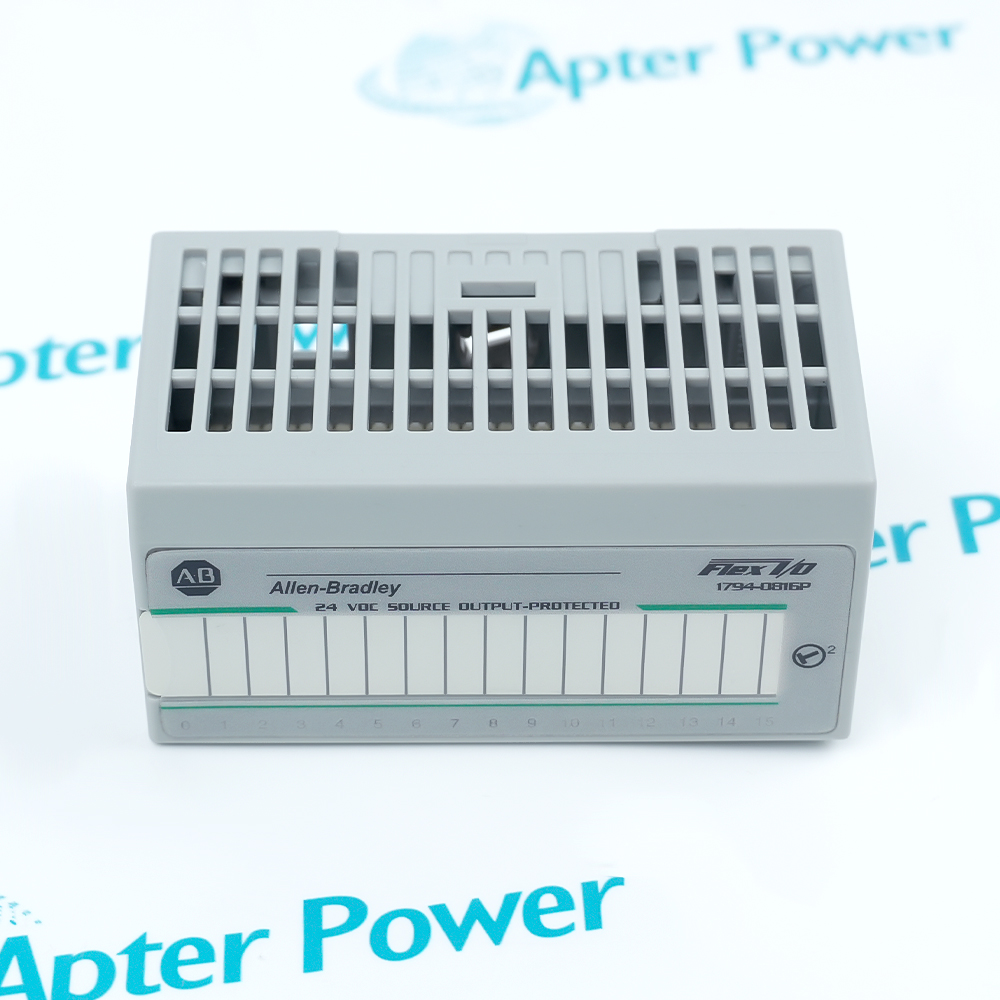

  1794-OB16P is a FLEX I/O 16-point protected sourcing DC output module.
• Which system uses 1794-OB16P?
  Use 1794-OB16P only in the manufacturer system and hardware arrangement stated in the technical parameters and installation notice on this page.
• How do engineers confirm 1794-OB16P compatibility?
  Match the complete 1794-OB16P label, hardware revision, host platform, companion hardware, connector and project configuration before replacement.
• What should be checked before installing 1794-OB16P?
  Isolate energy, verify wiring and connector orientation, protect the hardware from ESD and compare every field connection with the approved drawing for 1794-OB16P.
• What commissioning test is required for 1794-OB16P?
  Restore power in a controlled sequence and verify status, diagnostics, channel or output response, alarms and the intended process function of 1794-OB16P.
• How should a technician troubleshoot 1794-OB16P?
  Record indicators, diagnostics, field measurements, configuration, companion hardware and the operating event before deciding whether 1794-OB16P is faulty.
• Can 1794-OB16P replace a similar model directly?
  Only after the complete catalog number, series or suffix, electrical rating, connectors, firmware and system compatibility have been compared.
• What information should an RFQ for 1794-OB16P include?
  Include 1794-OB16P, quantity, complete nameplate photographs, hardware revision, installed system, companion hardware and required accessories.
• What output points applies to 1794-OB16P?
  The product-specific value for 1794-OB16P is 16 sourcing DC outputs. Match it to the installed unit and application before work.
• What external supply applies to 1794-OB16P?
  The product-specific value for 1794-OB16P is 10-31.2 VDC. Match it to the installed unit and application before work.
• What current per channel applies to 1794-OB16P?
  The product-specific value for 1794-OB16P is 500 mA maximum. Match it to the installed unit and application before work.
• What current per module applies to 1794-OB16P?
  The product-specific value for 1794-OB16P is 8 A maximum. Match it to the installed unit and application before work.
