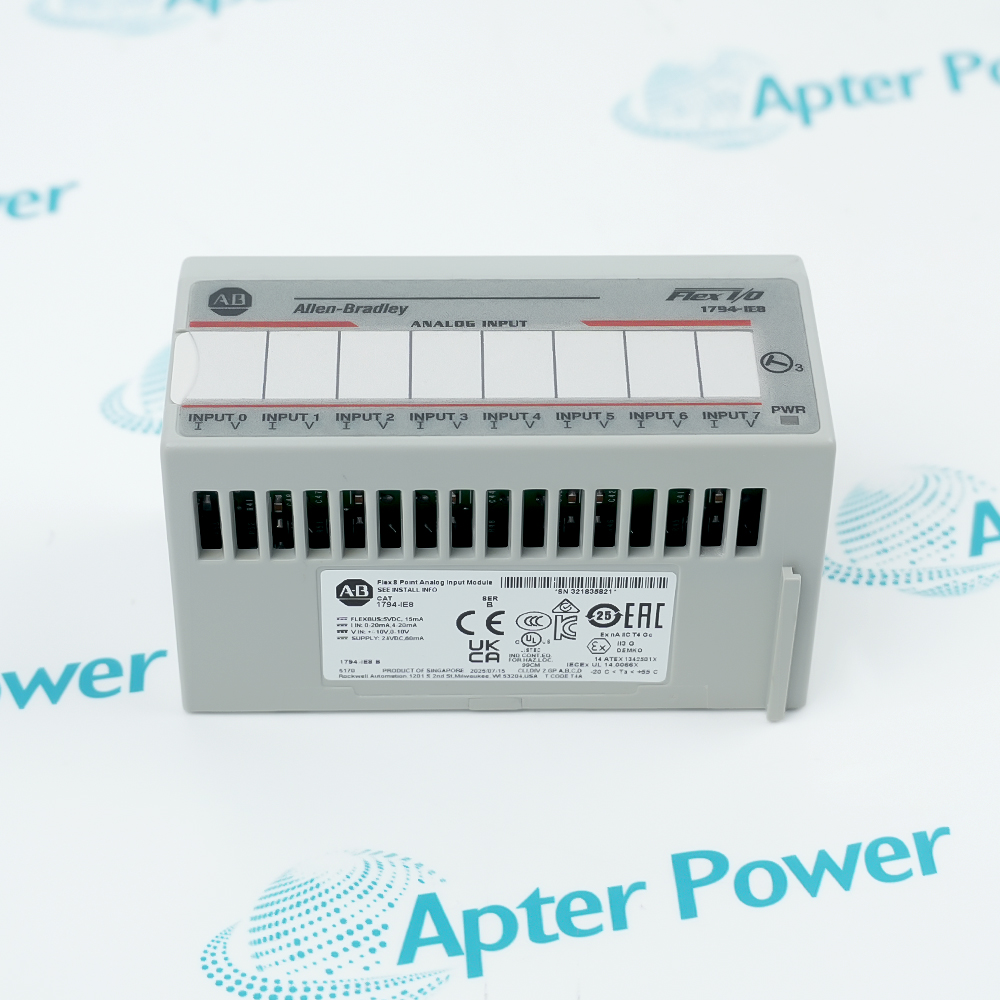

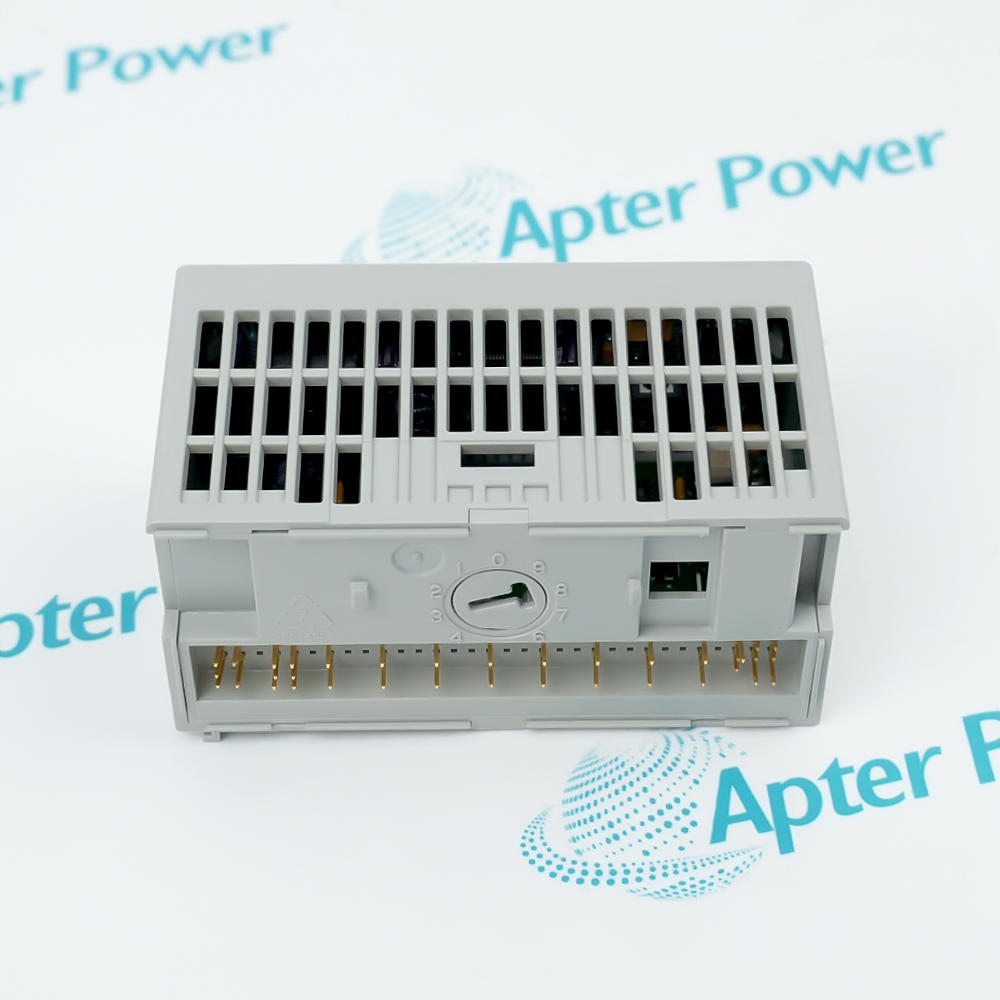

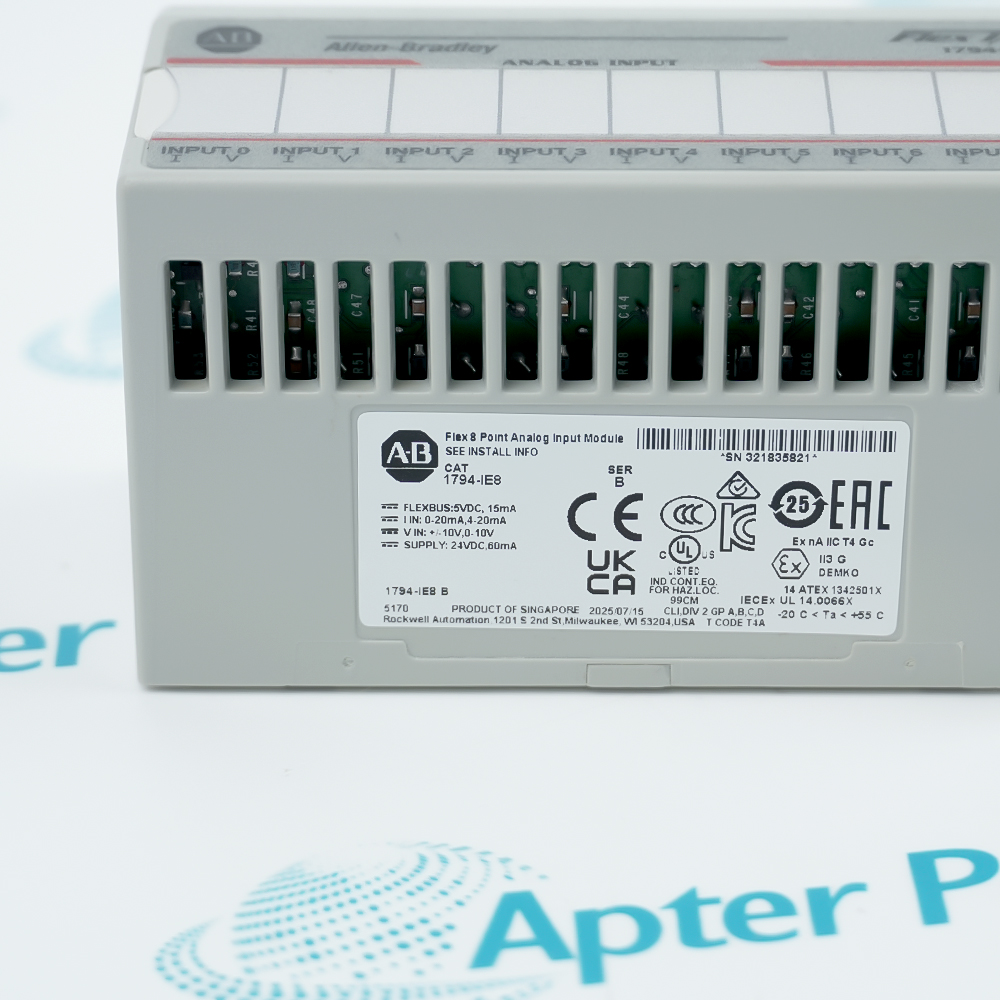

      1794-IE8

      FLEX I/O 8 Point Analog Input Module
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Allen-Bradley 1794-IE8 is a FLEX I/O 8 Point Analog Input Module. It acquires configured current or voltage field signals and transfers the converted channel data through FLEX I/O to the controller.

      Ask our team:

      Get a quick price for： 1794-IE8
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 1794-IE8

      Technical specifications for 1794-IE8

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1794-IE8
      • Estimated shipping dimensions:
        9.3x4.8x7.6cm
      • Weight:
        0.25 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Analog inputs:
        8 single-ended, nonisolated
      • Input voltage ranges:
        0...10 V; -10...+10 V
      • Input current ranges:
        0...20 mA; 4...20 mA
      • Resolution:
        12-bit unipolar; 11 bits plus sign bipolar
      • Voltage resolution:
        2.56 mV/count unipolar; 5.13 mV/count bipolar
      • Current resolution:
        5.13 µA/count
      • Data format:
        Left-justified 16-bit two's complement
      • Conversion method:
        Successive approximation
      • Conversion rate:
        256 µs for all channels
      • Voltage input impedance:
        100 kΩ nominal
      • Current input impedance:
        238 Ω nominal
      • FLEXBus current:
        15 mA at 5 V DC
      • External supply voltage:
        24 V DC nominal; 10.5...31.2 V DC
      • External supply current:
        60 mA at 24 V DC
      • Status indicator:
        1 red/green power/status LED
      • Enclosure type:
        Open style
      • Operating temperature:
        -20...+55 °C
      • Storage temperature:
        -40...+85 °C
      • Relative humidity:
        5...95%, noncondensing
      • Vibration:
        5 g at 10...500 Hz
      • Operating shock:
        30 g
      • Nonoperating shock:
        50 g
      • ESD immunity:
        6 kV contact; 8 kV air
      • Conducted RF immunity:
        10 Vrms, 150 kHz...80 MHz
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      FLEX I/O 8 Point Analog Input Module provides the documented interface for its installed Allen-Bradley FLEX I/O system.
      • Consolidates mixed analog measurements in one field I/O position
      • Provides configurable channel interpretation for voltage or current loops
      • Uses the FLEX I/O terminal-base architecture for field termination
      • Supports controlled channel verification during commissioning

      Connects configured current or voltage field loops to the FLEX I/O adapter and controller for process measurement acquisition. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 1794-IE8.

      Important Notice: Confirm the complete 1794-IE8 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 1794-IE8 Manuals and Guides
      Apter Power 1794-IE8 Product Technical Reference PDF1794-IE8 Engineering Installation and Verification Workbook
      The first document organizes model-specific technical identity and engineering data. The second provides a separate field workflow for installation, connection checks and commissioning records.
      Process transmitter acquisitionCompatible FLEX I/O adapter supports the engineered 1794-IE8 arrangement.
      Remote pressure and flow monitoringApproved FLEX I/O terminal base supports the engineered 1794-IE8 arrangement.
      Temperature-transmitter signal collectionCurrent or voltage field transmitters supports the engineered 1794-IE8 arrangement.
      FLEX I/O cabinet modernizationController I/O configuration supports the engineered 1794-IE8 arrangement.
      Read the applicable Allen-Bradley installation instructions before work. Verify 1794-IE8 and the installed-system configuration.
      1Verify the complete 1794-IE8 marking and the assigned Allen-Bradley FLEX I/O position before work.
      2Isolate the applicable power and field energy before disconnecting 1794-IE8.
      3Record the installed conductor, connector and module position before replacement of 1794-IE8.
      4Use ESD controls and protect the keyed interfaces while handling 1794-IE8.
      5Confirm the companion hardware listed for 1794-IE8 matches the approved system drawing.
      6Restore the documented configuration before applying process or machine power.
      7Run a controlled functional and diagnostic test for 1794-IE8 before release.
      8Retain the final wiring and test record with the 1794-IE8 maintenance history.

      Technical notes

      Technical notes

      Mount 1794-IE8 on the terminal base specified in Rockwell Automation publication 1794-IN100, isolate field-loop energy before rewiring, preserve channel polarity and confirm each configured range with a controlled current or voltage source.

      FAQS

      • Which host platform accepts 1794-IE8?
        Use 1794-IE8 only in the Allen-Bradley FLEX I/O arrangement identified by the manufacturer documentation and the installed hardware record.
      • What should be checked before installing 1794-IE8?
        Confirm the complete marking, part number 1794-IE8, mounting position and companion components before field work.
      • How is 1794-IE8 connected in the system?
        Follow the manufacturer terminal and connector assignment for 1794-IE8; retain each conductor and shield identity during service.
      • How is 1794-IE8 configured after replacement?
        Restore the approved project or device settings for 1794-IE8, then verify status and diagnostics before automatic operation.
      • What signal or process role does 1794-IE8 perform?
        Converts eight single-ended current or voltage input channels into left-justified 16-bit FLEX I/O data for the adapter and controller.
      • How should 1794-IE8 be commissioned?
        Energize under controlled conditions, exercise the intended function of 1794-IE8, and record the final diagnostic state.
      • What maintenance record is needed for 1794-IE8?
        Retain the as-found wiring, installed position, configuration revision and functional-test result for 1794-IE8.
      • Can 1794-IE8 be substituted directly?
        A replacement of 1794-IE8 requires a model, hardware-revision and system-compatibility check against the manufacturer documentation.
