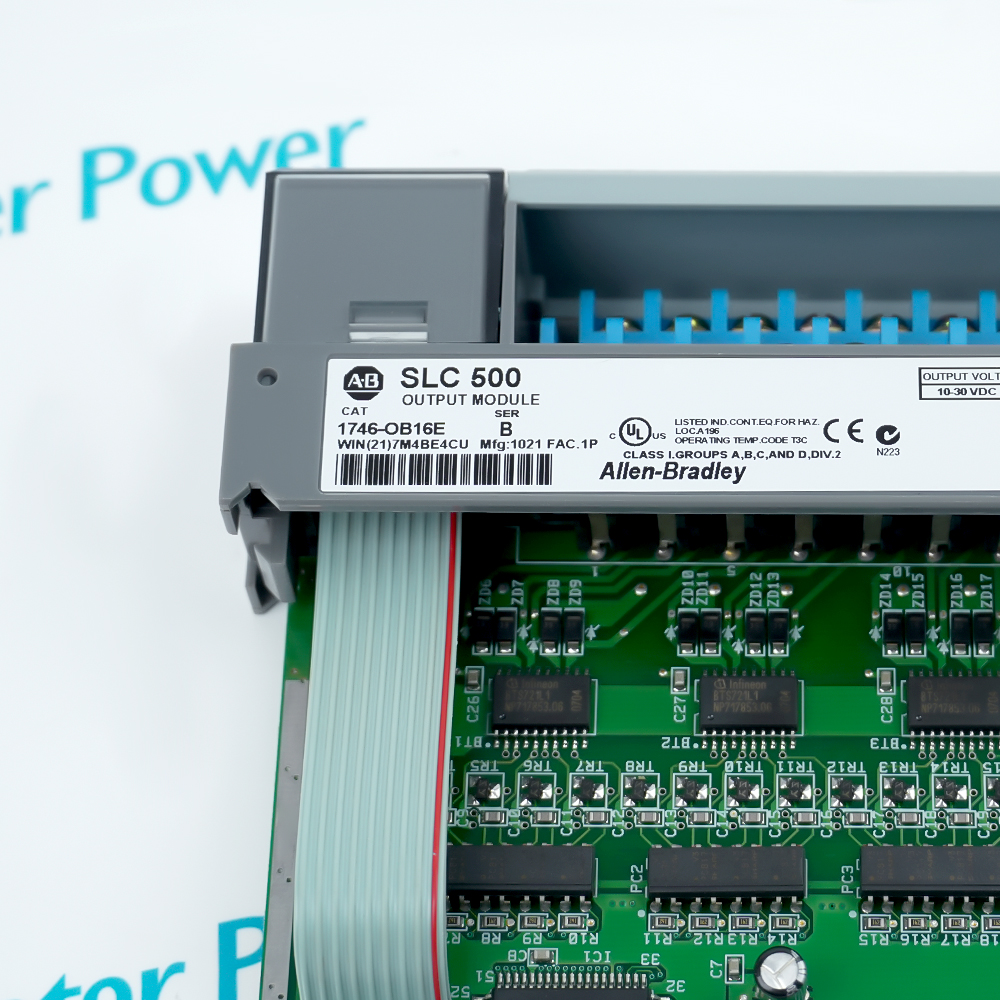

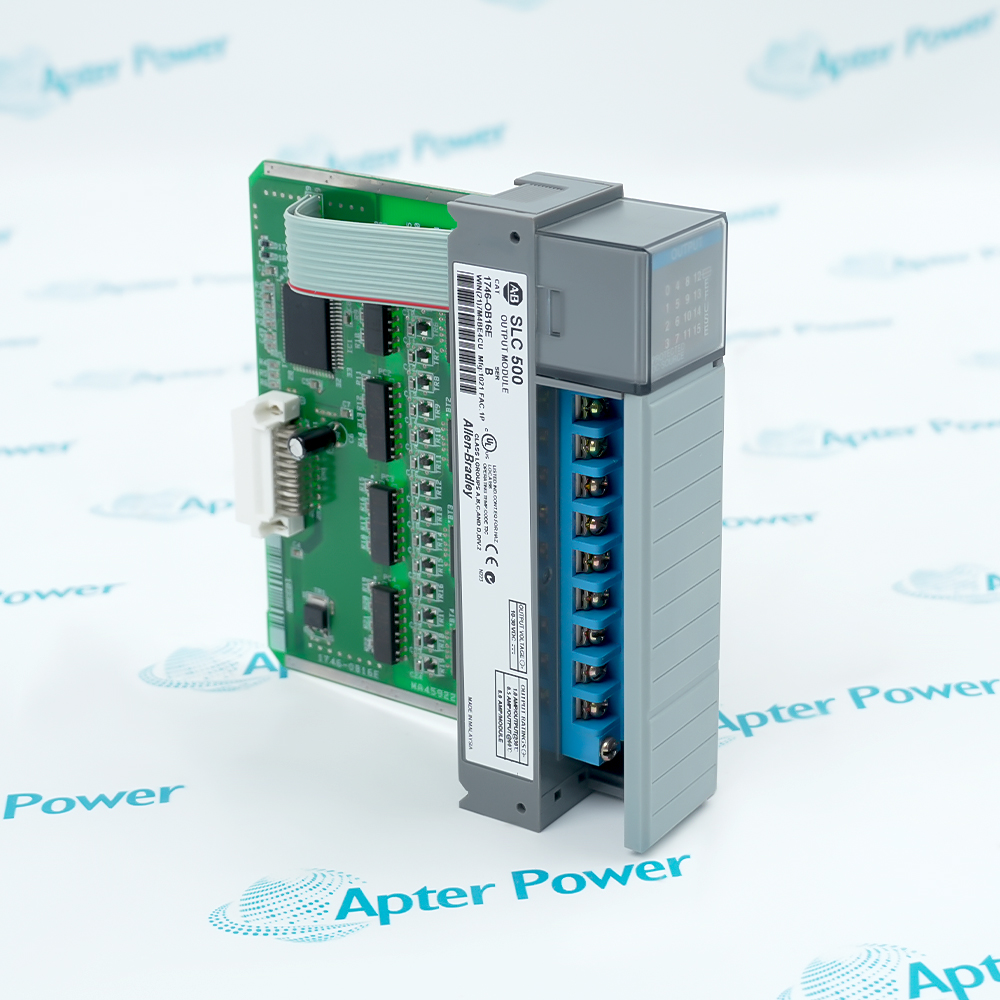

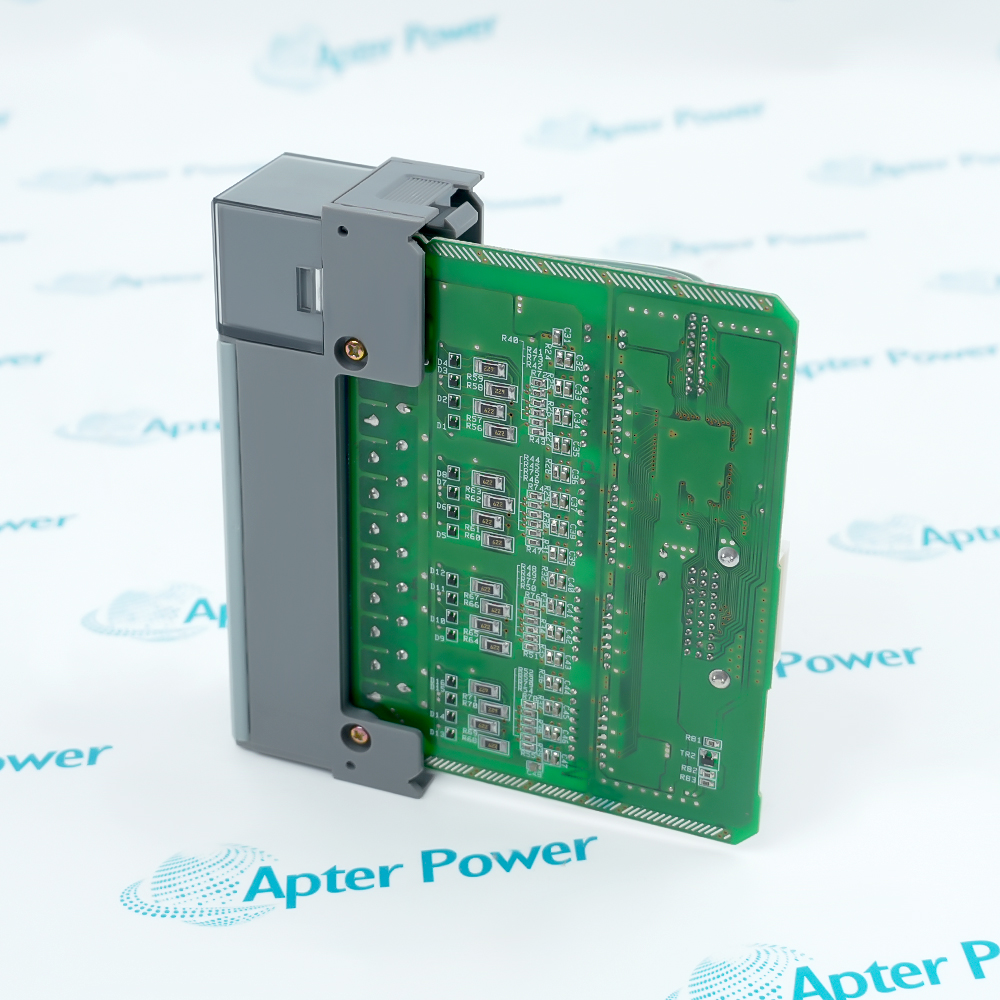

      Allen-Bradley 1746-OB16E
      Allen-Bradley 1746-OB16E
      Allen-Bradley 1746-OB16E
      Allen-Bradley 1746-OB16E
      Allen-Bradley 1746-OB16E
      Allen-Bradley 1746-OB16E
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      1746-OB16E

      DC Output Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Allen-Bradley 1746-OB16E is an electronically protected 16-point sourcing DC output module for SLC 500 systems. It switches configured DC field loads and reports overload or short-circuit conditions through its electronic protection behavior.

      Ask our team:

      Get a quick price for： 1746-OB16E
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 1746-OB16E

      Technical specifications for 1746-OB16E

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1746-OB16E
      • Estimated shipping dimensions:
        3.5x13x14.5cm
      • Weight:
        0.25 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Module type:
        Electronically protected sourcing DC output
      • Output points:
        16
      • Points per common:
        16
      • Operating voltage range:
        10 to 30 V DC
      • Backplane current at 5 V:
        135 mA
      • Backplane current at 24 V:
        0 mA
      • Continuous current per point at 30 C:
        1.0 A
      • Continuous current per point at 60 C:
        0.50 A
      • Continuous current per module:
        8.0 A maximum
      • Surge current per point:
        2.0 A for 10 ms
      • Surge current per module:
        32 A for 10 ms
      • On-state voltage drop:
        1.0 V maximum at 0.50 A
      • Minimum load current:
        1 mA
      • Off-state leakage current:
        1 mA maximum
      • Signal delay:
        1 ms on and 1 ms off
      • Module ID code:
        2920
      • Terminal block:
        Removable
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Allen-Bradley 1746-OB16E is an electronically protected 16-point sourcing DC output module for SLC 500 systems. It switches configured DC field loads and reports overload or short-circuit conditions through its electronic protection behavior.
      • Sixteen sourcing outputs: Controls sixteen DC load points in one common group.
      • Electronic protection: Protects the module against documented short-circuit and overload conditions.
      • Removable terminal block: Allows the field terminal assembly to be separated from the module during controlled service.
      • Series B fast-off behavior: Provides the documented fast-off feature for Series B and later hardware.

      Confirm the complete 1746-OB16E series marking, terminal assignment, supply range, point and module current limits, load suppression and SLC slot configuration before energization.

      Important Notice: Confirm the complete Allen-Bradley 1746-OB16E identity and controlled configuration before commissioning.

      Allen-Bradley 1746-OB16E Manuals & Downloads
      Allen-Bradley 1746-OB16E Technical Reference (PDF)Allen-Bradley 1746-OB16E Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      DC solenoid control
      Switches approved DC solenoid loads within the point and module limits.
      Indicator and relay outputs
      Drives documented DC indicators and relay coils.
      SLC 500 machine control
      Adds protected discrete outputs to a modular SLC station.
      Installed-base renewal
      Supports controlled replacement while retaining the exact terminal, slot and load records.
      Read the applicable Allen-Bradley instructions before work. Verify Allen-Bradley 1746-OB16E and the installed system configuration before commissioning.
      1
      Verify the complete 1746-OB16E marking and hardware series.
      2
      De-energize the SLC chassis and field supply before wiring work.
      3
      Confirm the 10 to 30 V DC field-supply range and polarity.
      4
      Do not exceed the point or total-module current limits.
      5
      Record the removable terminal-block and slot assignments before removal.
      6
      Review the official load-suppression guidance for every inductive device.
      7
      Do not assume the fast-off behavior of another hardware series.
      8
      Test each output, module diagnostics and the controlled machine sequence before release.

      Technical notes

      Technical notes

      Confirm the complete 1746-OB16E series marking, terminal assignment, supply range, point and module current limits, load suppression and SLC slot configuration before energization.

      FAQS

      • What is Allen-Bradley 1746-OB16E?
        1746-OB16E is a 16-point electronically protected sourcing DC output module for SLC 500 systems.
      • How many outputs does Allen-Bradley 1746-OB16E provide?
        It provides 16 outputs in one common group.
      • What voltage range does Allen-Bradley 1746-OB16E use?
        The documented operating range is 10 to 30 V DC.
      • What backplane current does Allen-Bradley 1746-OB16E draw?
        It draws 135 mA at 5 V and 0 mA at 24 V from the backplane.
      • What is the continuous module-current limit for Allen-Bradley 1746-OB16E?
        The documented maximum continuous current is 8.0 A per module.
      • Does Allen-Bradley 1746-OB16E include electronic protection?
        Yes. The module provides documented short-circuit and overload protection.
      • Does Allen-Bradley 1746-OB16E use a removable terminal block?
        Yes. The official selection data lists a removable terminal block.
      • What confirms Allen-Bradley 1746-OB16E commissioning?
        Verify the field supply, output map, load current, protection status, terminal assignment and every commanded output.
