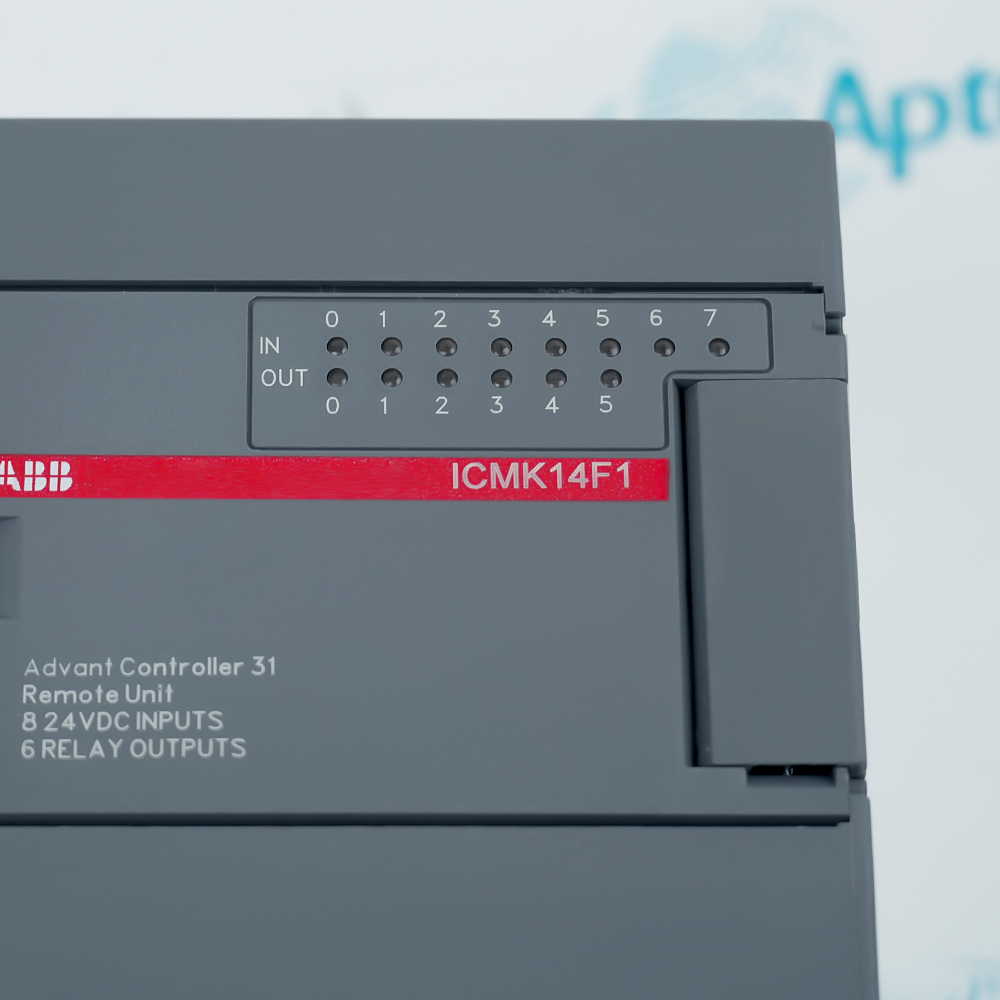

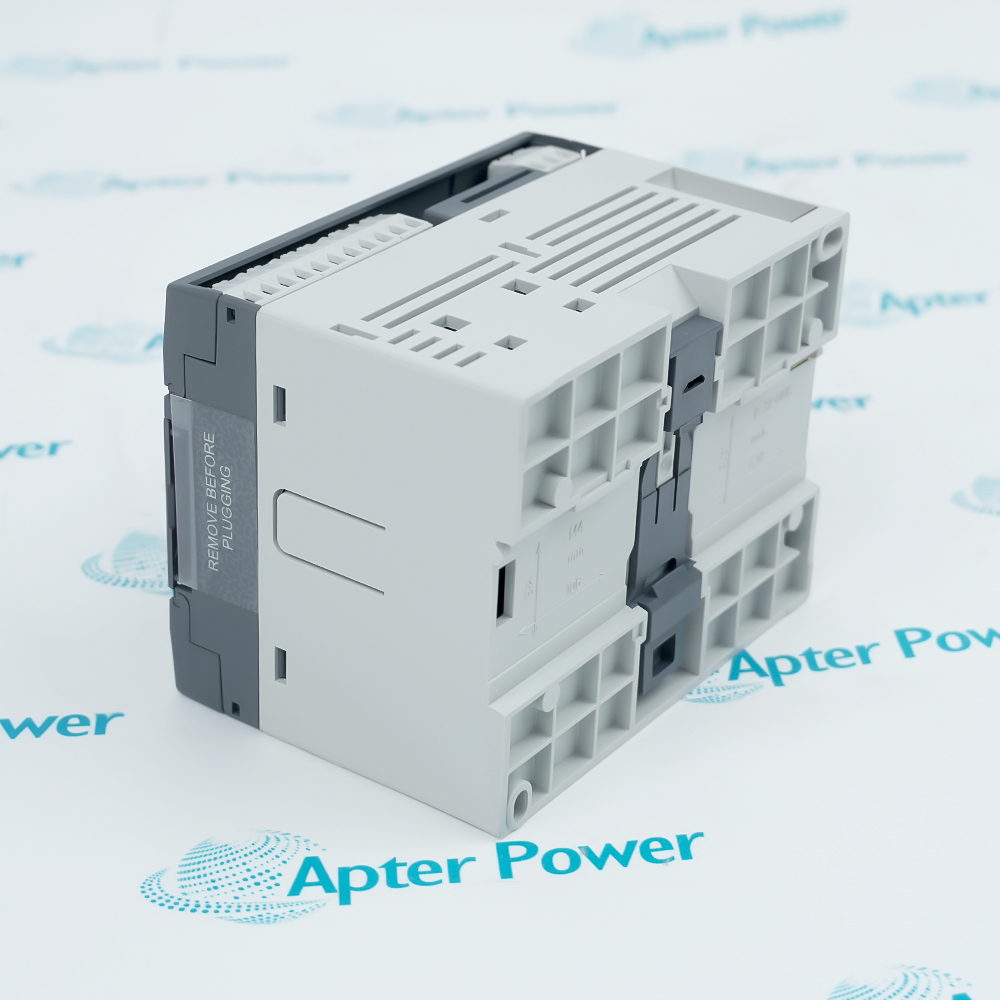

ABB ICMK14F1 is an evidence-bounded AC31 centrally extensible CS31 remote I/O unit. ABB AC31 documentation maps ICMK 14 F1, 24 V DC exactly to order number 1SBP260050R1001 and separates it from the 120/230 V AC and transistor-output variants.
- Exact model: ICMK 14 F1, 24 V DC
- ABB order number: 1SBP260050R1001
- System interface: CS31 system bus
- Approved basic-unit families: AC31 series 50 and 90
System role: It is a centrally extensible remote unit for AC31 series 50 and 90 basic units, providing isolated digital inputs and relay outputs over the CS31 system bus. Only facts stated by the cited ABB material are published; sibling, successor and third-party data are not transferred. Architecture boundary: The exact R1001 variant has eight isolated 24 V DC inputs, six relay outputs rated 250 V AC / 2 A, and a 24 V DC power supply. Do not merge it with 1SBP260051R1001, which has a 120/230 V AC supply, or 1SBP260052R1001, which uses transistor outputs; verify the series 50/90 host and extension arrangement before installation. Before installation or replacement, verify the complete physical label, host equipment, companion hardware, wiring and approved commissioning procedure. Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
Important Notice: Verify the complete ABB ICMK14F1 physical label and installed-system documentation before use.
Apter Power ICMK14F1 1SBP260050R1001 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited ABB official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current ABB documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for ABB ICMK14F1.
System documentationProvides a source-traceable boundary for the documented ABB Advant Controller 31 series 50 and 90 CS31 system-bus architecture configuration.
Commissioning reviewGuides identity, companion-hardware, wiring and controlled functional checks before return to service.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Read and follow the exact ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1Verify the complete ABB ICMK14F1 label, revision and installed-system documentation before use.
2Do not merge it with 1SBP260051R1001, which has a 120/230 V AC supply, or 1SBP260052R1001, which uses transistor outputs; verify the series 50/90 host and extension arrangement before installation.
3De-energize the equipment and follow the site's approved electrical and process-safety procedure before disturbing hardware or wiring.
4Back up controller, drive, network and configuration data before replacement, migration or firmware work.
5Verify every companion module, cable, connector, termination and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented functional test and confirm diagnostics, alarms and fail-state behavior after work.
8Origin and HS code remain unpublished unless an exact manufacturer record or the physical package label establishes them.
