The BGDR-01C 3AUA0000074145 acts not only as a pure signal amplifier but also as an "intelligent protective umbrella" for the IGBT modules.
High-Speed Switching & Powerful Peak Drive
Superior Electrical Isolation & High Noise Immunity
Advanced Closed-Loop Protection & Soft Turn-Off

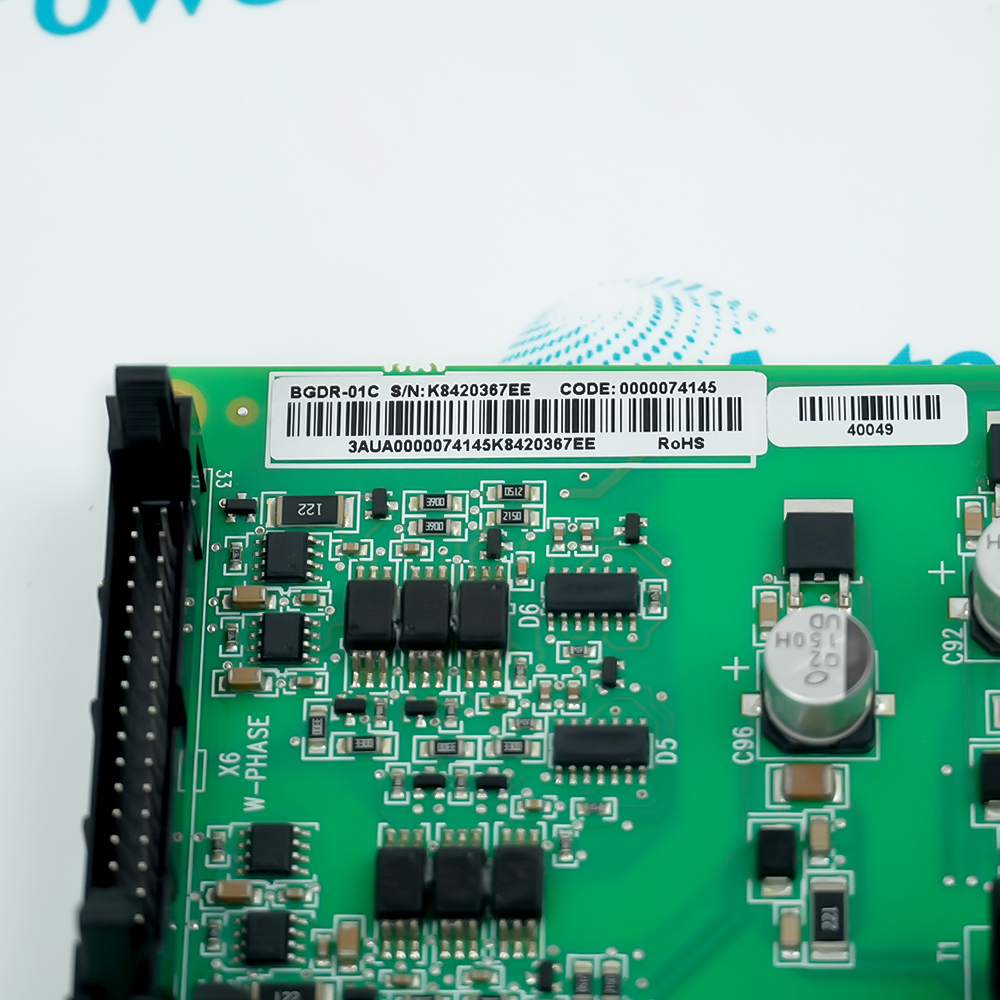

The 3AUA0000074145 (Model: BGDR-01C) is an original equipment manufacturer (OEM) gate driver board designed and manufactured by ABB [3AUA0000074145]. Acting as the critical hub for power isolation and driving within the inverter system, this board is specifically engineered for ABB ACS880 series (such as ACS880-104-R8i inverter modules) and ACS580 series large-frame (R10 and R11) heavy-duty industrial frequency inverters [3AUA0000074145]. Its core mission is to safely isolate and amplify the weak control signals output by the main control board, thereby precisely and rapidly driving the high-power switching devices (IGBTs) inside the inverter [3AUA0000074145].
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB BGDR-01C 3AUA0000074145 Gate Driver Board, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil, Gas & Chemicals
Used in refineries and chemical plants to drive large explosion-proof centrifugal pumps, high-pressure gas compressors, and large mixing/agitating equipment.
Mining & Minerals Processing
Used to control large underground mine hoists, extra-long heavy-duty belt conveyors, and massive rock grinding mills.
Metals & Steel Industry
Used to drive continuous casting machines, large rolling mills, blast furnace blowers, and various heavy-duty plate roller tables.
Marine & Offshore
Applied in the electric propulsion systems of large cargo ships, marine heavy-duty winches, and high-capacity side thrusters.
Pulp & Paper
Used to control large high-speed paper machines, coaters, calenders, and high-precision multi-motor synchronous drive systems.
Rail & Transportation
Used in ground traction substations of rail transit systems or power test bench systems in large locomotive maintenance workshops.
When using and maintaining the ABB 3AUA0000074145 (BGDR-01C) gate driver board, please pay strict attention to the following core precautions （3AUA0000074145），After the inverter is powered off, lethal high voltage remains on the DC bus; you must wait at least 15 minutes and confirm the capacitors are fully discharged before touching the board （3AUA0000074145）. Meanwhile, since the board is extremely sensitive to static electricity, an anti-static wrist strap must be worn during operation （3AUA0000074145）. Most critically, driver board failure is often accompanied by an IGBT breakdown; you must measure and confirm the IGBT is intact before replacing the board, otherwise, blind power-on will instantly burn out the new board again（3AUA0000074145）.
3AUA0000074145 (Model: BGDR-01C) is an industrial frequency inverter gate driver board manufactured by ABB.
What are the primary functions of 3AUA0000074145?
Its primary function is to receive weak TTL logic signals from the main control board, electrically isolate and amplify them, and output sufficient voltage and current to rapidly and reliably switch high-power IGBT modules on and off.
Which devices are compatible with 3AUA0000074145?
This driver board is primarily compatible with ABB's advanced ACS880 series (such as ACS880-104-R8i inverter modules) and large-frame models of the ACS580 series (such as R10 and R11).
What protection mechanisms are included in 3AUA0000074145?
It typically integrates undervoltage protection, overcurrent and short-circuit detection, and extremely high electrical isolation capabilities to prevent high-voltage side surges from damaging the weak-current control board.
How to determine if 3AUA0000074145 is damaged?
When the inverter panel frequently displays "Gate Driver Fault", "Short Circuit", or when the onboard 24V status green LED indicator fails to light up, it typically means this board or its connected IGBT has failed.
