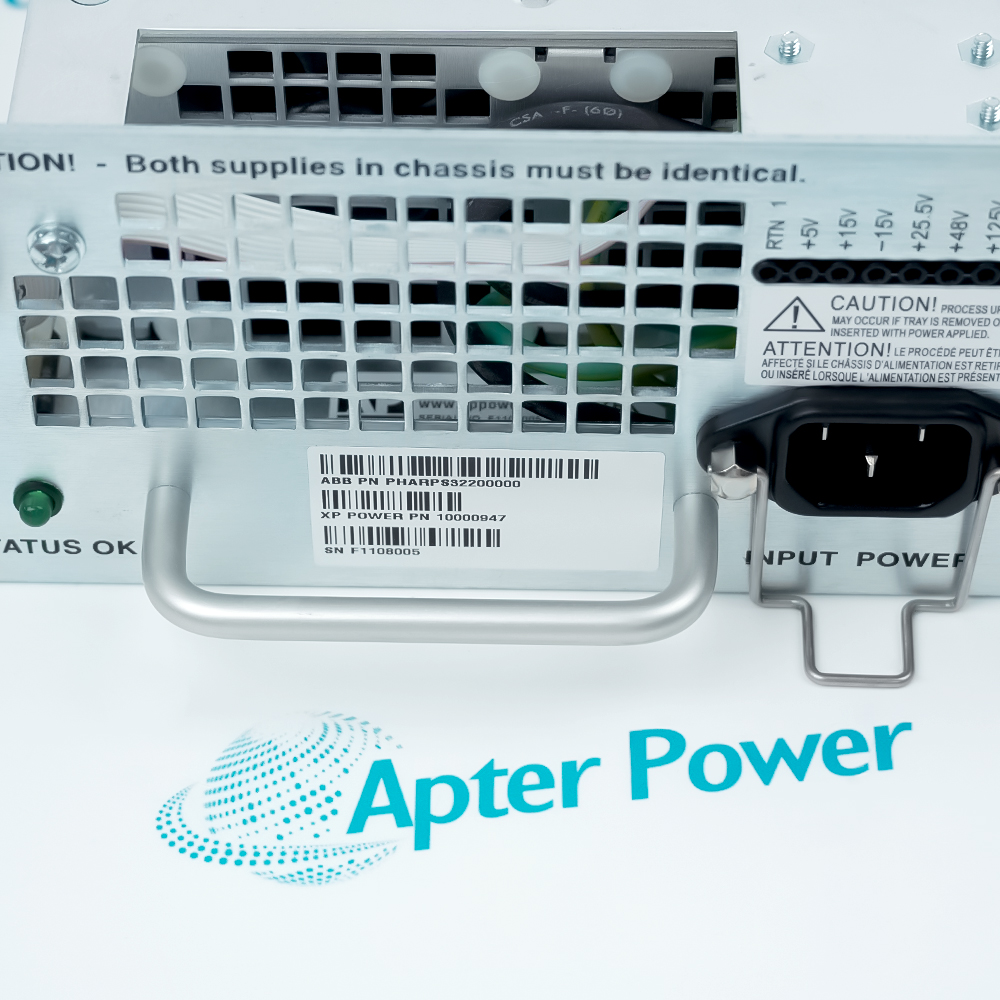

The PHARPS32200000 is a power supply module applied in industrial automation control systems, specifically responsible for providing stable electrical power in harsh industrial environments. This hardware meets special power supply requirements under rigorous factory conditions, and is commonly used to provide reliable power distribution support for core control devices such as Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).
Engineered for non-stop industrial operations and fully equipped with integrated short-circuit and overload protection circuits
Supports a broad range of supply voltages to facilitate seamless integration into diverse system architectures
The compact, lightweight design simplifies installation and field maintenance while optimizing enclosure space utilization
The PHARPS32200000 module supports an industrial grid frequency range of 47 to 63 Hz. This module features multi-channel independent distribution capabilities, delivering five separate low-ripple DC rails in conjunction with the chassis backplane busbars. Among these, the 5.1 VDC logic circuit supply has a rated current of 60 A, dedicated to sustaining the high-throughput computing of the low-level system logic bus. The +15 VDC analog circuit supply has a rated current of 3 A for operational amplifier circuits. The -15 VDC analog circuit supply has a rated current of 3 A for bipolar analog signal conditioning. The 24 VDC field I/O drive and instrument loop supply has a rated current of 17 A to feed channel loops and barriers. Finally, the 48 VDC networking supply has a rated current of 8.5 A for specific remote communications or loop drives.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB PHARPS32200000 Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Installed in DCS control cabinets of large coal-fired or gas-fired power units to provide uninterrupted power to core boards of the Boiler Master Control System (MCS), Sequence Control System (SCS), and Data Acquisition System (DAS).
Nuclear Power Industry
Used in conventional island control systems of nuclear power plants and some non-safety class auxiliary units to distribute stabilized power to distributed bus nodes of turbines and condensate pumps.
Petroleum Refining and Refineries
Allocated within control cabinets of large crude distillation, catalytic cracking, and hydrocracking units to distribute deterministic control power to high-speed network processors and analog signal processing boards.
Iron, Steel and Black Metallurgy
Used in central control room cabinets for blast furnace ironmaking, hot rolling, and cold rolling continuous production lines to resist grid harmonic interference caused by frequent large motor start/stops, ensuring stable operation of the main PLC.
Urban District Heating Networks
Utilizes its specific 48V networking rail in main electrical cabinets of large urban thermal dispatch centers and multi-node pressurized heat exchange stations to drive remote communication adapters or optoisolation stations over long distances.
When operating the PHARPS32200000, ensure the module slides fully into its dedicated tray so that the blind-mate connectors engage firmly with the backplane busbar to prevent arcing from loose connections. For multi-module N+1 parallel redundancy setups, output voltages across all rails must be strictly aligned using the trim potentiometers to ensure proper load sharing. Regularly clear ventilation paths to prevent dust accumulation from blocking convection and triggering thermal shutdowns. During replacement, verify the upstream breaker ratings and strictly avoid hot-swapping under load.
It must be installed in a dedicated power tray and connected to the backplane busbar via blind-mate connectors, converting incoming AC power into five independent DC rails (5.1V, ±15V, 24V, and 48V) to distribute power directly to central processors and I/O boards. The module features integrated short-circuit, overvoltage, and thermal shutdown protections, supporting N+1 parallel redundancy and load sharing, and is currently in its discontinued spare part lifecycle stage.
What type of industrial hardware component is the ABB PHARPS32200000?
The PHARPS32200000 is a modular power supply unit built for Symphony Harmony and INFI 90 Distributed Control Systems.
Which specific DCS infrastructure does the PHARPS32200000 power supply belong to?
The PHARPS32200000 belongs to the ABB Modular Power System III architecture for chassis-level power distribution.
How do engineers install and use the PHARPS32200000 module inside a control cabinet?
Engineers slide the PHARPS32200000 into a dedicated power tray to convert incoming primary power into stable system DC voltages.
How many different DC output voltage rails are provided by the PHARPS32200000 hardware?
The PHARPS32200000 provides five separate DC outputs, including 5.1 VDC, +15 VDC, -15 VDC, 24 VDC, and 48 VDC.
What is the current rating for the 5.1 VDC logic rail on the PHARPS32200000?
The 5.1 VDC output on the PHARPS32200000 can deliver up to 60 A of continuous current to the backplane.
