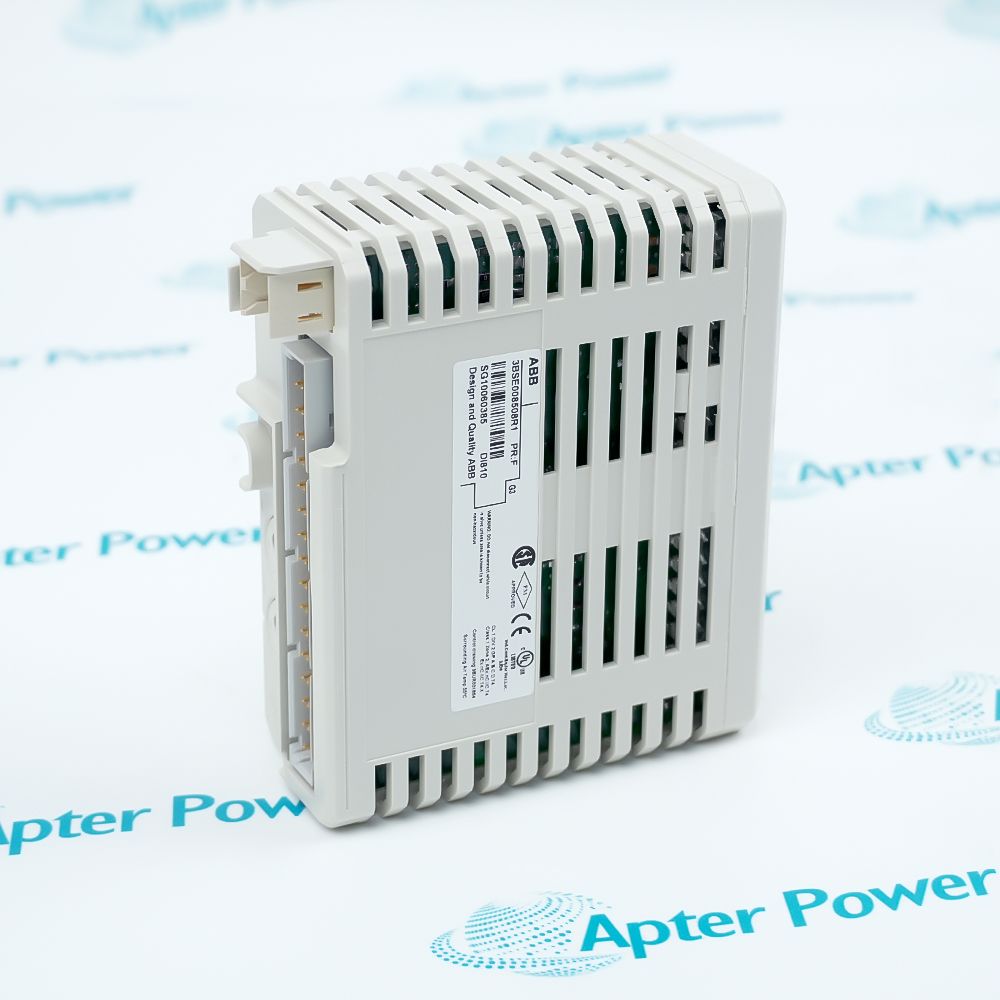

The DI810 3BSE008508R1 is a digital input module manufactured by ABB. Its primary function is to receive 24 V DC switching signals sent from industrial fields and transmit these electrical status data through the ModuleBus communication bus to the main controller.
Low Power Draw: Draws only 50 mA maximum from the internal 5V system component line
Rapid Signal Filtering: Features hardware-driven digital filter delays configurable down to 2 milliseconds
Low Heat Dissipation: Limits total module power usage to a maximum of 2.5 Watts
In terms of physical specifications, this hardware features 16 fixed input channels. These channels are divided equally into two completely independent isolated groups, each containing 8 data signal channels and 1 dedicated monitoring input for external process power supply voltage.

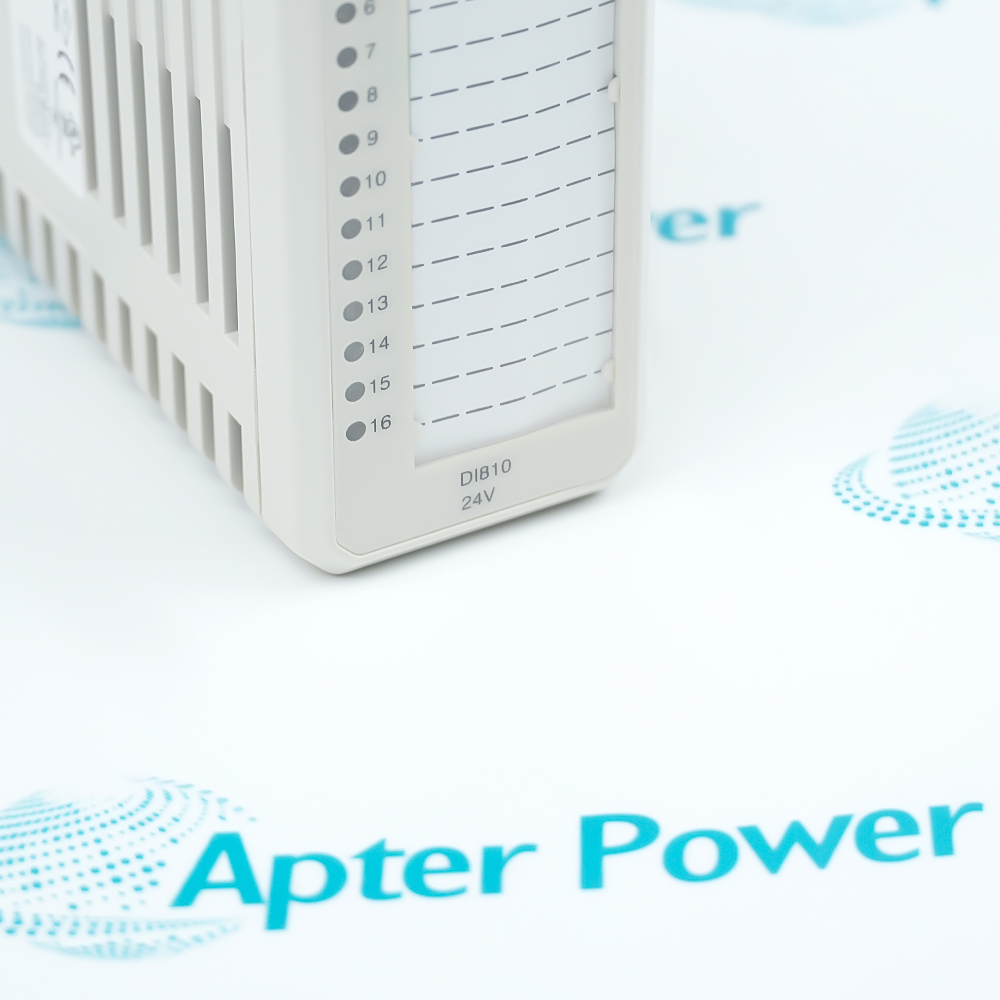

This hardware product belongs to the S800 I/O system module series, which often serves as a core component of the ABB Ability System 800xA automation control system. In its complete hardware construction, the module includes built-in current limiting elements, electromagnetic compatibility protection components, galvanic isolation barriers, and physical channel status indicators located on the front panel, including fault F, run R, warning W indicators, and logic status lights for channels 1 through 16. In practical system architecture, this module needs to be assembled and used in combination with specific module termination units, such as TU810, TU812, TU814, TU818, TU830, TU833, TU838, or TU850 termination bases.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB DI810 3BSE008508R1 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Collecting "fully open" and "fully closed" limit switch signals of inlet/outlet damper valves for boiler forced and induced draft fans.
Petroleum Refining
Monitoring valve position statuses of field Emergency Shutdown Valves (ESD) and manual emergency stop buttons on the operator console in hazardous areas.
Petrochemical
Receiving auxiliary contact statuses of electrical contactors for the running or stopped state of chemical reactor agitator motors.
Metallurgy & Iron and Steel
Collecting mechanical travel safety switch signals of blast furnace charging system discharge gates and converter tilting mechanisms.
Nuclear Power Generation
Used for monitoring water level/air pressure limit switches of conventional island building isolation doors and collecting digital selector switch statuses from local control panels.
Hydropower Generation
Monitoring hydraulic travel valve position statuses of hydro-turbine main inlet valves and bypass valves, as well as intake trash rack cleaner limits.
When using DI810 3BSE008508R1, input 24 Vdc rated voltage and strictly split wiring into two independent isolated groups. Latch the module securely onto TU810/TU830 MTUs, and verify system permissions before hot-swapping. Properly configure the digital filter time to prevent signal bounce false alarms, and utilize the dedicated channel to monitor external process power voltage in real time.
DI810 3BSE008508R1 cyclic self-diagnostic unit monitors the external 24 Vdc process supply voltage. The module triggers a system fault upon detection of a blown fuse, loss of process power, or internal logic hardware damage.
It is a 16-channel industrial digital input module manufactured by ABB.
What is the main function of DI810 3BSE008508R1?
To collect digital switch, contact status, or pulse signals from the industrial field.
Which control system does DI810 3BSE008508R1 belong to?
It belongs to the ABB System 800xA and S800 I/O systems.
How many input channels does DI810 3BSE008508R1 have?
It has 16 independent digital input channels.
