The 5SDD0120C0200 is a high-current disc-type rectifier diode for industrial rectifier applications. It features a low forward voltage drop, low thermal resistance, and surge current capability, making it applicable for high-power rectifiers, welding equipment, electrolysis systems, and industrial power conversion applications.
High forward current capability
Low forward and reverse recovery losses
Medium frequency range, typ. up to 2 kHz

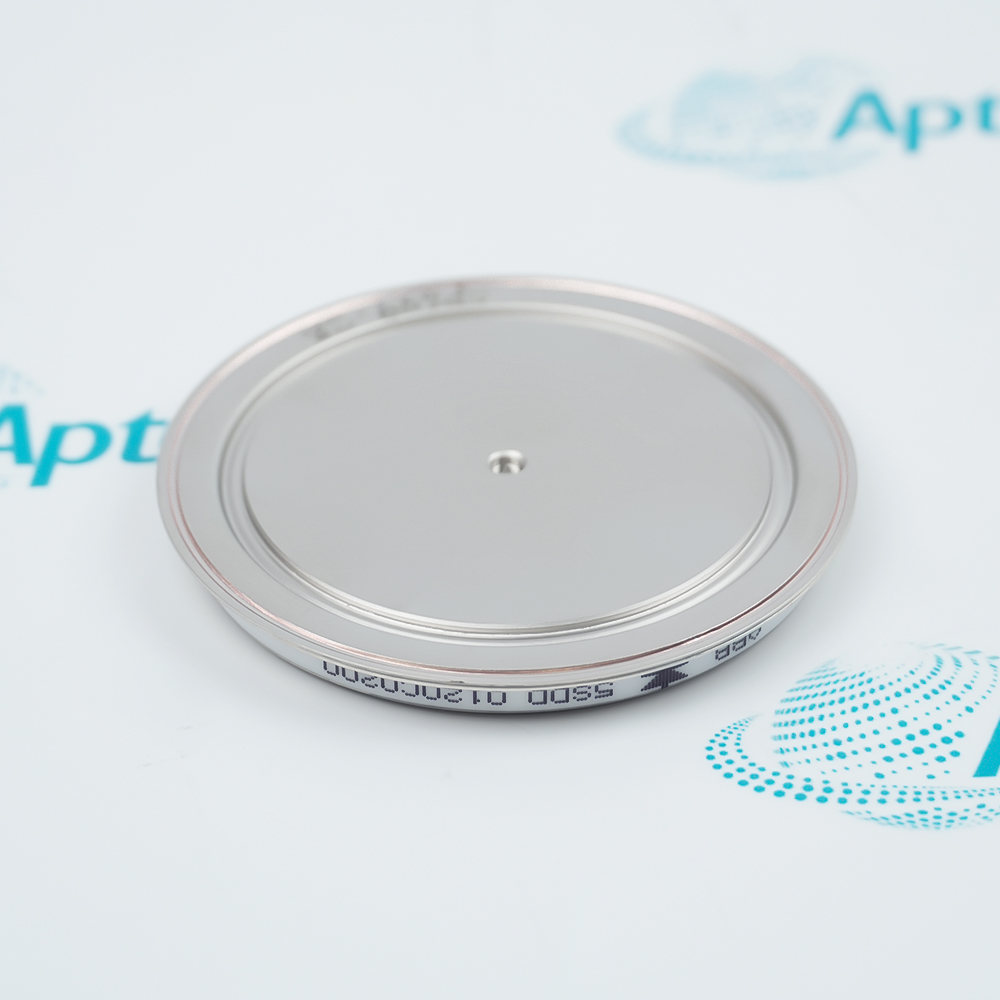

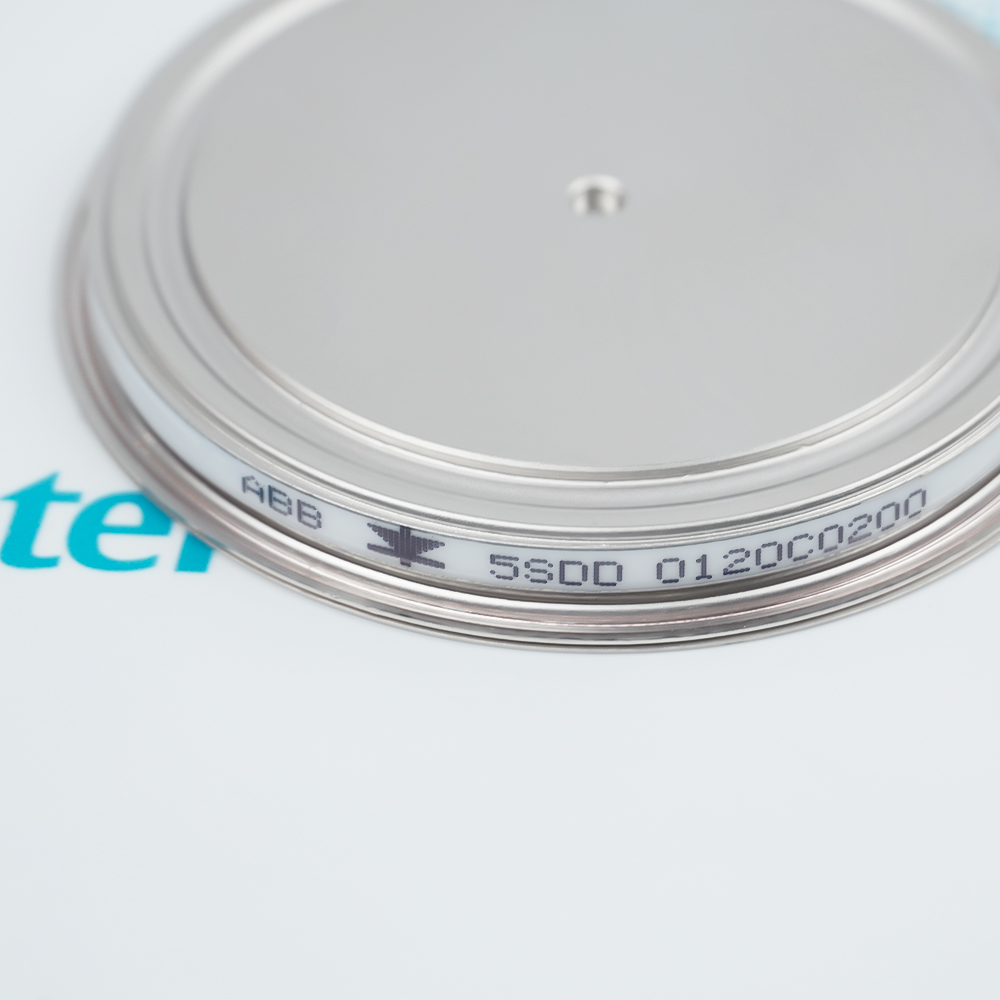

This hermetically sealed ceramic hockey-puck component operates with a repetitive peak reverse voltage of 200 V and handles a maximum average forward current of 11,000 A under specified thermal conditions. The silicon chip configuration functions within medium-frequency inverter power supplies up to 2000 Hz while limiting power dissipation under full load. The pinless and studless structural design uses flat upper and lower copper faces as both electrical contacts and thermal interfaces, requiring a mechanical clamping force between 35 kN and 40 kN for double-sided mounting between water-cooled or air-cooled heatsinks.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 5SDD0120C0200 Welding Diode Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Installed in medium-frequency inverter resistance welders of body-in-white welding robots to output 10,000A-level low-voltage DC for spot welding.
Rail Transit Equipment
Used for heavy-duty resistance welding of thick aluminum alloy structural parts on high-speed train bodies and locomotive bogies.
Aerospace Manufacturing
Serving as the rectification core in power supplies for precision seam and spot welding of engine titanium alloy casings and honeycomb structures.
Chlor-Alkali Chemical Industry
Operating in large rectifier units for ion-exchange membrane electrolyzers to meet the high-density DC required for brine solution electrolysis.
Shipbuilding Industry
Used in automatic row welding machines and heavy high-current welding power systems for high-strength steel plates on ship hulls and bulkheads.
Hydrogen Production
Used as a high-current rectification unit in DC hydrogen production power cabinets for alkaline electrolyzers at large green hydrogen production bases.
5SDD0120C0200 delivers an 11 kA current carrying capability with high surge current withstand limits, and is configured for medium-frequency operation up to 2 kHz. Its low conduction loss design reduces power dissipation, ensuring continuous operation under industrial load conditions.
Alternative Names
Alternative Names
5SDD 0120C02005SDD-0120C0200
Technical notes
Technical notes
5SDD0120C0200 contains an internal chip configuration for medium-frequency inverter power supplies up to 2000 Hz, with a forward voltage drop and thermal resistance that limit power dissipation and heat generation under full load. This pinless and studless component utilizes the upper and lower copper faces as electrical contacts and thermal interfaces, which clamp between two water-cooled or air-cooled heatsinks.
It is an industrial-grade disc-type welding rectifier diode manufactured.
What is the peak reverse voltage of 5SDD0120C0200?
Its repetitive peak reverse voltage is 200 V.
What is the maximum average current of 5SDD0120C0200?
Its maximum average forward current is 11,000 A.
What type of housing does 5SDD0120C0200 use?
It uses a standard circular disc-type (Hockey-puck) hermetic housing.
What industrial equipment uses 5SDD0120C0200?
It is primarily used in medium-frequency resistance welders, high-power rectifiers, and electrolysis systems.
