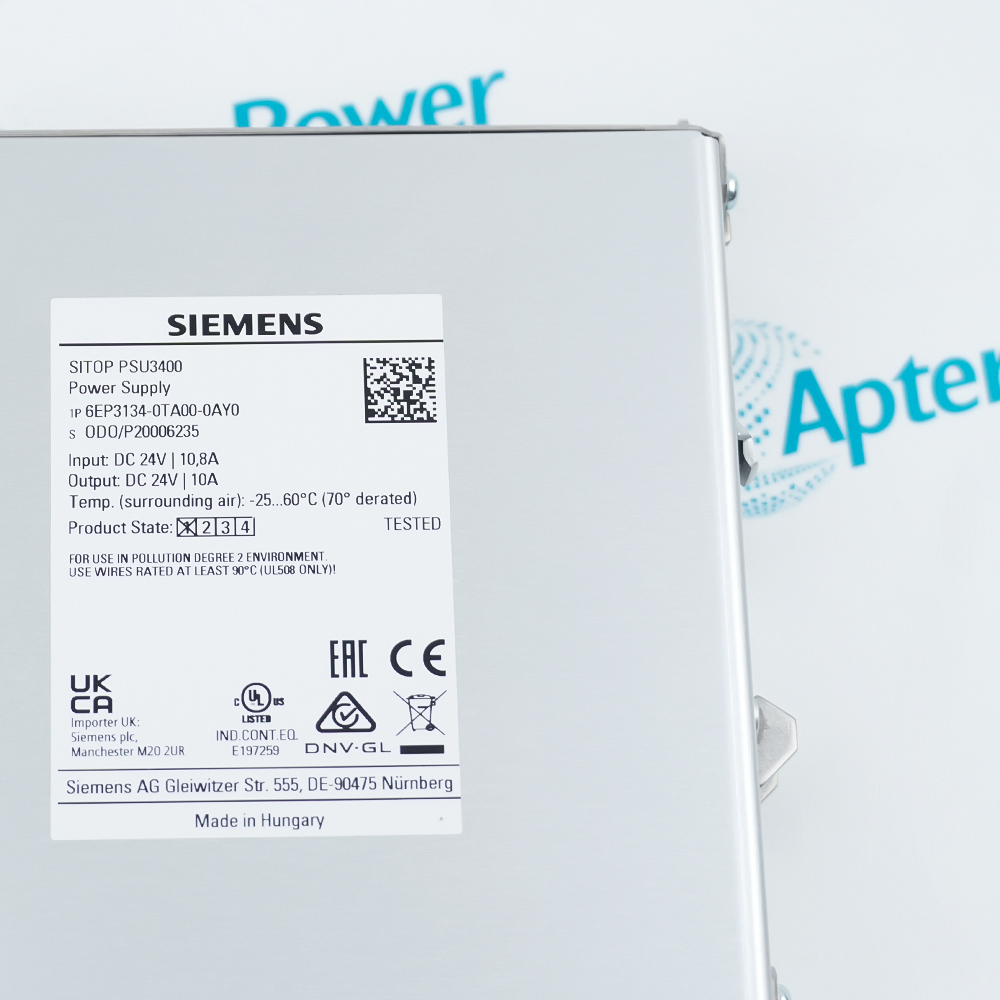

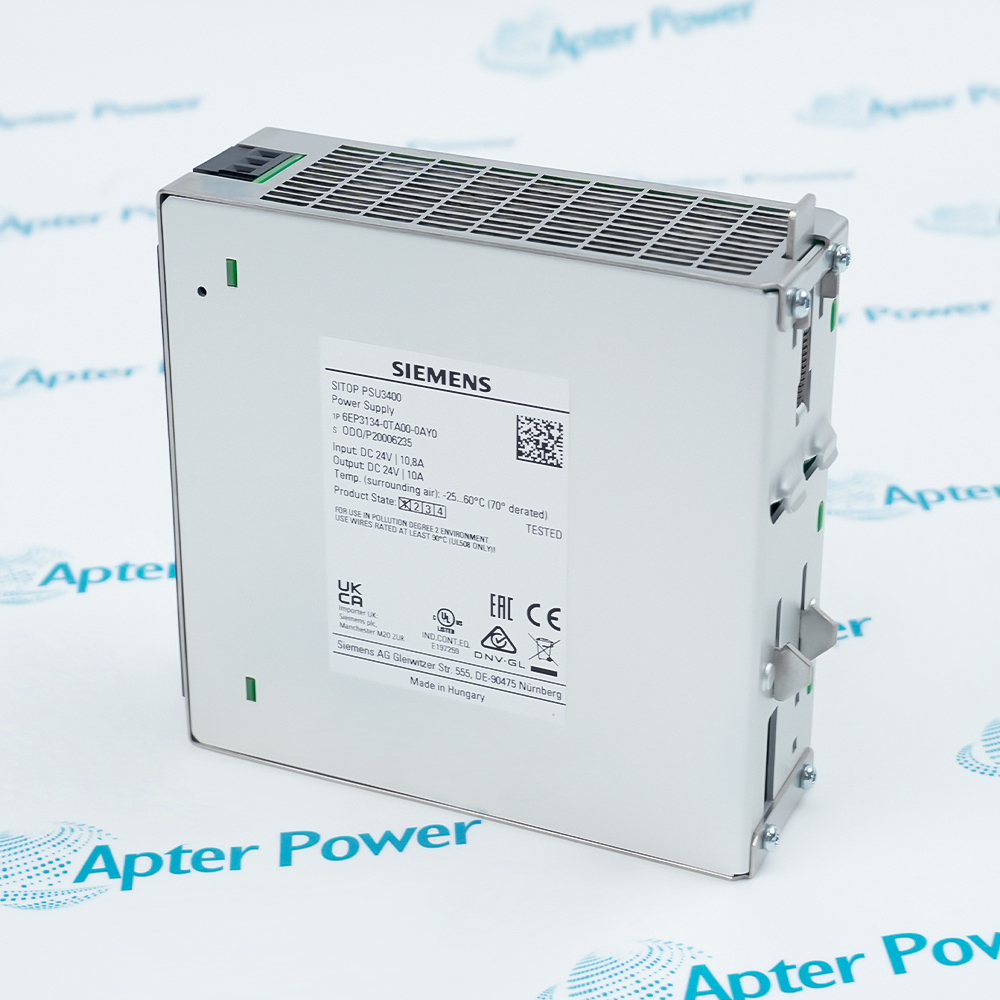

The 6EP3134-0TA00-0AY0 is a Siemens DC-DC stabilized power supply that supports a 14–32 V DC input and delivers a stable 24 V/10 A output. The device features a high efficiency of 93%, supports parallel operation, and is certified under cULus, CE, and CB safety standards.
Supports 14V to 32V DC input and starts at 18V, solving voltage drops in long-distance lines
Output fine-tunes between 24V and 28V, featuring an onboard NO relay contact for status signaling
Provides electronic short-circuit shutdown with auto-restart, supporting parallel connection of two units for power expansion
The power supply features reliable electrical safety protection. On the input side, the 6EP3134-0TA00-0AY0 permits a DC input voltage range from 14V to 32V. It starts at 18V and requires derating if operated between 14V and 18V. The device integrates a 25A non-accessible input fuse along with a 15A maximum inrush current limit. On the output side, the device provides electronic shutdown with automatic restart functionality for short-circuit protection. A yellow LED indicates overloads when current limitation hits a typical 13A or output overvoltage stays below 35V. Engineered with primary to secondary isolation, the unit delivers a Safety Extra Low Voltage output and carries UL certification.
In terms of operation and environmental adaptability, the 6EP3134-0TA00-0AY0 demonstrates high flexibility on the factory floor. The front panel integrates a green status LED and offers remote feedback through an onboard signaling relay contact. Users can continuously fine tune the output voltage between 24V and 28V via a built-in potentiometer. Under natural convection cooling conditions, the hardware supports a wide operating ambient temperature range from minus 25 to plus 70 degrees Celsius. It supplies a typical active power of 260W and allows parallel connection of up to two units for performance enhancement. Encased in an IP20 enclosure, it effectively handles industrial temperature extremes without condensation.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6EP3134-0TA00-0AY0 Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Rail Transit & Subway Systems
Installed in train onboard control cabinets to convert fluctuating battery bank voltages into stable 24V DC to power onboard signaling and communication equipment.
Solar & Photovoltaic Power Generation
Deployed in outdoor PV combiner boxes or tracker control boxes to stabilize and boost attenuated DC power from long-distance transmission, ensuring the controller works properly.
Wind Power Control Systems
Deployed in pitch control cabinets of wind turbine nacelles to ensure pitch motor encoders and sensors are free from strong grid harmonics and electromagnetic interference via isolated conversion.
Marine & Offshore Engineering
Used in marine switchboards and engine room automation monitoring systems to convert the output of the DC emergency power panel into standard 24V stabilized power for alarm systems.
Isolating and stabilizing the DC supply loops of electromagnetic flowmeters and motorized valves to prevent ground potential rise from high-power electric arc furnaces from distorting measurement signals.
Smart Grid Distribution Boxes & Ring Main Units
Providing secondary DC isolation for substation operating power loops to prevent microcomputer protection devices from burning out due to surges generated during power system switch closing.
First, never apply insufficient or reverse input voltage. The startup voltage must reach 18V, and output current derating is mandatory when operating between 14V and 18V.
Second, overloading the output is strictly prohibited. Although it has a 13A current limit protection, prolonged overloading above 10A causes excessive heat buildup and triggers electronic shutdown.
Third, ensure proper clearance for cooling and environmental protection. The device relies on natural convection cooling, requiring derating if ambient temperatures exceed 60 degrees Celsius. Given its IP20 rating, it must be installed inside a dustproof and waterproof control cabinet.
6EP3134-0TA00-0AY0 is a Siemens SITOP DC-DC stabilized converter power supply. Featuring DIN-rail mounting and an IP20 rating, it provides overload and short-circuit protection, commonly used in battery systems or long-distance power grids to offer electrical isolation and stable power for sensitive control components.
6EP3134-0TA00-0AY0 is a DC-DC stabilized power supply converter.
What is the input voltage of 6EP3134-0TA00-0AY0?
The input voltage of 6EP3134-0TA00-0AY0 is 14 to 32 V DC (Rated: 24 V DC).
What is the output voltage of 6EP3134-0TA00-0AY0?
The output voltage of 6EP3134-0TA00-0AY0 is 24 V DC (Adjustable from 24 to 28 V).
What is the Switch On Current of 6EP3134-0TA00-0AY0?
The maximum switch-on current limiting (+25 °C) for 6EP3134-0TA00-0AY0 is 15 A.
