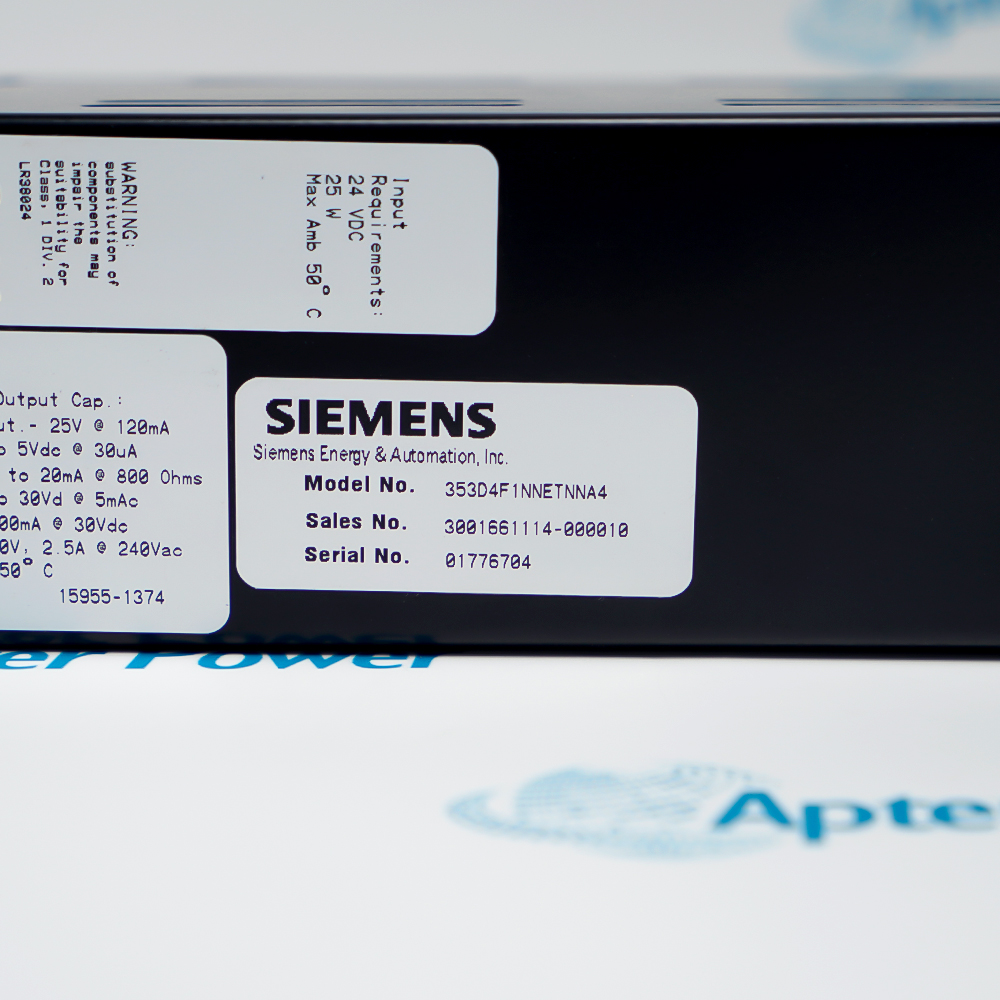

      Siemens 353D4F1NNETNNA4
      Siemens 353D4F1NNETNNA4
      Siemens 353D4F1NNETNNA4
      Siemens 353D4F1NNETNNA4
      Siemens 353D4F1NNETNNA4
      Siemens 353D4F1NNETNNA4
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      353D4F1NNETNNA4

      Siemens Moore Model 353 Process Automation Controller
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

      Siemens 353D4F1NNETNNA4 is a Model 353 process automation controller for single- or multi-loop control, logic and sequencing applications. Its exact power, I/O, communications and option execution must be confirmed from the installed nameplate before replacement.

      Ask our team:

      Get a quick price for： 353D4F1NNETNNA4
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 353D4F1NNETNNA4

      Technical specifications for 353D4F1NNETNNA4

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        353D4F1NNETNNA4
      • Estimated shipping dimensions:
        7.2x31.5x14.3cm
      • Weight:
        1.8 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product family:
        Model 353 Process Automation Controller
      • Control scope:
        Single-loop and multi-loop process applications
      • Functions:
        Control, logic, sequencing and operator indication
      • Configuration:
        Front-panel configuration; model-dependent engineering access
      • Minimum scan time:
        20 ms
      • AC supply option:
        85-264 Vac, 47-63 Hz
      • DC supply option:
        24 Vdc, +20% / -15%
      • Maximum power:
        25 W / 40 VA
      • Transmitter supply:
        25 Vdc +/-3 V, 120 mA
      • Analog input ranges:
        1-5 Vdc or 4-20 mA with 250 ohm input
      • Analog outputs:
        4-20 mA into 800 ohm maximum
      • Digital input states:
        0-1 V off; 15-30 V on
      • Digital outputs:
        30 Vdc maximum, 100 mA
      • Relay outputs:
        5 A at 120 Vac or 2.5 A at 230 Vac
      • Serial communications:
        Front RS-232 and rear RS-485 interfaces
      • Protocol:
        MODBUS communications
      • Operating temperature:
        0 to +50 deg C
      • Storage temperature:
        -40 to +85 deg C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      353D4F1NNETNNA4 provides programmable process control, logic and sequencing within a documented Siemens Moore Model 353 installation.
      • Configurable single- or multi-loop control
      • Function-block logic and sequencing
      • Analog, digital and relay field interfaces
      • MODBUS serial communications

      The controller's field role is defined by its complete nameplate, hardware design level, installed option boards, terminal wiring, function blocks, display setup and communications. Commissioning restores the as-found configuration and proves every affected input, output, alarm, sequence and control loop.

      Important Notice: Confirm 353D4F1NNETNNA4, complete nameplate, hardware design level, power execution, installed option boards, analog/digital/relay wiring, function-block configuration, tuning, sequences, alarms, communications and controlled acceptance evidence before commissioning.

      Siemens 353D4F1NNETNNA4 Manuals & Downloads

      These documents are different: the first consolidates model-specific technical and system data; the second provides installation checks, commissioning steps and acceptance records.

      Process-loop control
      Executes documented regulatory and supervisory control functions.
      Sequence and logic control
      Coordinates configured function blocks and discrete conditions.
      Operator process station
      Provides local indication, commands and diagnostic access.
      Legacy Model 353 replacement
      Restores exact hardware, wiring and configuration records.
      Read the applicable Siemens installation instructions before work. Verify 353D4F1NNETNNA4, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm 353D4F1NNETNNA4 and the complete Model 353 nameplate.
      2
      Place every connected process loop and final element in the approved maintenance state.
      3
      Back up the function-block configuration, tuning, sequences, alarms and communications.
      4
      Record the power execution, design level, option boards, terminals and field ranges.
      5
      Isolate controller power and all analog, digital, relay and serial circuits.
      6
      Restore the exact hardware options, wiring, function blocks and communication parameters.
      7
      Review display, input, output, alarm and communication diagnostics after energization.
      8
      Complete controlled I/O, sequence, alarm and closed-loop response tests before release.

      Alternative Names

      Alternative Names

      Moore 353 Model 353 PAC

      Technical notes

      Technical notes

      Treat 353D4F1NNETNNA4 as the complete installed identity. The manufacturer Model 353 manuals document multiple power, I/O, communication and design-level executions, so record the nameplate, hardware design level, option boards, wiring, function-block configuration and communication parameters before removal; do not infer suffix options from a nearby order code.

      FAQS

      • How is the exact 353D4F1NNETNNA4 execution identified?
        Use the full 353D4F1NNETNNA4 nameplate identity and record the hardware design level and installed options; do not infer suffix options from another Model 353.
      • What documented function does 353D4F1NNETNNA4 perform?
        It performs configurable process control, function-block logic and sequencing with local operator indication and model-dependent communications.
      • Which installed system must be matched before fitting 353D4F1NNETNNA4?
        Match the documented panel position, process loops, final elements, power execution, field wiring, option boards and saved controller configuration.
      • Which interfaces must be recorded for 353D4F1NNETNNA4?
        Record analog, digital and relay terminals, transmitter supply, serial interfaces, addresses, protocol settings and every installed option connection.
      • What handling controls apply to 353D4F1NNETNNA4?
        Place all loops in a safe maintenance state, back up the configuration, isolate controller and field power, and preserve terminal and option-board identity.
      • What must be restored after installing 353D4F1NNETNNA4?
        Restore the exact hardware execution, function blocks, ranges, tuning, sequences, alarm limits, display settings and communication parameters.
      • What evidence confirms 353D4F1NNETNNA4 is ready for service?
        Review controller diagnostics and prove every affected input, output, relay, alarm, communication path, sequence and closed-loop response.
      • Which manufacturer record supports the 353D4F1NNETNNA4 page?
        Siemens UM353-1B and the official Model 353 controller catalog provide the family specifications and installation requirements used on this page.
