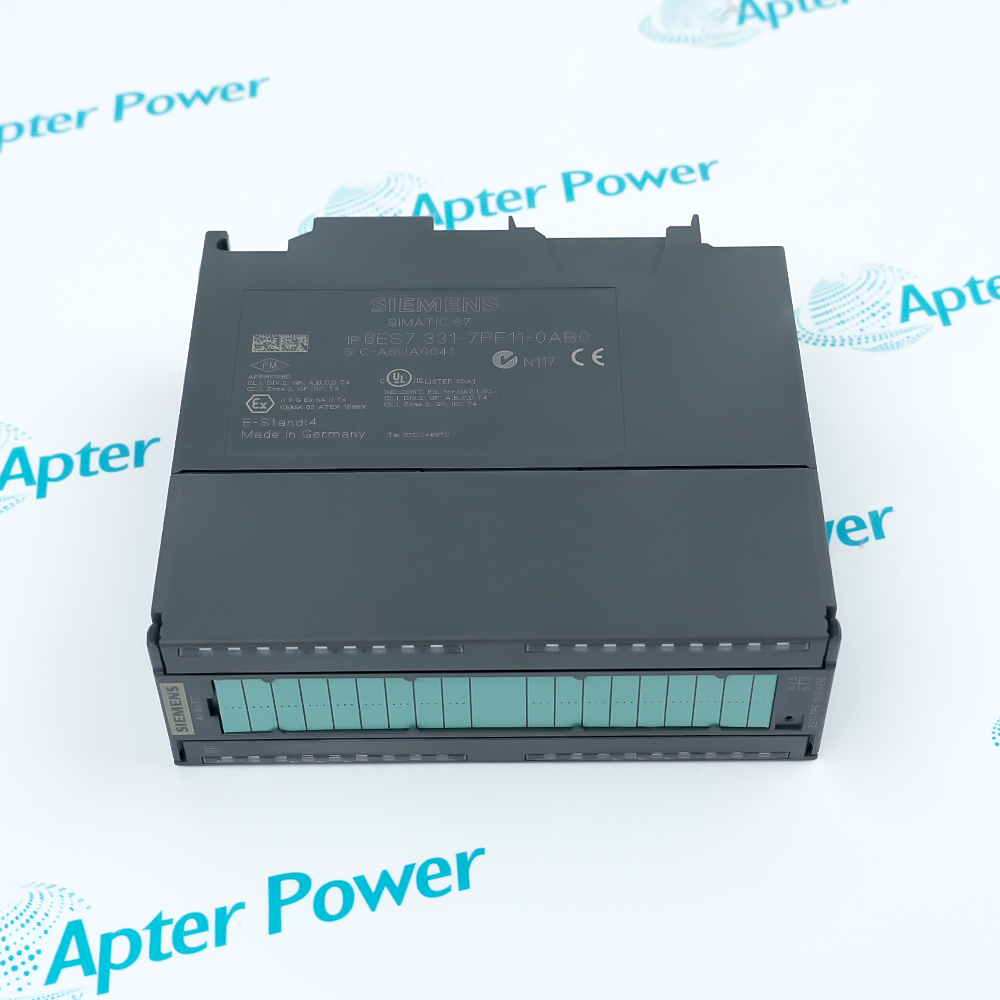

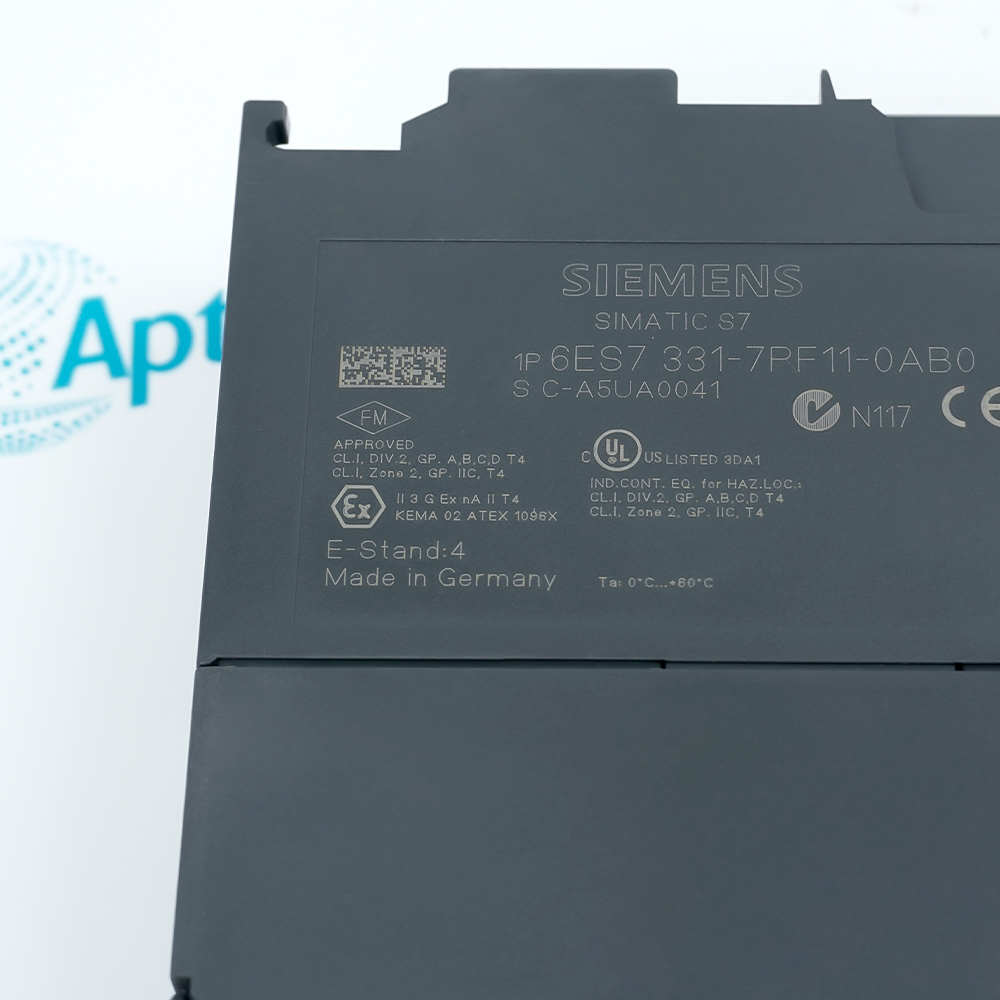

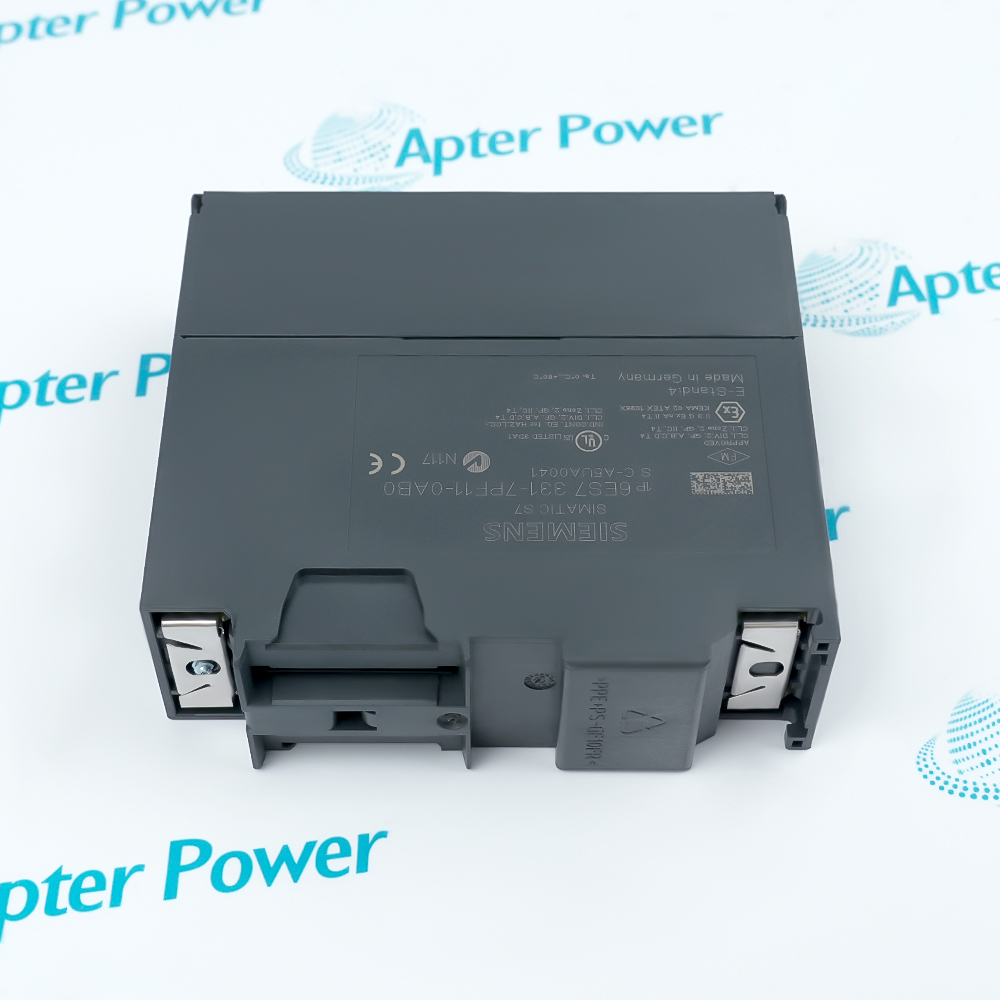

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 6ES7331-7PF11-0AB0
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 6ES7331-7PF11-0AB0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7331-7PF11-0AB0
-
Estimated shipping dimensions:4x11.6x12.5cm
-
Weight:0.28 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
SIMATIC module:S7-300 SM331 isolated analog input
-
Input channels:Eight thermocouple inputs
-
Supported thermocouples:B, E, J, K, L, N, R, S, T, TXK/TXK(L)
-
Resolution:16 bit
-
Conversion time:50 ms
-
Front connector:One 40-pole connector
-
Rated supply:24 V DC
-
Backplane current:100 mA maximum at 5 V
-
Typical power loss:3 W
-
Input isolation:Isolated module; 500 V DC channel-to-backplane test value
-
Shielded cable length:100 m maximum
-
Module width:40 mm
-
Channel diagnostic alarm:Supported
-
Unsupported measurement modes:Voltage, current, RTD and resistance
Information
Overview
Manuals
Common Applications
Product Precautions
The 6ES7331-7PF11-0AB0 acquires eight thermocouple signals for an S7-300 station and transfers their converted values through the backplane bus.
- Eight thermocouple analog inputs
- 16-bit conversion resolution
- 50 ms conversion time
- One 40-pole front connector
The SM331 module accepts the published B, E, J, K, L, N, R, S, T and TXK/TXK(L) thermocouple types and does not provide voltage, current, RTD or resistance modes. It uses 24 V DC rated supply power, draws up to 100 mA from the 5 V backplane and dissipates approximately 3 W. Channel diagnostics, wiring shields and compensation arrangements must match the approved S7-300 design.
Important Notice: Confirm the complete 6ES7331-7PF11-0AB0 order number, thermocouple type, compensation method, wiring and parameter assignment before replacement.
Siemens 6ES7331-7PF11-0AB0 Manuals & Downloads
Siemens 6ES7331-7PF11-0AB0 Technical Reference (PDF)Siemens 6ES7331-7PF11-0AB0 Installation & Commissioning Guide (PDF)
The first document organizes exact-model technical evidence; the second provides a separate evidence-led installation and commissioning workflow.
S7-300 temperature input
Eight-channel thermocouple acquisition in a documented SIMATIC S7-300 station.
Process temperature monitoring
Isolated measurement of approved thermocouple types with channel diagnostic support.
Legacy spare replacement
Like-for-like maintenance where 6ES7331-7PF11-0AB0 remains specified as a spare part.
Shielded field wiring
Applications whose thermocouple and compensation conductors follow the approved 100 m shielded-cable limit.
Read the applicable Siemens instructions before work. Verify 6ES7331-7PF11-0AB0 and the installed system configuration before isolation or replacement.
1
Record the complete 6ES7331-7PF11-0AB0 order number and rack position.
2
Place the S7-300 station and affected process in the approved safe maintenance state.
3
Back up hardware configuration and record every channel parameter and diagnostic setting.
4
Verify thermocouple type, polarity, compensation method and shield termination.
5
Remove field and backplane power before disconnecting the 40-pole front connector.
6
Do not configure voltage, current, RTD or resistance modes on this thermocouple module.
7
Restore the station and confirm channel values, diagnostics and process scaling.
8
Document the final configuration and functional acceptance results before release.
Technical notes
The SM331 module accepts the published B, E, J, K, L, N, R, S, T and TXK/TXK(L) thermocouple types and does not provide voltage, current, RTD or resistance modes. It uses 24 V DC rated supply power, draws up to 100 mA from the 5 V backplane and dissipates approximately 3 W. Channel diagnostics, wiring shields and compensation arrangements must match the approved S7-300 design.
FAQ View All FAQ
-
What is Siemens 6ES7331-7PF11-0AB0?Siemens 6ES7331-7PF11-0AB0 is an isolated S7-300 SM331 analog input module for eight thermocouple channels.
-
Which thermocouple types can the SM331 module measure?The SM331 module can measure thermocouple types B, E, J, K, L, N, R, S, T and TXK/TXK(L).
-
What resolution and conversion time does 6ES7331-7PF11-0AB0 provide?The 6ES7331-7PF11-0AB0 provides 16-bit conversion with a 50 ms conversion time.
-
Which connector is required by this S7-300 analog module?This S7-300 analog module requires one 40-pole front connector.
-
How much backplane current does 6ES7331-7PF11-0AB0 draw?The 6ES7331-7PF11-0AB0 draws a maximum of 100 mA from the 5 V backplane bus.
-
Can the module accept voltage or RTD signals?The module cannot accept voltage, current, RTD or resistance inputs because its channels are specified for thermocouples only.
-
What cable limit applies to the thermocouple channels?Siemens specifies a maximum shielded-cable length of 100 m for the thermocouple channels.
-
What must be validated after replacing the SM331?The technician must validate thermocouple type, compensation, channel scaling, diagnostics and stable process values after replacing the SM331.
