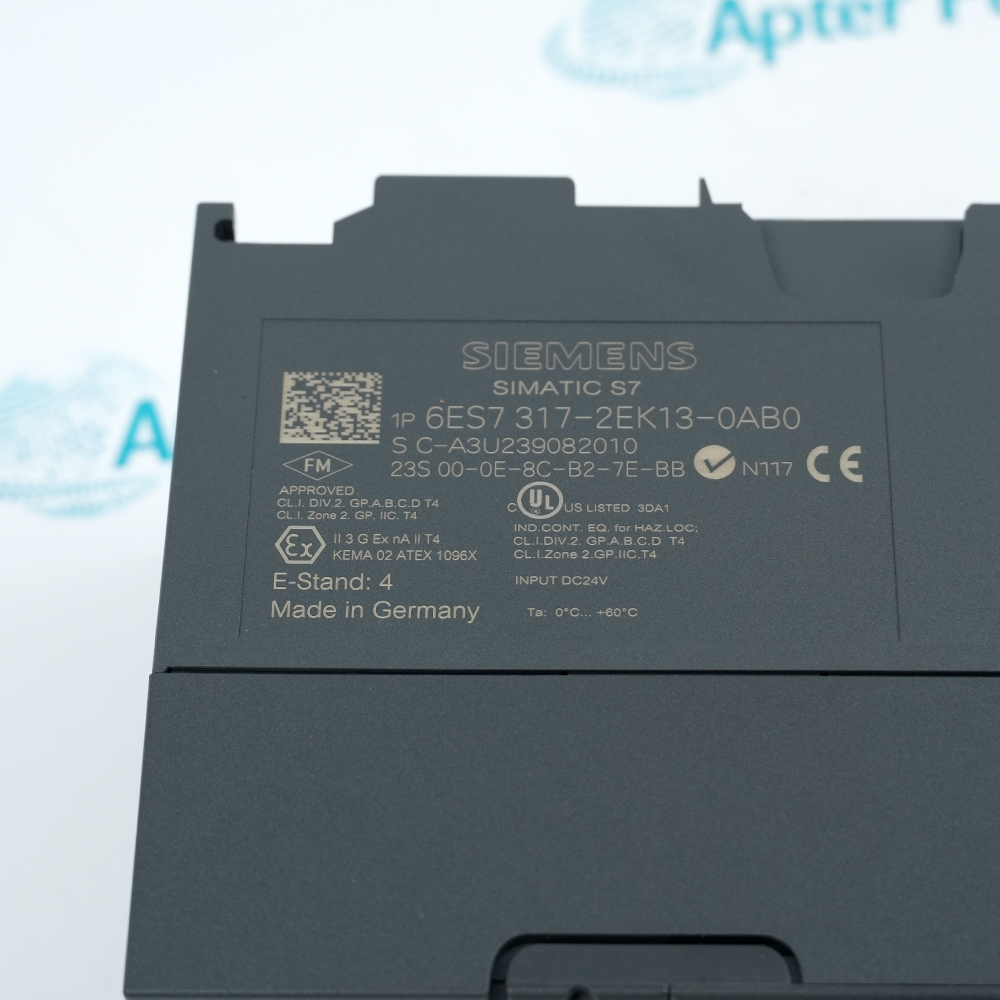

      6ES7317-2EK13-0AB0

      SIMATIC S7-300 CPU 317-2 PN/DP
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Siemens 6ES7317-2EK13-0AB0 is a SIMATIC S7-300 CPU 317-2 PN/DP. It executes the control program and exchanges data through PROFINET, MPI and PROFIBUS DP within the installed automation system.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 6ES7317-2EK13-0AB0
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 6ES7317-2EK13-0AB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7317-2EK13-0AB0
      • Estimated shipping dimensions:
        8x11.7x12.5cm
      • Weight:
        0.48 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • CPU designation:
        CPU 317-2 PN/DP
      • Hardware version:
        01
      • Firmware version:
        V2.6
      • Programming package:
        STEP 7 V5.4 SP2
      • Rated supply voltage:
        24 V DC
      • Permissible supply range:
        20.4 to 28.8 V DC
      • External supply protection:
        2 A min.
      • Rated current consumption:
        650 mA
      • No-load current, typ.:
        100 mA
      • Inrush current, typ.:
        2.5 A
      • I2t:
        1 A2s
      • Power loss, typ.:
        3.5 W
      • Integrated work memory:
        1 Mbyte
      • Plug-in load memory:
        SIMATIC Micro Memory Card
      • MMC capacity, max.:
        8 Mbyte
      • MMC data retention, min.:
        10 years
      • Bit-operation time, typ.:
        0.05 us
      • Word-operation time, typ.:
        0.2 us
      • Fixed-point operation time, typ.:
        0.2 us
      • Floating-point operation time, typ.:
        1 us
      • Total blocks:
        2048
      • First interface:
        MPI/PROFIBUS DP, 12 Mbit/s
      • Second interface:
        Ethernet PROFINET
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      SIMATIC S7-300 CPU 317-2 PN/DP provides the documented interface for its installed SIMATIC S7-300 automation system system.
      • Executes S7-300 automation programs
      • Exchanges cyclic PROFINET I/O data
      • Coordinates MPI and PROFIBUS DP stations
      • Retains program and data through the Micro Memory Card

      central program execution with PROFINET, MPI and PROFIBUS DP communication The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 6ES7317-2EK13-0AB0.

      Important Notice: Confirm the complete 6ES7317-2EK13-0AB0 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 6ES7317-2EK13-0AB0 Manuals and Guides
      Apter Power 6ES7317-2EK13-0AB0 Product Technical Reference PDFSiemens 6ES7317-2EK13-0AB0 CPU 31x Operating Instructions PDF
      The first document organizes model-specific technical identity and engineering data. The second provides a separate field workflow for installation, connection checks and commissioning records.
      PROFINET distributed I/O controlSIMATIC S7-300 rack supports the engineered 6ES7317-2EK13-0AB0 arrangement.
      Mixed PROFINET and PROFIBUS automationSIMATIC Micro Memory Card supports the engineered 6ES7317-2EK13-0AB0 arrangement.
      S7-300 multi-rack machine controlPROFINET I/O devices supports the engineered 6ES7317-2EK13-0AB0 arrangement.
      CPU 317-2 PN/DP installed-base migrationMPI/PROFIBUS DP stations supports the engineered 6ES7317-2EK13-0AB0 arrangement.
      Read the applicable Siemens installation instructions before work. Verify 6ES7317-2EK13-0AB0 and the installed-system configuration.
      1Confirm 6ES7317-2EK13-0AB0, hardware version and firmware before changing the controller.
      2Archive the STEP 7 project, IP configuration and station names before replacement.
      3Isolate the 24 V DC supply and place all controlled processes in a safe state.
      4Apply ESD controls and protect the backplane, MPI/DP and Ethernet connectors.
      5Preserve PROFIBUS addresses, termination and the complete PROFINET topology record.
      6Install the specified Micro Memory Card and restore only the approved project configuration.
      7Verify PROFINET device names, IP parameters and cyclic I/O diagnostics after startup.
      8Test communications, I/O updates and process response before automatic operation.

      Technical notes

      Supply 6ES7317-2EK13-0AB0 from the documented 24 V DC circuit and restore its STEP 7 MPI, PROFIBUS DP and PROFINET configuration. Verify link states, CPU diagnostics and controlled network communication before returning the system to service.

      FAQ View All FAQ

      • Which host system accepts 6ES7317-2EK13-0AB0?
        Use 6ES7317-2EK13-0AB0 only with the documented SIMATIC S7-300 automation system hardware and software configuration.
      • What identity checks are required before installing 6ES7317-2EK13-0AB0?
        Match the full order number, hardware revision, slot assignment and companion components to the approved project record.
      • How should engineers isolate equipment before replacing 6ES7317-2EK13-0AB0?
        Apply the host-system shutdown procedure, isolate all stated power and signal sources, and verify the safe state before removal.
      • Which configuration data should be backed up before replacing 6ES7317-2EK13-0AB0?
        Preserve the documented hardware configuration, communication addresses, parameter values and diagnostic records applicable to this exact unit.
      • How should field or network connections for 6ES7317-2EK13-0AB0 be restored?
        Reconnect only the identified terminals and interfaces, maintaining the recorded shield, grounding, polarity and network arrangement.
      • Which startup checks apply to 6ES7317-2EK13-0AB0?
        Inspect mounting and connectors, restore the approved configuration, energize in a controlled sequence and review all product-specific diagnostics.
      • Can another simatic s7-300 cpu 317-2 pn/dp replace 6ES7317-2EK13-0AB0 without project changes?
        A substitution requires an engineering comparison of order number, firmware, memory, interfaces, mechanical fit and project configuration.
      • What commissioning evidence should be retained for 6ES7317-2EK13-0AB0?
        Retain the as-found identity, as-left configuration, connection checks, diagnostic status and controlled functional-test result.
