Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 6ES7132-4BD02-0AA0
For more information on how your data is processed and stored by Apterpower please read our privacy policy
-
Match the complete marking

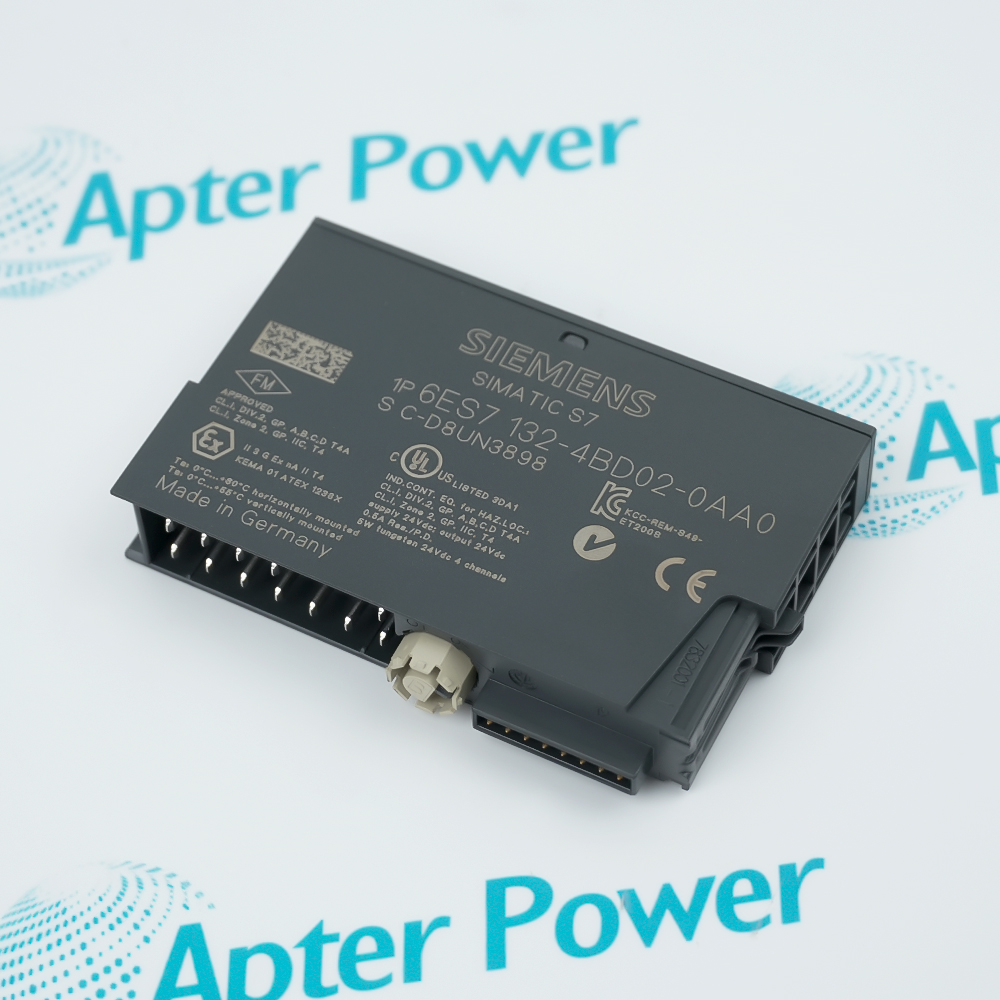

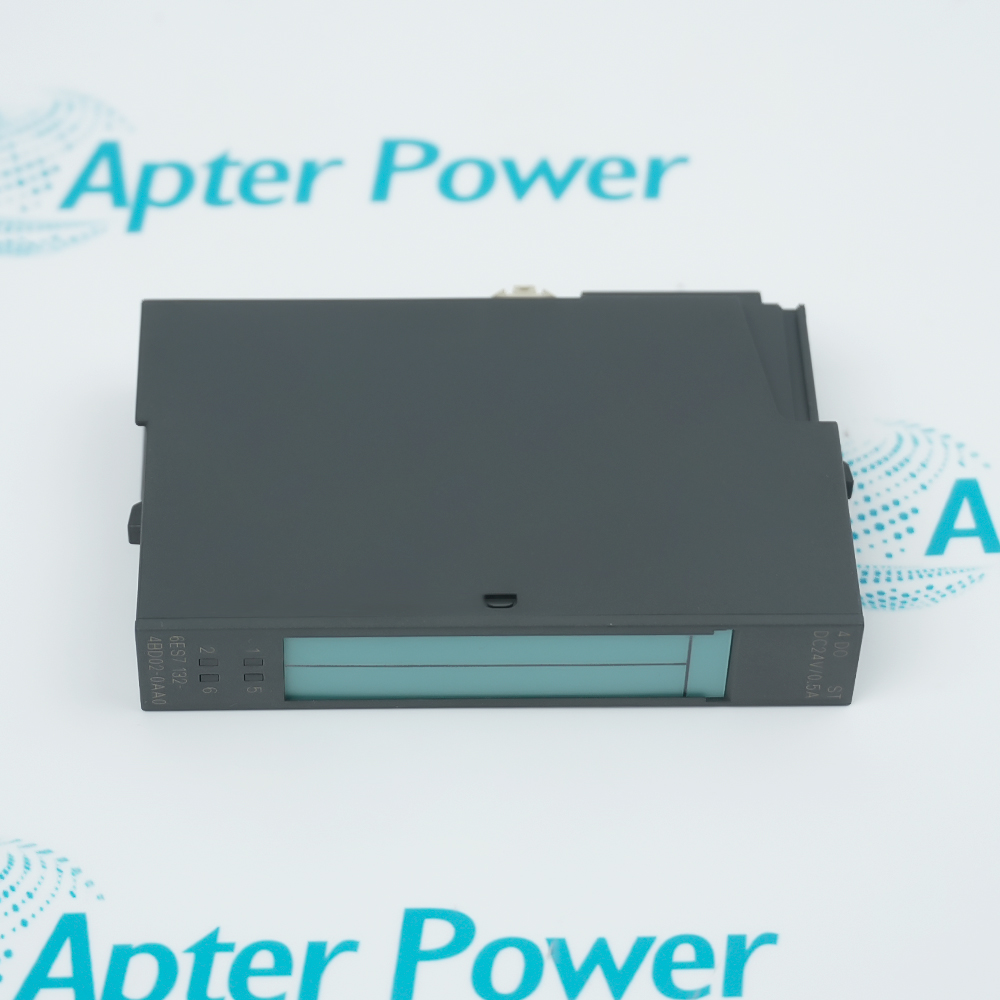

Compare the complete Siemens 6ES7132-4BD02-0AA0 marking, module face and terminal arrangement with the installed ET 200S position before ordering.
-
Check the offered item before ordering
Send clear label and terminal-module photos, then have the maintenance team compare the offered module with the installed equipment and applicable Siemens instructions. Confirm the number of electronic modules included.
Technical specifications for 6ES7132-4BD02-0AA0
-
Manufacturer:Siemens
-
Product Category:PLC Systems
-
Spare Part Number:6ES7132-4BD02-0AA0
-
Weight:0.04 kg
-
Tariff Code:8537101190
-
Output channels:4
-
Rated load voltage:24 VDC
-
Rated channel current:0.5 A
-
Total module current:2 A
-
Output-on voltage:At least L+ minus 1 V
-
Turn-on / turn-off delay:50 / 120 microseconds maximum, resistive load
-
Maximum switching rate:800 Hz resistive; 2 Hz inductive; 10 Hz lamp
-
Lamp load:5 W maximum
-
Process-image space:1 byte; 4 bits when packed
-
Typical power dissipation:0.8 W
Information
Overview
Downloads
Applications / Compatibility
Product Precautions
- Siemens 6ES7132-4BD02-0AA0 switches solenoid valves, DC contactors and indicator lights through an ET 200S terminal module. Load type, switching rate and terminal allocation determine how its four channels are applied.
Load circuit: 24 VDC from the ET 200S power module
Output loading: 0.5 A per channel; 2 A per module
Process image: 1 byte normally, or 4 bits with packed addressing
Output loading: 0.5 A per channel; 2 A per module
Process image: 1 byte normally, or 4 bits with packed addressing
Four electronic outputs switch the load supply delivered through the station power module. The channels are isolated from the backplane bus but not from one another. Short-circuit protection operates per channel; it does not make output paralleling suitable for increasing load capacity.
The maximum switching rate depends on the actuator: 800 Hz for resistive loads, 2 Hz for inductive loads and 10 Hz for lamps. Lamp load is limited to 5 W. For resistive loads, turn-on delay is at most 50 microseconds and turn-off delay at most 120 microseconds, so the two transitions have different timing limits.
Outputs 0, 1, 2 and 3 use terminals 1, 5, 2 and 6 respectively. A green LED indicates each channel state, but the module does not provide a diagnostic function. Applying the load voltage through a mechanical contact can produce an approximately 50-microsecond high output pulse; fast receiving circuits must account for this startup behavior.
The maximum switching rate depends on the actuator: 800 Hz for resistive loads, 2 Hz for inductive loads and 10 Hz for lamps. Lamp load is limited to 5 W. For resistive loads, turn-on delay is at most 50 microseconds and turn-off delay at most 120 microseconds, so the two transitions have different timing limits.
Outputs 0, 1, 2 and 3 use terminals 1, 5, 2 and 6 respectively. A green LED indicates each channel state, but the module does not provide a diagnostic function. Applying the load voltage through a mechanical contact can produce an approximately 50-microsecond high output pulse; fast receiving circuits must account for this startup behavior.
Controller platform reference: SIMATIC ET 200S digital outputs. Match the terminal module, load supply and output assignment.
The Siemens reference preserves the module terminal drawings, electrical tables and channel-indicator information for 6ES7132-4BD02-0AA0. The separate installation guide covers station preparation, field-load checks and channel commissioning.
6ES7132-4BD02-0AA0 Official Manual Excerpt
The Siemens reference preserves the module terminal drawings, electrical tables and channel-indicator information for 6ES7132-4BD02-0AA0. PDF · 5 pages.6ES7132-4BD02-0AA0 Installation & Verification Guide
Apter Power workflow for terminal identification, load budgeting, output verification and handover. PDF · 5 pages.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: The electronic module operates within a compatible ET 200S station, using a separate terminal module and power-module load supply. The offer must identify the electronic-module quantity and any separately included station hardware.
Application scope: These examples concern low-power 24 VDC switching. Apply the load-specific current and frequency limits rather than treating all actuators as equivalent.
Application scope: These examples concern low-power 24 VDC switching. Apply the load-specific current and frequency limits rather than treating all actuators as equivalent.
Solenoid valve switching
Operate a compatible DC solenoid while observing the 2 Hz inductive-load limit and the output current budget.DC contactor command
Drive a suitable DC contactor coil and verify its current, release behavior and external circuit arrangement.Indicator lights
Switch panel indication with a maximum 5 W lamp load and a 10 Hz lamp switching limit.Digital signal transfer
Drive a compatible digital input while accounting for switching delays and the possible 50-microsecond startup pulse.
Prepare Siemens 6ES7132-4BD02-0AA0 for its configured installation using these checks.
Isolate actuator energy
Place affected loads in a safe state before removing the electronic module or altering terminal wiring.
Verify common connections
Match the terminal-module drawing; do not mistake an AUX voltage bus for a digital output.
Budget load current
Keep each output at its rated loading and the module at no more than 2 A total.
Consider the power-on pulse
Assess fast counters and other pulse-sensitive receivers before switching L+ through mechanical contacts.
Use appropriate load timing
Apply the resistive, inductive or lamp switching limit appropriate to the actual actuator.
Test field behavior
Check each channel at the load as well as at its LED, then restore the intended process-image mapping.
Alternative Names
Siemens 6ES7132-4BD02-0AA0
6ES7 132-4BD02-0AA0
Technical notes
Terminal relationship: The electronic module plugs into a compatible ET 200S terminal module. Output terminals are 1, 5, 2 and 6 for channels 0 through 3.
Load protection: Per-channel short-circuit protection does not authorize capacity-increasing parallel connections. Respect the 2 A module total.
Technical reference: ET 200S 4DO DC24V/0.5A ST Manual, A5E01254028-01. Apply the startup-pulse and load-specific switching limits.
FAQ View All FAQ
-
Which terminals carry the four outputs of Siemens 6ES7132-4BD02-0AA0?Channel 0 uses terminal 1, channel 1 terminal 5, channel 2 terminal 2 and channel 3 terminal 6. Common and AUX terminals depend on the selected terminal module.
-
Can two outputs of Siemens 6ES7132-4BD02-0AA0 be paralleled for a larger load?No. Parallel connection is permitted for redundant triggering within a module, not for increasing output capacity. Keep the 0.5 A channel and 2 A module ratings.
-
How does actuator type change the switching frequency of Siemens 6ES7132-4BD02-0AA0?The limits are 800 Hz for resistive loads, 2 Hz for inductive loads and 10 Hz for lamps. Lamp load must also remain at or below 5 W.
-
Why can Siemens 6ES7132-4BD02-0AA0 briefly activate an output when load power is switched on?Connecting the 24 VDC load supply through a mechanical contact can produce an approximately 50-microsecond high signal, depending on the circuit. Fast counters and similar receivers must tolerate or prevent the resulting event.
-
Does a green LED on Siemens 6ES7132-4BD02-0AA0 prove that the actuator is operating?No. Each green LED indicates its output state. The module has no diagnostic function, so actuator operation also requires checking the field supply, wiring and load.
-
How much output address space does Siemens 6ES7132-4BD02-0AA0 need?The normal address space is one byte. Packed addressing uses four bits for the four outputs; the station configuration must support the selected arrangement.
-
Are the channels of Siemens 6ES7132-4BD02-0AA0 individually isolated?No. The output channels are isolated from the backplane bus, but not from each other. The insulation test value is 500 VDC, not an operating supply rating.
-
What transition delays apply to Siemens 6ES7132-4BD02-0AA0 with resistive loads?The maximum delay is 50 microseconds from off to on and 120 microseconds from on to off. These output delays do not include controller execution or network update time.
