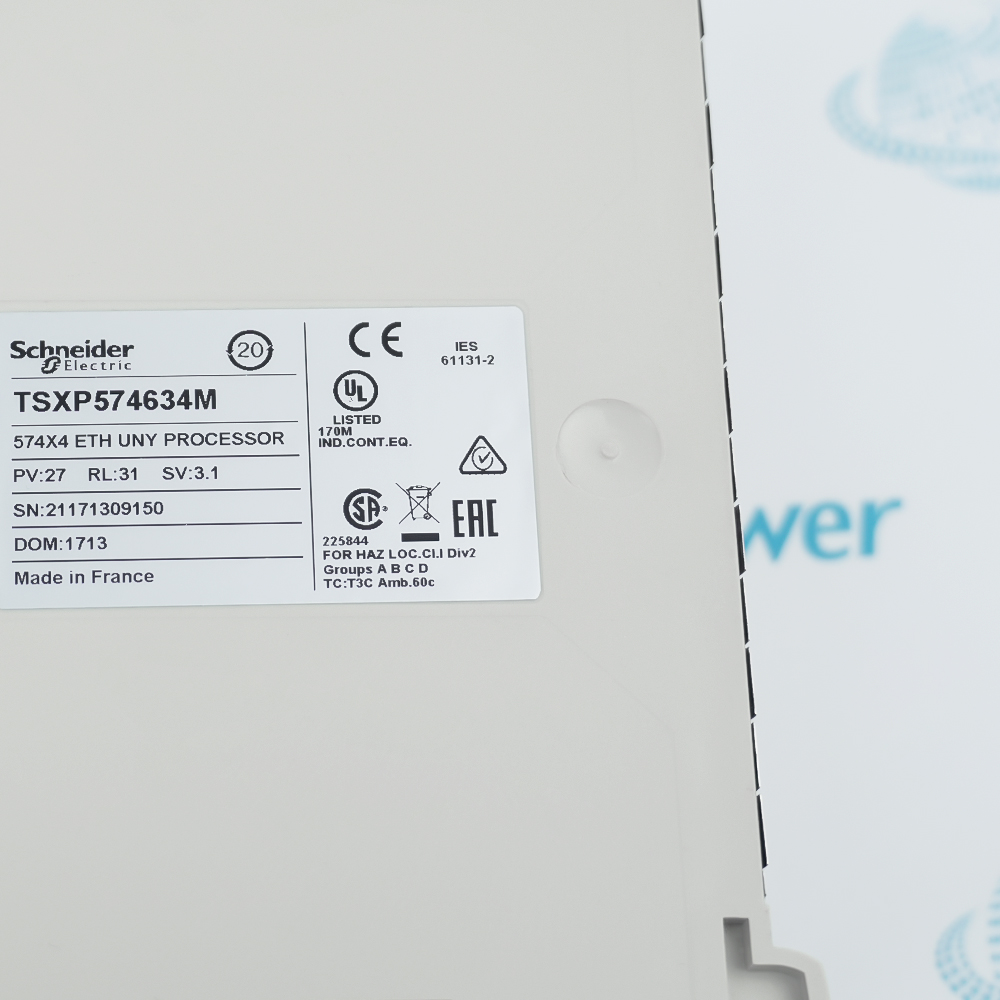

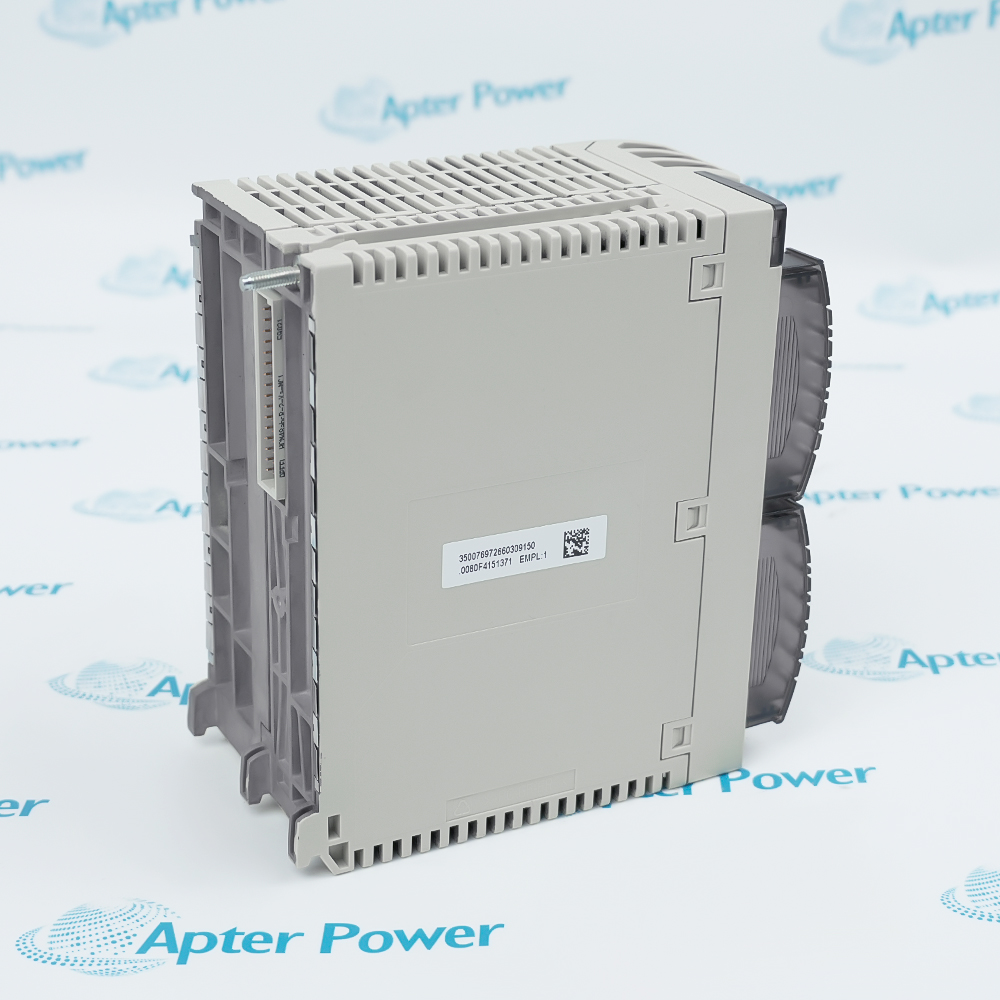

      TSXP574634M

      Modicon Premium Unity Processor
      In Stock
      Ships by Saturday, September 12
      Fast Shipping Available

      Product Describe：

      Schneider Electric TSXP574634M is a Modicon Premium Unity processor with integrated Ethernet. It executes the control application and coordinates rack I/O, communication and diagnostic services.

      Ask our team:

      Get a quick price for： TSXP574634M
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for TSXP574634M

      Technical specifications for TSXP574634M

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        TSXP574634M
      • Estimated shipping dimensions:
        3.5x13x15cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Maximum racks:
        8 racks with 12 slots; 16 racks with 4, 6 or 8 slots
      • Discrete I/O capacity:
        2040
      • Analog I/O capacity:
        256
      • Application-specific channels:
        64
      • Simple control loops:
        20 to 60
      • Integrated RAM:
        440 KB without PCMCIA
      • Program memory with PCMCIA:
        2048 KB
      • Data memory with PCMCIA:
        440 KB
      • Additional storage with PCMCIA:
        16384 KB
      • Serial interface:
        RS-485 mini-DIN; 19.2 kbit/s maximum
      • Ethernet interface:
        RJ45; 10BASE-T/100BASE-TX
      • USB interface:
        12 Mbit/s
      • Master tasks:
        1
      • Fast tasks:
        1
      • Event tasks:
        64
      • Backplane current:
        1880 mA at 5 Vdc
      • Degree of protection:
        IP20
      • Operating temperature:
        0 to 60 degC
      • Storage temperature:
        -25 to +70 degC
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric TSXP574634M is a Modicon Premium Unity processor with integrated Ethernet. It executes the control application and coordinates rack I/O, communication and diagnostic services.
      • Executes Unity Pro control logic in a Modicon Premium rack
      • Coordinates discrete, analog and application-specific I/O channels
      • Provides integrated Ethernet TCP/IP communication for controller services
      • Supports serial and USB engineering connections for configuration and maintenance

      TSXP574634M installs with Modicon Premium racks and power supplies, Premium local and remote I/O modules, Unity Pro engineering workstation, approved PCMCIA memory card in an engineered Modicon Premium Automation Platform configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this modicon premium unity processor.

      Important Notice: Confirm the complete TSXP574634M marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power TSXP574634M Manuals and Guides
      Apter Power TSXP574634M Product Technical Reference PDFSchneider Electric TSXP574634M Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Large Modicon Premium process-control systemExecutes Unity Pro control logic in a Modicon Premium rack
      Ethernet-connected production controllerCoordinates discrete, analog and application-specific I/O channels
      High-I/O-count machine automationProvides integrated Ethernet TCP/IP communication for controller services
      Premium platform modernization and firmware maintenanceSupports serial and USB engineering connections for configuration and maintenance
      Read the applicable Schneider Electric installation instructions before work. Verify TSXP574634M and the installed Modicon Premium Automation Platform configuration.
      1Verify the complete TSXP574634M marking and hardware revision before service.
      2Stop the controlled process and isolate rack power before removing the processor.
      3Record rack addresses, network settings, task configuration and PCMCIA contents.
      4Use ESD controls and protect the backplane and communication connectors.
      5Match processor OS and Ethernet coprocessor firmware to the approved compatibility baseline.
      6Restore the validated Unity Pro application without transferring settings from another CPU model.
      7Check local and remote I/O health before enabling outputs.
      8Prove network communication, sequence execution and safety interlocks before production release.

      Technical notes

      Technical notes

      Confirm rack population, PCMCIA use and installed processor/coprocessor firmware before replacement, then restore the approved Unity project and verify Ethernet, serial and I/O diagnostics.

      FAQS

      • What connection information should be recorded before removing TSXP574634M?
        Record every terminal, cable, channel, group and companion-component assignment associated with TSXP574634M before any conductor or connector is moved.
      • Which configuration must be restored after installing TSXP574634M?
        Restore only the approved Modicon Premium Automation Platform configuration for the original position, including the model-specific channel, network, timing or pressure settings.
      • How should TSXP574634M be commissioned for Large Modicon Premium process-control system?
        Apply a controlled input, output or operating condition and verify the expected executes unity pro control logic in a modicon premium rack response together with the product-specific diagnostics.
      • Which diagnostics should be checked after replacing TSXP574634M?
        Review the applicable power, communication, channel and fault indications for TSXP574634M, then confirm that no unexpected alarm or bypass remains active.
      • Can TSXP574634M be replaced by a similar family model without engineering review?
        No. The complete model, electrical or pneumatic execution, companion hardware and approved system configuration must match the installed duty.
      • What evidence should be retained after TSXP574634M returns to service?
        Retain the full TSXP574634M identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result.
      • Which installed hardware must be matched before using TSXP574634M?
        Match TSXP574634M to Modicon Premium racks and power supplies, Premium local and remote I/O modules and the complete physical marking; do not transfer a configuration from an adjacent model.
      • How should engineers isolate TSXP574634M before replacement?
        Place the associated process function in its approved maintenance state and isolate the power, signal or pneumatic energy connected to Modicon Premium racks and power supplies.
