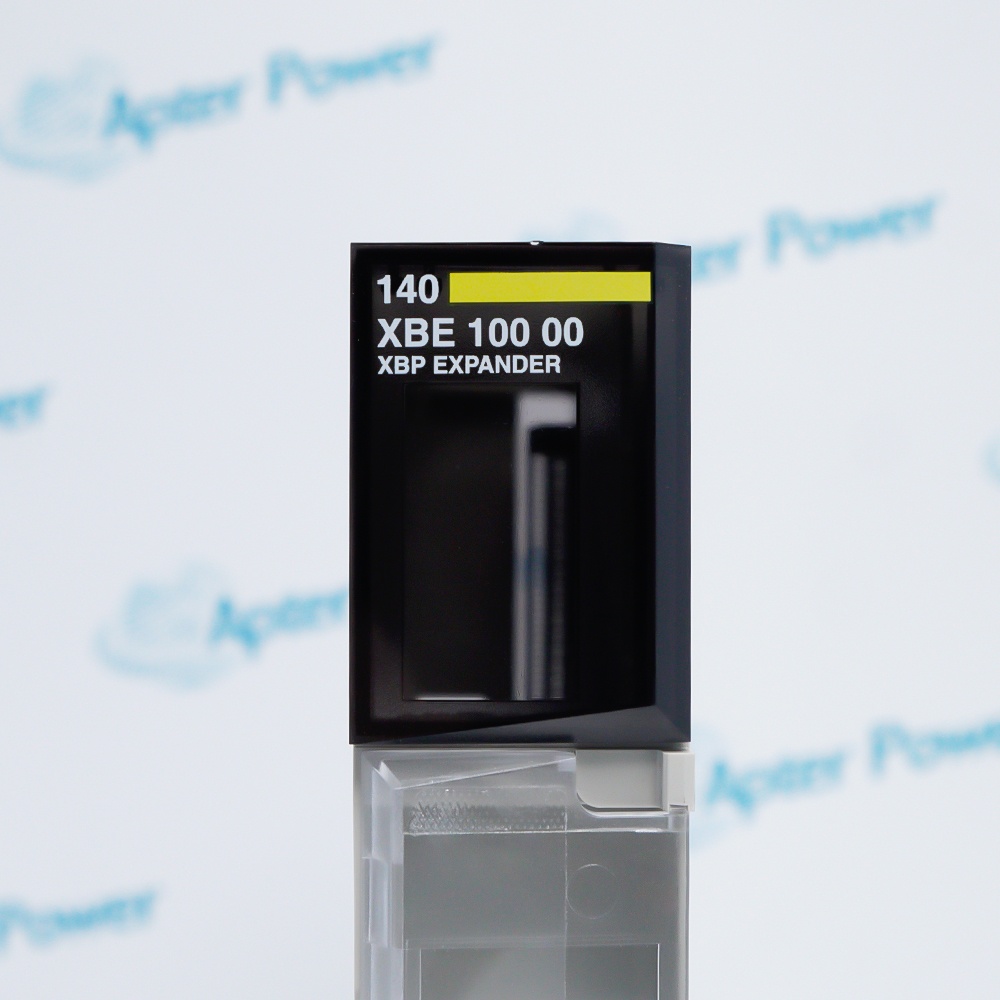

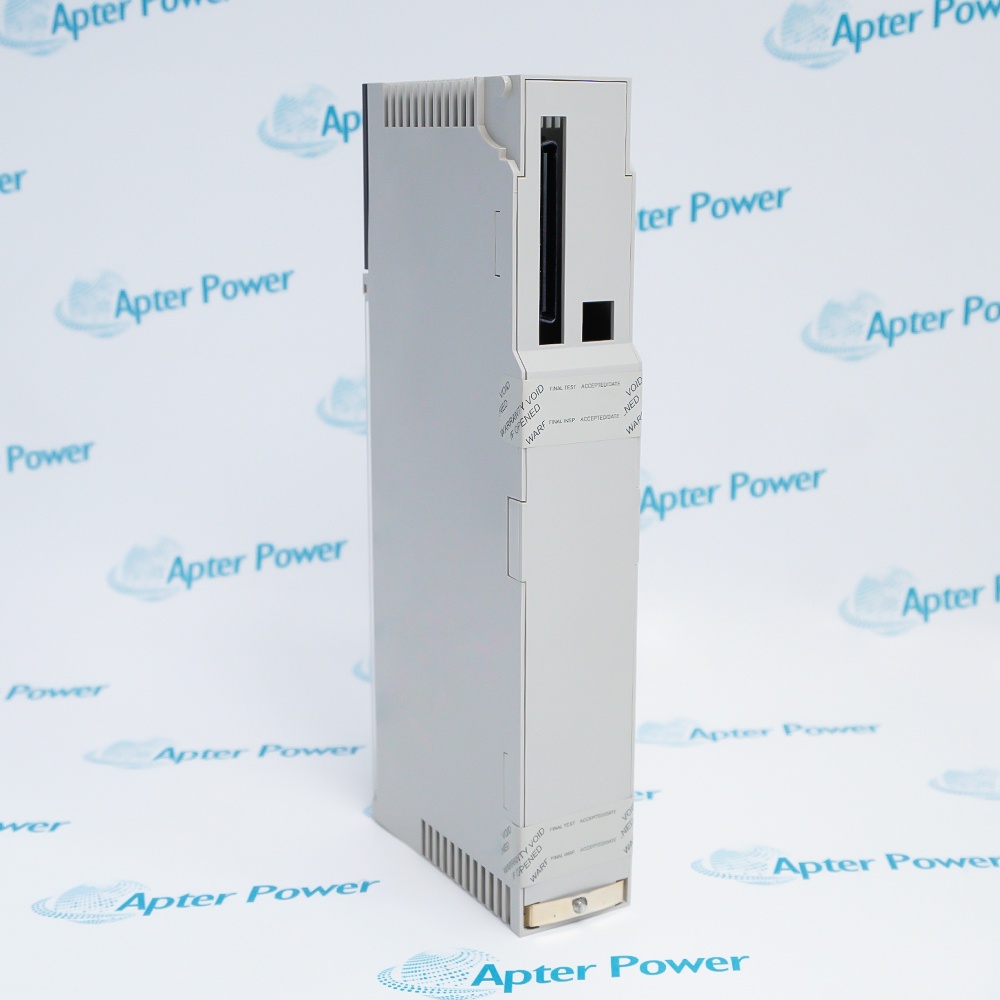

Technical specifications for 140XBE10000
-
Manufacturer:Schneider Electric
-
Product Category:PLC Systems
-
Spare Part Number:140XBE10000
-
Estimated shipping dimensions:4x10.5x25cm
-
Weight:0.32 kg
-
Tariff Code:8537101190
-
Counliy of origin:France
-
Product type:Backplane expander
-
Platform:Modicon Quantum
-
Destination:Quantum backplanes with 12 to 16 slots
-
System set:Two expander modules with one 1 m, 2 m or 3 m extension cable
-
Rack roles:Primary rack and secondary rack
Information
Overview
Manuals
Common Applications
Product Precautions
The 140XBE10000 provides the dedicated rack-extension interface used when a Modicon Quantum installation requires a secondary backplane.
- Backplane-expander accessory
- For 12- to 16-slot Quantum backplanes
- Compatible with 140XBP01600
- Supports approved local or remote-I/O rack layouts
Install one expander in the primary rack and the second in the secondary rack. Use the approved 1 m, 2 m or 3 m Quantum extension cable. The modules may occupy any available slots in the two racks. Record rack identity, slot position and cable part number before disassembly.
Important Notice: Confirm the complete Schneider Electric 140XBE10000 marking, installed hardware arrangement, circuit assignments and cabinet records before installation or replacement.
Schneider Electric 140XBE10000 Manuals & Downloads
Schneider Electric 140XBE10000 Technical Reference (PDF)Schneider Electric 140XBE10000 Installation & Commissioning Guide (PDF)
The first document presents model-specific technical information; the second provides a separate installation, verification and acceptance workflow.
Rack extension
Extends a approved Modicon Quantum backplane arrangement.
Secondary rack link
Connects the primary and secondary rack through an approved Quantum cable.
Local I/O layouts
Supports expansion within a controlled local Quantum configuration.
Remote-I/O layouts
May be used in approved Quantum remote-I/O rack arrangements.
Read the applicable Schneider Electric instructions before work. Verify the complete 140XBE10000 identity, installed hardware arrangement and every connected circuit before isolation or replacement.
1
Confirm the complete 140XBE10000 marking.
2
Verify the primary and secondary rack designations.
3
Match the backplane and cable to the approved drawing.
4
Inspect both cable connectors and latches.
5
Remove rack power before changing the expansion link.
6
Keep the secondary rack isolated if its power is removed.
7
Restore each module to its recorded slot.
8
Validate both racks and all mapped I/O after work.
Technical notes
Use the 140XBE10000 only as a paired Quantum rack-extension interface. Before energization, confirm the primary/secondary rack roles, the 140XBP01600 backplane arrangement and the selected 1 m, 2 m or 3 m extension cable.
FAQ View All FAQ
-
What function does Schneider Electric 140XBE10000 perform in a Modicon Quantum system?Schneider Electric 140XBE10000 serves as a Modicon Quantum backplane-expander accessory.
-
Which backplane sizes can 140XBE10000 extend?The 140XBE10000 extends Quantum backplanes that contain 12 to 16 slots.
-
Which Quantum backplane is compatible with 140XBE10000?The 140XBE10000 is compatible with the 140XBP01600 Quantum backplane.
-
How many expander modules are used in a 140XBE10000 rack link?A complete 140XBE10000 rack link uses two expander modules, with one installed in the primary rack and the other in the secondary rack.
-
What extension-cable lengths are available for 140XBE10000?The 140XBE10000 supports 1 m, 2 m and 3 m extension cables.
-
Can 140XBE10000 be installed in any available rack slot?Yes. The 140XBE10000 can occupy any available slot in either approved rack.
-
What details should be recorded before replacing 140XBE10000?Before replacement, technicians should record the complete 140XBE10000 marking, rack role, slot position and cable identity.
-
How should a 140XBE10000 installation be accepted after service?After service, technicians should confirm that both 140XBE10000-linked racks communicate and that every mapped I/O point returns to its approved state.
