      140ACO02000

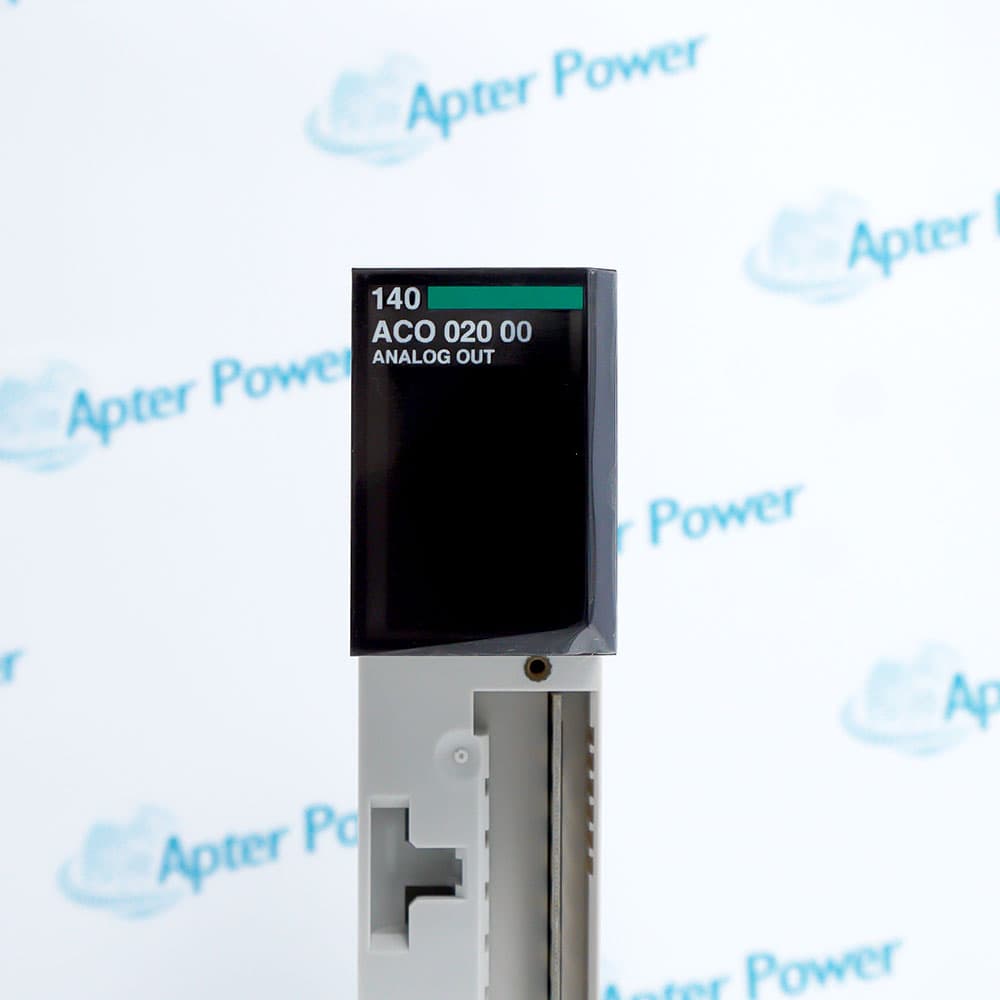

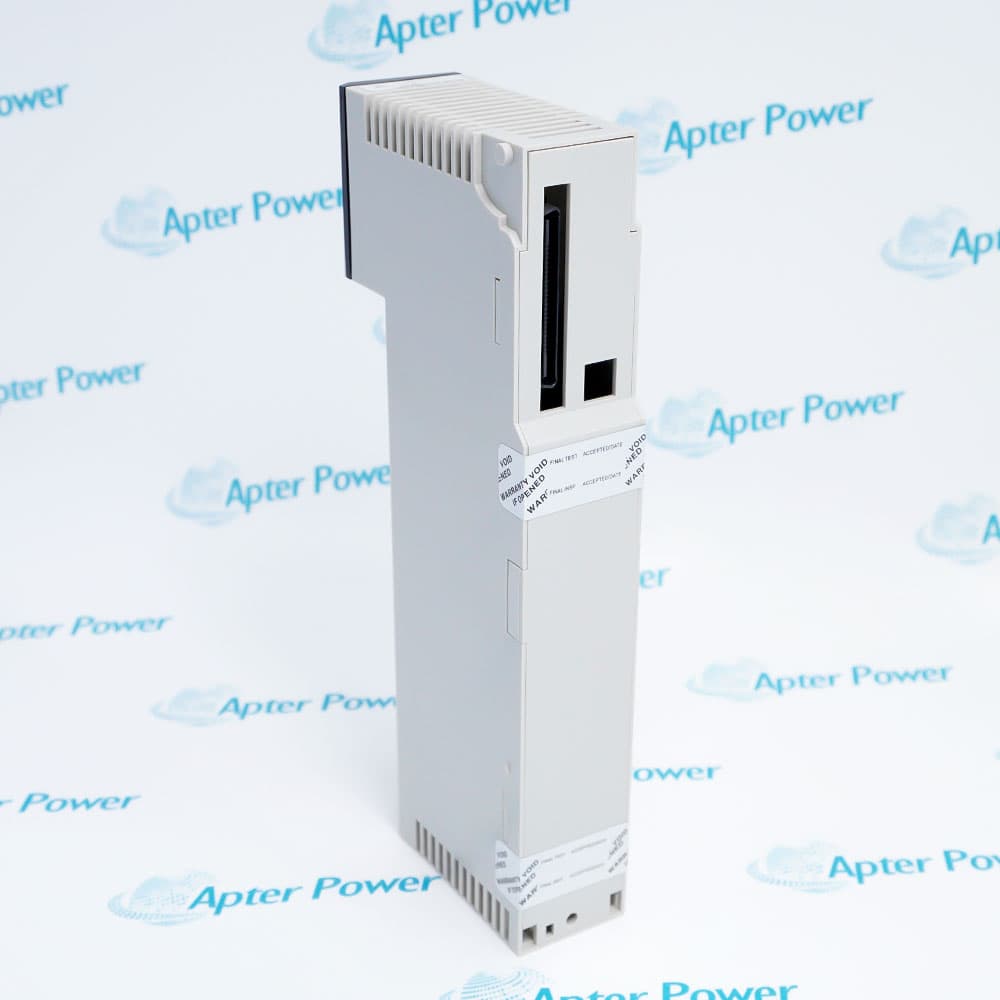

      Modicon Quantum 4-Channel 4-20 mA Analog Output Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Schneider Electric 140ACO02000 is a Modicon Quantum analog output module with four 4-20 mA channels and 12-bit conversion. It uses a documented 12-30 V DC external supply for process-current outputs.

      Ask our team:

      Get a quick price for： 140ACO02000
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 140ACO02000

      Technical specifications for 140ACO02000

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        140ACO02000
      • Estimated shipping dimensions:
        4x10.6x24.8cm
      • Weight:
        0.32 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Product designation:
        Analog output module
      • Automation platform:
        Modicon Quantum
      • Analog outputs:
        4
      • Output range:
        4-20 mA
      • Output resolution:
        12 bit
      • Output data:
        4 output words
      • External supply:
        12-30 V DC
      • Bus current required:
        480 mA
      • Maximum power dissipation:
        5.3 W
      • Channel isolation test:
        500 V AC at 47-63 Hz or 750 V DC for 1 minute
      • Online configuration modification:
        Supported
      • Lifecycle status:
        Discontinued 14 April 2023; service planned through 31 December 2030
      • Official replacement:
        BMXAMO0410
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric 140ACO02000 provides generation of four isolated 4-20 mA process outputs from a Modicon Quantum station in a documented Modicon Quantum installation.
      • Four 4-20 mA outputs
      • 12-bit output conversion
      • 12-30 V DC external supply
      • Online configuration modification

      The component remains matched to its documented cabinet position, power source, interfaces and approved engineering configuration. Commissioning restores that architecture and verifies the affected control or communication function under controlled conditions.

      Important Notice: Confirm 140ACO02000, its exact Modicon Quantum host, power source, installed position, interfaces, configuration, diagnostics and controlled acceptance evidence before release.

      Schneider Electric 140ACO02000 Manuals & Downloads

      These documents are different: the first consolidates exact product and system data; the second provides model-specific installation checks, commissioning steps and acceptance guidance.

      Control-valve command
      Generates documented 4-20 mA setpoints for process actuators.
      Analog speed reference
      Provides controlled current commands to compatible drive interfaces.
      Four-loop output replacement
      Preserves channel assignments, scaling and external supply wiring.
      Output-loop commissioning
      Checks each load, polarity and commanded current under control.
      Read the applicable Schneider Electric installation instructions before work. Verify 140ACO02000, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 140ACO02000 marking and the documented Modicon Quantum 4-Channel 4-20 mA Analog Output Module execution.
      2
      Place the machine, controller and affected process in the approved maintenance state.
      3
      Isolate all hazardous energy and prove the safe state before disconnecting hardware.
      4
      Record the installed position, every terminal or port, and the active engineering configuration.
      5
      Verify the exact electrical, interface and environmental limits in the manufacturer evidence.
      6
      Restore protective earth, shielding, wiring, communications and the approved project or parameters.
      7
      Energize under control and review all device, rack, network and process diagnostics.
      8
      Complete a controlled functional test of generation of four isolated 4-20 mA process outputs from a Modicon Quantum station before release.

      Technical notes

      Technical notes

      Install 140ACO02000 only in the documented Modicon Quantum position and preserve its exact wiring, interfaces and configuration. After controlled energization, verify diagnostics and generation of four isolated 4-20 mA process outputs from a Modicon Quantum station before service release.

      FAQS

      • How many 4-20 mA outputs are provided by Schneider Electric 140ACO02000?
        140ACO02000 provides four analog current-output channels.
      • What output resolution is documented for 140ACO02000?
        The four output channels use 12-bit conversion.
      • Which external supply range is required by 140ACO02000?
        Use the documented 12-30 V DC external supply for the output circuits.
      • What Quantum bus-current allowance applies to 140ACO02000?
        The module requires 480 mA from the Quantum bus.
      • What is the maximum power dissipation of 140ACO02000?
        The official Quantum catalog lists 5.3 W maximum power dissipation.
      • What isolation test is specified between 140ACO02000 channels?
        The catalog specifies 500 V AC at 47-63 Hz or 750 V DC for one minute between channels.
      • Can the 140ACO02000 configuration be modified online?
        Yes. The official Quantum catalog lists online configuration modification as supported.
      • How should all four 140ACO02000 loops be accepted after replacement?
        Command and measure every 4-20 mA channel under controlled conditions, confirming polarity, load, scaling and diagnostics.
