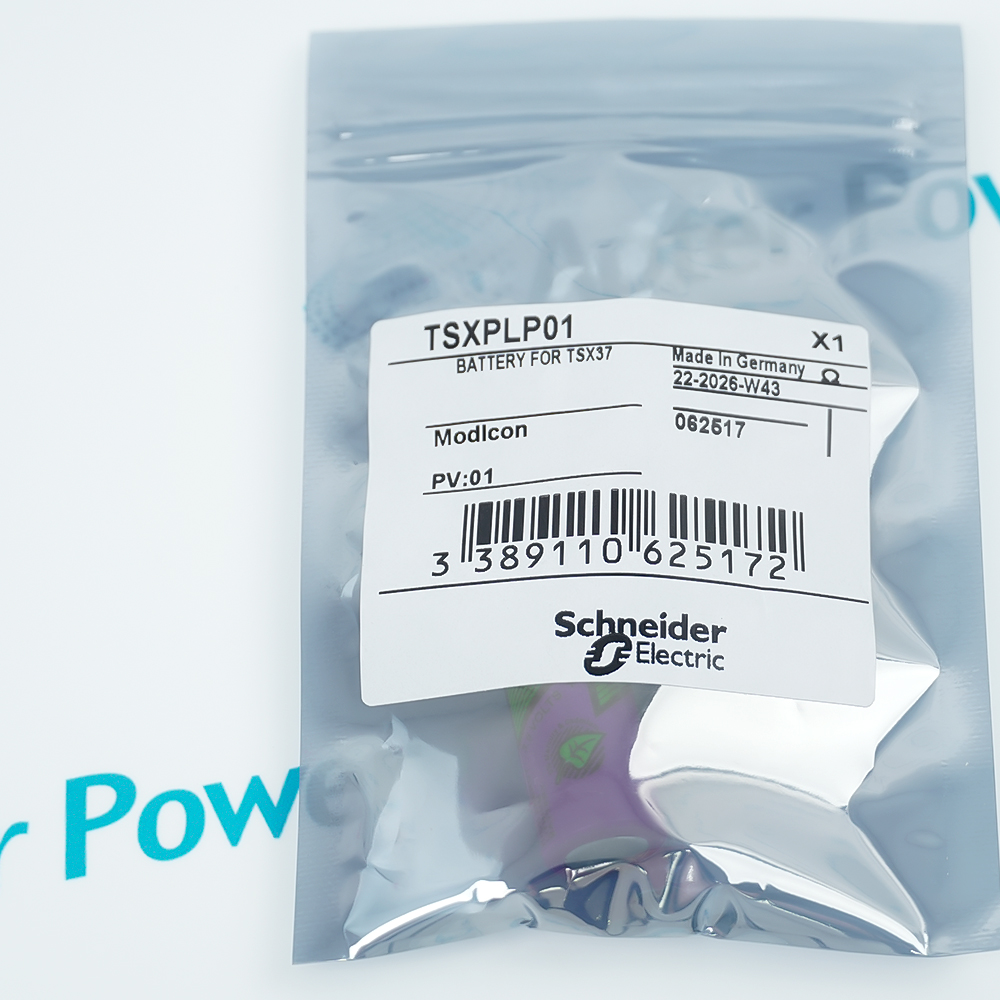

The TSXPLP01 is an extremely lightweight (only 10-12g) and highly integrated backup component. Its sole mission is to safeguard the Modicon Premium PLC’s RAM data, ensuring no data loss occurs during power outages.
High Reliability Data Protection
Integrated Diagnostics
Support for Hot-Swapping
The TSXPLP01 belongs to the renowned Modicon Premium PLC series under Schneider Electric. Modicon Premium is a modular programmable logic controller system designed for mid-to-high-end applications. It is celebrated for its robust processing power, exceptional flexibility, and extensive support for various communication protocols, making it a benchmark product in the field of industrial automation. The system features a multi-tasking design that supports complex control logic. Its backplane bus enables high-speed data exchange and allows for the integration of various functional modules (such as communication, counting, and weighing modules) within a single rack.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Schneider Electric TSXPLP01 Backup Battery , Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Controls body welding lines and final assembly conveyors, ensuring process parameters and production counts are retained after power loss.
Water & Wastewater Treatment
Manages pumping stations and filtration systems in large treatment plants, protecting complex timing programs and alarm logs.
Food & Beverage
Monitors automated filling, packaging, and blending lines, maintaining the integrity of recipe data.
Rail Transit)
Used in tunnel ventilation systems (TVS) and power monitoring in subway stations to safeguard critical equipment state storage.
Mining & Metallurgy
Monitors conveyor systems and crushers in mineral processing plants, protecting system configurations in harsh electrical environments.
Pulp & Paper
Coordinates multi-axis synchronization for paper machine dryer sections, preventing the loss of sync parameters during power loss.
When using the TSXPLP01 backup battery, the most critical precaution is to perform the replacement while the PLC is powered ON; this ensures that programs and real-time data in the internal RAM are not lost during the swap. During daily operations, closely monitor the "BAT" status LED on the processor, and arrange for an immediate replacement if it turns red. Additionally, due to its chemical properties, never attempt to recharge, disassemble, or heat the lithium battery, and ensure that used batteries are disposed of as hazardous industrial waste in compliance with environmental regulations.
The TSXPLP01 is a replacement lithium backup battery specifically designed for Schneider Electric Modicon Premium and Atrium controller processors.
What is the primary purpose of TSXPLP01?
Its primary purpose is to provide power to the internal RAM memory (programs, configuration data, and real-time clock) when the PLC's main power is off, preventing data loss.
Which PLC series is TSXPLP01 compatible with?
It is mainly compatible with the Modicon Premium series (such as TSX P57 processor modules) and TSX Atrium PC-based controllers.
What are the key technical specs of TSXPLP01?
It is a 3.6V lithium-thionyl chloride (Li-SOCl2) battery and is non-rechargeable.
How do I know when TSXPLP01 needs replacing?
Observe the status LEDs on the front of the processor. If the "BAT" LED turns red, or the software diagnostics indicate low battery voltage, it needs to be replaced immediately.
