How many independent counter channels does the AFP2441 contain?

This hardware unit contains 4 independent physical counting channels internally.

How should products like the AFP2441 be used?

To use it, physically plug the unit into a slot on the main rack or expansion backplane of an FP2/FP2SH series PLC, connect rotary encoders or proximity switches via the front terminal block wiring, and read the counting data through the PLC ladder program.

What type of transistor output does the AFP2441 feature?

It is equipped with an NPN sink-type transistor output interface, which is used to establish direct physical hardware interlocks with external actuators or internal logic.

Which counting modes are supported by the AFP2441?

It supports 2-phase input, add/subtract counting input, and 1-phase direction-independent counting input modes at the hardware level.

Can the AFP2441 be physically hot-swapped without shutting off the PLC system power?

No. The external 24VDC and AC power supplies to the PLC main rack and backplane must be completely isolated before physically inserting or removing this module.

AFP2441

Name: AFP2441
Brand: PANASONIC
SKU: AFP2441

High-speed counter

Panasonic AFP2441 angled view of light gray module with HSCT label, X:24V Y:Tr.(NPN) text and black multi-pin connector

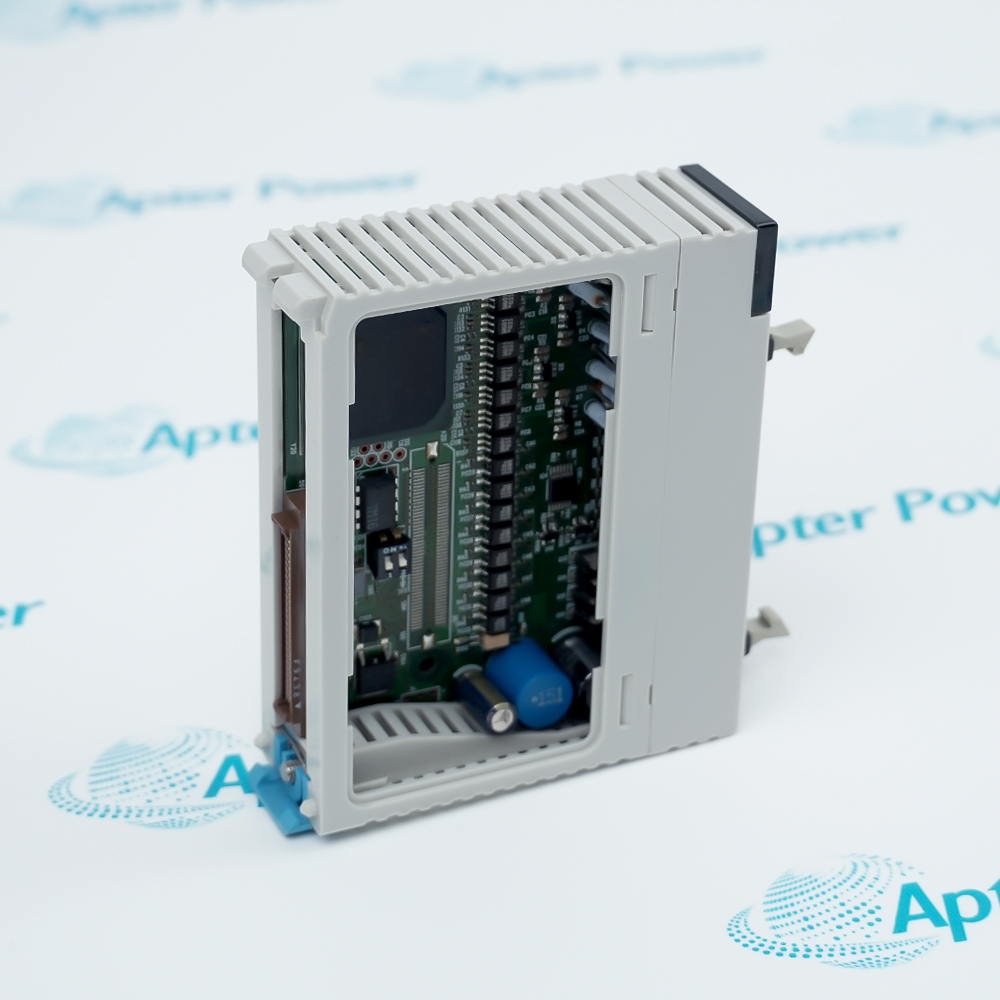

Panasonic AFP2441 counter module side view, PCB visible through side window, blue capacitor and blue DIN-rail latch

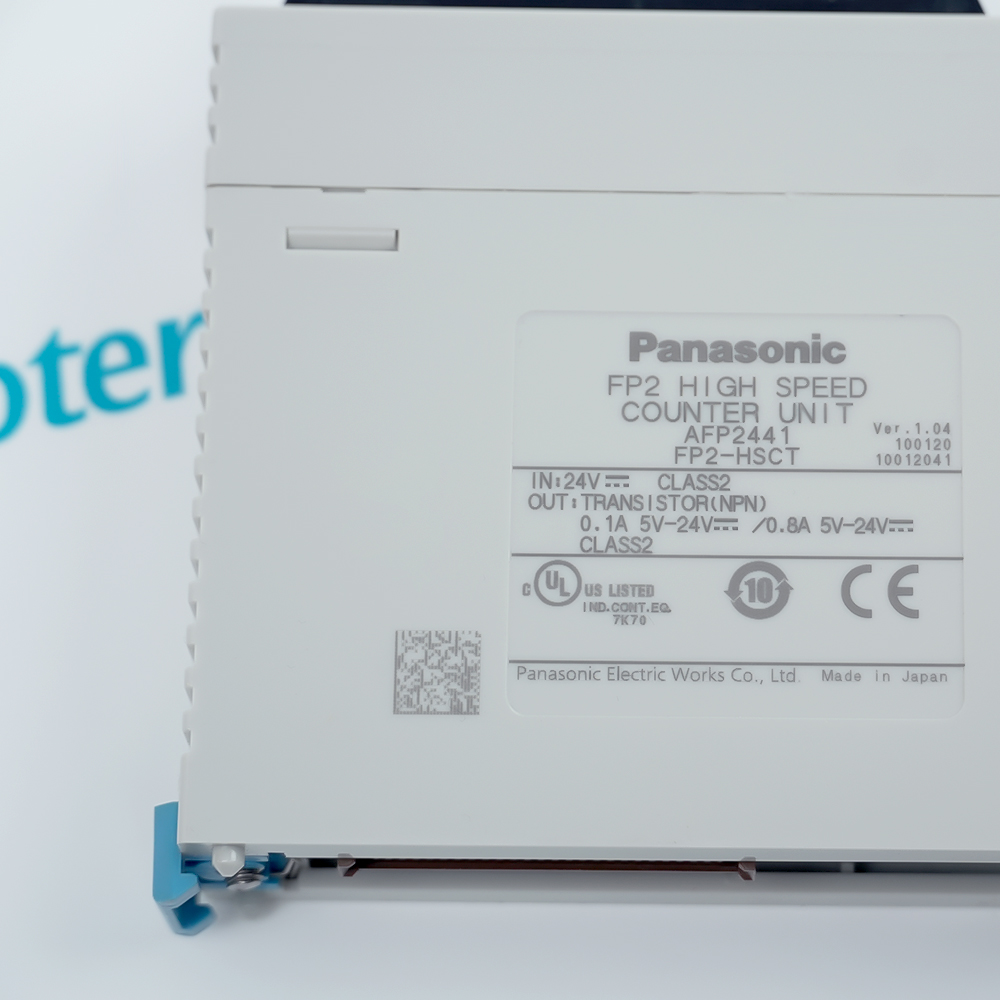

Panasonic AFP2441 FP2 high speed counter label close-up, AFP2441 and FP2-HSCT printed, NPN transistor output, CE and UL marks

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

8 interrupt inputs
4-channel high-speed counter
8 comparison outputs, Input: 24 V DC
Output: 5 to 24 V DC (0.1 A, 12 points / 0.8 A, 4 points)

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for AFP2441

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for AFP2441

Manufacturer:

PANASONIC
Product Category:

PLC Systems
Spare Part Number:

AFP2441
Estimated shipping dimensions:

3×9×6cm
Weight:

0.12 kg
Tariff Code:

8537101190
Counliy of origin:

Japan
Number of Channels:

4 independent physical counting channels
Maximum Input Frequency:

200 kHz (200,000 pulses per second)
Output Type:

NPN open-collector transistor output (Sink type)
Input Voltage Levels:

5V DC, 12V DC, 24V DC
Counting Input Modes:

2-phase input, add/subtract counting, 1-phase direction-independent

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The AFP2441 is a specialized high-speed counter hardware module engineered exclusively for the Panasonic FP2 and FP2SH programmable logic controller backplane platforms. The physical net weight of the hardware unit is approximately 110 grams, and it draws a continuous current of 450 mA or less from the 5V DC system backplane supply during operation.

4 independent physical high-speed counting channels
8 independent NPN-type hardware interrupt input terminals
Maximum pulse input frequency of 200 kHz per single channel

For its electrical input interface, the module incorporates signal pathways isolated via built-in photocoupler hardware, featuring a nominal input impedance of 3.2 kΩ. It is built to receive a standard rated voltage of 24V DC with a rated input current of approximately 7.5 mA, maintaining normal signal capture within a broad DC power fluctuation range from 20.4V DC to 26.4V DC. The insulation barrier between the external wiring terminals and the frame withstands a dielectric breakdown voltage of 500V AC for 1 minute, with an insulation resistance of 100 MΩ or more when verified using a 500V DC megger testing instrument.This hardware supports NPN-type (sinking) input, featuring four 200 kHz channels and eight interrupt inputs. It utilizes FROM non-volatile memory for data retention and is designed to resist environmental factors like vibration and shock, complying with RoHS.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Panasonic AFP2441 High-speed counter Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Battery Mfg

Connects to encoders in electrode winding machines to accurately monitor winding line speeds and tension.

Packaging Machinery

Collects conveyor pulses in high-speed labeling machines to accurately trigger gluing and labeling via hardware interrupts.

Semiconductor

Counts high-frequency pulses from linear scales on multi-axis platforms of dispensing and wafer dicing machines for closed-loop position feedback.

Food & Beverage

Collects flowmeter pulses in rotary filling lines to independently calculate and control valve operation for quantitative filling.

Metal Stamping

Captures encoder pulses in sheet metal step feeders to eliminate backlash errors and achieve precise stepping positioning.

Plastics Processing

Monitors pulse feedback from inverter motors in profile extrusion cutting lines to ensure fixed-length cutting precision.

When utilizing the Panasonic AFP2441, the critical priority is evaluating the system's 5V internal current consumption. This specific module draws a substantial current of up to 450 mA at 5VDC, meaning the cumulative power demand of all backplane units must remain strictly within the maximum threshold of the primary power supply to prevent system instability.

Additionally, when wiring external encoders for its 200k count/s high-speed tracking channels, proper input filter timing should be configured, and all MIL connector adjustments must be completed while the system is powered off to safeguard the input circuitry from electrical damage.

Alternative Names

AFP244I

Technical notes

The Panasonic AFP2441 is a 4-channel high-speed counter module developed for FP2/FP2SH PLCs, supporting a 200 kHz maximum frequency and 8 integrated NPN interrupt inputs. Utilizing photocoupler isolation for 24V DC pulse signals and storing parameters locally within onboard flash memory, it independently executes hardware-level high-speed comparison outputs and multi-axis motion synchronization without draining main processor and network bus bandwidth.

FAQ View All FAQ

How many independent counter channels does the AFP2441 contain?

This hardware unit contains 4 independent physical counting channels internally.
How should products like the AFP2441 be used?

To use it, physically plug the unit into a slot on the main rack or expansion backplane of an FP2/FP2SH series PLC, connect rotary encoders or proximity switches via the front terminal block wiring, and read the counting data through the PLC ladder program.
What type of transistor output does the AFP2441 feature?

It is equipped with an NPN sink-type transistor output interface, which is used to establish direct physical hardware interlocks with external actuators or internal logic.

Which counting modes are supported by the AFP2441?

It supports 2-phase input, add/subtract counting input, and 1-phase direction-independent counting input modes at the hardware level.
Can the AFP2441 be physically hot-swapped without shutting off the PLC system power?

No. The external 24VDC and AC power supplies to the PLC main rack and backplane must be completely isolated before physically inserting or removing this module.
