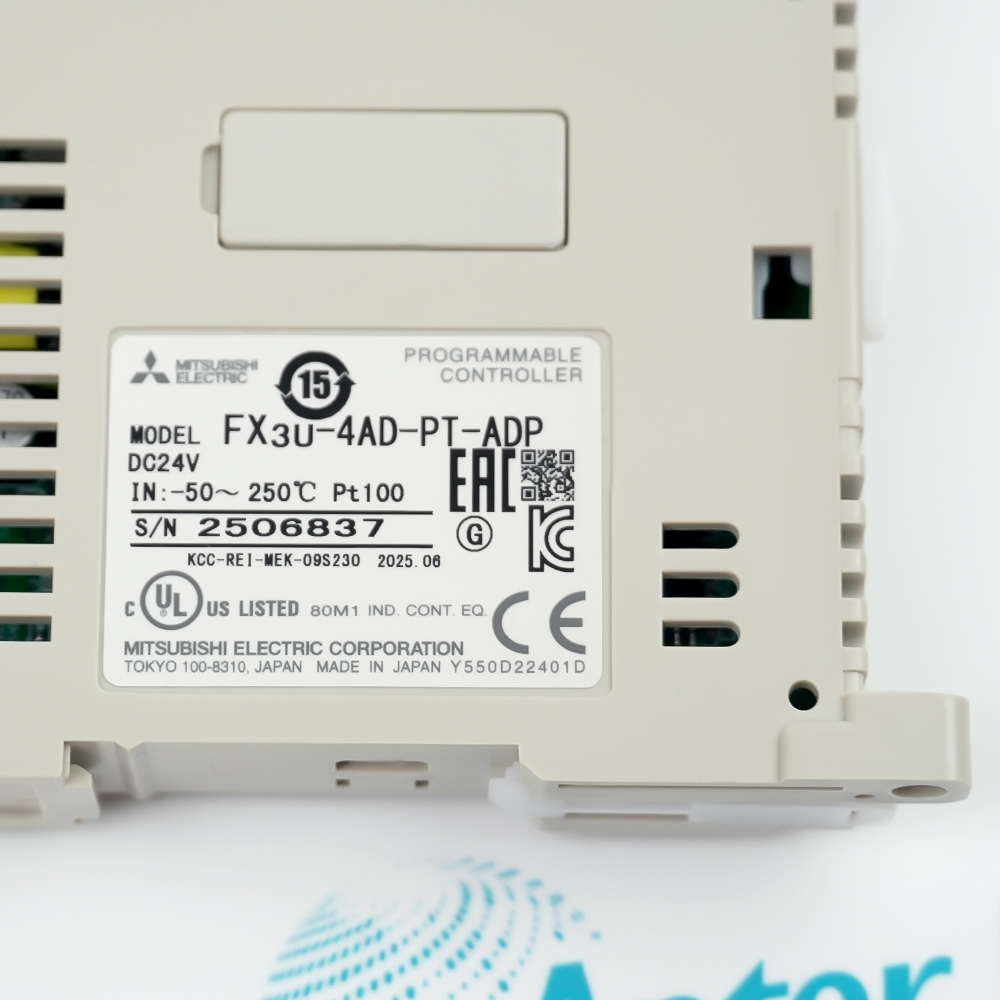

      FX3U-4AD-PT-ADP

      Analog Input Module
      In Stock

      Product Describe：

      Analog Input Module
      Supply voltage of 5V DC
      (from the main unit) and
      24V DC ensures compatibility
      With various configurations.

      Ask our team:

      Get a quick price for： FX3U-4AD-PT-ADP
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for FX3U-4AD-PT-ADP

      Technical specifications for FX3U-4AD-PT-ADP

      • Manufacturer:
        Mitsubishi
      • Product Category:
        General Automation
      • Spare Part Number:
        FX3U-4AD-PT-ADP
      • Estimated shipping dimensions:
        10.5x9x2.5cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Japan
      • Dielectric withstandvoltage:
        500 V AC for one minute
      • Insulation resistance:
        5 MΩ or higher by 500 V DC
      • A/D conversioncircuit driving power:
        24 V DC +20 %/-15 %
      • Interface drivingpowe:
        5 V DC, 15 mA
      • Ratedtemperaturerange:
        -50 °C to +250 °C
      • Digital output:
        -500 to +2500
      • Resolution:
        0.1 °C
      • Supply Voltage (DC):
        5V DC (from main unit) / 24V DC
      • Input Channels:
        4 channels
      • Temperature Range:
        PT100 sensors
      Ask for Quote

      Information

      Information

      Overview Manuals Core functions and positioning
      The FX3U4-ADPT-ADP by Mitsubishi is an analog input module designed specifically for the FX3U series. It is tailored to handle PT100 temperature sensors across four input channels, facilitating precise temperature measurements in industrial settings.
        • FX3U-4AD-PT-ADP Analog Input Module
        • Supports Four Pt100 Temperature Sensor Inputs
        • Provides High-Precision Temperature Measurement (0.1°C Resolution)
      Mitsubishi's FX3U4-ADPT-ADP functions as a dedicated analog input module within the FX Series. It processes input from PT100 temperature sensors, supporting four distinct channels. Operating at a supply voltage of 5V DC (from the main unit) and 24V DC ensures compatibility with various configurations.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IC660BBR100 RELAY OUTPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

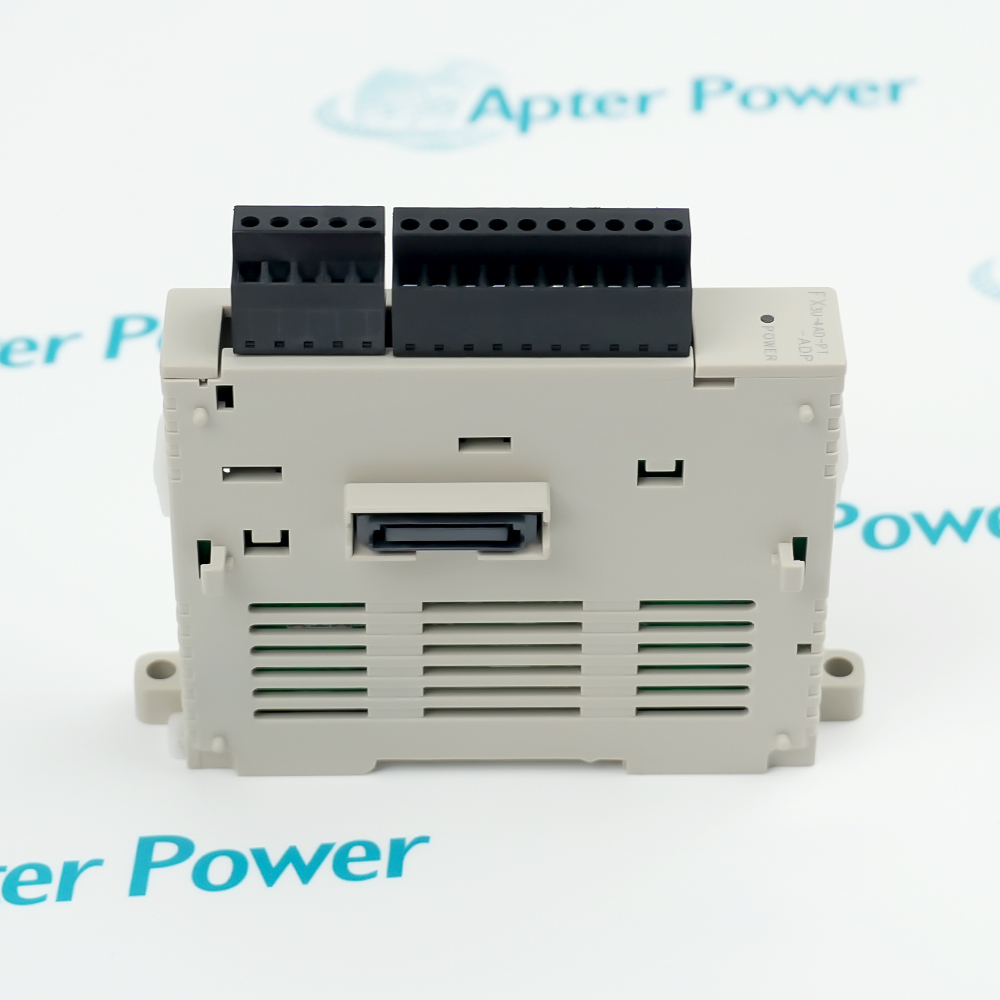

      4-channel input: A single module supports connecting 4 PT100 platinum resistance sensors simultaneously. Adapter type (ADP): Compact design, installed on the left expansion port of the FX3U host unit, does not occupy the standard I/O expansion bus on the right side. High precision monitoring: supports a wide range of -100 ° C to+600 ° C, with a resolution of up to 0.1 ° C.

      FAQS

      • What is FX3U-4AD-PT-ADP?
        FX3U-4AD-PT-ADP is an Analog Input Module
      • What are the basic specifications of the FX3U-4AD-PT-ADP analog input module?
        It is a temperature analog input module designed to connect PT sensors and convert temperature signals for industrial control systems.
      • Which controllers is the FX3U-4AD-PT-ADP compatible with?
        It is designed for use with FX3U series controllers and compatible expansion adapters.
      • Can the FX3U-4AD-PT-ADP operate in harsh industrial environments?
        Yes, it supports stable operation within industrial temperature ranges and humidity up to 95% non-condensing.
      • What are the installation guidelines for the FX3U-4AD-PT-ADP module?
        The module should be installed as an expansion adapter on the controller and wired according to the recommended PT sensor connection method.
      • How does the FX3U-4AD-PT-ADP differ from other analog input modules in the FX series?
        This model is specifically designed for PT temperature sensor input rather than standard voltage or current signals.
