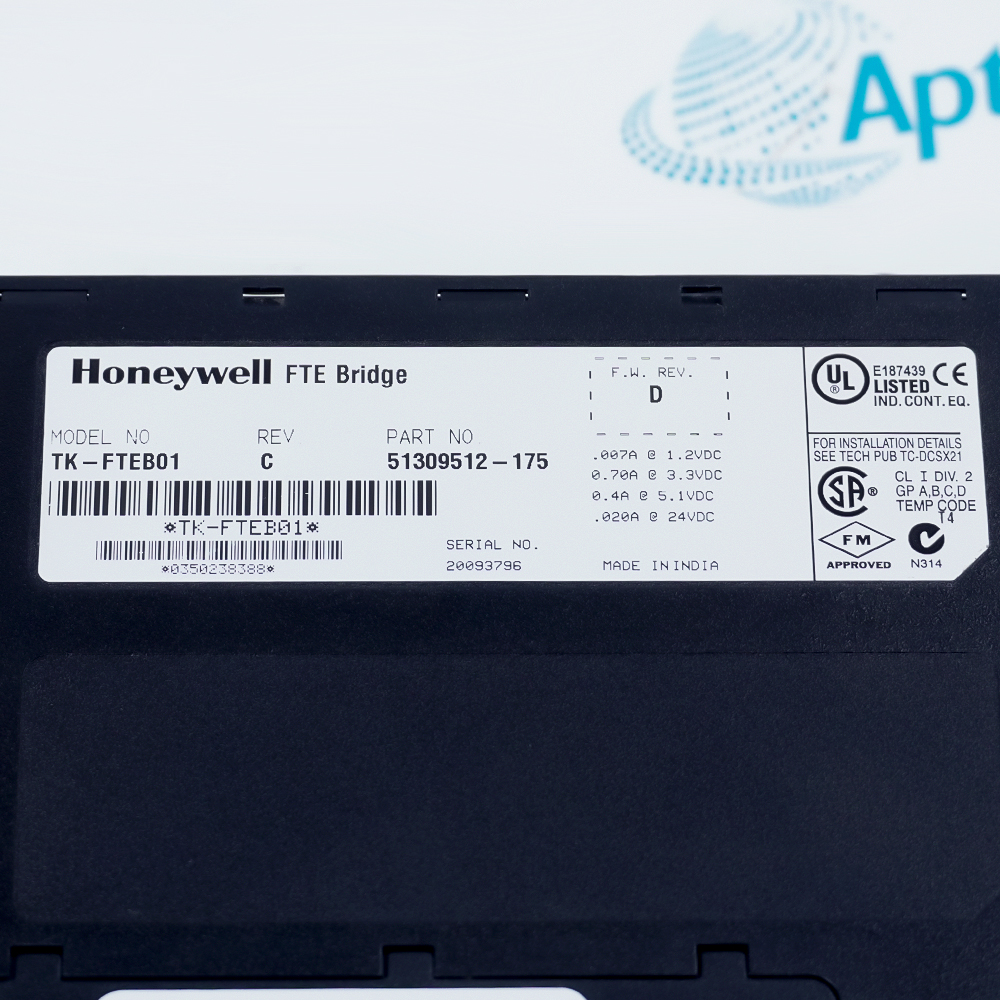

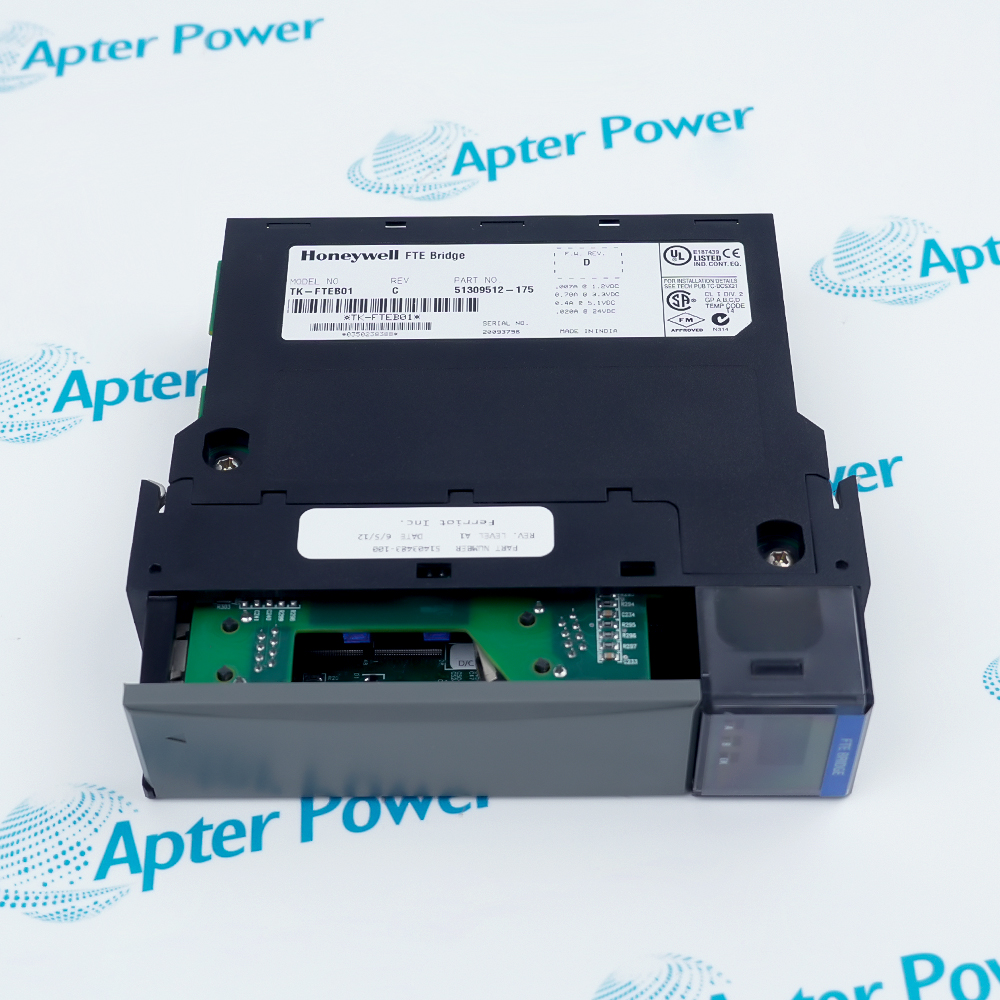

The TK-FTEB01 51309512-175 Fault Tolerant Ethernet Bridge Module is a physically pluggable hardware unit installed within the Chassis Series-A frame. It is utilized to bridge upper-level process servers and integrate components such as the C200 controller into the fault-tolerant network, requiring twisted-pair cabling compliant with the TIA/EIA-568A standard for dual RJ-45 network connections.
Delivers high-reliability, dual-link bridging communication for control nodes and underlying I/O networks
This bridge module occupies a single slot within the Chassis Series-A rack and establishes a hardwired connection with the internal rack bus via backplane gold fingers, enabling underlying data interaction with the C200 processor and various I/O modules within the same rack. The front panel of the module is equipped with two standard RJ-45 physical interfaces, labeled as Port A and Port B respectively. During wiring, industrial Ethernet network topology specifications must be strictly followed: Port A must be connected to the physical port of the primary switch network A using shielded network cables, and Port B must be connected to the physical port of the primary switch network B. It is strictly prohibited to cross-connect these two links into the same physical switch or the same VLAN partition.
The module relies entirely on the BOOTP server within the network for hardware-level IP address allocation and binding. Prior to initial powering, field engineers must read the unique MAC address specific to this hardware from the module's housing label or the system backend, and enter it into the system configuration file for static mapping. Once the system is powered on, the module broadcasts a BOOTP request.
Upon recognizing the matching MAC address, the server delivers the preset fixed IP address, subnet mask, and gateway parameters to the module, thereby completing the logical establishment of the network node. If an identical IP address occupancy is detected within the same network segment, a specific status indicator on the front of the module will change its state and restrict network access until the address conflict is manually resolved.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell TK-FTEB01 51309512-175 Fte Bridge Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum and Gas Refining
Used to connect C200 controllers in crude distillation and catalytic cracking units, uploading real-time temperature, pressure, and level data to central servers to ensure uninterrupted network data flow in high-risk refining processes.
Thermal Power Plants
Functions as the underlying hardware backbone for boiler and turbine control systems (DCS), maintaining high-frequency data synchronization under high-temperature and high-vibration environments to guarantee command transmission during grid peak-shaving.
Nuclear Power Plants
Applied in non-safety class conventional island control networks to bridge cooling water circulation and generator monitoring data, utilizing MAC address binding to provide deterministic hardware-level network defense.
Pharmaceutical Lines and Bio-fermentation
Utilized in FDA-compliant sterile manufacturing and long-cycle fermentation control, implementing the BOOTP protocol for static network identity assignment of field chassis to secure the integrity of batch production records.
Water Treatment and Desalination Plants
In distributed architectures of multi-stage pump groups like ultrafiltration and reverse osmosis, it seamlessly integrates individual process chassis into the plant-wide main monitoring network via dual TIA/EIA-568A standard connections.
When using the Honeywell TK-FTEB01 51309512-175, it must be securely slided into the Chassis Series-A frame strictly adhering to specified installation spacing to prevent over-temperature conditions. During operation, twisted-pair cabling compliant with the TIA/EIA-568A standard must be used to establish secure dual-port (A/B) network connections, utilizing its BOOTP protocol and MAC address binding for deterministic hardware address assignment, although the module features a conformal coating, any hot-swapping maintenance within Class I, Div 2 hazardous locations requires ensuring that no flammable or explosive gases are present to guarantee system communication and explosion-proof safety.
Honeywell TK-FTEB01 51309512-175 is primarily installed in the Chassis Series-A racks. Its core function is to serve as a communication bridge, enabling high-speed, redundant interconnection between controllers, I/O modules, and Honeywell's proprietary FTE (Fault Tolerant Ethernet) backbone network.
It is a Fault Tolerant Ethernet (FTE) Bridge Module specifically designed for the Honeywell Experion PKS automation system, primarily used to establish high-reliability communication bridges within the control network.
How should the TK-FTEB01 51309512-175 product be used correctly?
The module features a slot-in design and should be inserted directly into a standard chassis (such as a slot-I/O or controller chassis), with its external dual Ethernet ports connected separately to two independent LAN switches, designated as Yellow (A) and Green (B).
How many physical network interfaces does the TK-FTEB01 51309512-175 have?
The module panel is typically equipped with two (2) standard RJ45 Ethernet copper interfaces, labeled as Port A and Port B, which are used to connect to the dual-redundant network.
What communication network failures can the TK-FTEB01 51309512-175 defend against?
Through multi-path routing switchover, it can effectively withstand issues such as single network cable breaks, individual switch port damage, single switch power outages, and single network interface card failures, thereby ensuring uninterrupted data transmission.
Which industries most commonly need to deploy the TK-FTEB01 51309512-175 module?
This module is commonly deployed in high-availability industrial environments with extremely strict requirements for real-time and continuous process control data, such as offshore oil platforms, oil refineries, and large-scale chemical plants.
