      Honeywell MC-TSTX03-51309140-175
      Honeywell MC-TSTX03-51309140-175
      Honeywell MC-TSTX03-51309140-175
      Honeywell MC-TSTX03-51309140-175
      Honeywell MC-TSTX03-51309140-175
      Honeywell MC-TSTX03-51309140-175
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      MC-TSTX03-51309140-175

      Smart Transmitter Interface
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

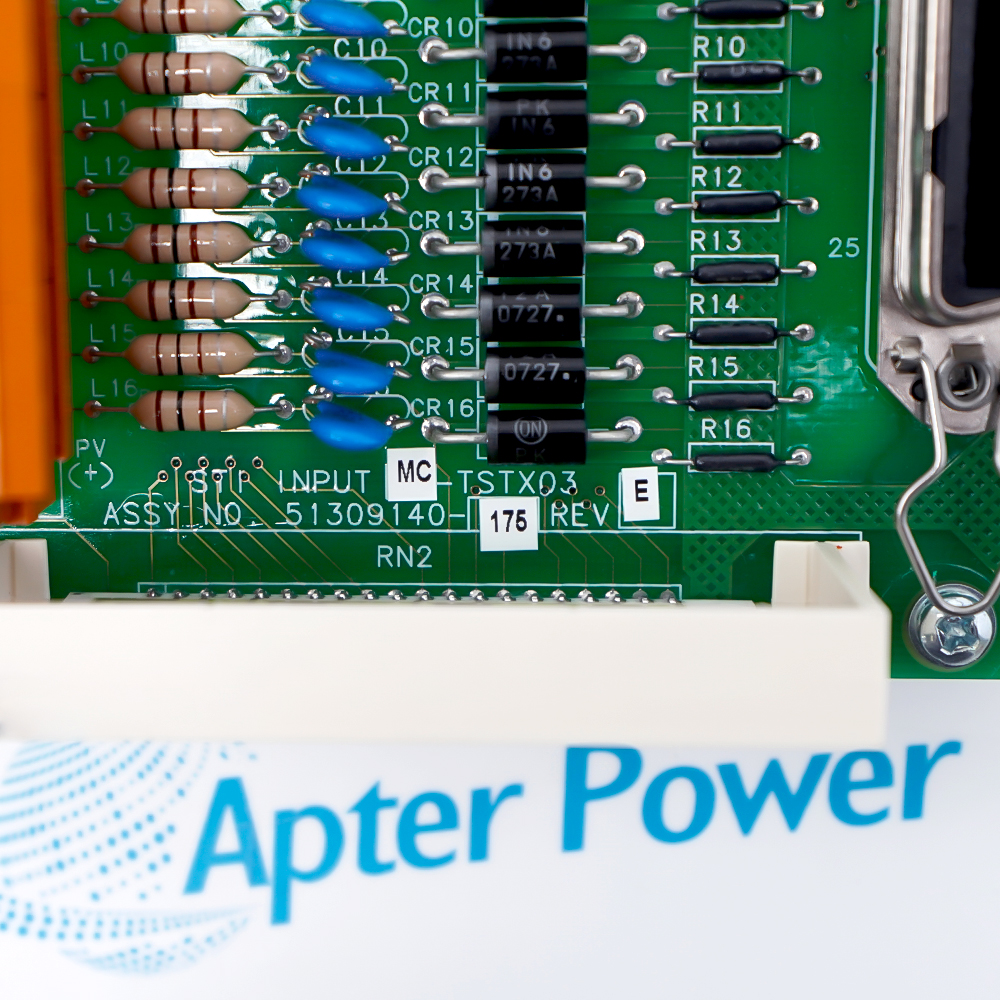

      MC-TSTX03-51309140-175 is a Honeywell Smart Transmitter Interface with compression terminals. It provides the field termination interface for Smart Transmitter devices in the HPM planning context.

      Ask our team:

      Get a quick price for： MC-TSTX03-51309140-175
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for MC-TSTX03-51309140-175

      Technical specifications for MC-TSTX03-51309140-175

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        51309140-175
      • Estimated shipping dimensions:
        15.1x12x5.5cm
      • Weight:
        0.32 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Interface type:
        Smart Transmitter Interface
      • Terminal style:
        Compression terminal
      • FTA classification:
        Standard FTA
      • Input role:
        Smart Transmitter Interface Input
      • System context:
        High-Performance Process Manager
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      MC-TSTX03-51309140-175 is a Honeywell Smart Transmitter Interface assembly with compression terminals. It is used as the field termination interface for Smart Transmitter devices in an HPM planning context.
      • Smart Transmitter Interface input role
      • CE-compliant part pairing with 51309140-175
      • Compression-terminal field connection
      • Associated IOP and HPMM planning path

      Install and wire the assembly only against the approved project drawing and terminal schedule. Confirm the associated IOP/HPMM path and field isolation state before returning the loop to service.

      Complete controlled functional testing after re-termination, including continuity, signal response and the approved HPM diagnostic path.

      Important Notice: Verify the complete MC-TSTX03-51309140-175 marking, CE part number, compression-terminal assignment, installed IOP/HPMM path and post-wiring functional test before commissioning or replacement.

      Apter Power MC-TSTX03-51309140-175 Manuals and Guides

      The first document is a model-specific technical reference. The second is a distinct field workbook covering identification, installation, reconnection, commissioning and acceptance checks.

      MC-TSTX03 field transmitter loops
      Use the compression-terminal interface for documented Smart Transmitter field connections in the HPM planning context.
      MC-TSTX03 IOP integration
      Apply the exact CE part pairing when connecting the associated IOP to the field termination assembly.
      MC-TSTX03 HPM architecture
      Use the HPM planning path that links the associated IOP and HPMM through the approved I/O Link arrangement.
      MC-TSTX03 hazardous-area planning
      Follow the project location classification and approved-area workflow before disturbing Smart Transmitter circuits.
      Use the Honeywell HPM planning sequence for MC-TSTX03-51309140-175. Keep isolation, terminal assignment and controlled functional testing as separate acceptance checks.
      1Isolate the associated IOP/FTA circuit and apply ESD-safe handling before removal.
      2Confirm the complete MC-TSTX03-51309140-175 marking and CE part pairing.
      3Use the approved compression-terminal wiring schedule for the installed FTA.
      4Verify the IOP/HPMM path and project Division 2 procedure where applicable.
      5Inspect conductors, shields and terminal clamping before restoring the loop.
      6Run diagnostics and a controlled functional test before release.

      Technical notes

      Technical notes

      Verify the complete MC-TSTX03-51309140-175 marking and the installed compression-terminal assignment before wiring. Confirm the associated IOP/HPMM path and perform a controlled functional test after re-termination.

      FAQS

      • What is MC-TSTX03-51309140-175?
        MC-TSTX03-51309140-175 is the CE-compliant Honeywell Smart Transmitter Interface assembly listed in the authorized HPM planning document.
      • What interface role does MC-TSTX03-51309140-175 provide?
        It is listed as a Smart Transmitter Interface input assembly for Smart Transmitter devices.
      • Which terminal style is specified for MC-TSTX03-51309140-175?
        The exact row identifies it as a Smart Transmitter Interface with compression terminals.
      • Which Honeywell planning architecture is associated with MC-TSTX03-51309140-175?
        The source places the interface in the High-Performance Process Manager planning context with an associated IOP and HPMM path.
      • How should MC-TSTX03-51309140-175 be identified before replacement?
        Compare both the MC-TSTX03 model marking and the CE-compliant part number 51309140-175 with the approved bill of material.
      • What field connection check is required for MC-TSTX03-51309140-175?
        Confirm the installed compression-terminal assignment and the approved wiring drawing before restoring the field loop.
      • Is MC-TSTX03-51309140-175 listed in the HPM Division 2 equipment table?
        Yes. The source lists MC-TSTX03 among approved Division 2 area equipment; apply the project hazardous-area procedure.
      • What verification should follow wiring of MC-TSTX03-51309140-175?
        After re-termination, confirm the IOP/HPMM path and perform a controlled functional test before returning the loop to service.
