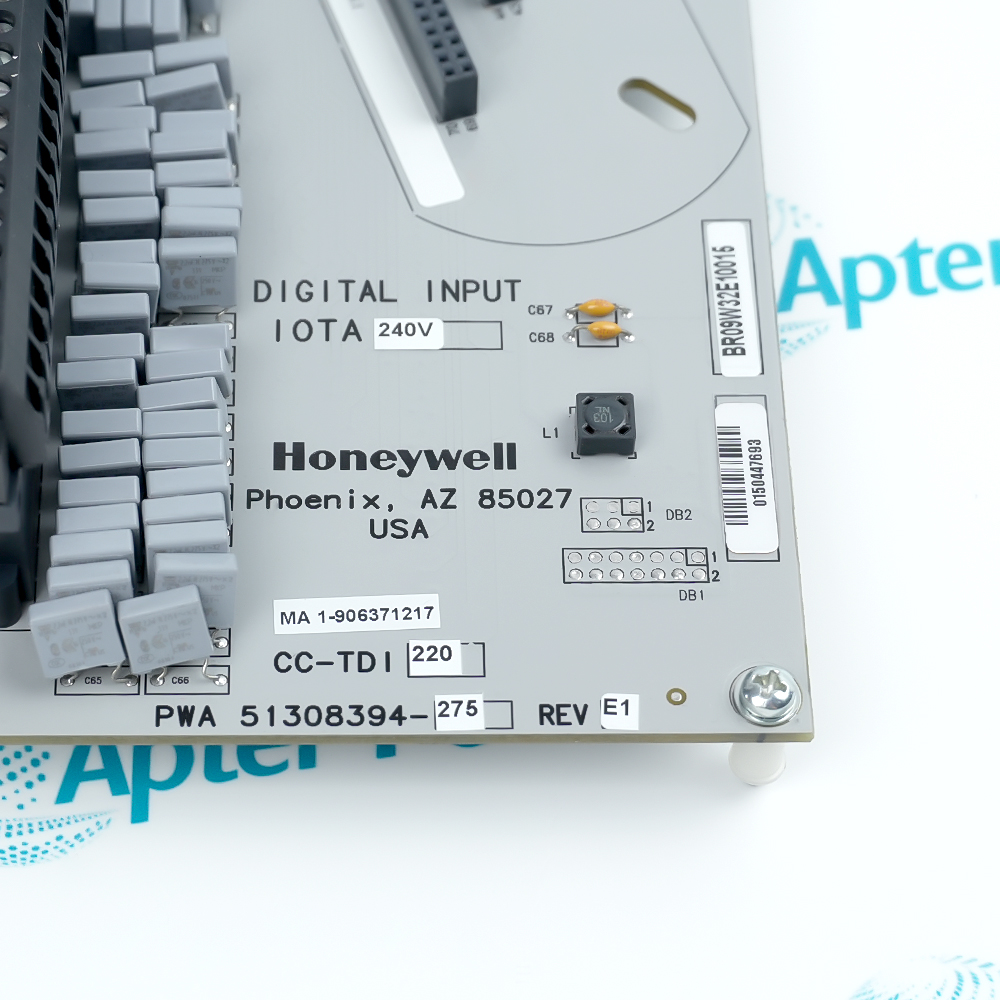

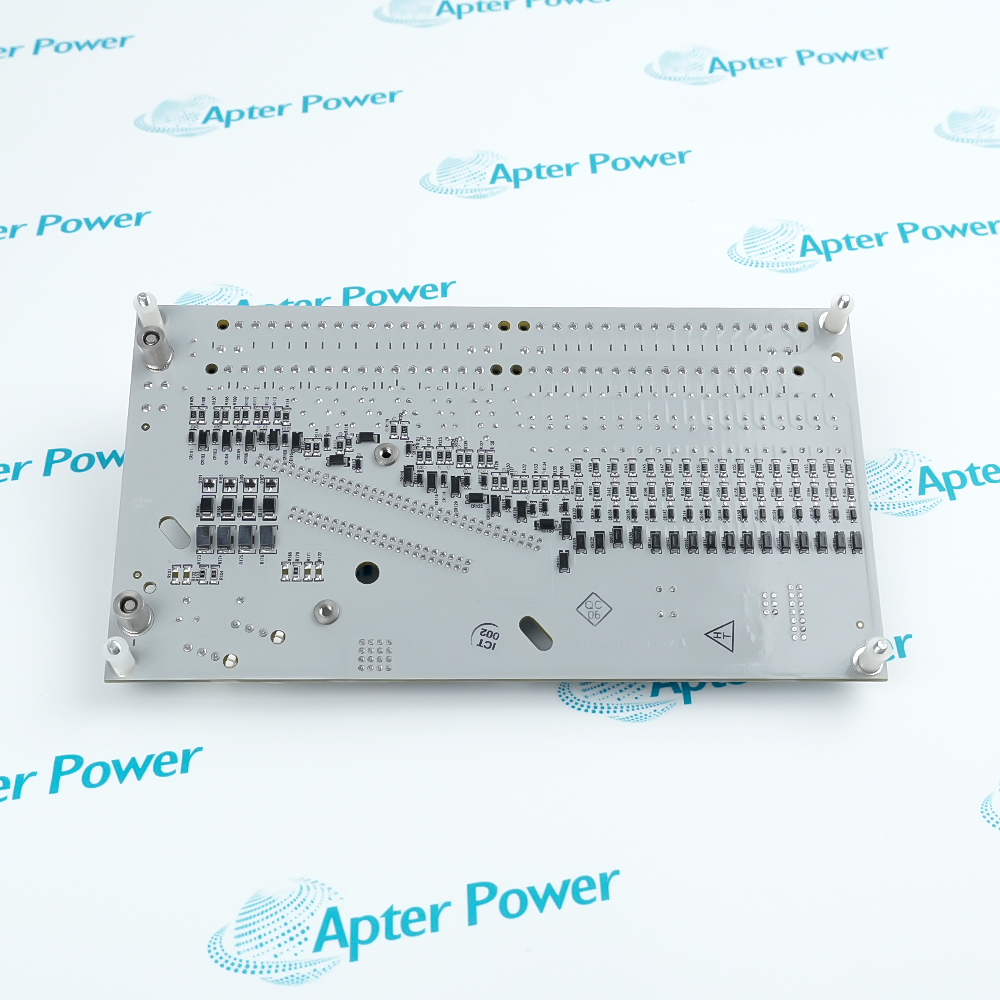

Technical specifications for CC-TDI220-51308394-275
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:CC-TDI220 51308394-275
-
Estimated shipping dimensions:14cmx 3.5 cmx 11cm
-
Weight:0.38 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Input Channels:32 digital inputs
-
Input Voltage:24V DC nomina
-
Input Range:0 to 30 V DC
-
Input Current:6 mA per channel at 24 V DC
-
Response Time:5 ms typical
-
Isolation:1500V DC channel-to-system
-
Power Supply:24 V DC, 0.5 A max
-
Operating Temperature:-20C to 70C
-
Storage Temperature:-40°C to 85°C
-
Humidity:5% to 95% RH,non-condensing
-
Power Consumption:12 W maximum
FAQ View All FAQ
-
What is the CC-TDI220 51308394-275 main purpose of this module?CC-TDI220 is a high-voltage digital input module designed specifically for the Honeywell Expert PKS process knowledge system and C300 controller.
-
Does it support redundant configuration?According to the specification 51308394-275, this model typically adopts a non redundant IOTA (Input Output Terminal Component) configuration. If your system requires redundant functionality, you usually need to choose the corresponding redundant IOTA (such as a 12 inch redundant model).
-
How durable is the CC-TDI220 51308394-275 module?This module adopts a coated design, which enhances protection against harsh industrial environments such as high humidity and corrosive gases, improving the long-term reliability of the hardware. Its working temperature range is wide, usually supporting stable operation between -40 ° C and 70 ° C.
-
How to install this CC-TDI220 51308394-275 module?The CC-TDI220 module needs to be installed on the I/O terminal assembly (IOTA) on the C300 controller chassis (Chassis). It adopts a compact design and communicates with the controller through the base plate, simplifying the wiring space inside the control cabinet.
-
What is the CC-TDI220 51308394-275 compatibility with Series C system?This module is fully compatible with the Honeywell Expert series control platform. It is a member of the Series C I/O family, using standard I/O links for communication, and can be uniformly configured and diagnosed through Expert software
