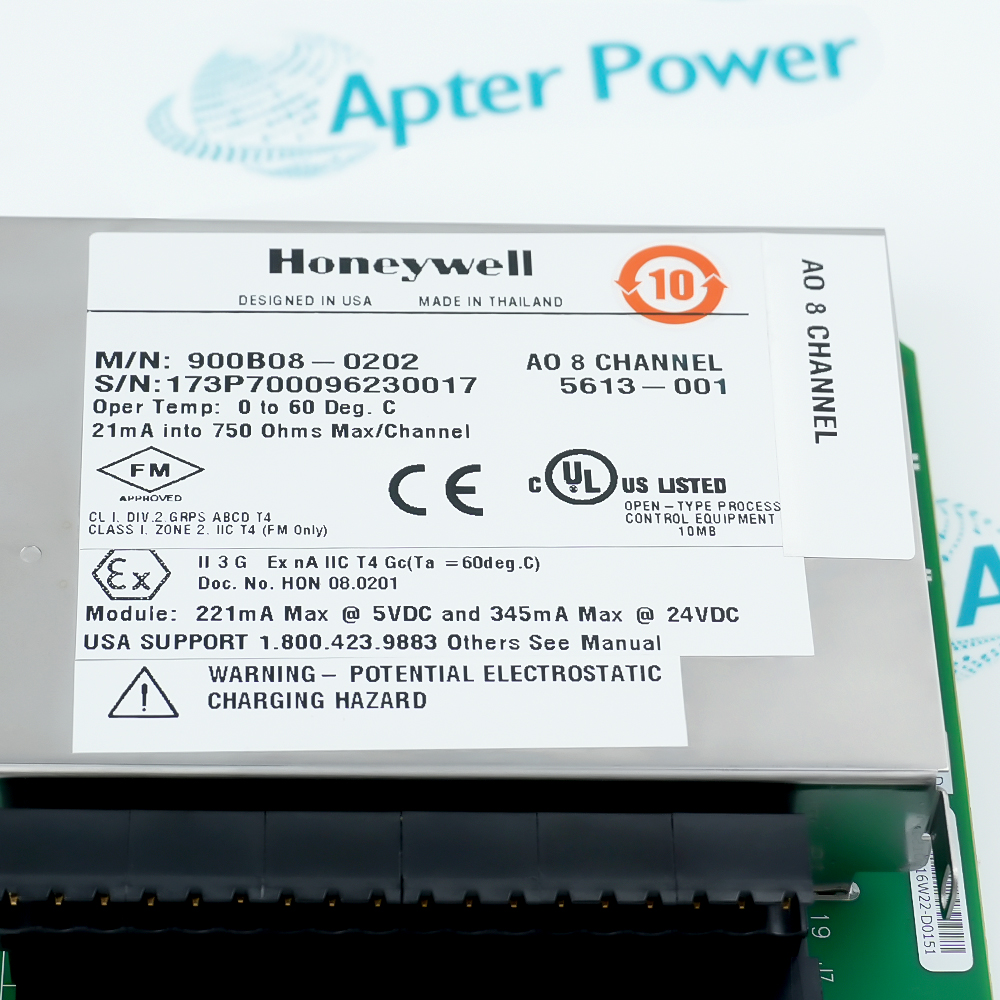

The Honeywell 900B08-0202 is an 8-channel Analog Output module designed for the ControlEdge 900 Platform (HC900). It supports 0-20mA or 4-20mA output ranges with 12-bit resolution and 0.1% accuracy.
- High density 8-channel design
- Comprehensive isolation and protection
- High availability hot swappable
In order to cope with the harsh industrial electromagnetic environment, the 900B08-0202 module is equipped with a comprehensive safety protection architecture.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell 900B08-0202 OUTPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
1. High precision 8-channel analog signal conversion
The core task of this module is to convert the digital logic of the controller into physical current signals.
Multi channel output: A single module integrates 8 independent channels, greatly improving the slot utilization of the control cabinet.
Standard Current Loop: Supports standard signal output from 0 to 20mA (or extended to 0-21mA), perfectly compatible with industrial grade proportional control valves, frequency converters (VFDs), and actuators.
2. Excellent signal accuracy and resolution
For the design of refined process control, ensure that even small changes in output instructions can be reflected on the end devices.
13 bits+high resolution: Provides extremely detailed signal steps to avoid actuator jumps or oscillations.
0.1% full-scale accuracy: extremely low error rate, ensuring strict consistency in the process (such as temperature regulation and pressure control).
3. Industrial grade electrical isolation and self-protection
In order to cope with the complex electromagnetic environment of the factory, the module is equipped with powerful protection mechanisms.
500VDC group isolation: There is 500V electrical isolation between the logic circuit and the output channel to prevent on-site noise interference with the controller CPU.
Open load detection: capable of identifying and providing feedback on the open circuit status of the output circuit, facilitating maintenance personnel to quickly locate disconnection faults.
4. Easy to maintain and high availability design
Support the requirement for "zero downtime" maintenance in modern industrial production.
Support hot swap: Without cutting off the power supply to the controller, faulty modules can be directly replaced to ensure continuous system operation.
Intelligent LED diagnosis: The panel is equipped with status indicator lights, with green indicating normal operation and red indicating module failure or communication interruption.
Its core adopts 500VDC electrical isolation technology, which establishes a strong barrier between the control logic circuit and the field output circuit, effectively preventing the damage of ground potential difference or external electromagnetic surge to the central processing unit (CPU).
The module integrates intelligent load open circuit detection and short circuit protection functions, which can monitor the integrity of the output loop in real time. Once a disconnection or abnormal load is detected, an alarm will be immediately issued through the panel indicator light and system background to prevent the fault from escalating.
In addition, the module supports full hot swap function, combined with built-in current limiting protection and voltage stabilization circuit, to ensure that there will be no arc or voltage transient during live replacement, thus ensuring the continuous operation safety of industrial sites in all aspects of physical and electrical aspects.
