      HARDY 1746-WS
      HARDY 1746-WS
      HARDY 1746-WS
      HARDY 1746-WS
      HARDY 1746-WS
      HARDY 1746-WS
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      1746-WS

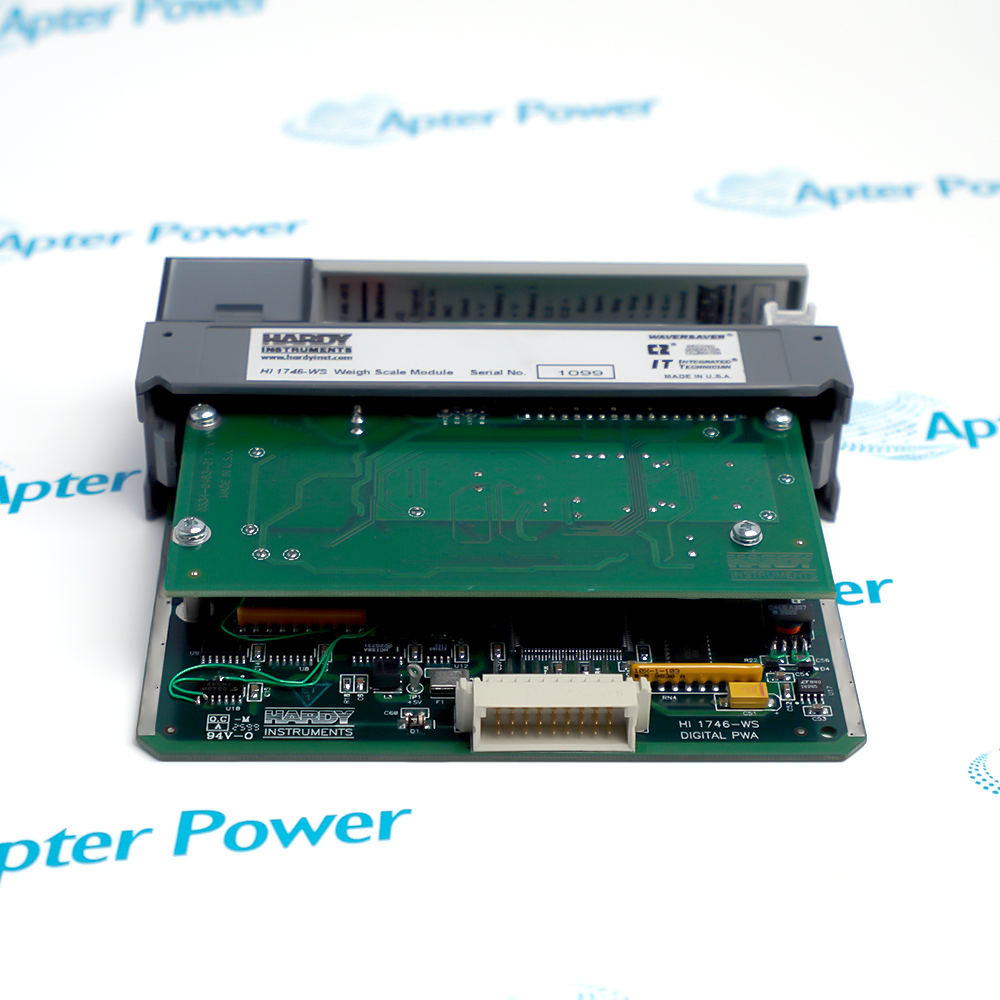

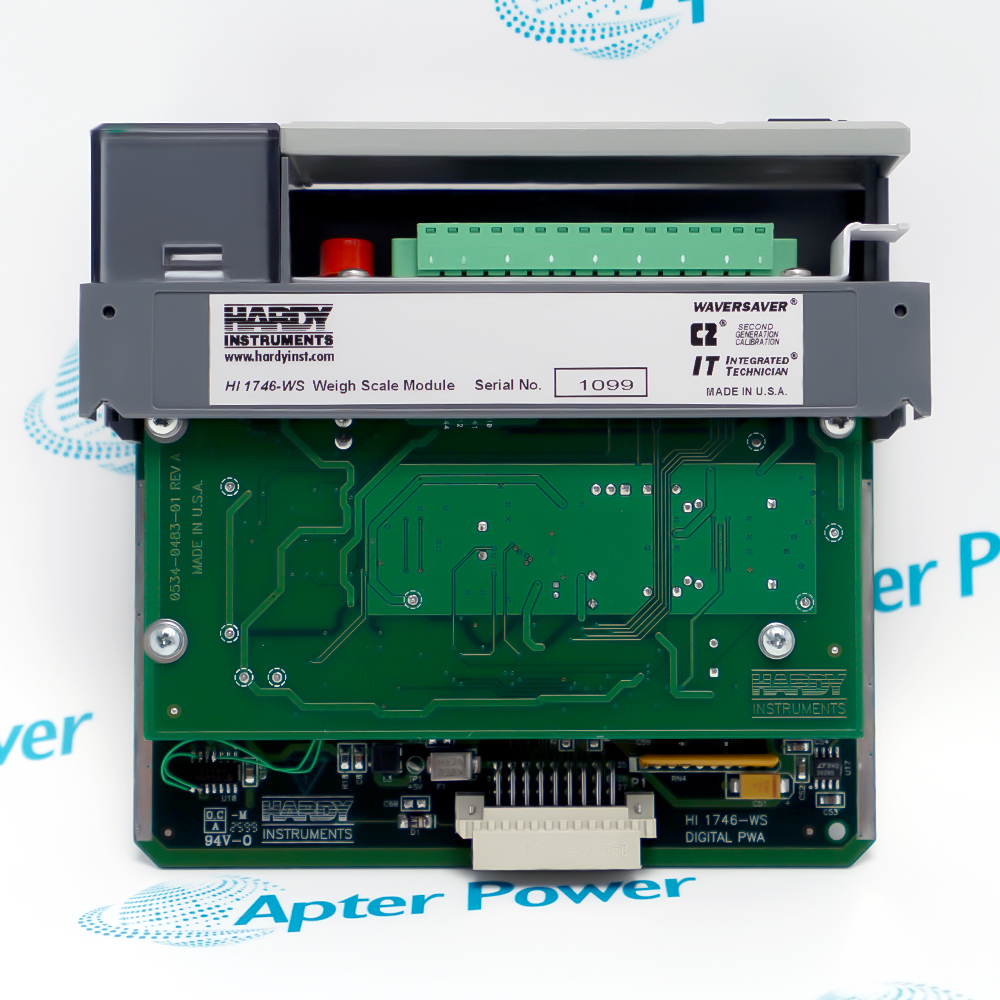

      HI 1746-WS Weigh Scale Module
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Hardy 1746-WS is a self-contained weigh-scale I/O module that plugs into an Allen-Bradley SLC 500 chassis. It converts load-cell signals for gross, net and rate-of-change weighing and exchanges values through scanned I/O and M-file data.

      Ask our team:

      Get a quick price for： 1746-WS
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 1746-WS

      Technical specifications for 1746-WS

      • Manufacturer:
        HARDY
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1746-WS
      • Weight:
        0.5 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Module type:
        SLC 500 weigh-scale I/O module
      • A/D conversion:
        20 bit
      • Display counts:
        980,000
      • Scanned I/O:
        32 words
      • M-file data:
        128 words
      • WAVERSAVER:
        0.25 Hz and above; five selectable steps
      • Weighing modes:
        Gross, Net and Rate-of-Change
      • Calibration:
        C2, test-weight and soft/manual methods
      • Control outputs:
        Two TTL outputs for relay control
      • Weight:
        1.1 lb / 0.5 kg
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Hardy 1746-WS is a self-contained weigh-scale I/O module that plugs into an Allen-Bradley SLC 500 chassis. It converts load-cell signals for gross, net and rate-of-change weighing and exchanges values through scanned I/O and M-file data.
      • 20-bit conversion with 980,000 display counts
      • WAVERSAVER filtering for mechanical-vibration rejection
      • C2 electronic calibration plus test-weight and soft calibration
      • Direct SLC scanned-I/O and M-file data exchange

      Install 1746-WS in a documented SLC 5/02, 5/03, 5/04 or 5/05 system and record the load-cell wiring, calibration method, WAVERSAVER setting and M-file mapping. Complete zero, span and live-load verification before enabling scale-dependent logic.

      Important Notice: Verify 1746-WS from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power 1746-WS Manuals and Guides
      Apter Power 1746-WS Product Technical ReferenceHardy HI 1746-WS Operation and Installation Manual 0596-0234-01 Rev. J

      Important Notice: Use these model-specific records together with the current manufacturer publication and the installed-system documentation.

      Hopper and vessel weighing
      Converts load-cell signals for batch, inventory and material-handling control.
      SLC 500 batching systems
      Supplies gross or net weight to PLC logic through the documented data map.
      Rate-of-change monitoring
      Calculates weight change for controlled filling, discharge or material-flow observation.
      Vibration-affected scales
      Uses WAVERSAVER filtering to reduce the influence of plant mechanical vibration.
      Read the applicable HARDY instructions before work. Verify 1746-WS and the installed system configuration.
      1
      Verify the complete 1746-WS marking and hardware series before installation.
      2
      Confirm the SLC processor supports the required scanned-I/O and M-file access.
      3
      Remove chassis and field power before inserting or removing the module.
      4
      Use ESD controls and preserve the load-cell shield and single-point grounding arrangement.
      5
      Record load-cell excitation, sense, signal and C2 wiring before disturbance.
      6
      Select the WAVERSAVER frequency from the actual process response, not a copied project.
      7
      Perform the documented zero and span calibration with an approved method.
      8
      Prove gross, net, rate, setpoint and PLC data mapping before releasing scale logic.

      Technical notes

      Technical notes

      Install 1746-WS in a documented SLC 5/02, 5/03, 5/04 or 5/05 system and record the load-cell wiring, calibration method, WAVERSAVER setting and M-file mapping. Complete zero, span and live-load verification before enabling scale-dependent logic.

      FAQS

      • Which SLC processors support Hardy 1746-WS?
        The manual documents operation in SLC 5/02, 5/03, 5/04 and 5/05 systems subject to the required data-file handling.
      • What converter resolution does Hardy 1746-WS use?
        The module uses a 20-bit analog-to-digital converter and provides 980,000 display counts.
      • How much scanned I/O is used by Hardy 1746-WS?
        The module uses 32 words of scanned I/O and also provides 128 words through M files.
      • What weighing modes are available in Hardy 1746-WS?
        The documented modes are Gross, Net and Rate-of-Change.
      • What calibration methods are supported by Hardy 1746-WS?
        It supports C2 electronic calibration, hard or test-weight calibration and soft or manual load-cell calibration.
      • What does WAVERSAVER do in Hardy 1746-WS?
        WAVERSAVER filters mechanical vibration from the weight signal, with selectable response settings from 0.25 Hz and above.
      • Is WS100 software required for Hardy 1746-WS operation?
        No. Hardy identifies WS100 as an optional configuration and troubleshooting tool rather than an operating requirement.
      • What must be tested after replacing Hardy 1746-WS?
        Verify load-cell wiring, calibration, zero, span, gross/net/rate values, setpoints, M-file mapping and PLC interlocks.
